Datavideo NVD-40 4K HDMI IP Video Decoder

Datavideo NVD-40 4K HDMI IP Video Decoder

Decode Videos from Datavideo Encoders, Youtube Live, UStream, and Other Major CDNs

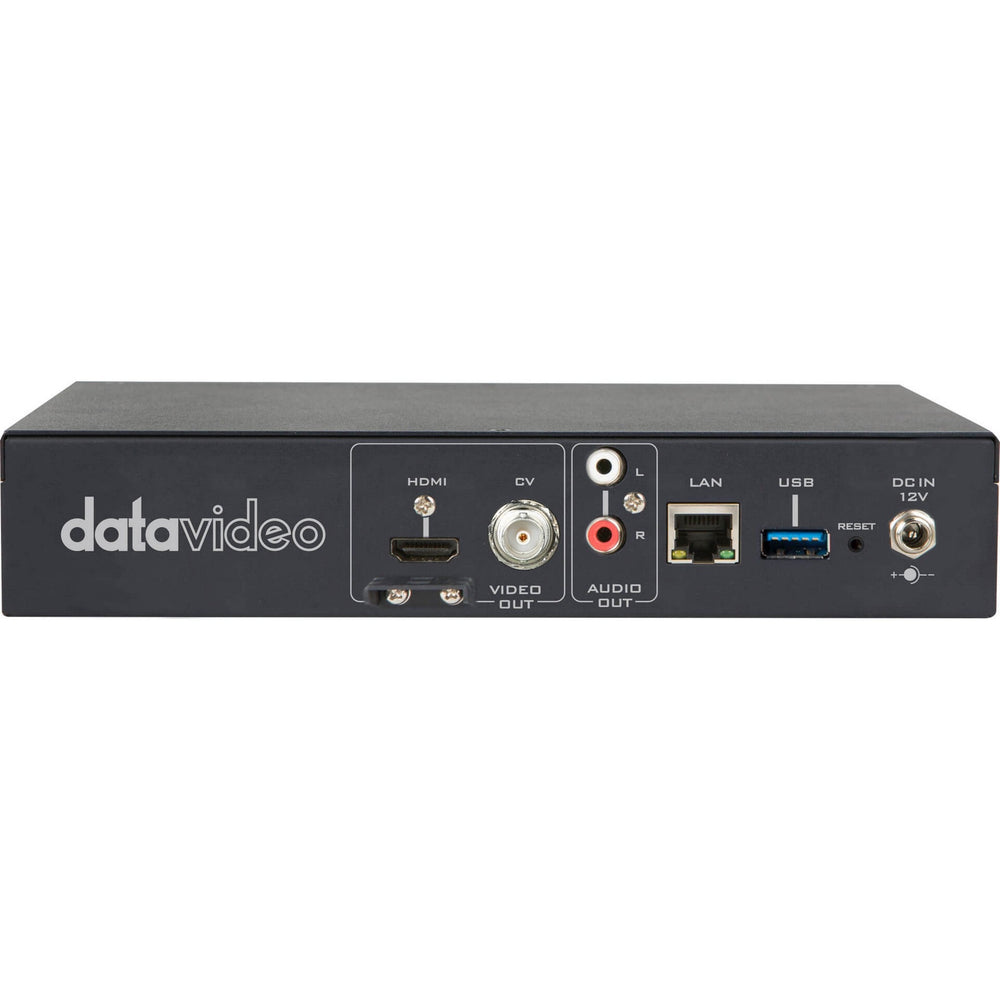

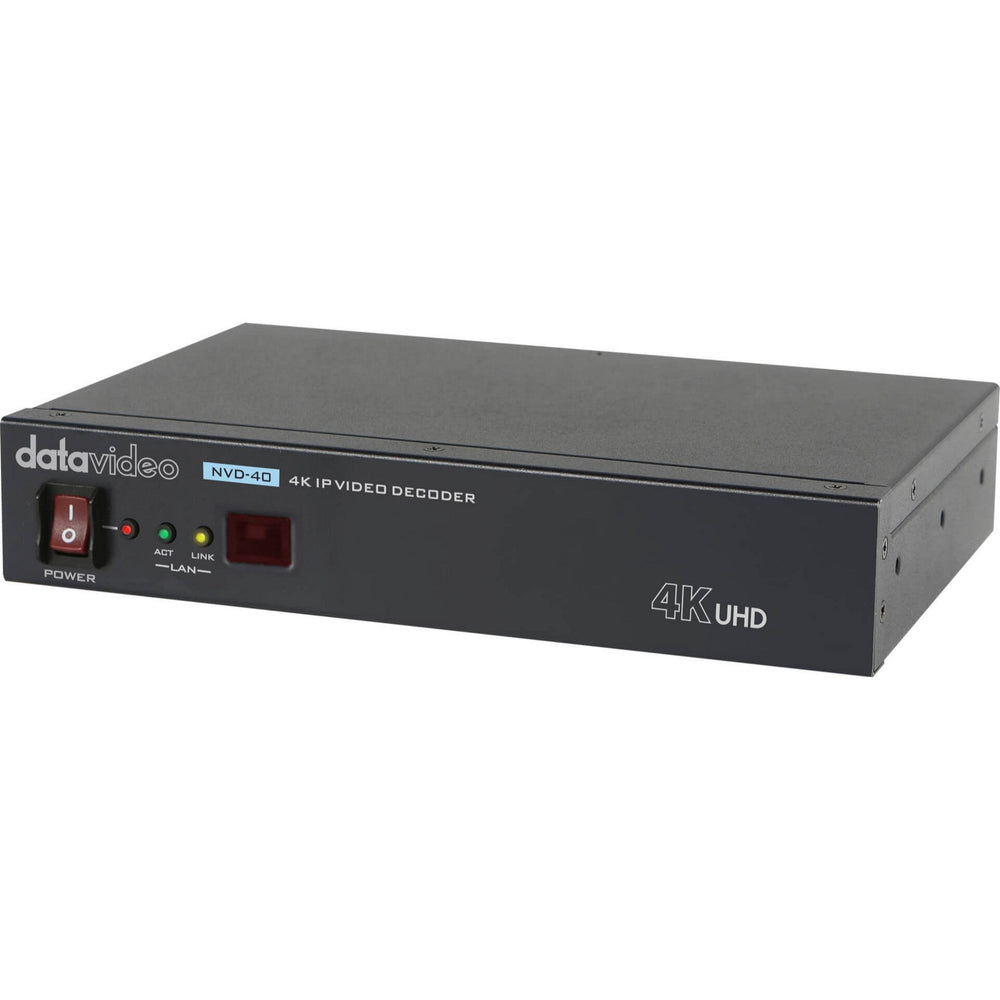

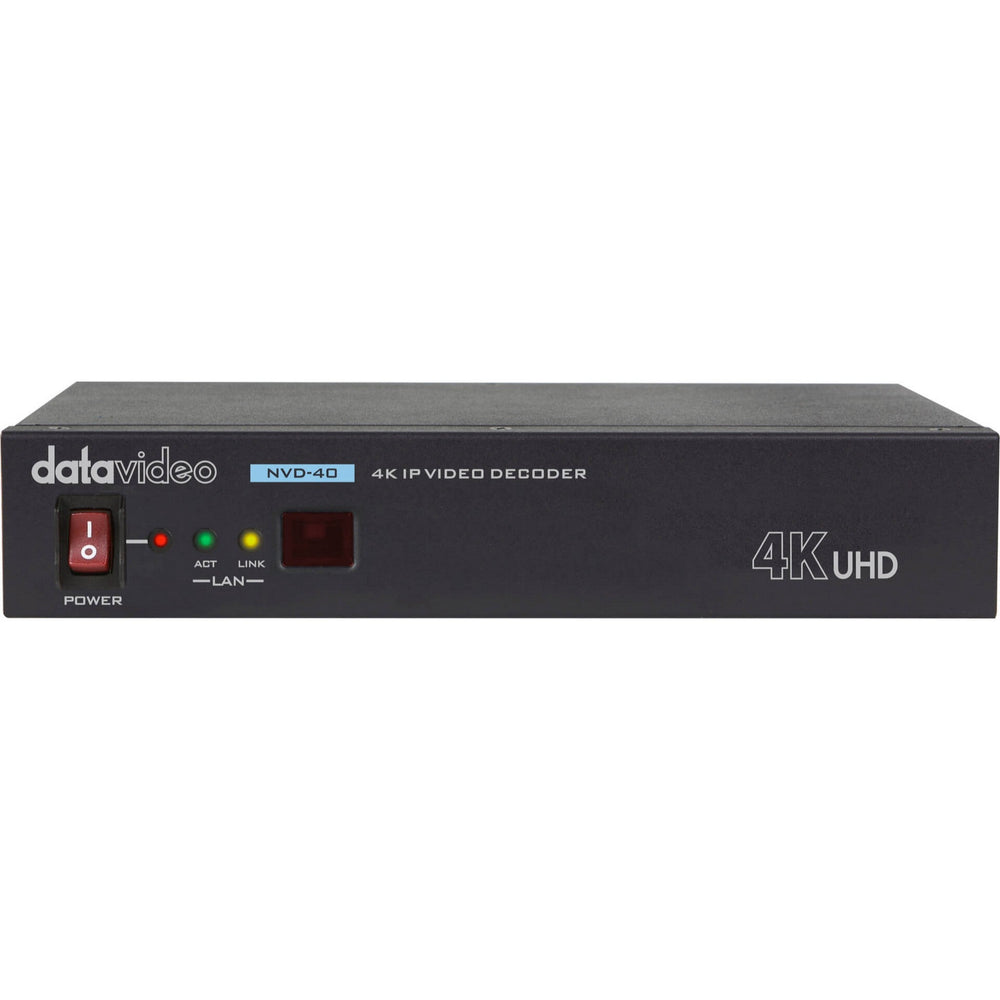

Datavideo NVD-40 is a H.264/H.265 4K IP video decoder with HDMI, composite video, and analog audio outputs. The NVD-40 can decode all common streaming protocols such as SRT, RTSP, RTMP, HLS and MPEG-TS, and output video at resolutions up to 4096x2160p.

NVD-40 can also directly decode video streams from many live platforms such as YouTube Live, Dailymotion and Livestream. The NVD-40 allows you to create 4K point-to-point connections via Ethernet, Wi-Fi or the public Internet.

Simultaneous Outputs
Connect your NVD-40 to multiple devices in your workflow for flexibility. All the outputs are active at the same time.

Datavideo NVD-40 is a H.264/H.265 4K IP video decoder with HDMI, composite video, and analog audio outputs.

The RCA stereo supports a line level analogue audio.

Decodes all common streaming protocols
The NVD-40 can decode all common streaming protocols such as SRT, RTSP, RTMP, HLS and MPEG-TS, NVD-40 can also directly decode video streams from many live platforms such as YouTube Live, Dailymotion and Livestream.

Decodes all common streaming protocols including SRT
SRT is a video streaming protocol designed to delivering low latency video streams across lossy networks such as the public internet. In a nutshell, SRT brings the best quality live video over the worst networks. It accounts for packet loss, jitter, and fluctuating bandwidth all while maintaining the integrity and quality of video.

Pristine Quality
SRT protects against jitter, packet loss, and bandwidth fluctuation, ensuring the best possible viewing experience.

Extremely Secure
SRT protects against jitter, packet loss, and bandwidth fluctuation, ensuring the best possible viewing experience.

Always Reliable
No matter how unreliable your network, SRT can recover from severe packet loss and jitter, ensuring the integrity and quality of your video streams.

Low Latency
SRT’s stream error correction is configurable to accommodate a user’s deployment conditions. Leveraging real-time IP communications development to extend traditional network error recovery practices, SRT delivers media with significantly lower latency than TCP/IP, while offering the speed of unreliable UDP transmission without the disadvantage.

Output high quality video at 2160p 50/60 FPS
The NVD-40 IP Video Decoder supports HDMI and Composite video output with resolutions up 3840x2160p 50/60 FPS and 4096x2160p 30 FPS. RCA audio output is also supported.

Perfectly Matched with Datavideo Streaming Encoders
The NVD-40 can be matched with Datavideo NVS-33/34/35/40 and other webcast encoders to create a Full HD video transmission architecture based on Ethernet, WiFi or the Internet.

Real-time Video Flip and Rotate
The NVD-40 adds real-time video flipping and rotating functions for more flexible video output options.

Technical Specifications

Model Number
NVD-40
Audio/Video Input
Stream Input
RTSP over UDP (Unicast / Multicast)
RTSP over TCP
RTSP over HTTP
SRT (Secure Reliable Transport) caller
MPEG-TS over UDP
RTMP Pull
RTMP Push (Internal Server)
UDP raw (Unicast/Multicast)
HLS over HTTP
MPEG-TS over TCP Pull
Supported video sharing websIt's
Audio Output
2 x RCA(L/R)
HDMI embedded audio
Video Output
HDMI 2.0 x 1 (Digital)
Composite x 1 (Analogue)
Network Feature
1x RJ-45 Female (10/100/1000M Ethernet) DHCP/Static IP
Supported Video Resolution
3840x2160p: 60/59.94/50/30/29.97/25/24/23.98 (H.265 Only)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50, 720p: 60/59.94/50
576i 50 (PAL)
480i 60 (NTSC)
Supported Decoding Resolution
Up to 2160p60/50
Control
Web browser UI for configuration and control
Socket commands
Update
Automatic firmware upgrade
Power
Input AC 100~240V Switching Adaptor
Output DC 12V / 1A
Environmental Conditions
Operating temperature: 0~40 Degrees C, Storage temperature: -20~60 Degrees C
Dimension (LxWxH)
220 x 143 x 42 mm
Weight
1 kg
Power
DC 12V, 1A
What's in the Box
1 x NVD-40 product
1 x AD Switch DC 12V
1 x Remote Control
