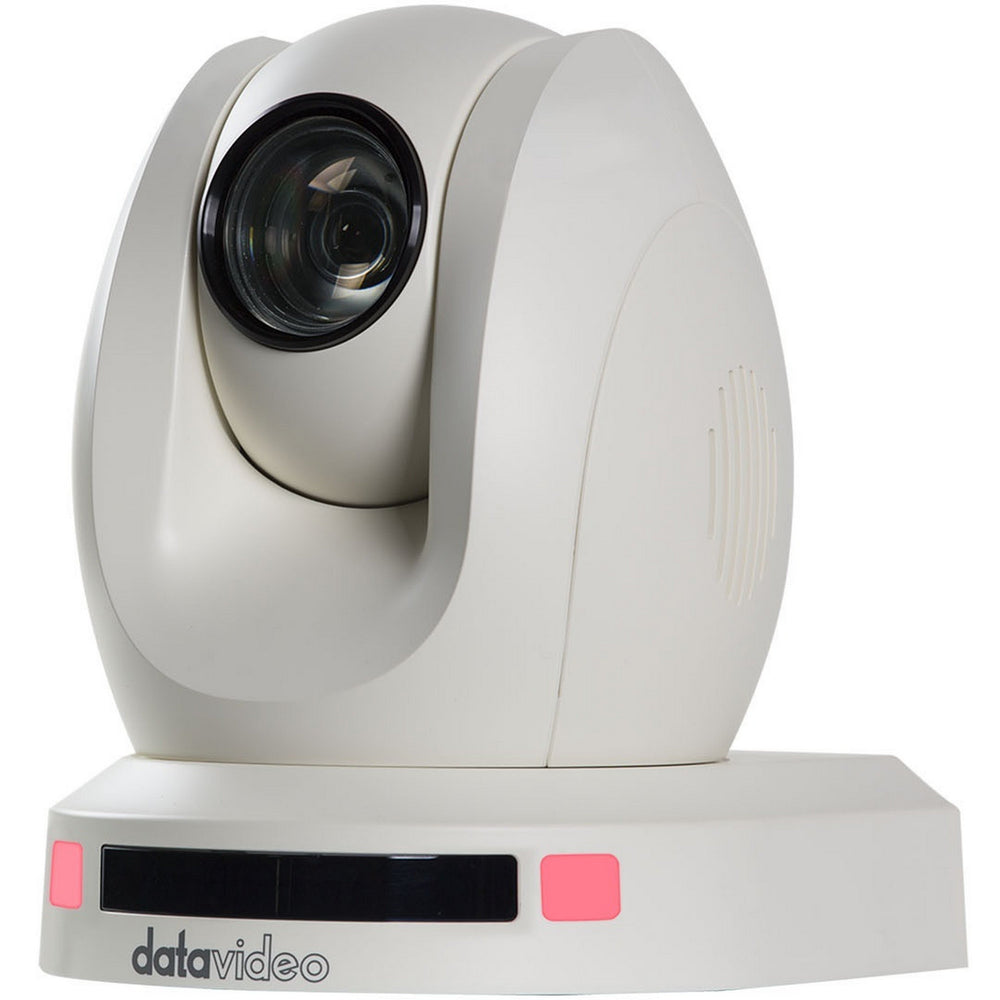

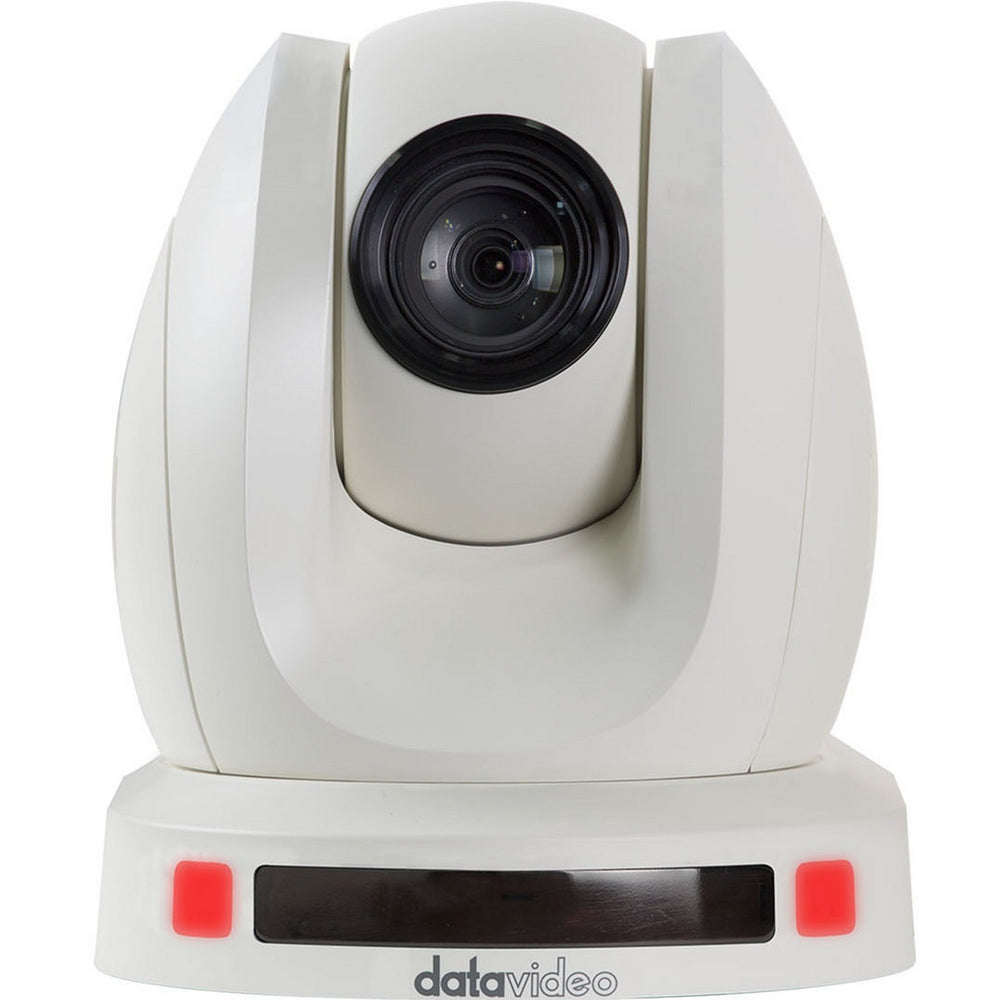

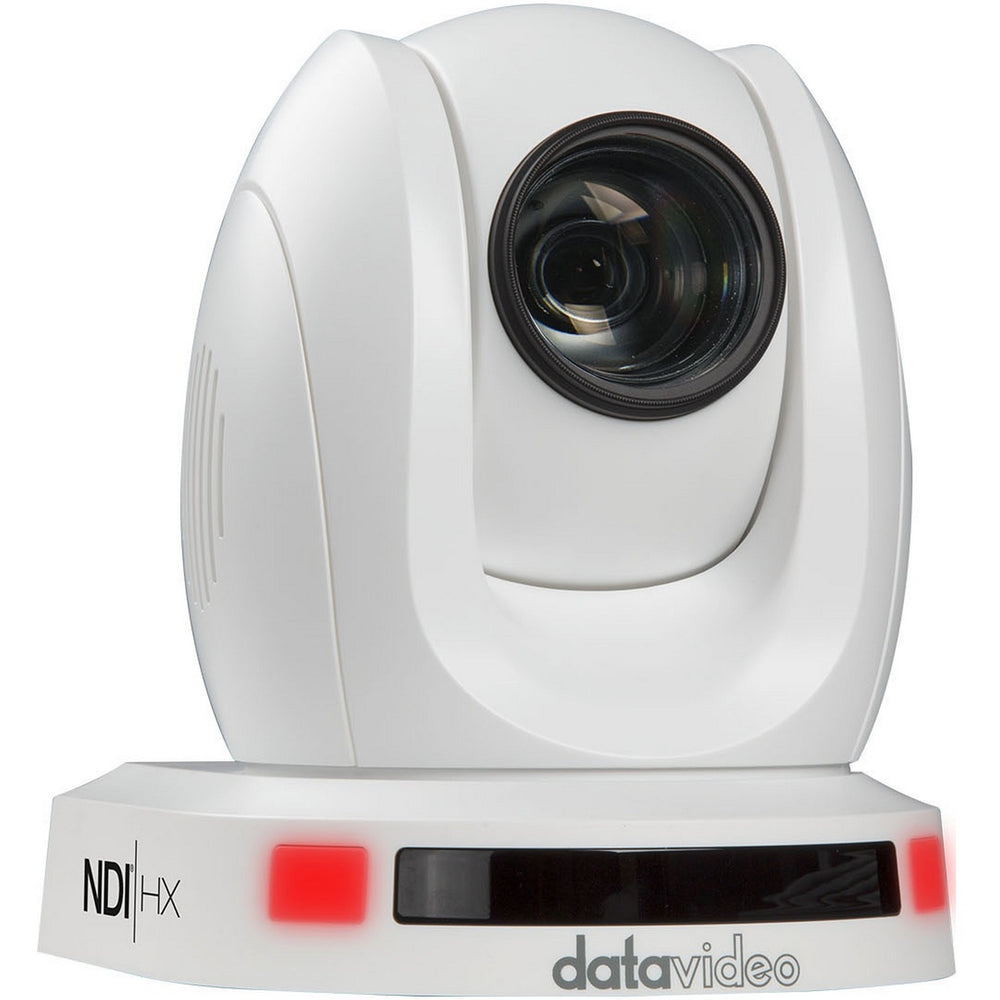

Datavideo PTC-140NDIW 20x NDI HX, 3G-SDI/HDMI PTZ Camera, White

Datavideo PTC-140NDIW 20x NDI HX, 3G-SDI/HDMI PTZ Camera, White

Support compression of resolution up to 1920x1080 with frame up to 60fps and 2 channel 1920x1080p with 30fps compression. AAC, MP3 and PCM audio compression also supported. PTC-140NDI provides a wide Field of View of 54, easily shooting all the scenes in the field. PTC-140NDI is available in two colors, dark blue and white. Suitable for broadcast, worship, video conferencing and etc. Control real-time pan, tilt, and zoom camera movements with Datavideo RMC-300A and 180. RS-232, RS-422 and RS-485 ports to use DVIP and VISCA commands to integrate with larger control systems. There is no need for multiple cables and complicated setup. Single-wire concept helps you to transfer video, audio, power, tally, and control over only one Ethernet cable. Power Over Ethernet (PoE) functionality allows you transmit all the information and power over only one cable. Green and red lights tally to show the preview and program status for broadcast applications. Datavideo's wide range of encoders, cameras, and hand-carry switchers are fully supported by SRT and dvCloud. Datavideo encoders and dvCloud provide reliable streams over unreliable networks. By using a Datavideo encoder and dvCloud together, you can utilize SRT (instead of RTMP) on the initial problematic connection or “First Mile.” After your video stream reaches dvCloud, you can depend on dvCloud's reliable, high-bandwidth network to deliver the stream to your favorite destinations, like Facebook and YouTube. Datavideo Academy is a comprehensive learning platform established by Datavideo Technology. As a professional Broadcast and AV equipment manufacturer, Datavideo Technology is not only committed to providing quality products to users, but also has the responsibility to help users learn to operate Datavideo products.

Technical Specifications

Model Number
PTC-140NDI
Video format/Resolution
1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50
Image Sensor
1/2.8 inch high quality HD CMOS sensor
Effective Pixels (approx.)
2.07 Mega pixels
S/N Ratio
>55dB
Min. Illumination
0.5Lux (F1.8, AGC ON)
Electronic Shutter
Auto / Manual
Zoom Ratio
20x Optical Zoom, 10x Digital Zoom
Gamma Control
Off / Normal
Iris Control
Auto / Manual
Digital Noise Reductions
Yes
On-Screen Display (OSD)
English, Simplified Chinese
White Balance
Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K
AGC / Gain Control
Auto / Manual
Mirror / Flip Image
Yes
Focus Mode
Auto / Manual
Panning / Tilting Range
Pan: 340 , Tilt: +90 to -30
Panning / Tilting Speed
Pan: 0.1~60/sec
Tilt: 0.1~30/sec
Preset
255 Position
Focal Length
f=5.2 (wide) to 98 (tele) mm
F1.6 to F3.5
Field of View (Horizontal, Wide)
Approx. 54.7 (WIDE END) / 3.3 (TELE END)
Image Compensation
Backlight Compensation

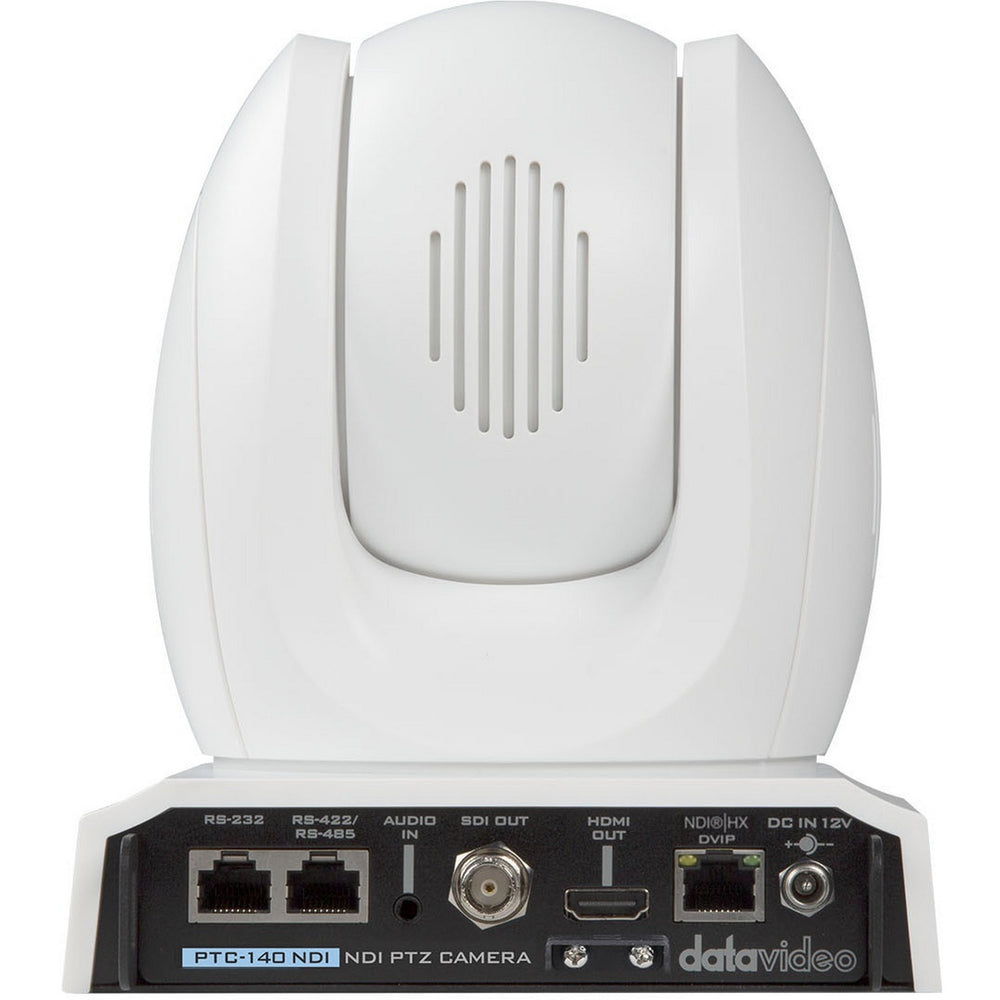

Video Output
HDMI x 1
SDI x 1
Audio Input
3.5mm Line in
Tally LED
Dual color (Red, Green)
Lens Filter
M52.0 x 0.75 Thread with UV Protection
Control Protocol
Pelco-D, Peldo-P,
VISCA, VISCA over IP
DHCP, RTSP, RTMP (IP Cam), RTMPS,
DVIP
NDI
Remote Control Interface
LAN: for IP control (DVIP / NDI)
RS-232, RS-422, RS-485
Video Compression Format
H.264, H.265, Dual stream output
Audio Compression Format
AAC/MP3/G.711A Audio compression
Audio Bitrate
96Kbps, 128Kbps, 256Kbps
HD IP Interface
100M IP port(100BASE-TX); Support DVIP and NDI
Streaming Protocols
TCP/IP, HTTP, RTSP, RTMP(S), DHCP, SRT, Multicast, etc
POE
IEEE802.3af
F/W Update
Ethernet
IR Control
Yes
Camera Control Unit
RMC-180 series/RMC-300 series/PTZ View Assist APP
Tripod Mount
1/4-20 UNC
Optional Accessories
WM-1/ WM-10/ WM-11
Color
Dark Blue/White
Dimension (LxWxH)
156 x 184 x 186 mm
Weight
1.6 kg
Operating Temp. Range
0~40 C
Power
DC 12V 12W
What's in the Box
1 x PTC-140 NDI Unit

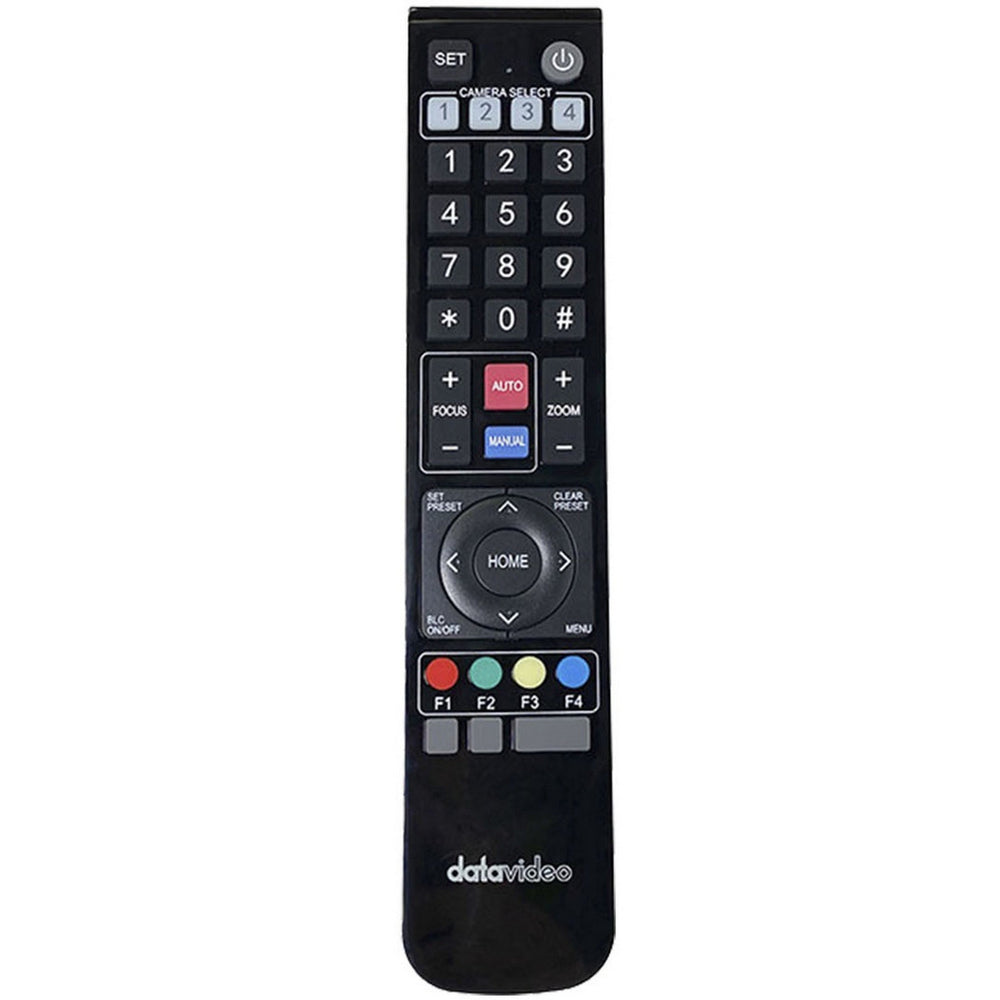

1 x IR remote controller
1 x Ceiling mount bracket-A
1 x Ceiling mount bracket -B
6 x Ceiling mount bracket screw M3*4mm
1 x DC 12V Power Adaptor
1 x Power Cord
1 x A tightrope
