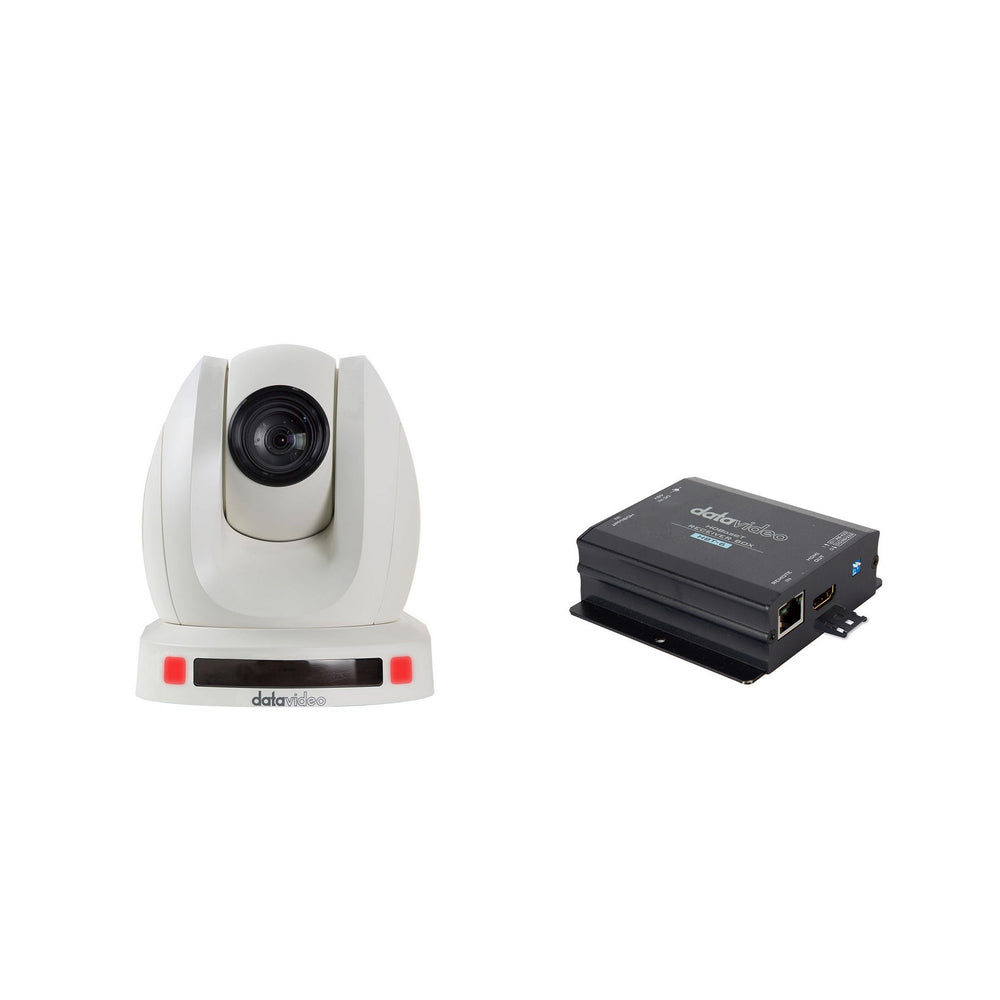

Datavideo PTC-140TW-6 HDBaseT PTZ Camera with HBT-6 Receiver, White

Rather than using one cable for video, a second cable for power, and a third cable for camera control, the PTC-140T is able to do all of the above using a single ethernet cable (with RMC-180 Controller). This increase in flexibility greatly reduces setup time, and now you can mount the camera in challenging locations, like spots without nearby power outlets. The PTC-140T features 1/2.8 inch CMOS sensor, 1920x1080px Full HD resolution, 60fps. The PTC-140T features 1/2.8 inch CMOS sensor, 1920x1080px Full HD resolution, 60fps. Supports advanced digital noise reduction, even in less-than-perfect lighting conditions can shoot clear and smooth image. With its ergonomic joystick and tactile button layout, the RMC-180 makes it easy to set up and control up to four Datavideo PTC-140T cameras for any live video production. RMC-300A Designed to control up to 24 PTC-140 cameras, with preset memory for easy camera control. Able to control up to 24 Datavideo PTC-140 cameras simultaneously, 7 presets for each camera to operate with RGB backlit buttons. Control up to four cameras with your Wireless Touch Screen. It can monitor the live streaming video from PTC-140 series. The app can control up to 4 cameras simultaneously via DVIP, you can intuitively set up and recall the presets, and adjust white balance, focus, and IRIS.

Technical Specifications

Model Number
PTC-140T-6
Video format/Resolution
1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50
Image Sensor
1/2.8 inch high quality HD CMOS sensor
Effective Pixels (approx.)
2.07 Mega pixels
S/N Ratio
>55dB
Min. Illumination
0.5Lux (F1.8, AGC ON)
Electronic Shutter
Auto / Manual
Zoom Ratio
20x Optical Zoom, 10x Digital Zoom
Gamma Control
Off / Normal
Iris Control
Auto / Manual
Digital Noise Reductions
Yes
On-Screen Display (OSD)
English, Simplified Chinese
White Balance
Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K
AGC / Gain Control
Auto / Manual
Mirror / Flip Image
Yes
Focus Mode
Auto / Manual
Panning / Tilting Range
Pan: 340° , Tilt: +90° to -30°
Panning / Tilting Speed
Pan: 0.1~60°/sec
Tilt: 0.1~30°/sec
Preset
255 Position
Focal Length
f=5.2 (wide) to 98 (tele) mm
F1.6 to F3.5
Field of View (Horizontal, Wide)
Approx. 54.7° (WIDE END) / 3.3° (TELE END)
Image Compensation
Backlight Compensation
Video Output
HDBaseT (PoE) x1
RJ-45 x1
Audio Input
3.5mm Line in
Tally LED
Dual color (Red, Green)
Lens Filter
M52.0 x 0.75 Thread with UV Protection
Control Protocol
VISCA, Pelco-D, Pelco-P, DVIP
Remote Control Interface
RS-232
Lan (RJ-45)
HDBaseT(RJ-45)/Serial control on Receiver Box: Transmit up to 100m
Video Compression Format
H.264, H.265, Dual stream output
Audio Compression Format
AAC/MP3/G.711A Audio compression
Audio Bitrate
96Kbps, 128Kbps, 256Kbps
HD IP Interface
100M IP port(100BASE-TX); Support DVIP
Streaming Protocols
TCP/IP, HTTP, RTSP, RTMP(S), DHCP, SRT, Multicast, etc
F/W Update
Ethernet
IR Control
Yes
Camera Control Unit
HS-1500T/HS-1600T series/RMC-180 series/RMC-300 series/PTZ View Assist APP
Tripod Mount
1/4-20 UNC
Optional Accessories
WM-1/ WM-10/ WM-11
Color
Dark Blue/White
Dimension (LxWxH)
156 x 184 x 186 mm
Weight
1.6 kg
Operating Temp. Range
0~40 °C
Power
DC 12V 12W
What's in the Box
1 x PTC-140T Unit
1 x HBT-6 Receiver
1 x IR remote controller
1 x Ceiling mount bracket-A
1 x Ceiling mount bracket-B
6 x Ceiling mount bracket screw M3*4mm
1 x DC 12V Power Adaptor
1 x Power Cord
1 x A braided safety cable
1 x RS-232 DB9 9 Pin to 8 Pin Mini DIN Cable
