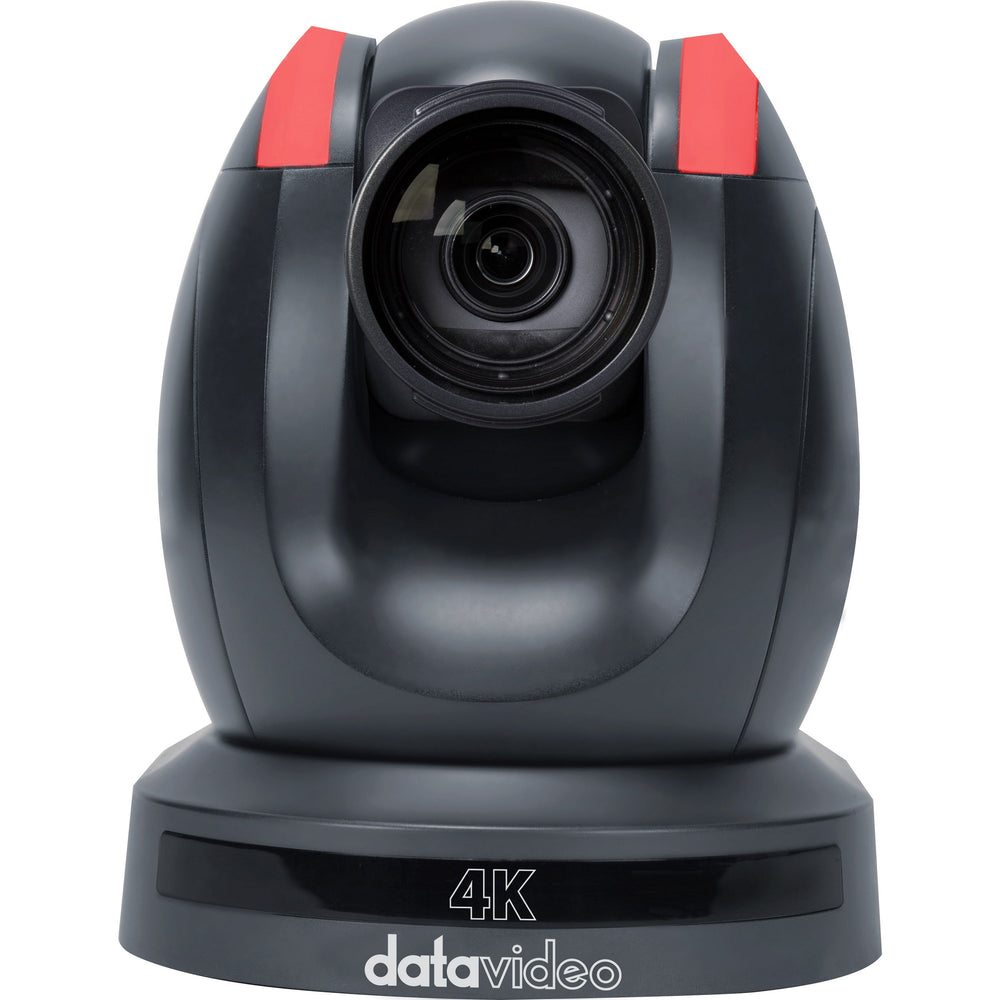

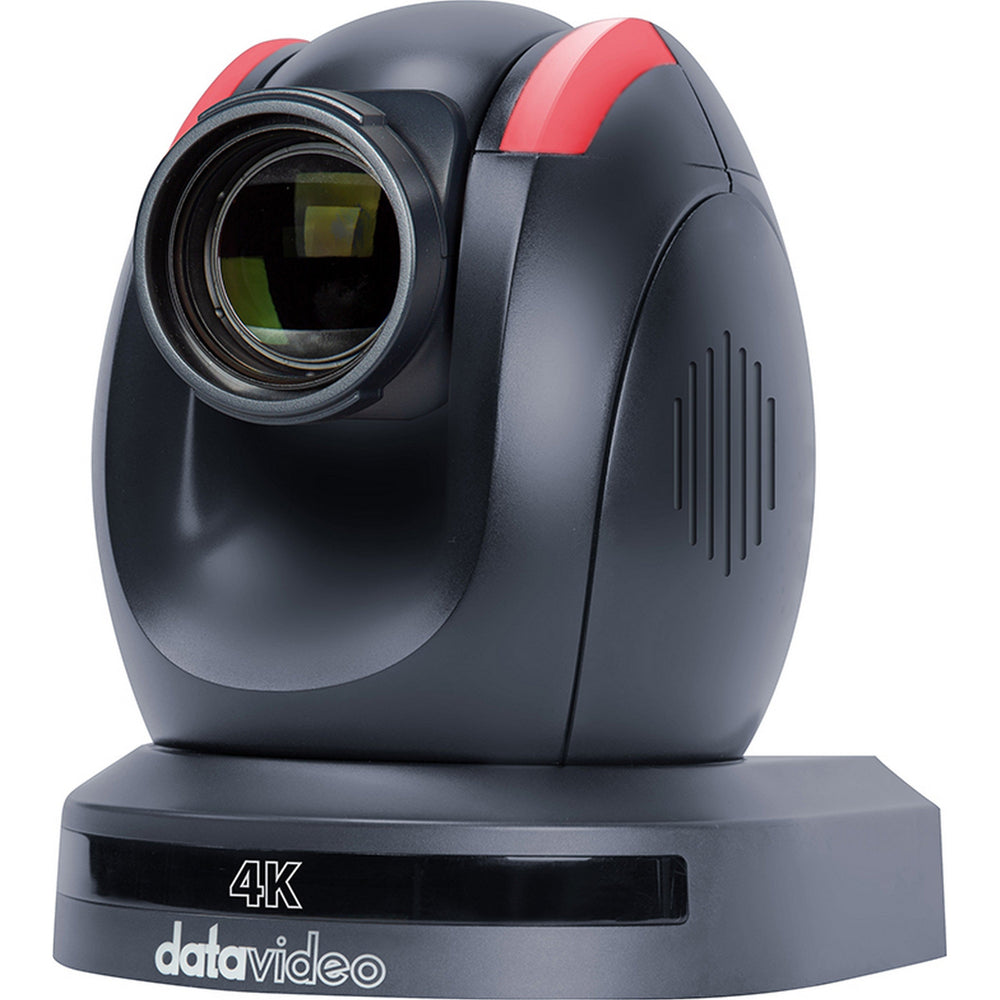

Datavideo PTC-280 12x 4K PTZ Camera

Datavideo is introducing the 4K50/60p PTZ camera lineup which includes the PTC-280, professional PTZ cameras help you capture your event. PTC-280 can be easily controlled via traditional RS-422 serial port, or IP remote control via DVIP (Datavideo proprietary protocol) or Sony VISCA over IP. This brand new 4K camera series supports dual streaming output for A/V market application, you can easily stream to Facebook (RTMPS), YouTube and dvCloud.

Low Noise in Low Light
Advanced 2D/3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.

Multiple Simultaneous Video Outputs
Supports simultaneous HDMI 2.0 and IP output up to 2160p 50/60 and also 3G-SDI output up to 1080p60/50.

Multiple Network Protocol with Dual Stream Function
Support RTSP and RTMPS protocols, easy to stream directly to two different CDN platforms and Datavideo dvCloud as well.

Supports H.264/H.265 Video Compression
Support compression of resolution up to 3840x2160 with frame up to 59.94, 60fps and the second channel 1280x720p with 30fps compression. AAC, MP3 and PCM audio compression also supported.

Technical Specifications

Video Output Resolution
2160p60/59.94/50/30/29.97/25 1080p60/59.94/50/30/29.97/25
1080i60/59.94/50 720p60/59.94/50
Image Sensor
1/2.5" CMOS
Effective Pixels (approx.)
8.51Mega Pixels
S/N Ratio
>=55dB
Min. Illumination
0.5 Lux @ (F1.8, AGC ON)
Zoom Ratio
12x Optical, 16x Digital Zoom
Gamma Control
Off / Normal
Iris Control
Auto / Manual
Digital Noise Reductions
2D/3D Noise Reductions
On-Screen Display (OSD)
English/Simplified Chinese/Traditional Chinese
White Balance
Auto, Indoor, Outdoor, One Push, Manual
AGC / Gain Control
Yes
Mirror / Flip Image
Yes
Focus Mode
Auto/Manual
Panning/Tilting Range
Pan: 300
Tilt: +130 to -15
Panning/Tilting Speed
Pan: 0.876/s~43/s
Tilt: 0.693/s ~21.32/s
Preset
255
Focal Length
12x, f = 6.7mm ~125mm, F1.58 ~ F3.95
Field of View (Horizontal, Wide)
71
Image Compensation
Back light compensation

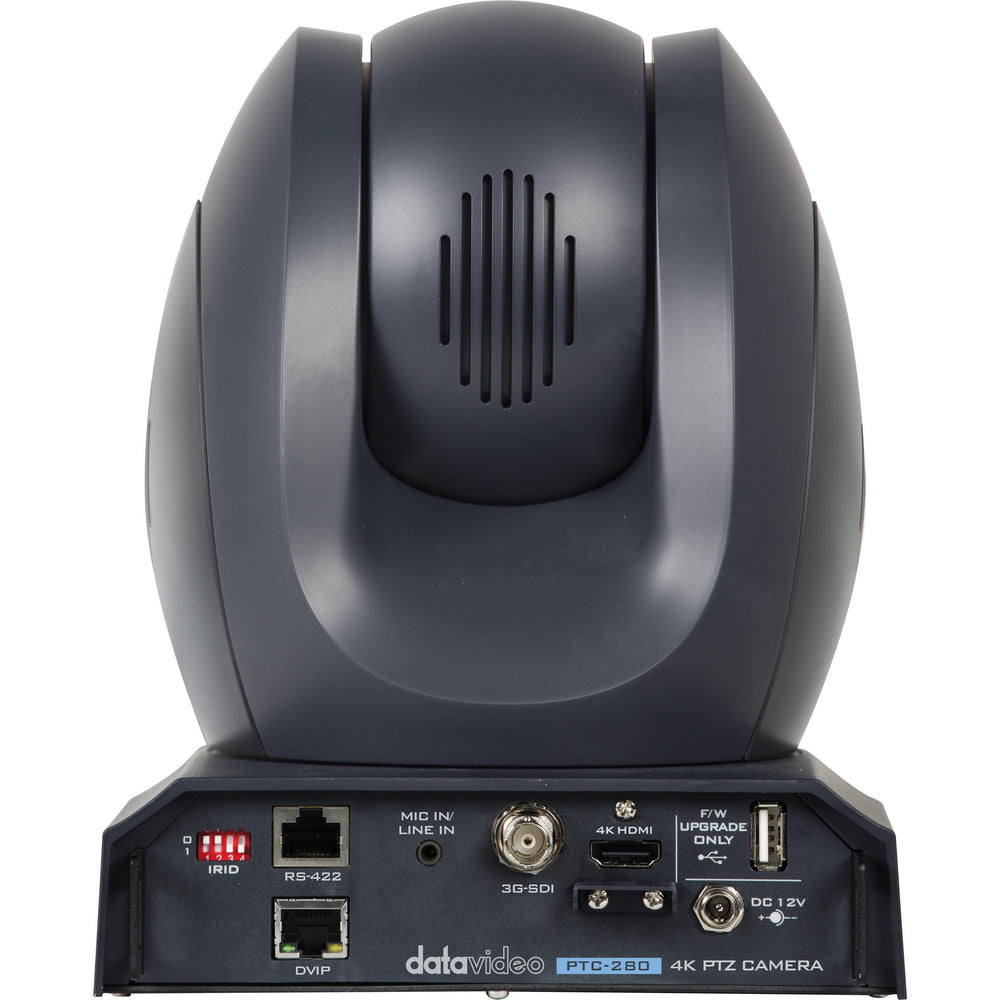

Video Output
HDMI 2.0 x1 ,3G-SDI x1, 10/100/1000M RJ45 x1
Audio Input
3.5 mm x1 (mic in/line in)
Tally LED
Yes
Filter
N/A
Protocol
Pelco-D, Peldo-P, VISCA, VISCA over IP
DHCP, RTSP, RTMP (IP Cam), RTMPS, DVIP
Remote Control Interface
IR , Web UI , RS-422 , DVIP
F/W Update
Via Web UI or USB 2.0
IR Control
Yes
Camera Control Unit
RMC-180,RMC-300A, RMC-300C
Video Compression
H.264/H.265/MJPEG
Video Stream
Dual Stream
First Stream Supported Resolution
3840x2160 , 1920x1080 , 1280x720 , 1024x576
960x540 , 640x480 , 640x360
Second Stream Supported Resolution
1280x720 , 1024x576 , 720x576 (50Hz) , 720x480 (60Hz)
720x408 , 640x360 , 480x270 , 320x240
Video Bitrate
32Kbps ~ 50Mbps (Single Stream)
Video Bitrate Mode
VBR, CBR
Encoding Framerate
50Hz: 1-50fps
60Hz: 1-60fps
Audio Compresion
AAC
Audio Bitrate
96Kbps, 128Kbps, 256Kbps
Supported Protocols
TCP/IP, HTTP, RTSP, RTMP(S), ONVIF, DHCP, Multicast
Power
DC 12V
Power Consumption
DC 12V
Operating Temperature
0C ~ 40C
Storage Temperature
-40C ~ 60C
Dimension (mm)
173 (W) x 219 (H) x 189.08 (D)
