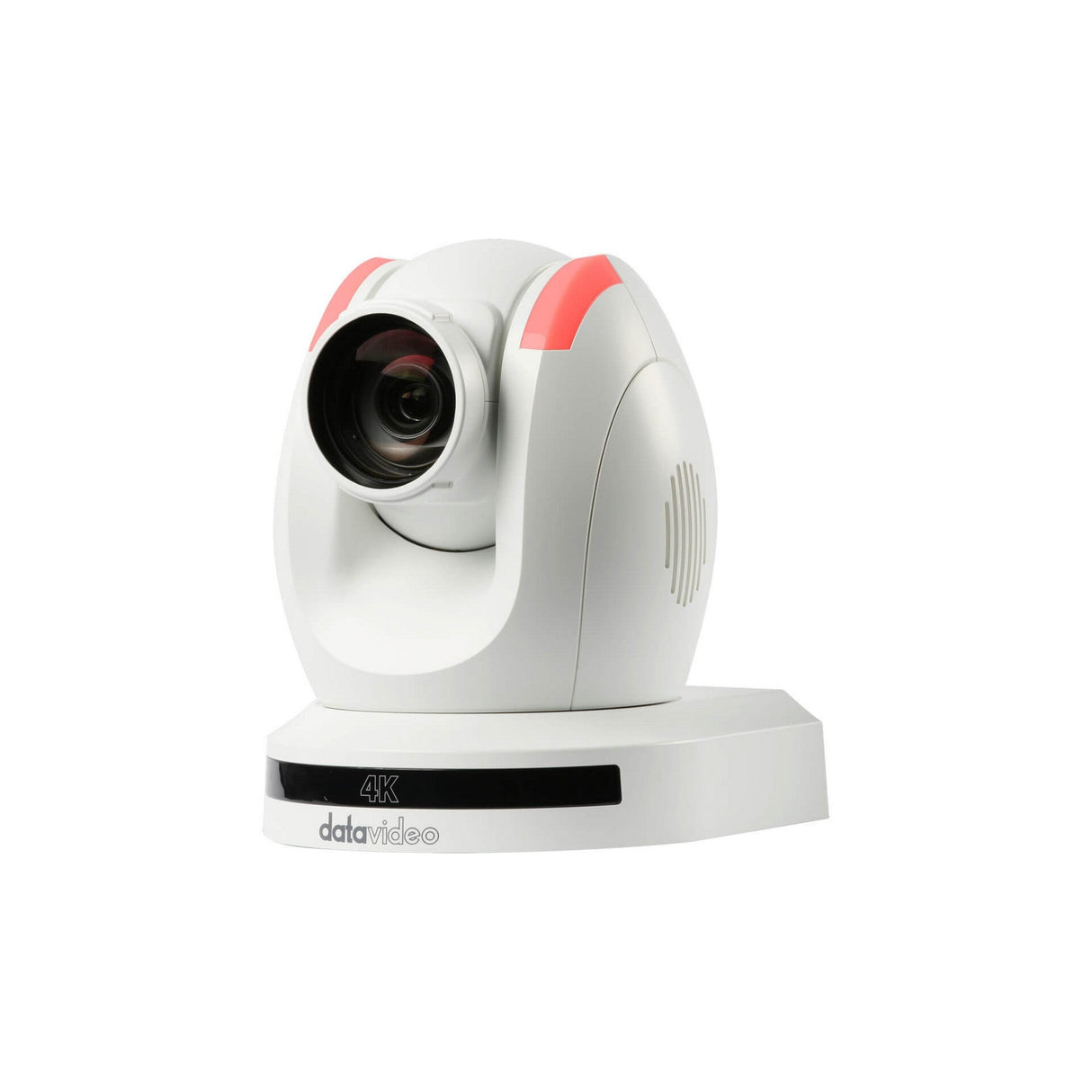

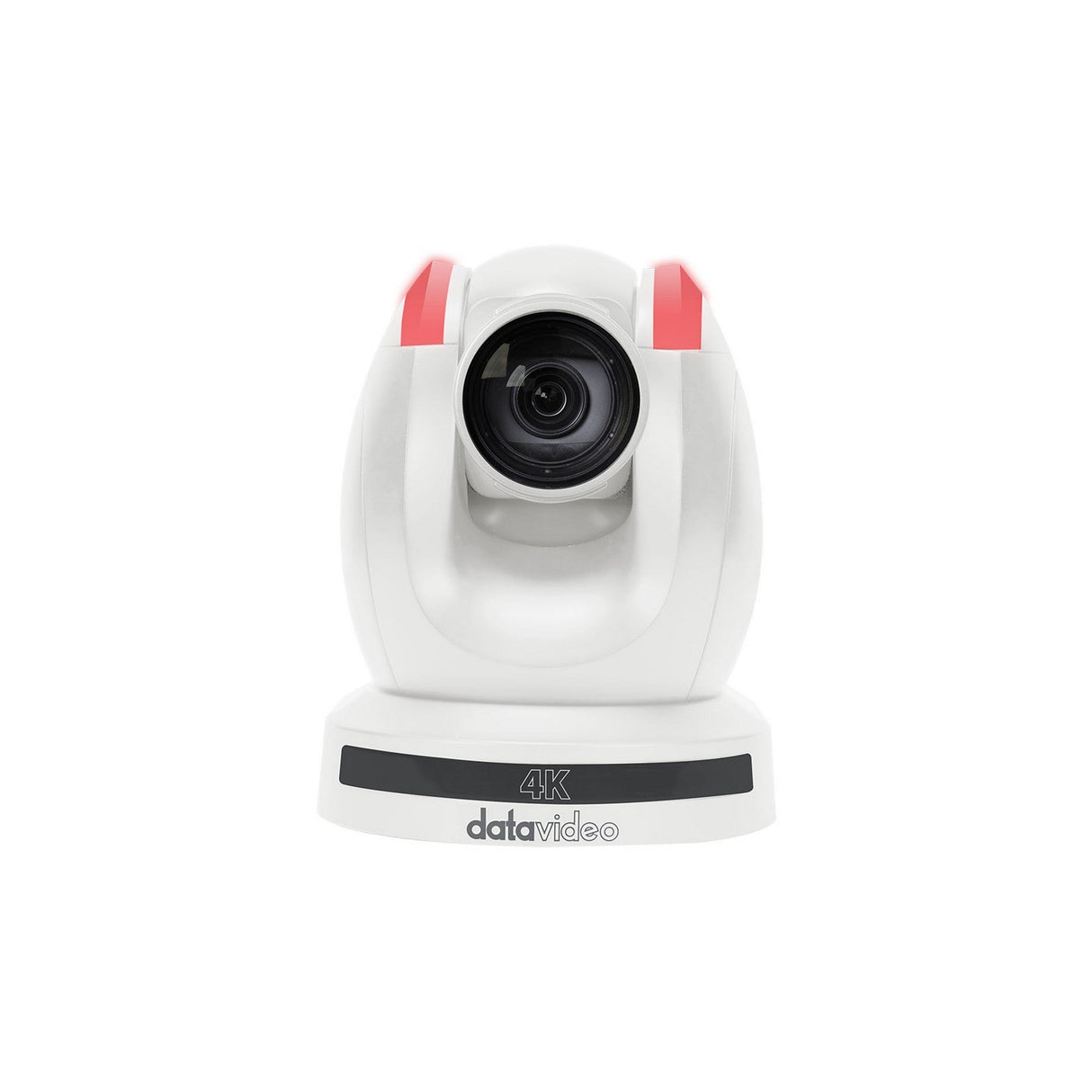

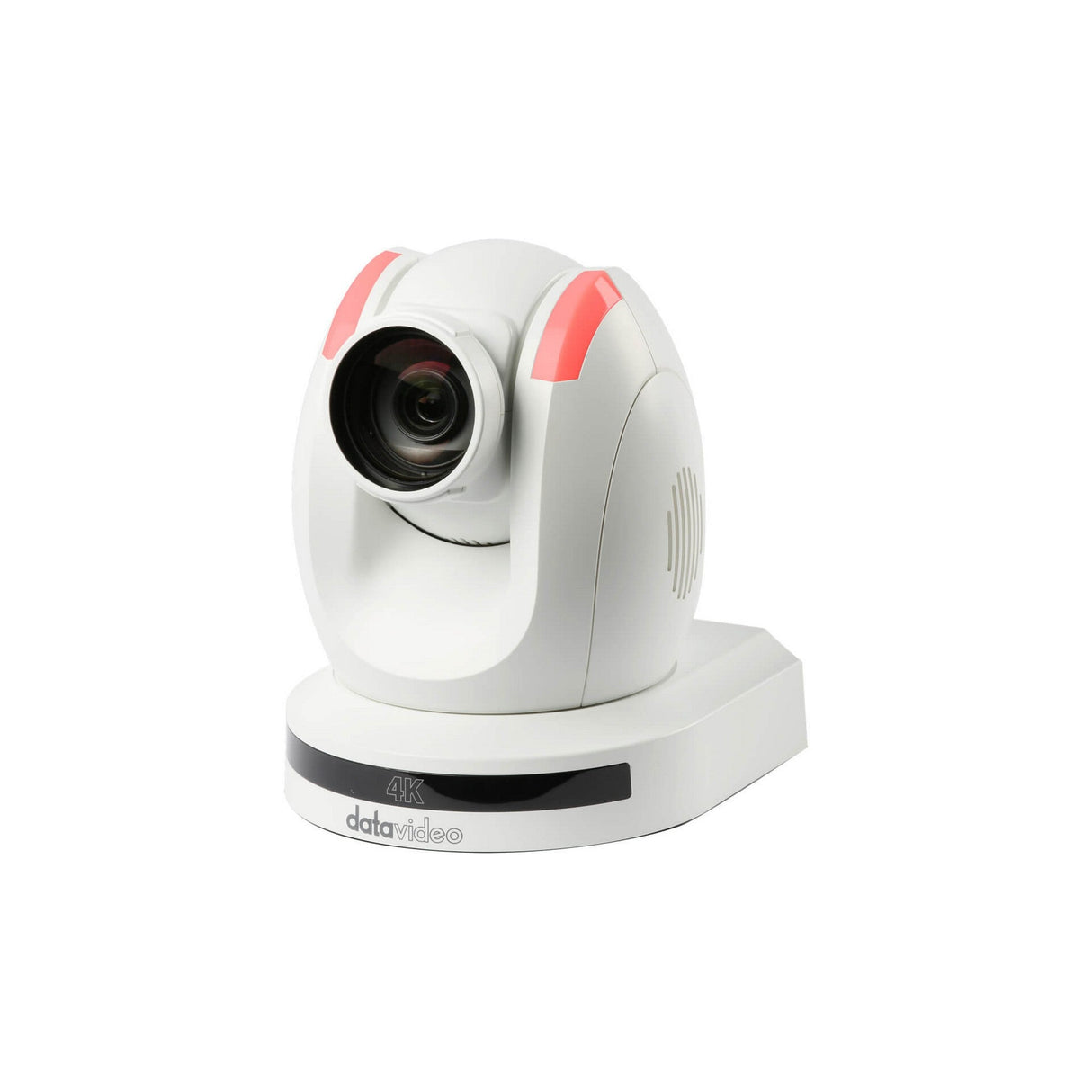

The Datavideo PTC-280W 12x 4K PTZ Camera, White is a professional-grade PTZ camera designed for live production, broadcasting, video conferencing, and more. This versatile camera boasts exceptional video quality, flexible control options, and easy installation, making it a valuable asset for a variety of applications.

The PTC-280 captures stunning 4K resolution video at up to 60 frames per second, ensuring crisp and detailed visuals. The 12x optical zoom lens allows you to get close to the action, while the simultaneous streaming capabilities enable you to stream to multiple platforms simultaneously using HDMI, SDI, and IP outputs. The camera also supports RTSP, RTMPS, and NDI protocols for further flexibility.

With dual video encoding, you can stream high-quality video to two different platforms at once. The PTC-280 supports H.264/H.265 encoding for resolutions up to 4K and a secondary stream at 720p. Installation is simplified with Power over Ethernet (PoE), eliminating the need for separate power outlets.

The PTC-280 features a wide 71-degree field of view, ideal for capturing expansive scenes. Controlling the camera is a breeze with various options available. You can use the traditional RS-422 serial port, IP, DVIP (Datavideo proprietary protocol), or Sony VISCA over IP. Datavideo also offers a free PTZ View Assist app for iOS and Android devices. This app allows you to monitor live video feeds, control up to 4 cameras simultaneously, adjust presets, and manage white balance, focus, and iris settings.

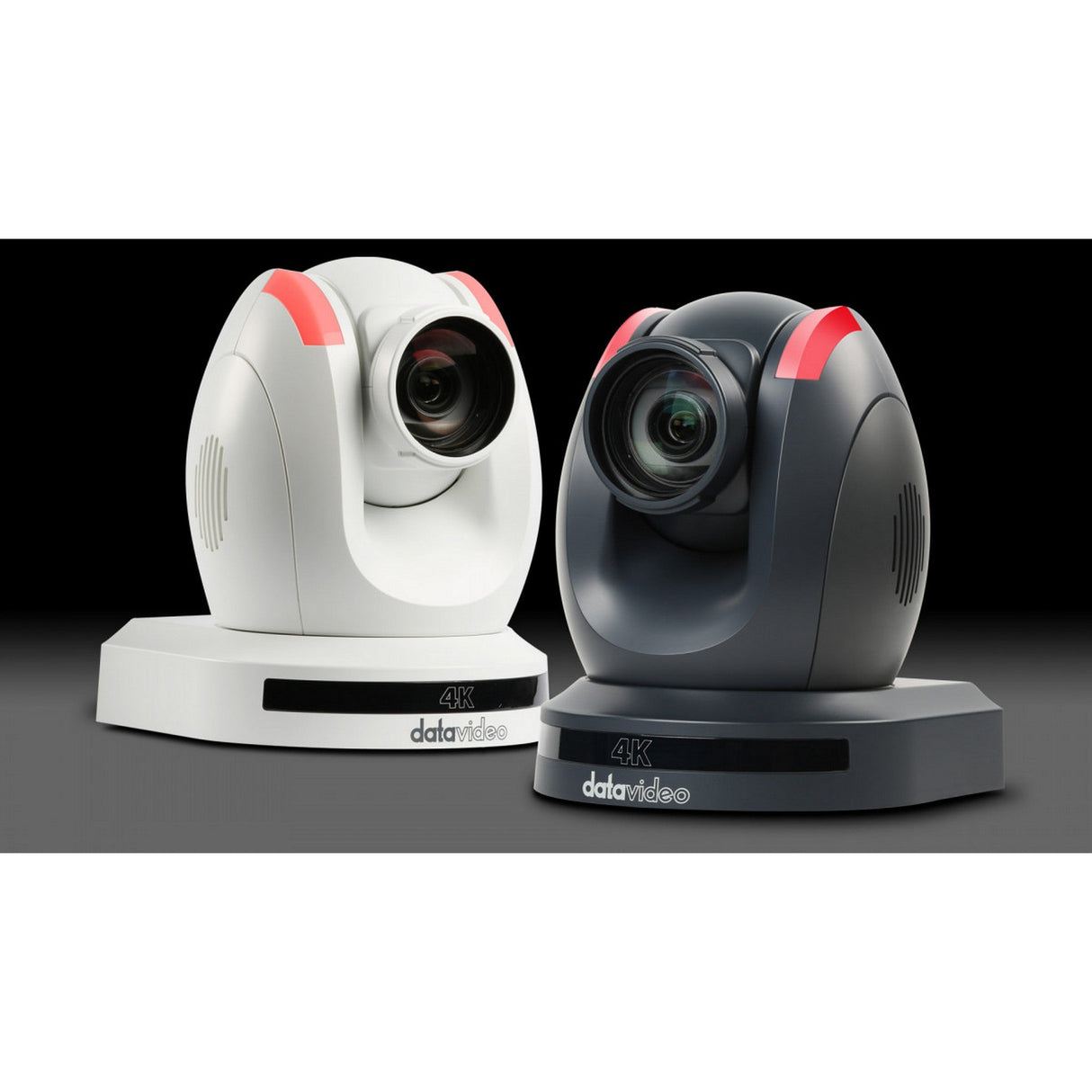

Advanced noise reduction technology ensures clear images even in low-light environments. Integrated tally lights provide visual feedback for preview and program status during broadcast applications. The PTC-280 is available in a black or white finish to match your installation environment.

Technical Specifications

Model Number
PTC-280
Video format/Resolution
HDMI:
2160p 60/59.94/50/30/29.97/25
1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50

SDI:
1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50

(2160p 60/59.94/50 YUV 4:2:0 only)

Image Sensor
1/2.5" CMOS
Effective Pixels (approx.)
8.51Mega Pixels
S/N Ratio
≥55dB
Min. Illumination
0.5 Lux @ (F1.8, AGC ON)
Electronic Shutter
1/30s ~ 1/10000s
Zoom Ratio
12x Optical Zoom, 16x Digital Zoom
Gamma Control
Off / Normal
Iris Control
Auto / Manual
Digital Noise Reductions
2D/3D
On-Screen Display (OSD)
English/Simplified Chinese/Traditional Chinese
White Balance
Auto, Indoor, Outdoor, OnePush, Manual, VAR
AGC / Gain Control
Yes
Mirror / Flip Image
Yes
Focus Mode
Auto/Manual
Panning / Tilting Range
Pan: 300°
Tilt: +130° to -15°
Panning / Tilting Speed
Pan: 0.876°/s~43°/s
Tilt: 0.693°/s ~21.32°/s
Preset
255
Focal Length
12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
Field of View (Horizontal, Wide)
71°
Image Compensation
Back light compensation

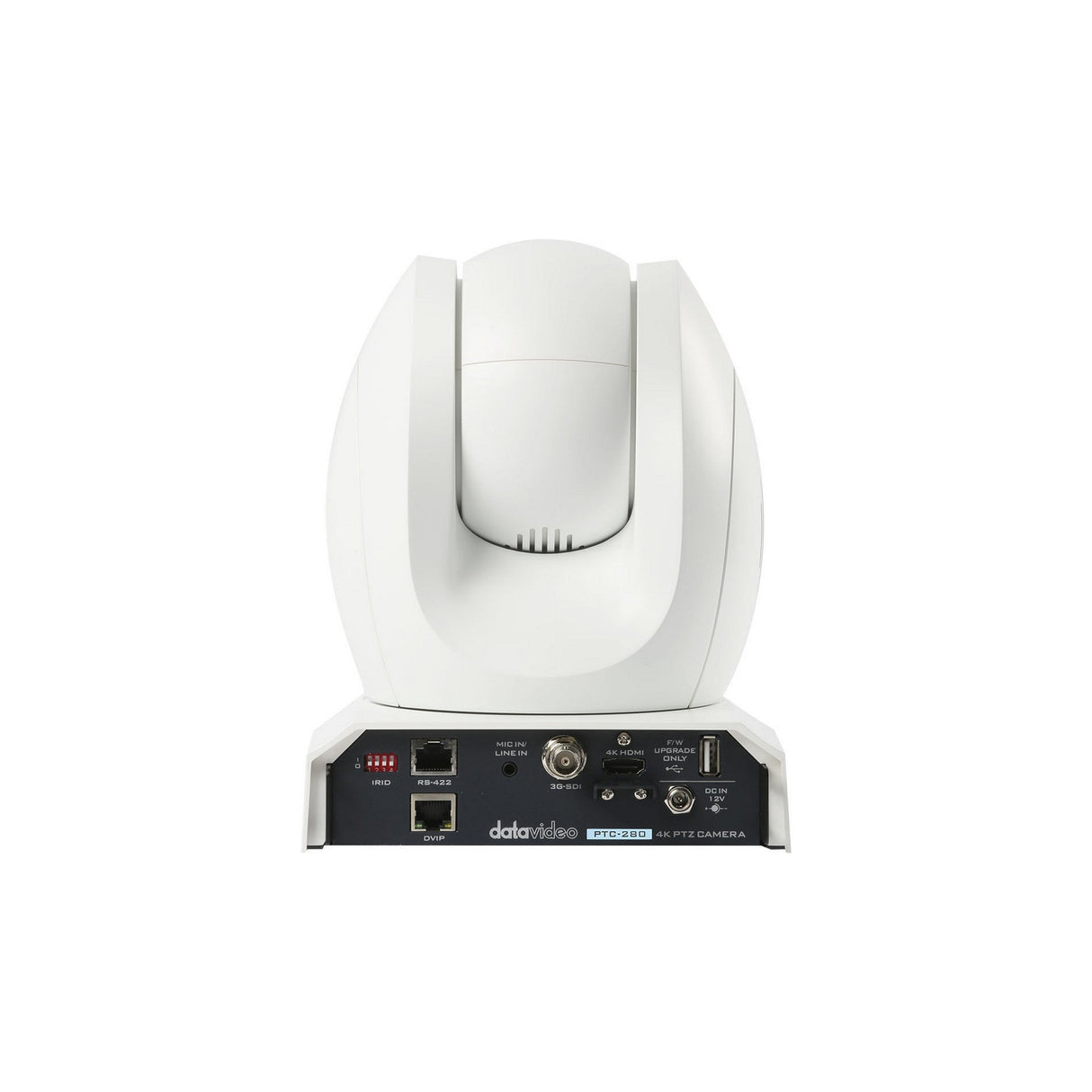

Video Output
HDMI 2.0 x1
3G-SDI x1
10/100/1000M RJ45 x1
Audio Input
3.5mm x1
Tally LED
Yes
Lens Filter
N/A
Control Protocol
Pelco-D, Pelco-P,
VISCA, VISCA over IP,
DVIP
Remote Control Interface
IR
Web GUI
RS-422
DVIP
Video Compression Format
H.264/H.265/MJPEG
Audio Compression Format
AAC
Audio Bitrate
96Kbps, 128Kbps, 256Kbps
HD IP Interface
----
Streaming Protocols
RTSP, RTMP(S), Onvif, Multicast, SRT
First Stream Supported Resolution
3840x2160
1920x1080
1280x720
1024x576
960x540
640x480
640x360
Second Stream Supported Resolution
1280x720
1024x576
720x576 (50Hz)
720x480 (60Hz)
720x408
640x360
480x270
320x240
Video Bitrate
32Kbps ~ 50Mbps (Single Stream)
Video Bitrate Mode
VBR, CBR
Encoding Frame rate
50Hz: 1-50fps
60Hz: 1-60fps
POE
IEEE 802.3at
F/W Update
Via Web UI or USB 2.0
IR Control
Yes
Camera Control Unit
RMC-180 series/RMC-300 series/PTZ View Assist APP
Tripod Mount
1/4-20 UNC
Optional Accessories
WM-1/ WM-10/ WM-11
Color
Dark Blue/White
Dimension (LxWxH)
173 (W) x 219 (H) x 189.08 (D)
Weight
2.8 kg
Operating Temp. Range
0~40 °C
Power
DC 12V 12W
What's in the Box
1 x PTC-280 product
1 x IR remote controller
1 x Ceiling mount bracket -A
1 x Ceiling mount bracket -B
6 x Ceiling mount bracket screw M3*4mm
1 x DC 12V Power Adaptor
1 x Safety cable
