Datavideo PTR-10T MK II-12 HDBaseT Robotic Pan Tilt Head with HBT-12

Datavideo PTR-10T MK II-12 HDBaseT Robotic Pan Tilt Head with HBT-12

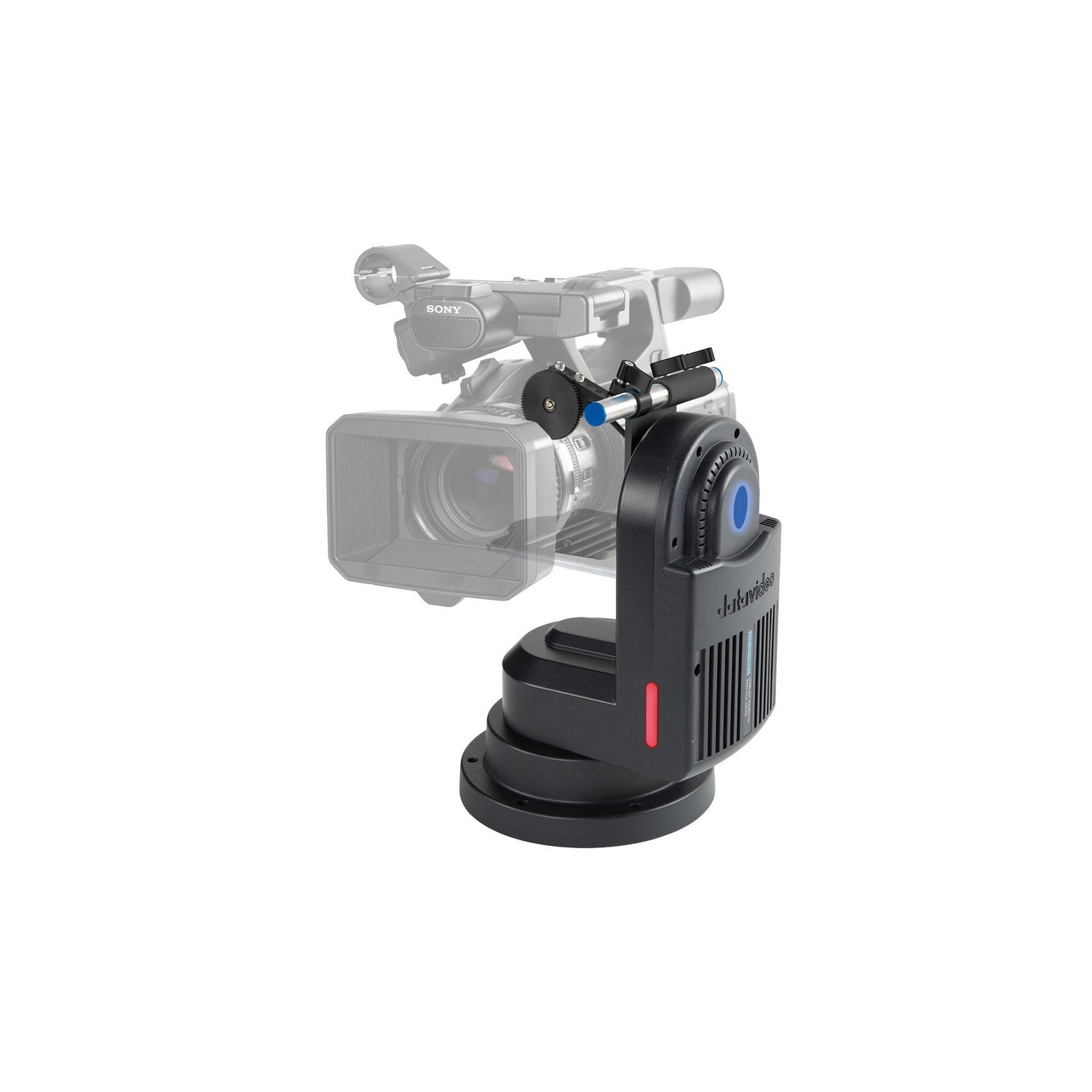

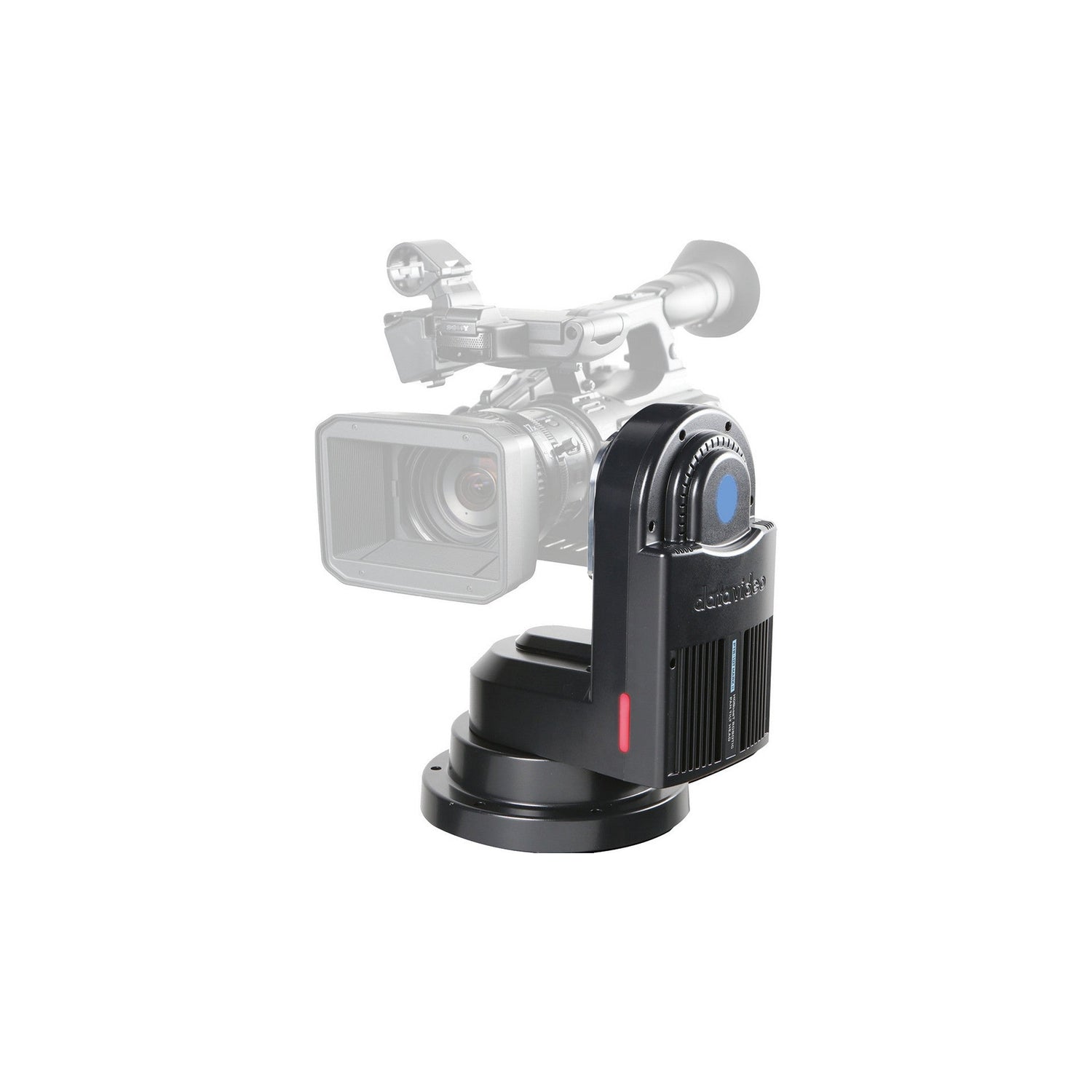

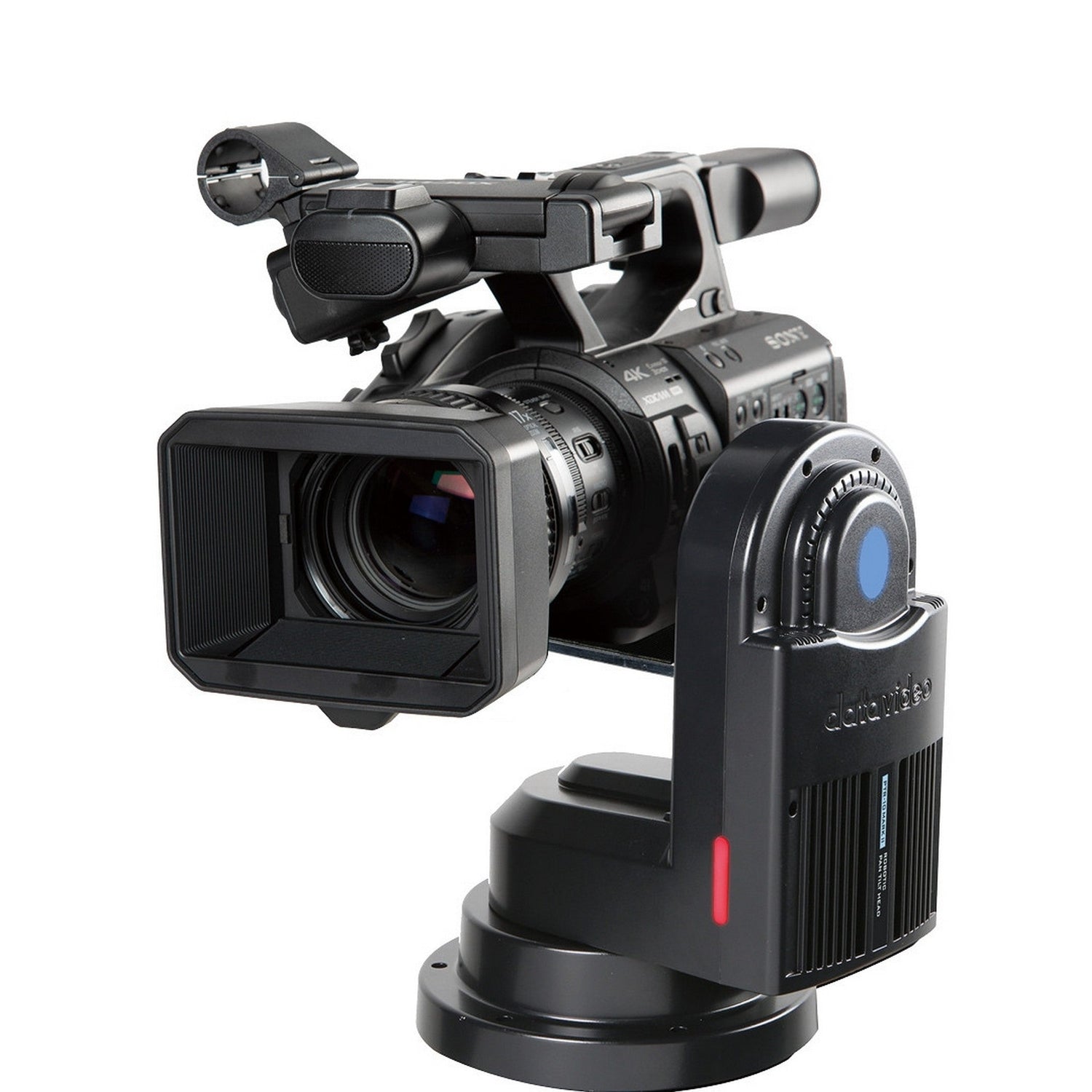

Datavideo’s brand-new PTR-10T MARK II is a robotic pan-tilt head that is designed to turn any small size video camera or block cameras into a robotic camera
A sleek design fits seamlessly in your studio. With its weight of 3.4 Kg, it can be placed on any heavy-duty tripod or mounted on the wall and ceiling which brings up a lot of flexibility for your video production.

The PTR-10T MARK II can be controlled by the included IR controller, VISCA protocol controller, Datavideo RMC-180 Camera controller, RMC-300A Universal Remote-Control Panel, HS-1600T series and compatible with HDBaseT over Ethernet and other integration solutions such as Crestron.

Multiple Signal Interface

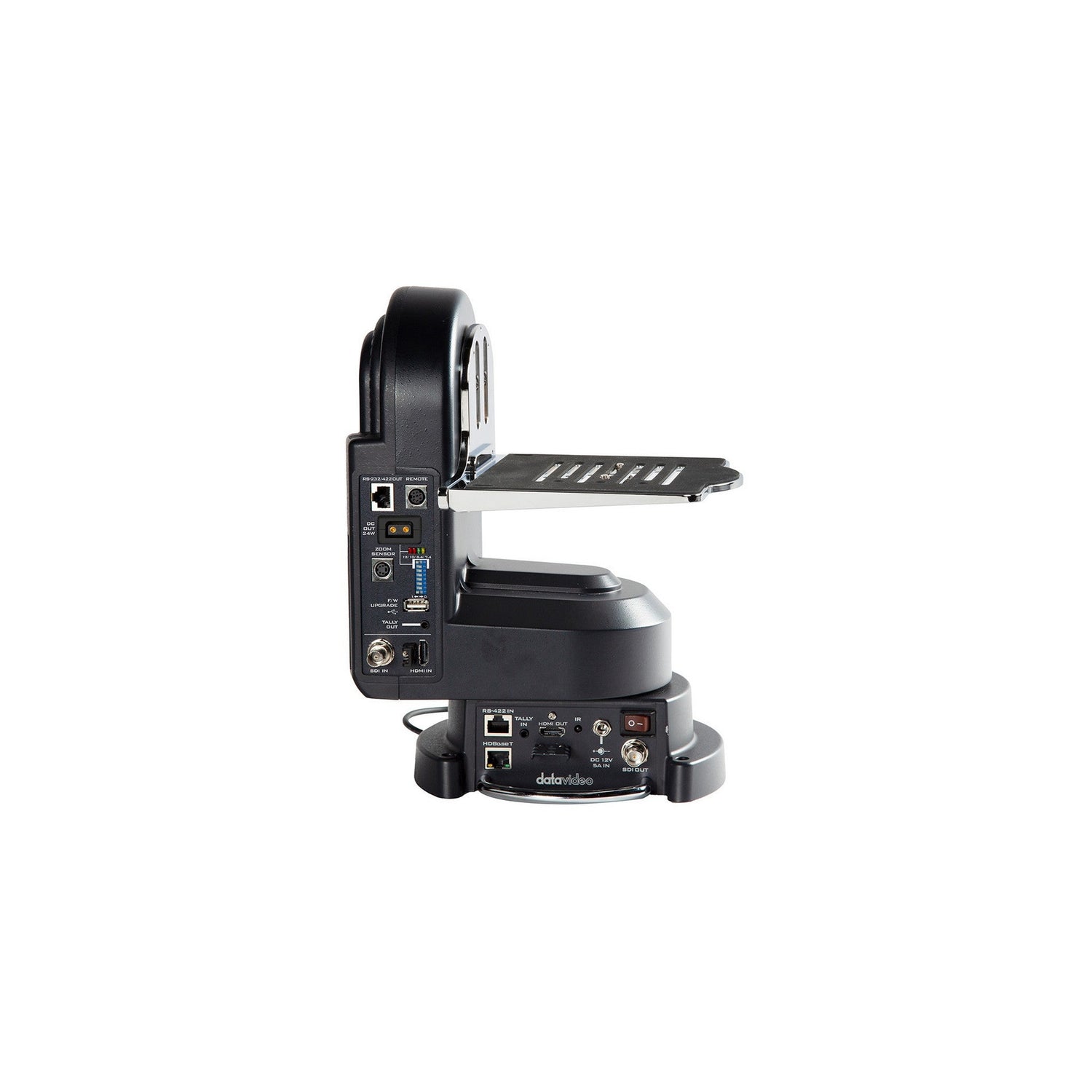

PTR-10T MARK II supports a lot of signal interface for passing through the remote head. Amongst these interfaces are SDI, HDMI, RS-232, RS-422, HDBaseT, Tally, and LANC.

Cost-Effective
PTR-10T MARK II makes the change from regular camcorder cameras to remote controlled PTZ very cost effective. Multi-camera remote operations can be handled by a single person.

Wide Range of Compatible Cameras Supported
The PTR-10T MARK II implements LanC control that is compatible with a wide range of professional video camcorders, allowing you to select the best camcorders for your needs.

Light Weight, Strong, and Sturdy design
With a weight of 3.4 kg, PTR-10T MARK II is built from aluminum alloy, making it a very sturdy base for your camera. It can support cameras up to 4 kilograms.

Diversified Controller Options
Compatible with Serial, Ethernet, and Lanc. Datavideo RMC-180 series, RMC-300A, and HS-1600T series will fit your need.

Support 50 preset camera shooting positions
When your video production requires many different angles and positions, 50 preset camera positions will meet your needs.

Using the IR remote allows you to call up to 50 presets at any time.

When combined with the RMC-300A universal remote controller, the 14 physical buttons can be called at any time.

When using the RMC-180 MARK II remote control, there are 4 physical buttons to call.

PoE++ Supported
You do not need any battery mount on your camera when using PTR-10T MARK II. The PoE++ is building in the PTR-10T MARK II; No extra battery or power needed when operating.

Built-in Tally light
With the big tally light in the front to show the status of your camera.

D-tap connector for DC output
The D-tap connector is widely used in the broadcast industry as a standard for powering accessories from battery or mains power.

This will make it easier for you to find a ready-made power cable for your specific camera. Included is a D-tap to DC 5.5mm with lock for Datavideo cameras.

Multiple Signal Interface
PTR-10T MARK II supports a lot of signal interface for passing through the remote head. Amongst these interfaces are SDI, HDMI, RS-232, RS-422, HDBaseT, Tally, and LANC.

PTR-10T MARK II can read its own Pan/Tilt movement and send back to controller for position memory and recall. Now, with ZEK-1, it can detect and read out the Zoom changes. And convert those information into Zoom position to send back for controller to memory and recall the saved zoom position.

Compatible with cameras via zoom moving ring.

Technical Specifications

Model Number
PTR-10T MARK II
Video Interface
HDMI x 1
SDI x 1
RJ45 x 1 (HDBaseT)
Video Output
2160p 29.97/25
1080p 59.94/50
1080i 59.94/50
720p 59.94/50
Control Unit
RMC-180
HS-1600T
HS-1600T Mark II
RMC-300A
VISCA Protocol Controller
IP Control
IR remote
Panning / Tilting Range
Pan: 340°
Tilt: ±45°
Panning / Tilting Speed
Pan: 0.12~15° /Sec
Tilt: 0.06~10° /Sec
Preset
Pan/Tilt position 50
Control Distance
1,200M by RS422
100M by HDBaseT
Control Protocal
Sony VISCA
DVIP
Control Input
RS-422
HDBaseT
Maximum Load
4 KG Max
Control Output
RS-232
RS-422
BX-Lens
LanC
Power Requirement
DC 12V~ 18V, 3A (Without Camera)
DC 12V~ 18V, 5A (With Camera)
Power Supply
DC 12/10/8.4/7.4V, 24W Max
Operating Temp. Range
0~40 C°
Operating Humidity Range
10~80%
Storage Temp. Range
-10~60C°
Storage Humidity Range
5~80%
Weight
3.4 KG
Dimension (LxWxH)
230 x 190 x 300 mm
Optional accessories
ZEK-2 KIT
WM-10
WM-11
CM-10
What's in the Box
HBT-12 x 1
PTR-10T Mark II Main Unit x 1
DC 12V power adaptor x 1
AC cord x 1
IR remote control x 1
DC with lock to D-Tap cable x 1
HDMI cable x 1
SDI cable x 1
Remote cable (2.5mm phone-jack to mini-din 8pin) x 1
1/4” screw (14mm) x 2
1/4” screw (10mm) x 1
1/4” to 3/8” screw adaptor x 1
