Datavideo PTR-10T MKII HDBaseT Robotic Pan Tilt Head

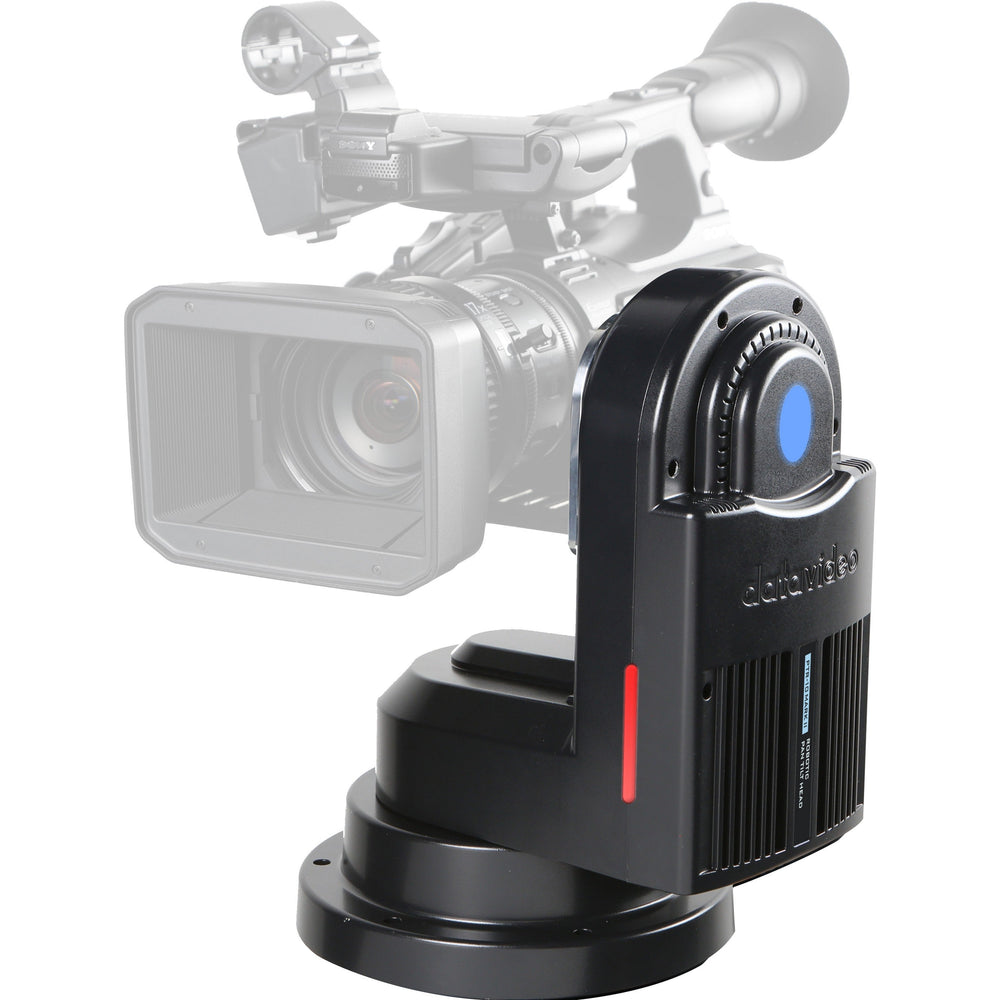

A sleek design fits seamlessly in your studio. With its weight of 3.4 Kg, it can be placed on any heavy-duty tripod or mounted on the wall and ceiling which brings up a lot of flexibility for your video production.
The PTR-10 Mark II can be controlled by the included IR controller, VISCA protocol controller, Datavideo RMC-180 Camera controller, RMC-300A Universal Remote-Control Panel, and compatible with DVIP over Ethernet and other integration solutions such as Crestron.
PTR-10 Mark II makes the change from regular camcorder cameras to remote controlled PTZ very cost effective. Multi-camera remote operations can be handled by a single person.
Wide Range of Compatible Cameras Supported

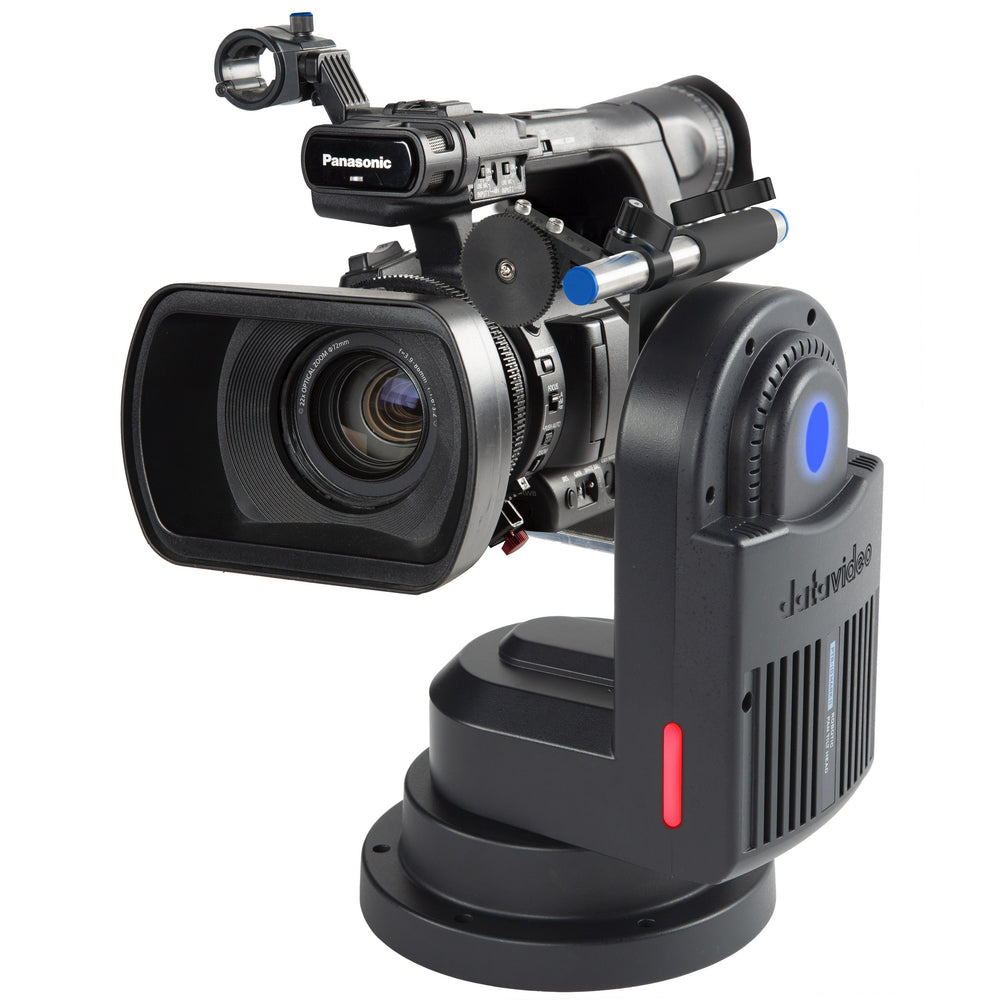

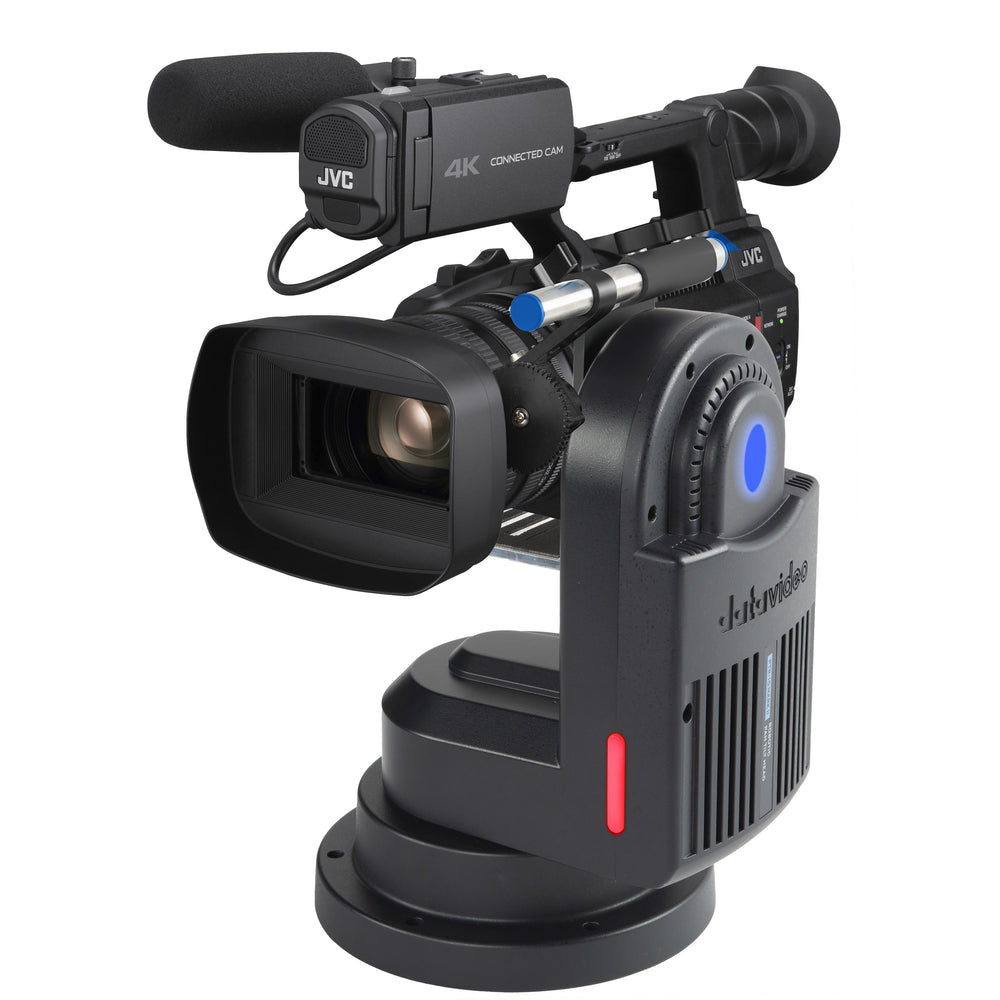

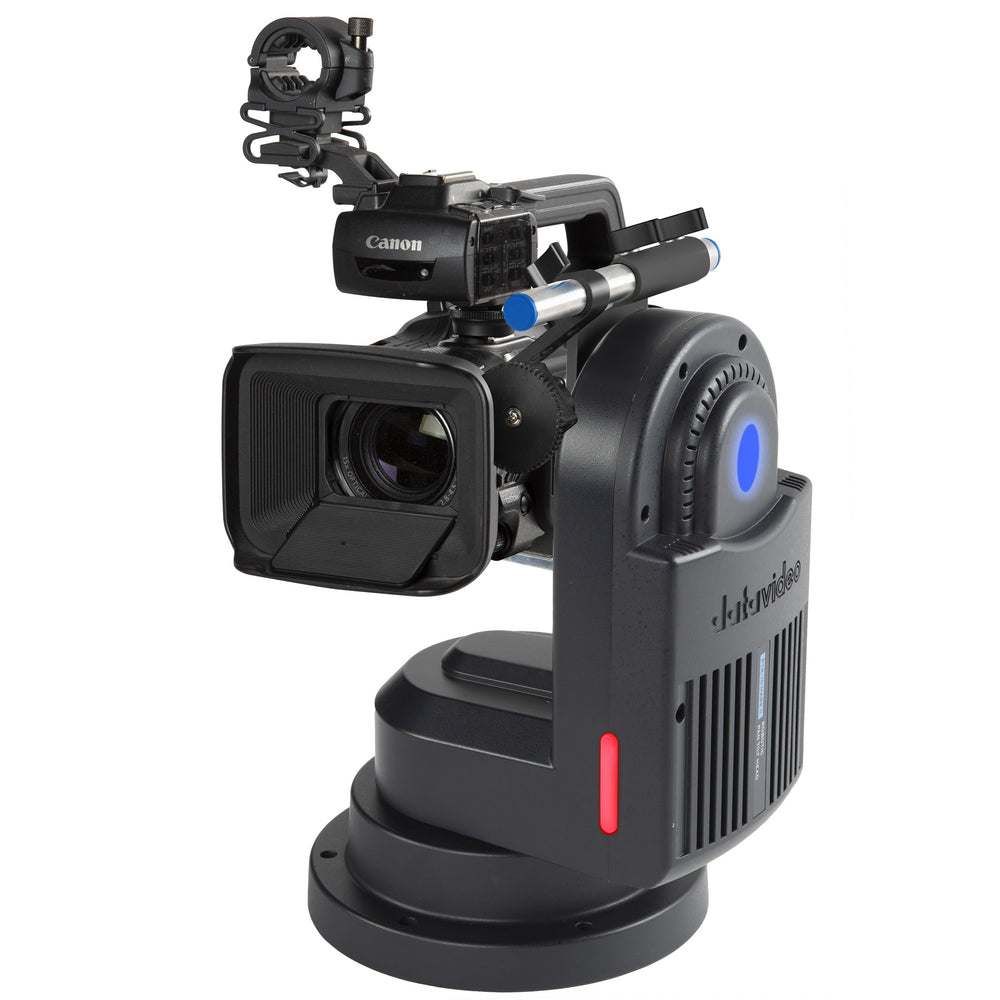

The PTR-10 Mark II implements LanC control that is compatible with a wide range of professional video camcorders, allowing you to select the best camcorders for your needs.
Light Weight, Strong, and Sturdy design
With a weight of 3.4 kg, PTR-10 Mark II is built from aluminum alloy, making it a very sturdy base for your camera. It can support cameras up to 4 kilograms.
Diversified Controller Options
Compatible with Serial, Ethernet, and Lanc. Datavideo RMC-180 series, RMC-300A, and HS-1600T series (T model only) will fit your need.
Built-in Tally light
With the big tally light in the front to show the status of your camera.
D-tap connector for DC output
The D-tap connector is widely used in the broadcast industry as a standard for powering accessories from battery or mains power. This will make it easier for you to find a ready-made power cable for your specific camera. Included is a D-tap to DC 5.5mm with lock for Datavideo cameras.
Selectable DC voltage output for different cameras (7.4 / 8.4 / 10 / 12V )
Multiple Signal Interface
PTR-10 Mark II supports a lot of signal interface for passing through the remote head. Amongst these interfaces are SDI, HDMI, RS-232, RS-422, DVIP, Tally, and LANC.
Technical Specifications
Video Interface
HDMI x 1
SDI x 1
Video Output
2160p 29.97/25
1080p 59.94/50
1080i 59.94/50
720p 59.94/50
Control Unit
RMC-180
RMC-300A
RMC-300C
VISCA Protocol Controller
IP Control
IR remote
Panning / Tilting Range
Pan: 340
Tilt: +/-45
Panning / Tilting Speed
Pan: 0.2~15 /Sec
Tilt: 0.1~10 /Sec
Preset
Pan/Tilt position 50
Control Distance
Sony VISCA
DVIP
Control Protocal
Sony VISCA
DVIP
Control Input
RS-422
DVIP
Maximum Load
4 KG Max
Control Output
RS-232
RS-422
BX-Lens
LanC
Power Requirement
DC 12V~ 18V, 3A (Without Camera)
DC 12V~ 18V, 5A (With Camera)
Power Supply
DC 12/10/8.4/7.4V, 24W Max
Operating Temp. Range
0~40 C
Operating Humidity Range
10~80%
Storage Temp. Range
-10~60C
Storage Humidity Range
5~80%
Weight
3.4 kg
Dimension (LxWxH)
230 x 190 x 300 mm
What's in the Box
PTR-10 Mark II Main Unit x 1
DC 12V power adaptor x 1
AC cord x 1
IR remote control x 1
DC with lock to D-Tap cable x 1
HDMI cable x 1
SDI cable x 1
Remote cable (2.5mm phone-jack to mini-din 8pin) x 1
1/4” screw (14mm) x 2
1/4” screw (10mm) x 1
1/4” to 3/8” screw adaptor x 1
PTR-10 Mark II Thank You Card x 1
