Datavideo RMC-180 MARK II PTZ Camera Control Unit
The RMC-180 Mark II is the camera controller, which allows you to control up to 4 compatible Datavideo PTZ, block cameras via RS-422. The RMC-180 Mark II is able to save up to 4 presets (up to 8 presets if only 2 cameras connected). Recall the preset intuitively by pushing the mechanical buttons assigned each preset.
Simple Multi-Camera Control at Your Fingertips
With its ergonomic joystick and tactile button layout, the RMC-180 MARK II makes it easy to set up and control up to four Datavideo PTZ cameras for any live video production.
Control of Pan, Tilt, and Zoom as well as Iris, Focus, Gain, and other functions. Control via CAT5/CAT6 cable with RJ45 connectors and also compatible with Datavideo's switcher tally indicators.
Automatic Camera Position Presets
The RMC-180 provides shortcut keys for up to 4 position presets for each of your cameras. Easily program close-ups, wide-shots, and recall them with the touch of a button.
Technical Specifications
Maximum Camera Control
4
Present (Position)
4 for each camera
Control Protocol
Sony VISCA
Connection to Cameras
Point to point

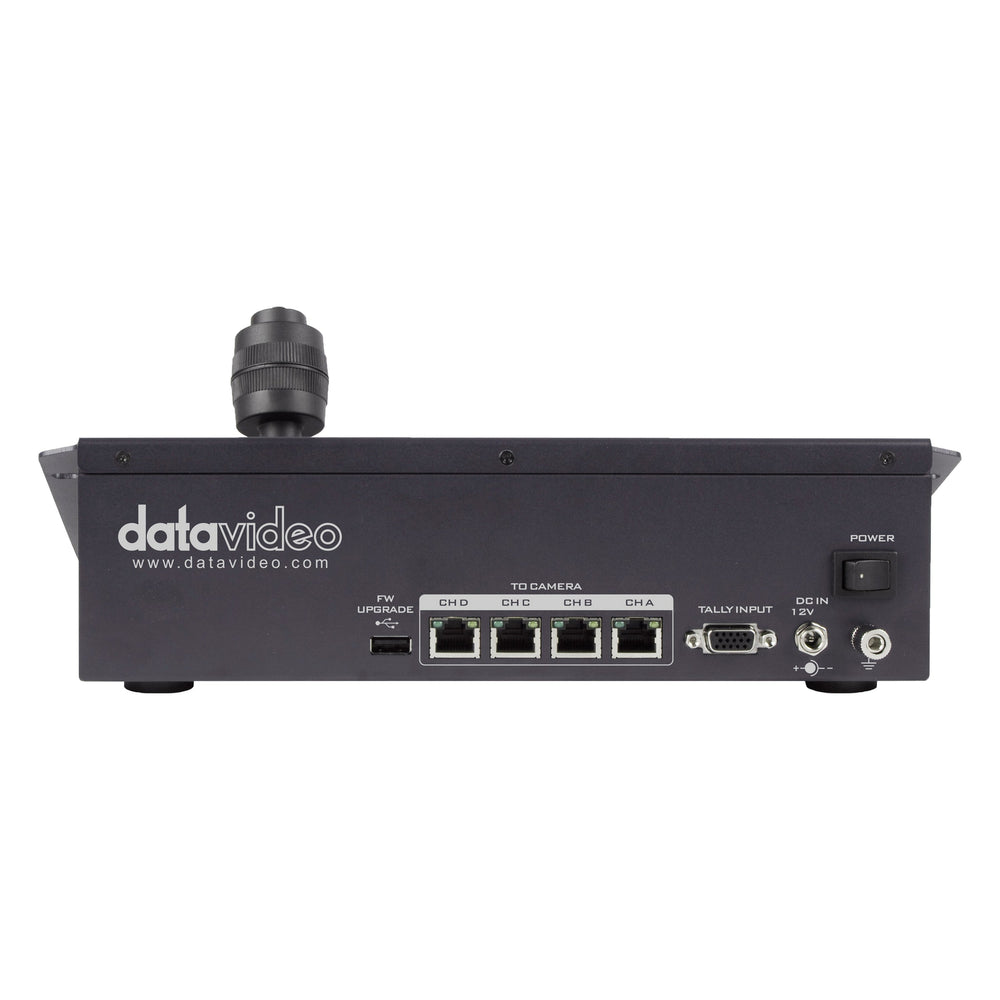

Input/Output
RS-422 (RJ-45 Connector) x 4
Build-in Control Panel
Monochrome display
Firmware Upgrade
Via USB
Dimension
310 x 170 x 125 mm
Weight
1.53kg
Operating Temp. Range
0C ~ 40C
Storage Temperature
-40C ~ 60C
Operating Humidity
---
Power
DC 12V 1A
What's in the Box
1 X RMC-180 Mark II item
1 X Adaptor
1 X Accessory List
1 X USB Type A to Type A cable
