Datavideo RMC-300A Multi-Functional Multi-Camera Controller

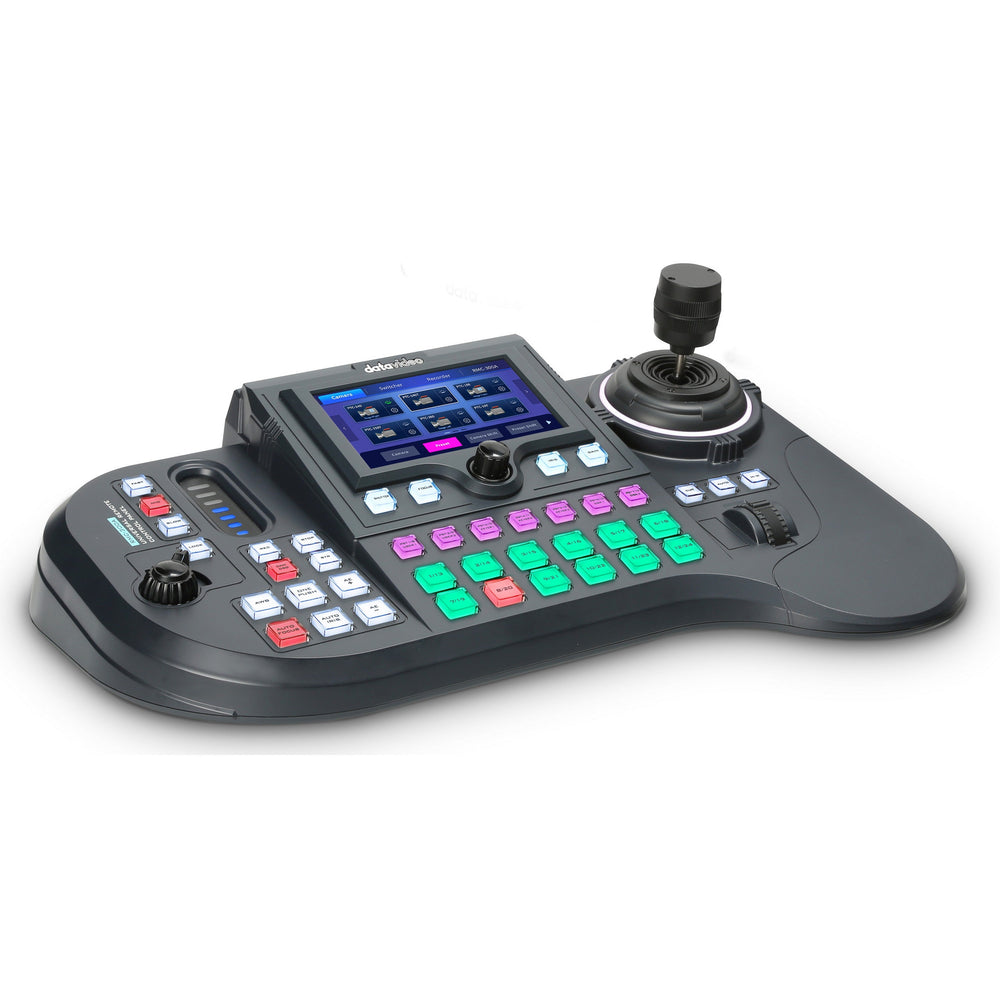

Datavideo RMC-300A is a multi-functional Multi-camera Controller. It can control up to 24 PTZ and block cameras by DVIP or up to 8 cameras by serial RS- 422 transmission. The RMC-300A With the combination of user friendly interface on 5” touch panel and hardware buttons, RMC-300A enables users to manage heavy EFP workflow without haste.

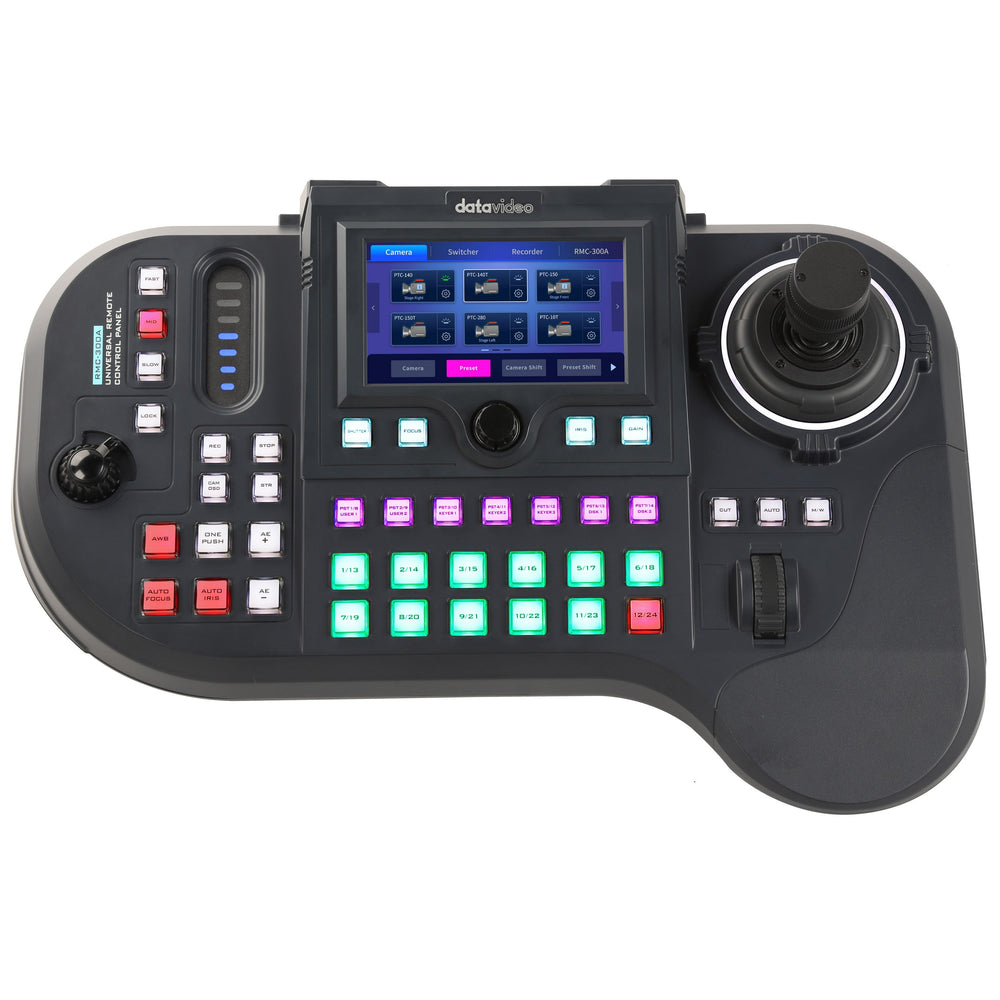

User friendly interface on 5-inch LCD touch panel
5-inch LCD touch panel design allows users to easily control settings of each cameras.
Control up to 24 Cameras
Designed to control up to 24 cameras, with 7 preset memories for each camera for easy camera operation.
LCD displays GUI for Operability and Visibility
Easily access to all the cameras setting, and call back your favorite settings such as Shutter, Focus, IRIS, Gain, Zoom, and movement speeds.
Professional Use
Single person control of Pan, Tilt, and Zoom is possible with the 2-axis Joystick and the zoom knob. Easily access all the cameras settings in the OSD, and call back your favorite settings such as Shutter, Focus, IRIS, Gain, Zoom, and movement speeds.
Remote Control via Ethernet or serial port RS-422
The RMC-300A can control PTZ and block cameras, as well as robotic camera heads such as the Datavideo PTR-10 by using the DVIP or RS-422 interfaces. Can control up to 8 cameras via RS422 or 24 cameras via DVIP.
Zoom knob and lock button
Easy to use knob for the camera to zoom in/out, and the Lock button to help you secure the position of the joystick and the zoom knob.
Speed settings for PTZ control
Pan/Tilt/Zoom speed can be fixed at fast, medium, and slow speed.
Technical Specifications
Maximum Camera Control
24
Present (Position)
7 for each camera
Control Protocol
DVIP, DHCP client
Connection to Cameras
RS-422, Ethernet

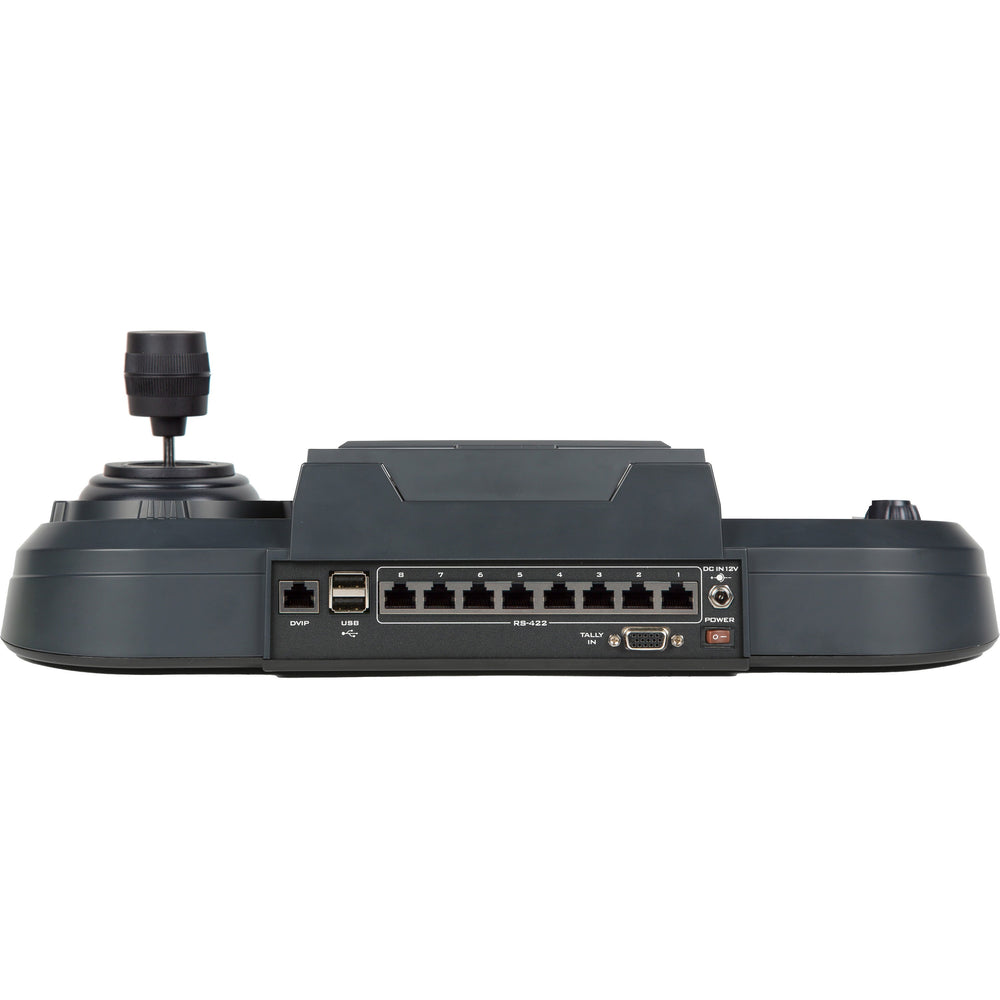

Input/Output
USB 2.0 x2
10/100Mbps Ethernet (RJ-45 connector) x1
RS-422 (RJ-45 connector) x1
Build-in Control Panel
Size: 5”
Resolution: 1280 x 720
Firmware Upgrade
USB 2.0
Dimension
420 x 294 x 134 mm
Weight
1.5 kg
Operating Temp. Range
0C ~ 40C (32F~104F)
Storage Temperature
- 10C ~ 60C (14F~140F)
Operating Humidity
10 % to 80 % (non-condensing)
Power Supply
DC 12V, 19W
What's in the Box
1 x RMC-300A Main Unit
1 x DC 12V power adaptor
1 x Thank You Card
