Datavideo SE-1200MU 4 SDI 2 HDMI Inputs 1RU HD Computer Controlled Switcher Mixer

Whether you are filming a seminar or conference, conducting a live outside broadcast or shooting inside a production studio, the Datavideo SE-1200MU HD video switcher enables you to switch seamlessly between video sources and blend high-quality digital content on the fly.

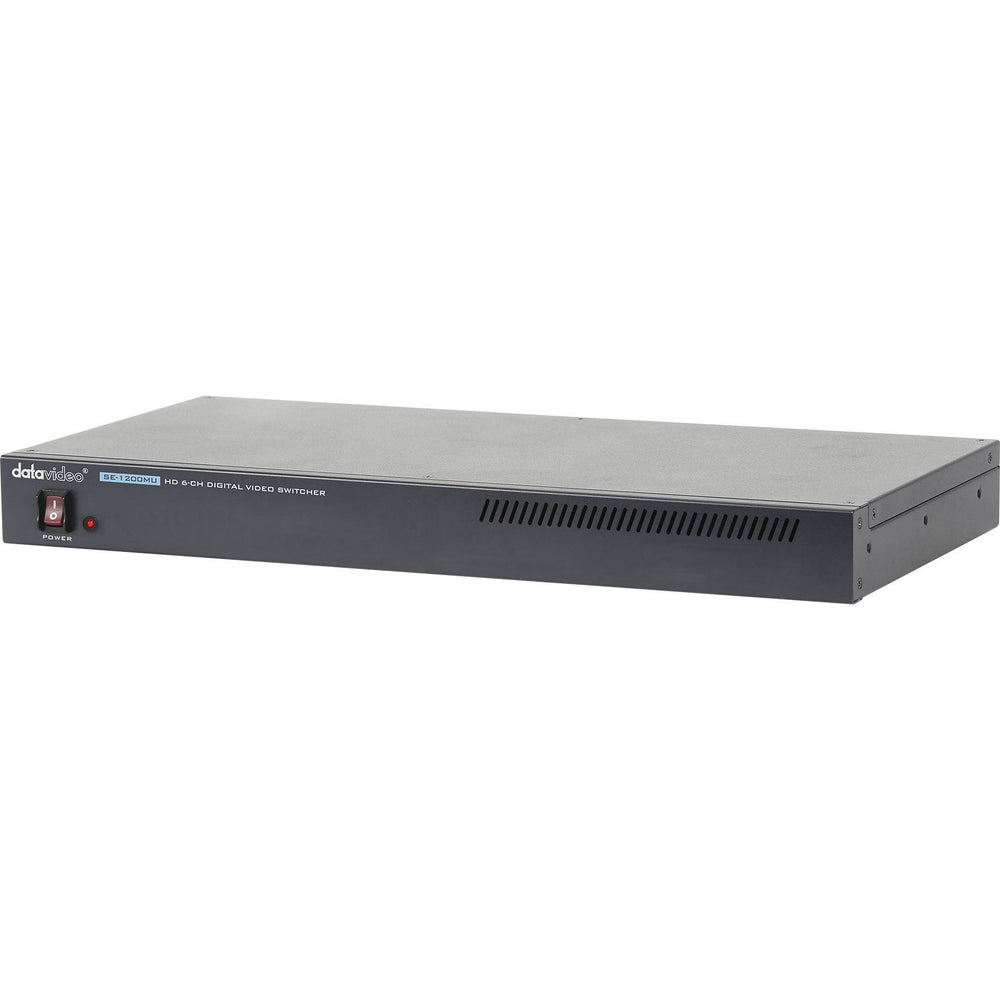

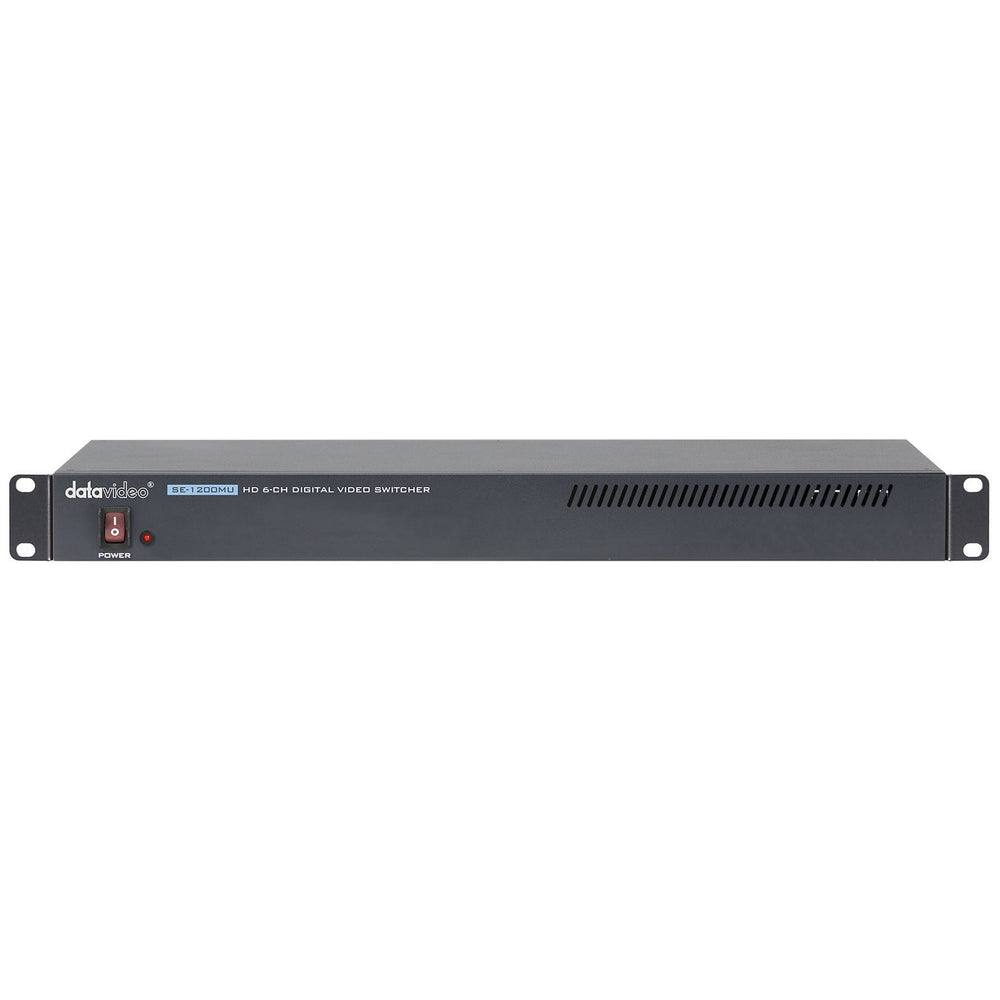

SE-1200MU a small, portable computer controlled 1RU rack mountable switcher. It features a 6-Channel HD video input that is incredibly reliable, unlike PC-based systems that are prone to crashing mid production.

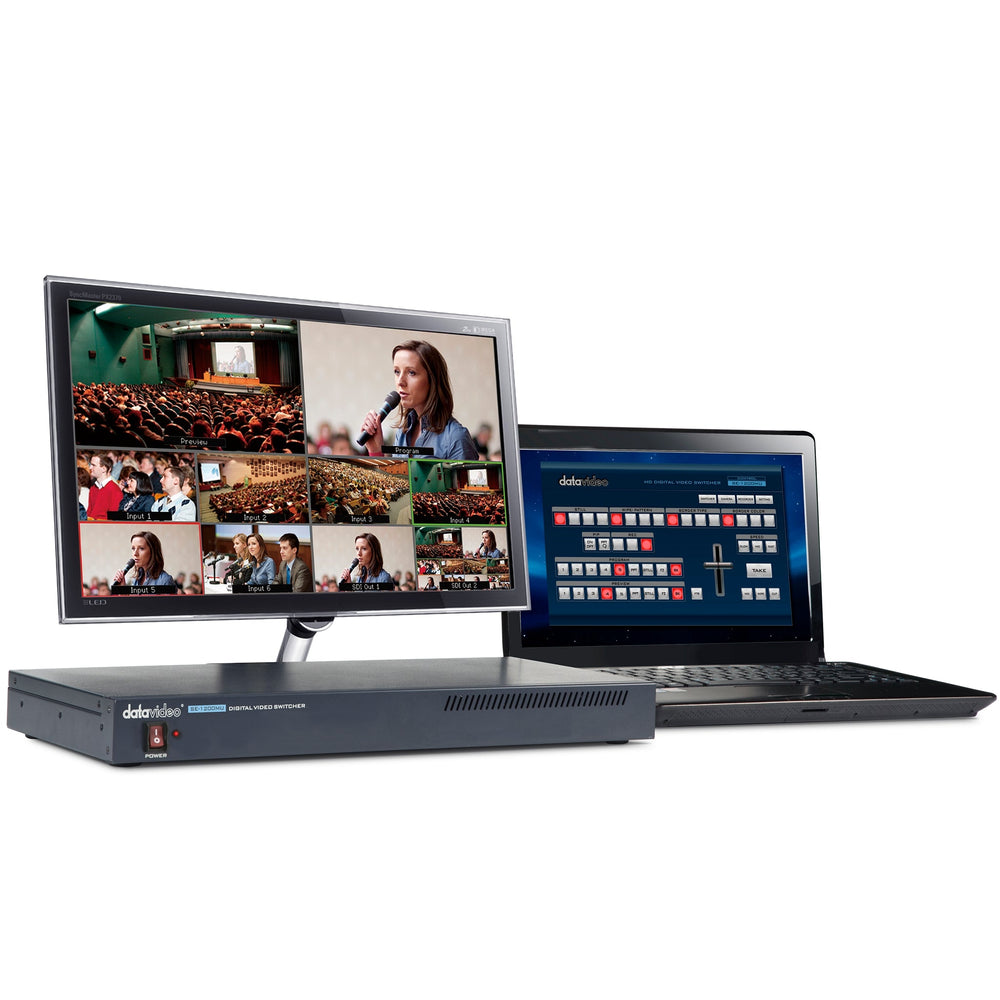

SE-1200MU streams out multi-view screen video in real-time to a control PC for monitoring and control remotely. It is designed to be fully controlled from any Windows Laptop / PC and Android tablet / iPad / Mac with the included SE-1200 software control panel.

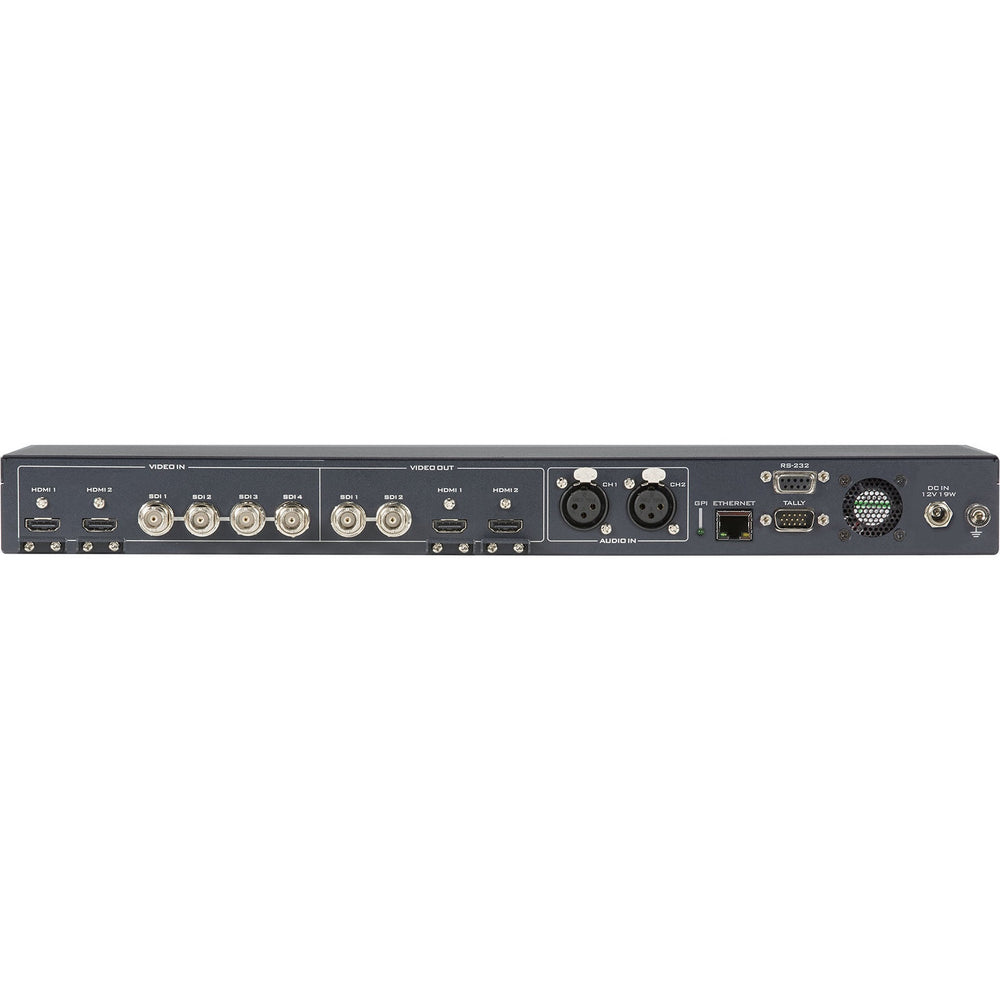

SE-1200MU includes four SDI and two HDMI inputs and an internal frame synchronizer so you can use sources without gen-lock such as consumer HDMI cameras or even computers for live PowerPoint presentations.

Two assignable SDI and two HDMI outputs for connecting an HD recorder, monitor and a streaming encoder, plus two Balanced XLR audio inputs for connecting an external audio mixers. Other features include chromakey, lumakey, DSK, PIP, still stores, audio delay, tally and RJ-45/RS-232 remote control interface.

Key Features

• 6 video inputs ( SDI x 4 + HDMI x 2)
• Frame Sync on each input
• Flexible Mix/Effects Processor with
• 2 Upstream Keyers, supporting Chroma Key & Linear/Luma Key
• 2 DSK, supporting Linear & Luma Key Modes
• 1 PIP (assignable to any of the 4 keyers
• Wipe Generator: 32 Wipe Patterns, including Circle & Heart | Borders & Softness Control
• Wipe, Mix & Cut Transitions
• Full M/E Preview function
• Any Input (1-6) can be used as a Frame store (Stills Store) : Upto 24 images stored on SD Card
• Assignable Outputs
• Each SDI output can be switched in the Menu as:
  - PROGRAM (w/ DSK)
  - Clean PROGRAM (w/o DSK)
  - Clean PREVIEW (w/o DSK)
  - MULTISCREEN
  - Input 1-6
• XPT (Cross Point Assignment)
• PC & Tablet control

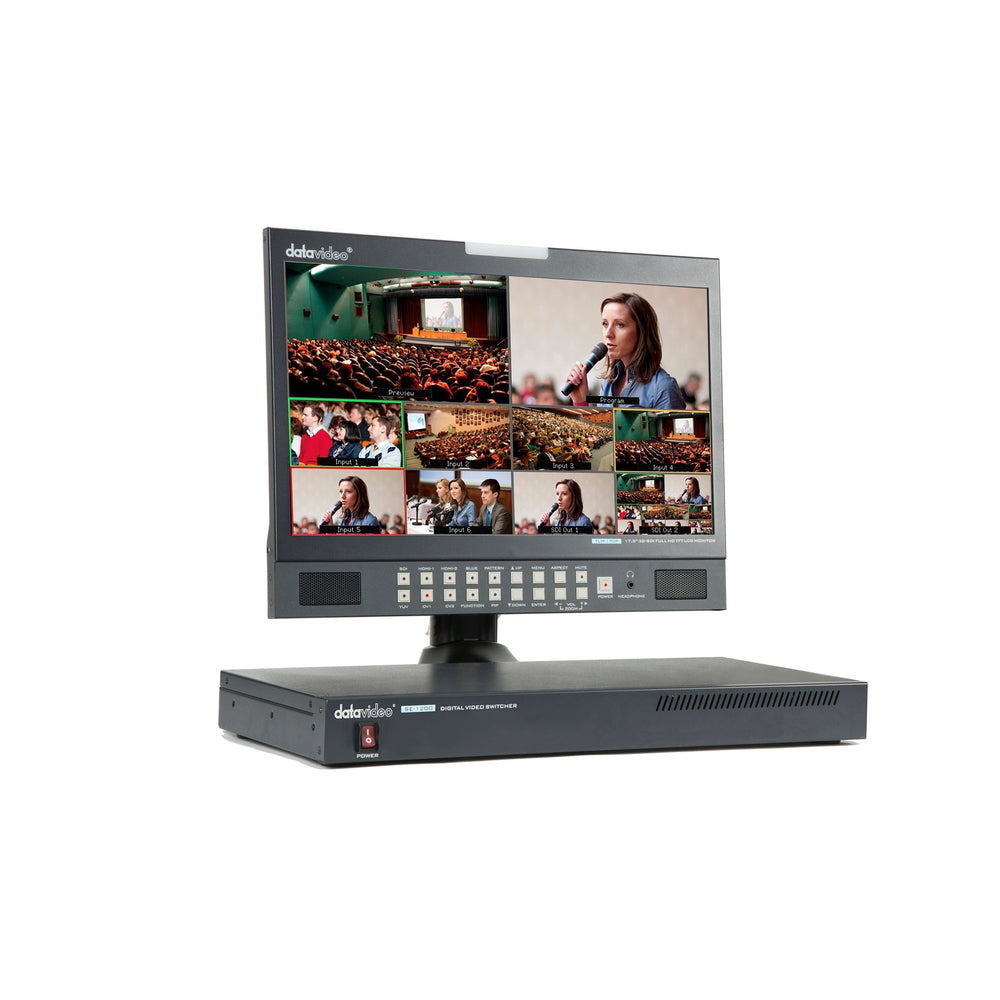

• Remote streaming of Multi view out using built-in Motion JPEG Streaming processor
• Tally output
• GPI output
• 1U rack mount

Technical Specifications

Total Video Inputs
2 (HDMI ver1.3) + 4 SDI
Total Outputs
2 HDMI+ 2 SDI
SDI Video Input
4 ( 1080i / 720p )
Analog Video Input
N/A
HDMI Video Input
2 x HDMI (RGB/YUV) 1080i / 1080p / 720p
Analog Audio Output
N/A
SDI Audio Output (PGM output)
2CH
Analog Audio Input
2CH XLR
Sync Input
N/A
PGM Out
HDMI / SDI
Multiview Out
HDMI
In 720P mode ; MV output by HDMI is 720P In 1080i mode ; MV output by HDMI is 1080P
Output Can Select Any of Input Source
Program
Preview
Multiview
Input 1-6
Audio Indicator on Multiview
Y ( output 2CH)
Down Converted SDI Program Output
N/A
Down Converted Composite Program Output
N/A
Computer Output
Ethernet (Motion JPEG Out)
Tally Out
Y
GPI
Y (Level / Pulse Trigger selectable)
Software Updates
Ethernet

SD Format Support
N/A
HD Format Support
1080i50, 1080i59.94, 720p50, 720p59.94
SDI Compliance
SMPTE 292M. ( SDI output /PGM out)
Video Sampling
4:2:2 10 bit
Color Precision
4:2:2 10 bit
Color Space
4:2:2 YUV
HDMI Input Resolutions for Computers
1280 x 720 59.94Hz 50Hz (720P) and 1920 x 1080 59.94Hz 50Hz (1080p & 1080i)

Color Space Conversion
Hardware based real time
Processing Delay
< 1 frame
Audio Mixer
Selectable audio follow video Master gain control
HD Down Conversion
N/A

Downstream Keyers
2
Linear/Luma Keyers
4
Chroma Keyers
2
Analog Genlock
N/A
Pattern Generators
Color Bar
DVE with 3D Borders & Drop Shadow
N/A
PIP
1
XPT
Y
Frame store
24
Control Panel Compatibility
Use PC ; Control panel (optional) by RS-232 / Ethernet
Input Voltage
8V~17V
Power Consumption
12V/19W
Audio Delay
N/A
Control Protocol
DVIP

Number of Windows
2+6 (+2 Output windows currently)
Routable Windows
Y (Follow XPT)
Tally
Y
Windows Source Labels
Y
