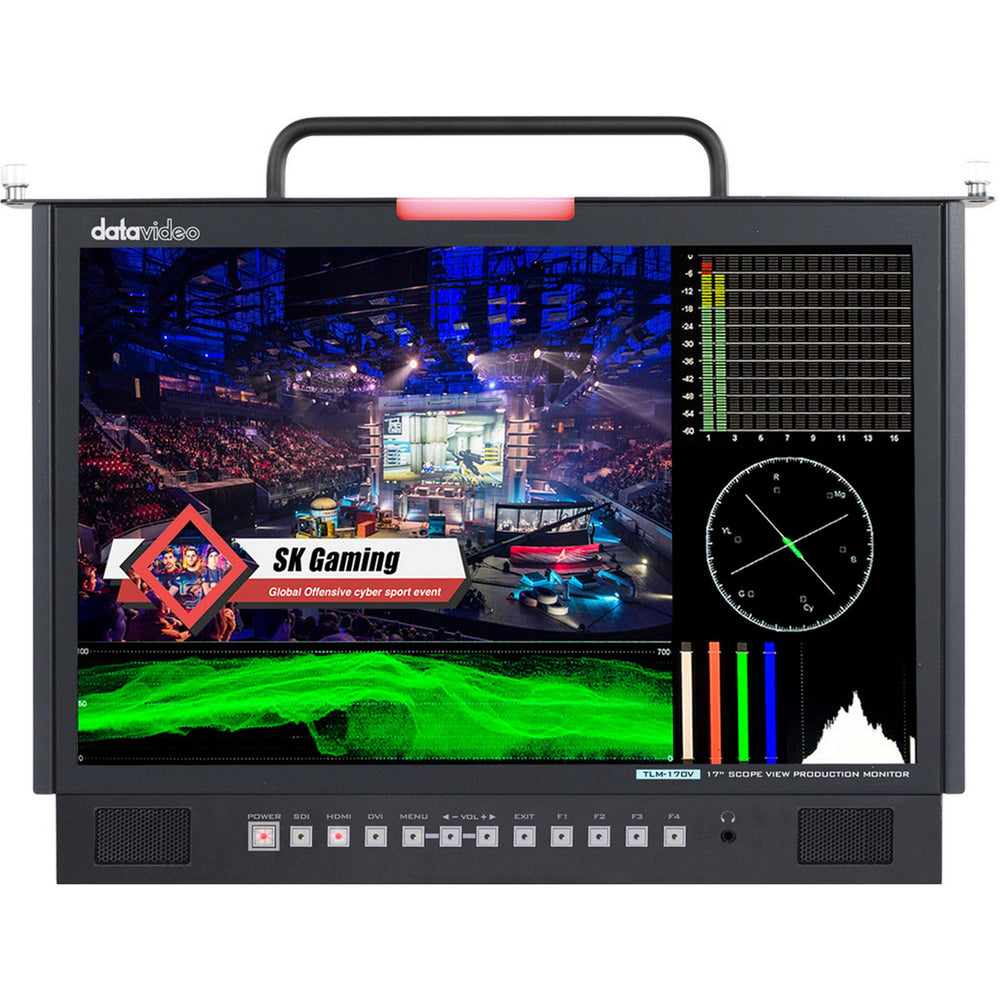

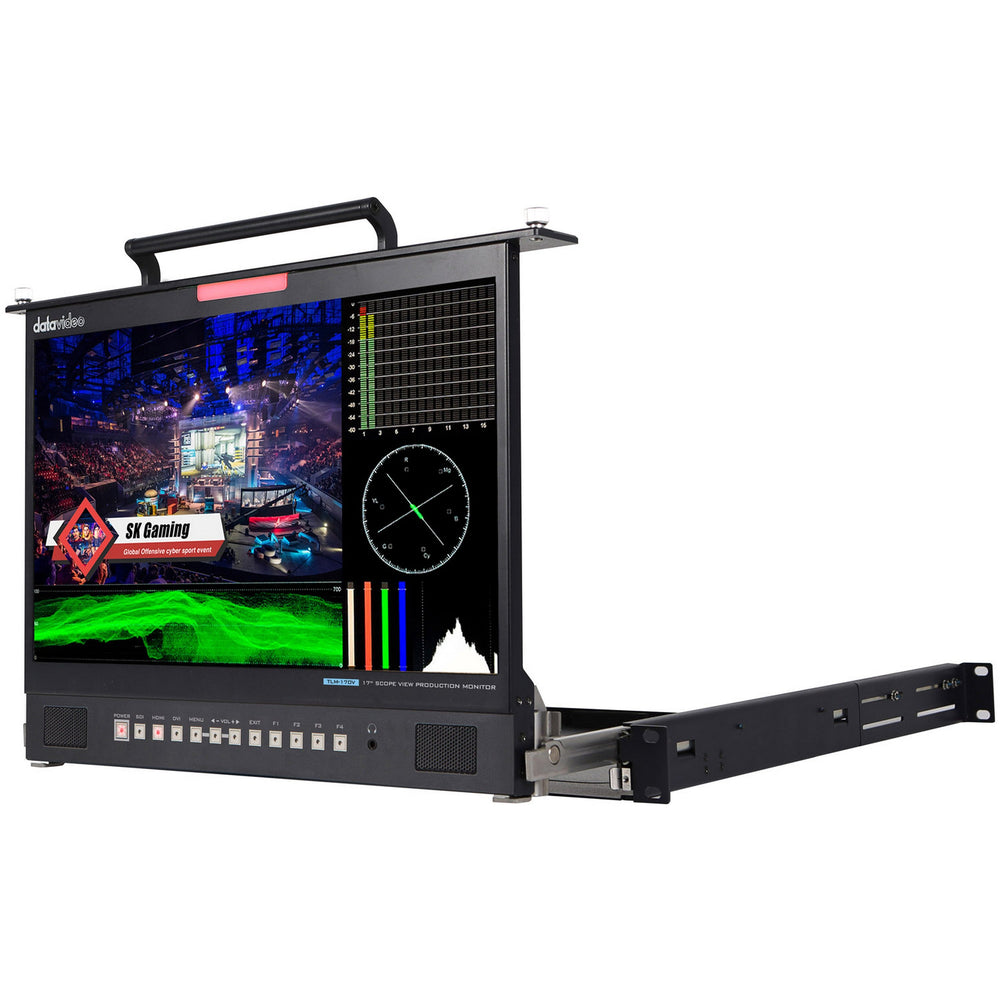

Datavideo TLM-170VM 17-Inch ScopeView Production Monitor-Pull-Out
Datavideo TLM-170VM 17-Inch ScopeView Production Monitor-Pull-Out
17.3'' Full HD Pull-Out Monitor
Supports 3G/HD/SD 1920x1080 panel resolution.
Supports multiple input and output configurations
1 x 3G/HD/SD-SDI, 2 x HDMI inputs; 1 x 3G/HD/SD-SDI, 1 x HDMI loop through
SDI, HDMI cross conversion
The TLM-170V can cross convert SDI, HDMI video signals, makes it a great fit to all the video production workflow.
Various built-in functions
Support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking, zoom, pix to pix, underscan, check field
Tally light
Tally light included. Best use for live production.
Technical Specifications
Screen
17.3" LED Backlit
Chassis
1RU Pull-Out
Resolution
1920x1080
Viewing Angle
(H) +89/-89
(V) +89/-89
Luminance/Contrast
300cd/m2
700:1

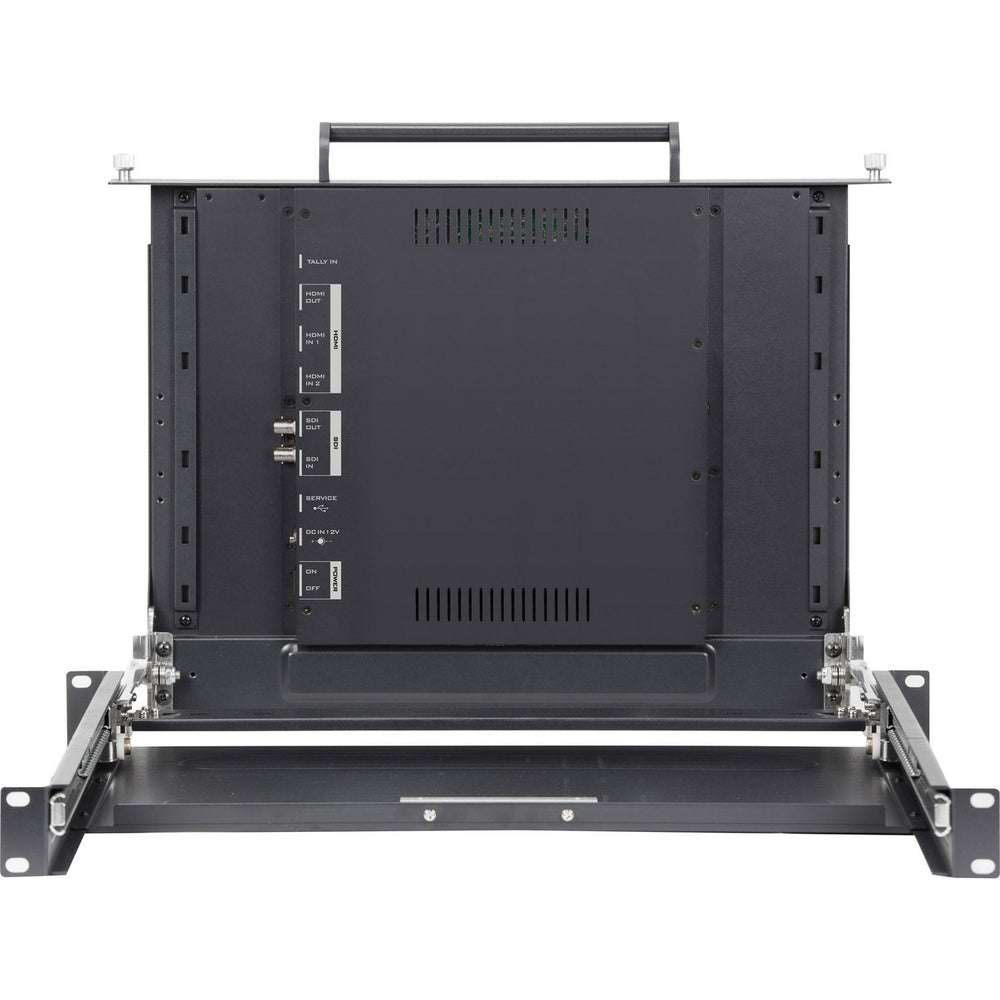

Video Inputs
1x 3G/HD/SD-SDI
2x HDMI
Loop Through
1x 3G/HD/SD-SDI
1x HDMI
Supported Input Resolutions
1080p(23.98/24/25/29.97/30/50/59.95/60Hz)
1080i(50/59.94/60Hz),
720p(50/59.94/60Hz),
576i(PAL), 480i(NTSC)
Aspect Ratio
16:9, 4:3
Tally LED
Live (Red)
Cued (Green)
Audio In/Out
2x Speaker
1x Headphone Jack
Special Features
SDI and HDMI cross conversion, Support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking focus assist, zoom, pix to pix, underscan, check field
Dimension (LxWxH)
403 x 305 x 41 mm
Weight
4.5 kg
Operating Temp. Range
0~40 C
Power
DC 10-18V, 32W
