Datavideo VP-737 | Composite Cat5e Video Signal Source Repeater
Datavideo VP-737 Composite Cat5e Video Signal Source Repeater
VP-737 is a composite video signal repeater which consists of a transmission and receiver unit.
VP-737 is able to extend composite video source signal up to 200 meters away over Cat5e (or better) cable. With no software configuration required, the installation and setup is quick and hassle-free.
Key Features
- Wired composite video transmission as far as 200 meters
- Completely adaptive - quick, easy installation and setup, no configuration required
- Cat5e extension design makes use of existing Cat 5e or better wiring infrastructures
Technical Specifications
Max Distance
200 m / 660 ft
Bandwidth Video
NTSC: 4.1 MHz / PAL: 5.8MHz
Supported Resolutions
625i PAL, 525i NTSC
Impedance Video
1 Vp-p / 75 ohm
Signal/Noise Ratio (SNR)
>50dB
Signal Level
Video: 2Vpp (maximum)
Differential Gain
=<3%
Differential Phase
=<3 deg
Connector

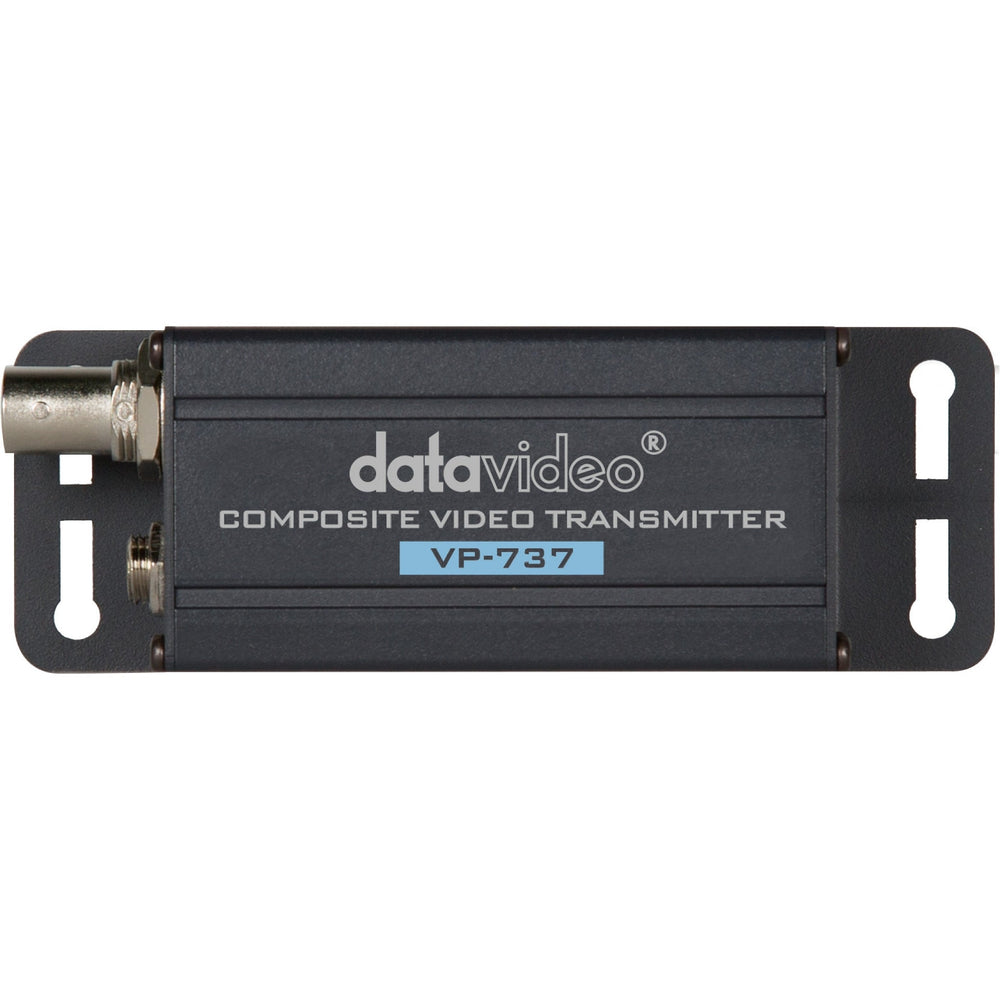

Transmitter
- CV Input (BNC)
- DC Input
- CAT 5e Output (RJ-45)
Receiver

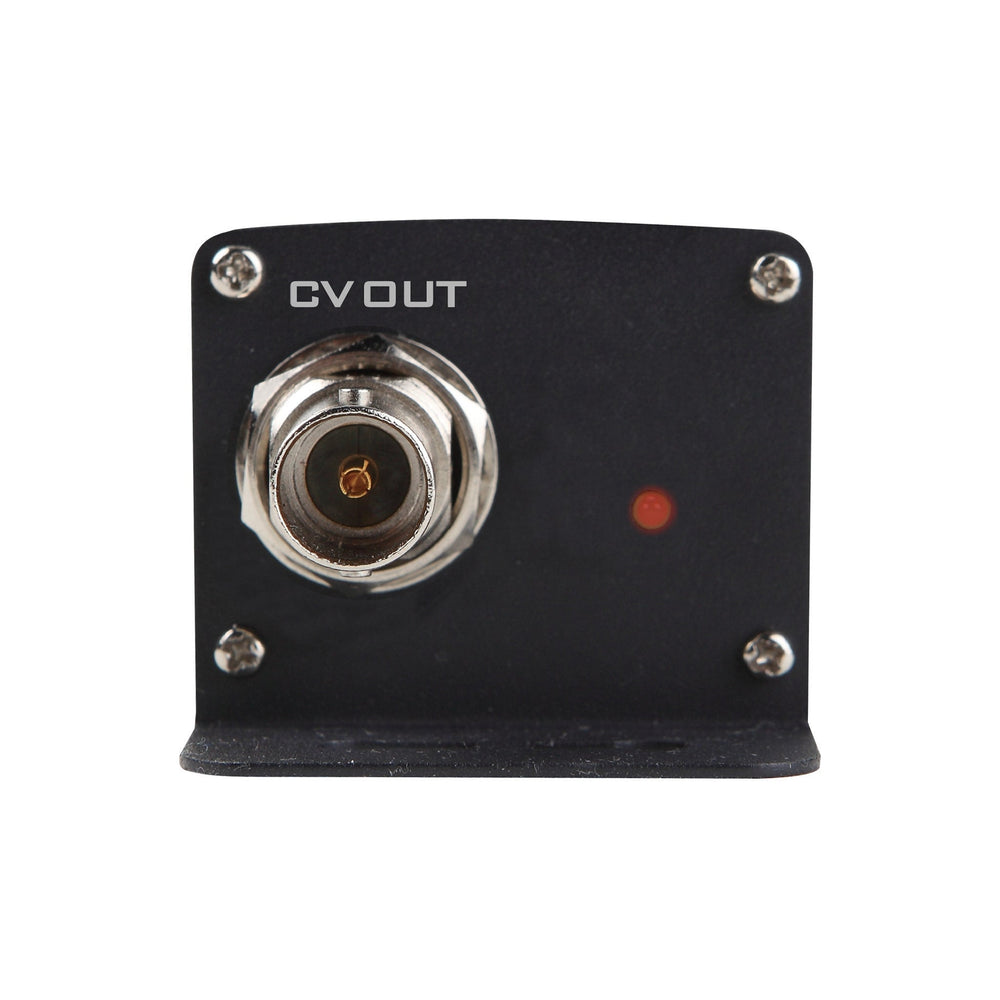

- CV Output (BNC)

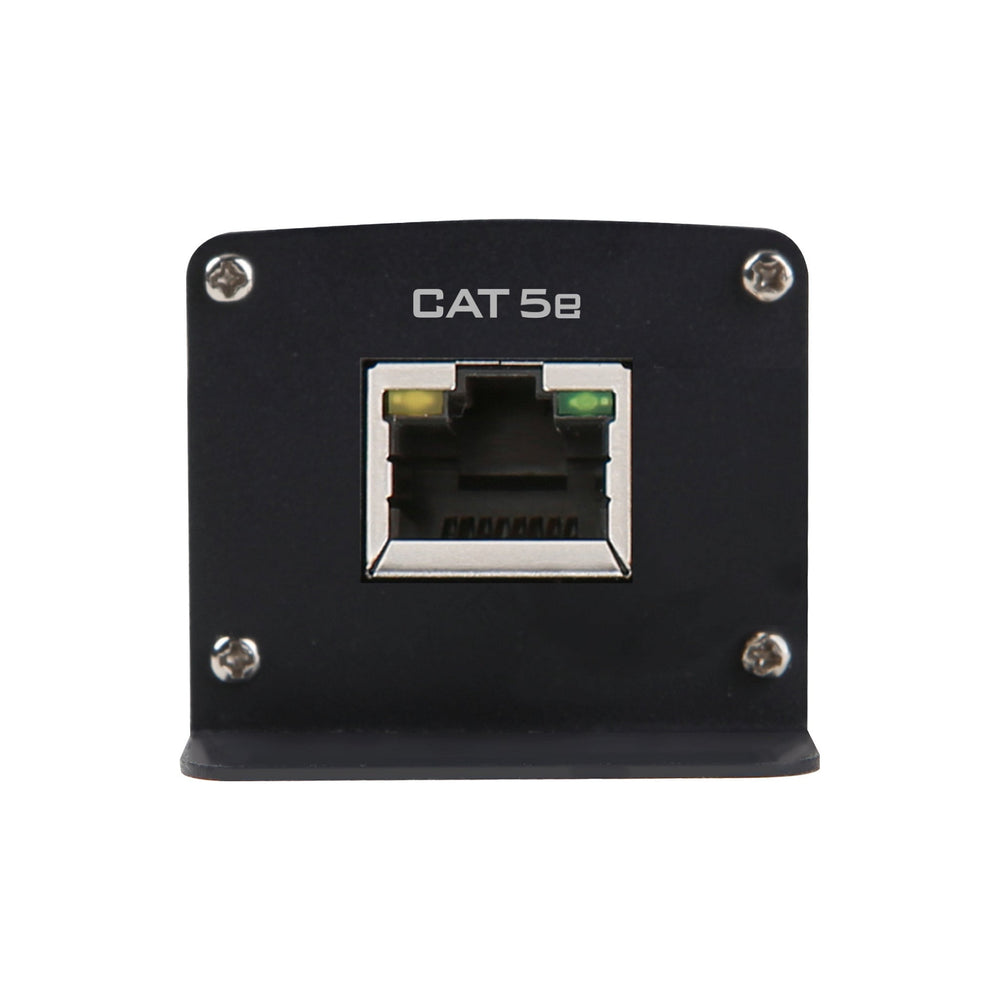

- CAT 5e Input (RJ-45)
Power
12V / 0.6W
Dimension (mm)
108.9(L) x 37.5(W) x 32.0(H)
Weight (kg)
0.1 (Transmitter), 0.1 (Receiver)
