dB Technologies DVX DM12 750W 12-Inch 2-Way Active Floor Monitor
dB Technologies DVX DM12 750W 12-Inch 2-Way Active Floor Monitor

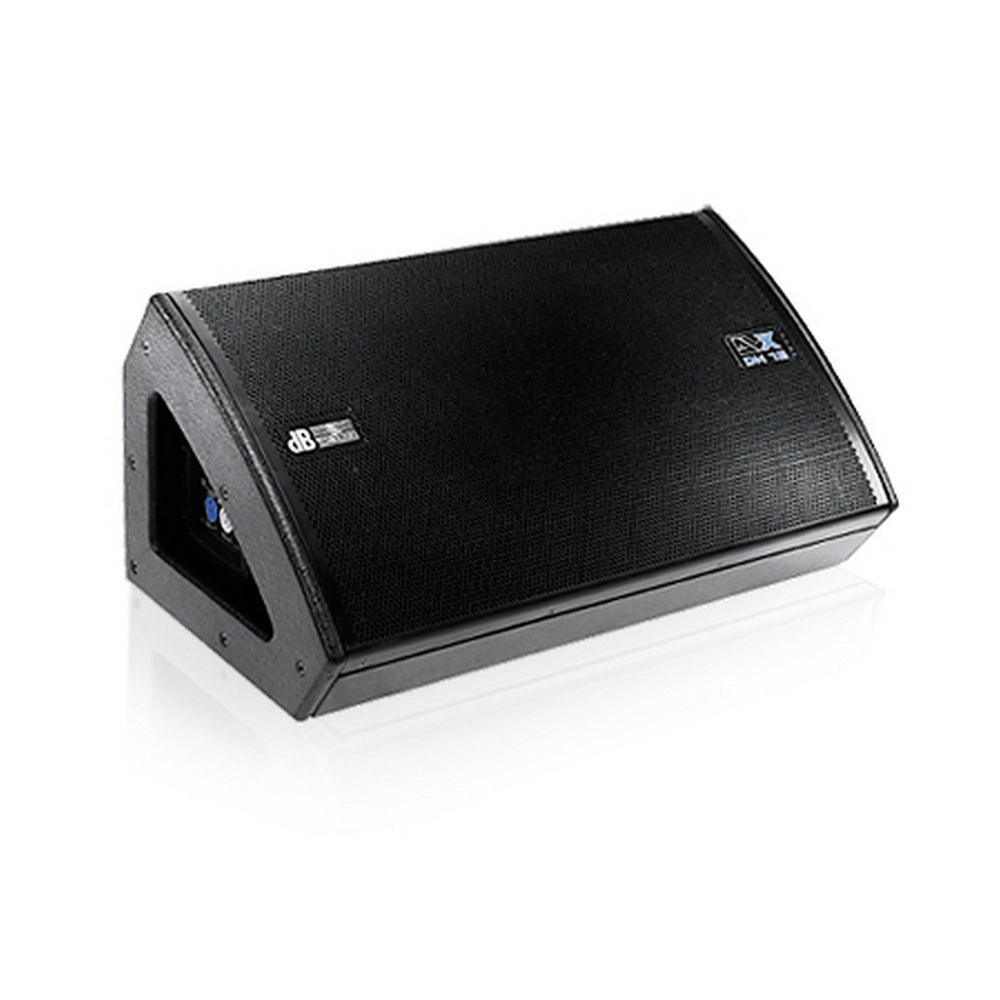

The DVX DM12 is an active bi-amped stage monitor. Powerful, assertive, and engineered for professional applications, it is the perfect choice for midsized to large stages.
Featuring a discrete, unobtrusive design, the ultra-low-profile enclosure sports a high-performance 12ā neodymium woofer paired with a 1.4ā neodymium compression driver and rotatable aluminum CD horn precision matched for on-stage monitoring.
Unlike conventional multifunctional speakers, the DVX DM 12 is a prograde performer developed specifically for use as a floor monitor. Optimized to resist feedback even at extremely high levels, it delivers the true-to-nature response and dynamic balance that todayās artists demand.
The integrated digipro digital power amps deliver the requisite output. The switched-mode power supplies with PFC ensure touring rigs get all the juice they need to perform at their peak even when a venueās mains power is weak and voltage is low.
The onboard controller encompasses an active equalizer, active x-over including phase and time alignment, limiters, and switchable system presets that adapt the monitorās performance to suit the given application.
Made of rugged multiplex and coated with tough black lacquer, the cabinet sets up at two different angles. It is also equipped with a pole mount, enabling the DVX DM12 to be set on a tripod or speaker pole.
Key Features
- 2-Way Active Stage Monitor
- 40 x 90 Degrees directivity
- 12ā Neodymium woofers, 3ā voice coil
- 1.4ā Neodymium driver, 2.5ā voice coil, with rotatable horn
- 750W RMS Class-D Digipro amplifier
- 24 bit 48 kHz DSP
- Multiband, RMS/Peak, Thermal Limiter
- Flat / Monitor EQ presets
Technical Specifications
Acoustical data
Frequency Response <-10dB>
55 - 20.000 Hz
Frequency Response <+/- 3dB>
68 - 19.000 Hz
Max SPL
131 dB
HF
1.4ā
Type HF
Neodymium Compression Driver
Voice Coil HF
Titanium 2.5ā
Directivity
40x90 Degrees
Horn
CD Horn Aluminum
Rotatable Horn
YES
LF
12ā
Type LF
Neodymium
Voice Coil LF
3ā
Amplifier
Amp Technology
Digipro
Amp Class
Class D
Power RMS
750 W
Peak Power
1500 W
Cooling
Convection
Processor
Controller
DSP 24 Bit/48 kHz
System Presets
Flat, Monitor
Limiter
RMS, Peak. Thermal, Multiband
Crossover Frequency MF-HF
1320 Hz
Slope MF-HF
24 dB/Octave
Mechanics
Housing
Multiplex plywood
Housing Design
Low Profile Multifunctional
Angles Up
35, 55 Degrees
Rigging Points
6x M10 4x Quick-Relase Pins
Width
660 mm (25.9 in)
Height
305 mm (12 in)
Depth
378 mm (14.8 in)
Weight
17.5 kg (55.12 lbs)
