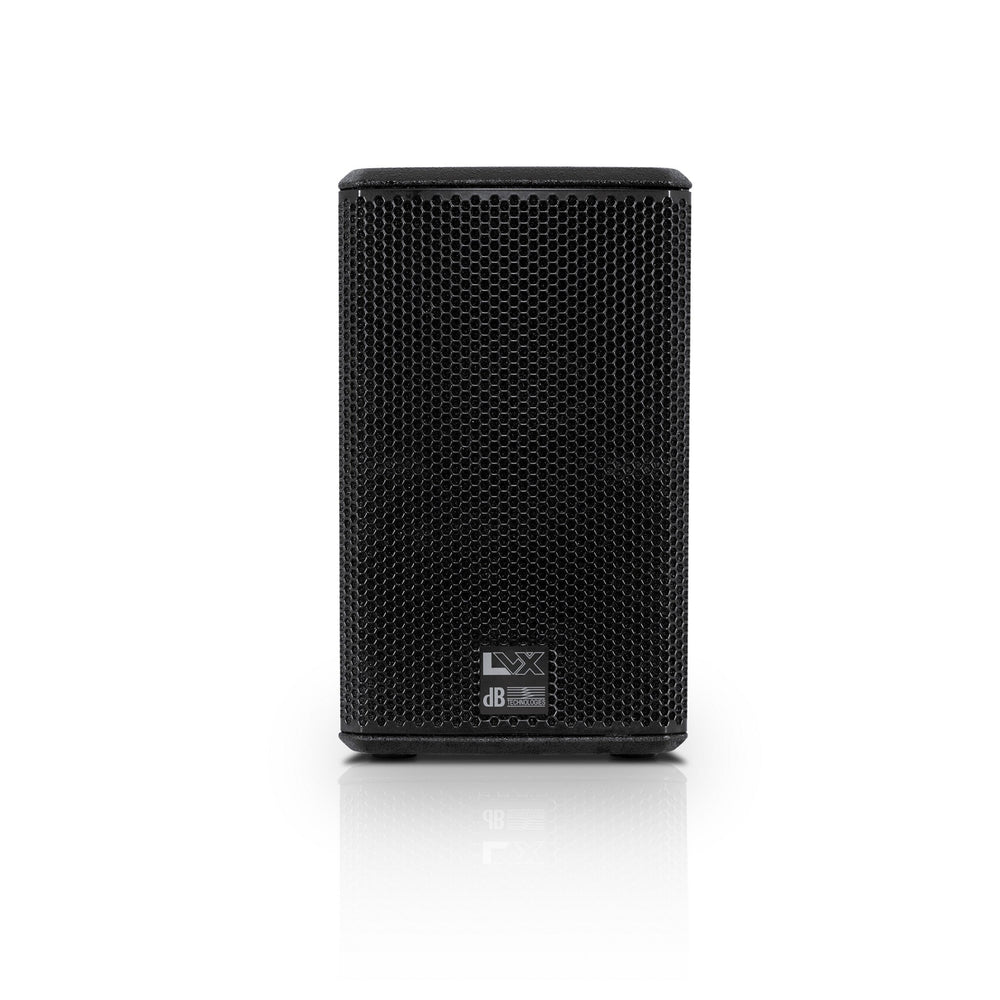

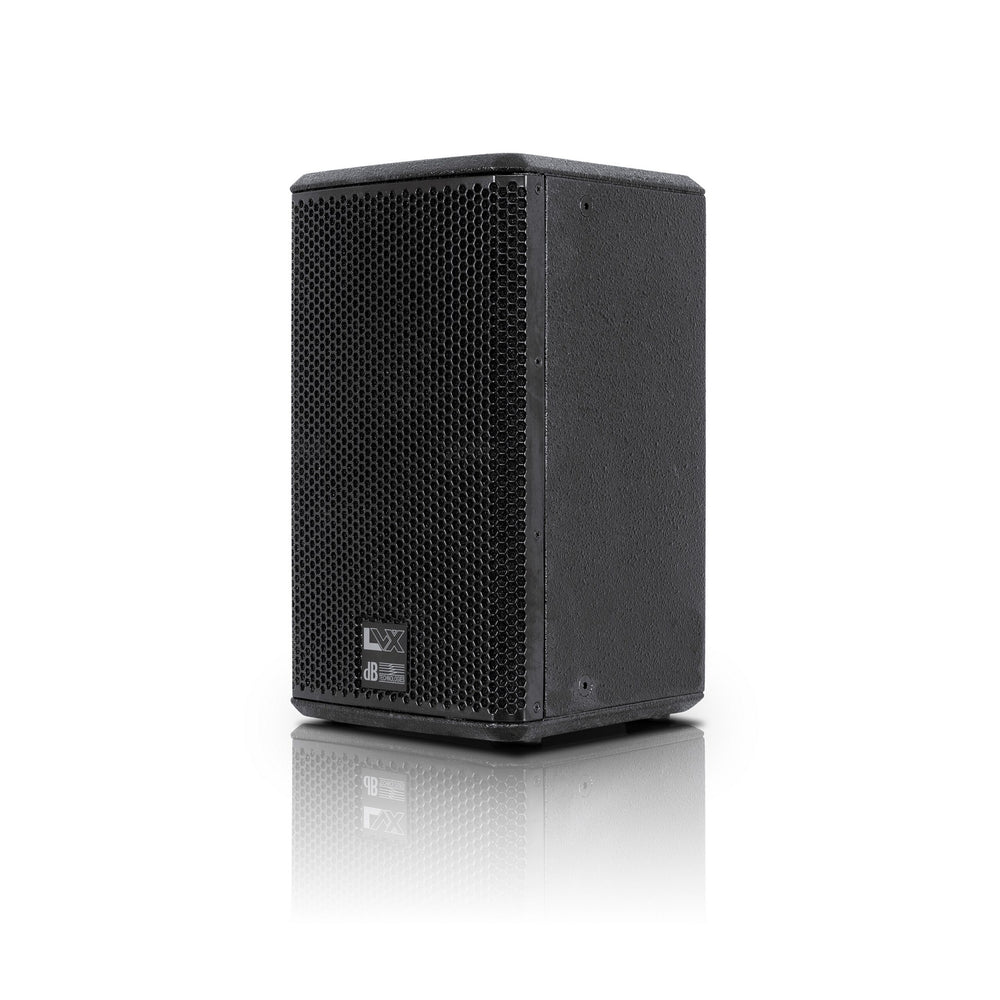

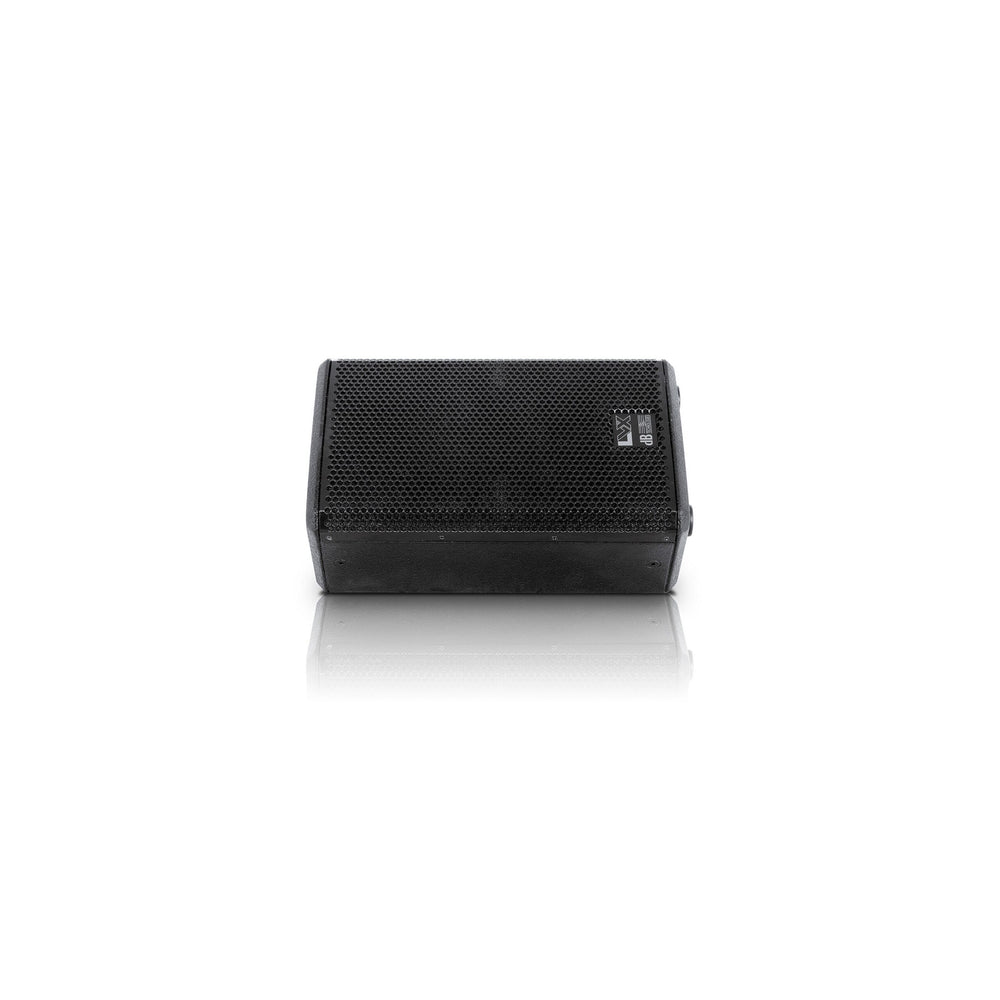

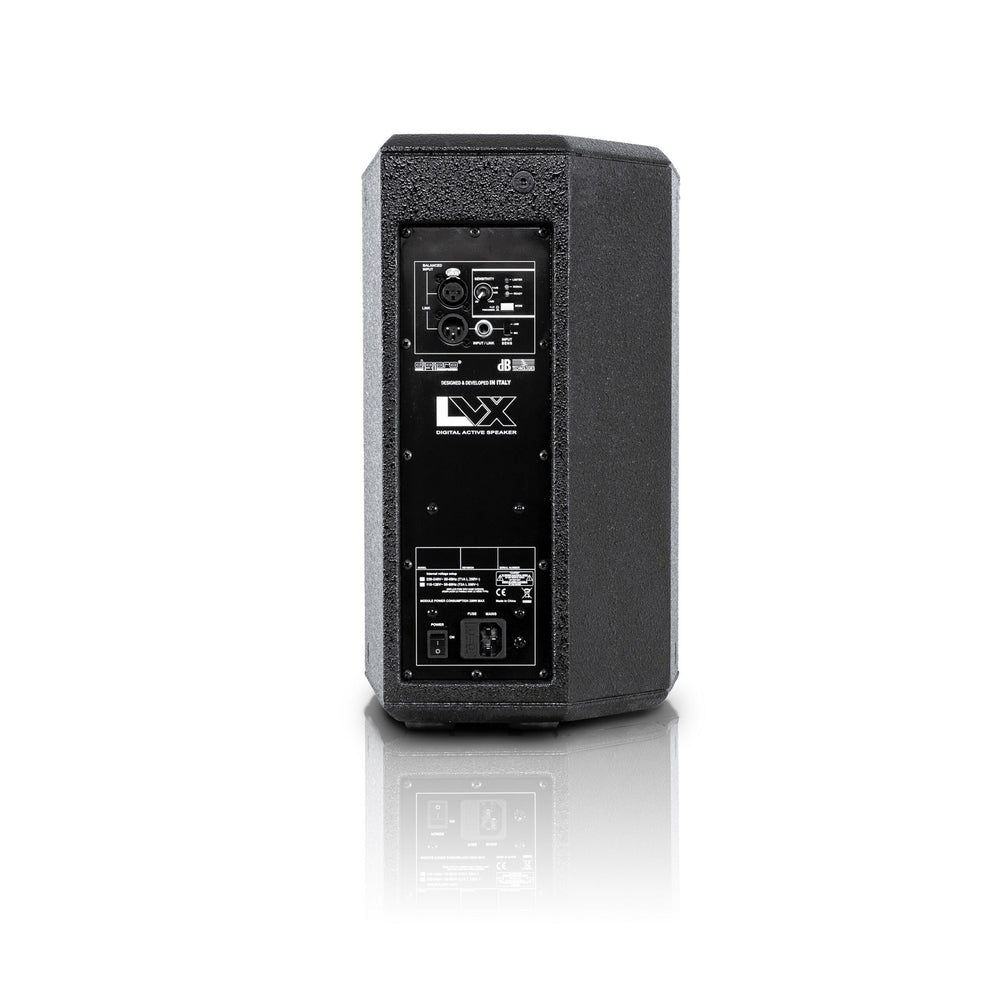

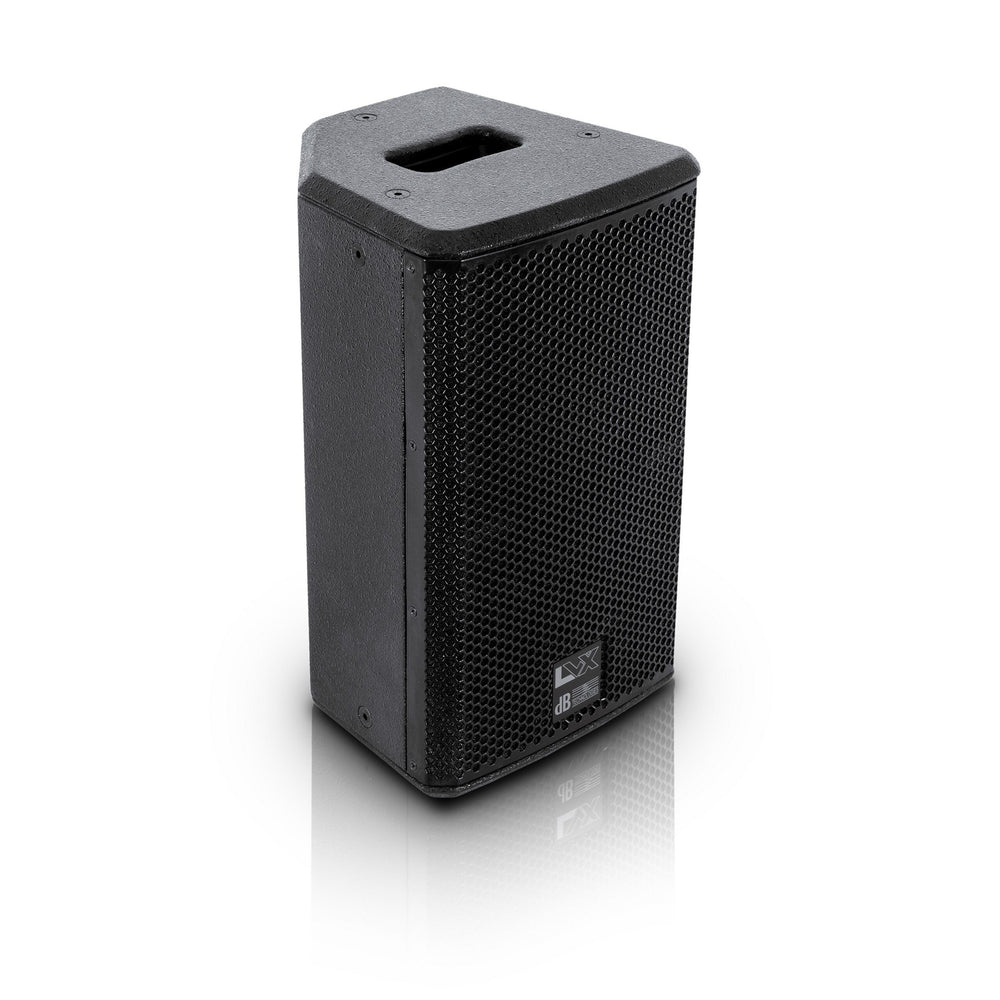

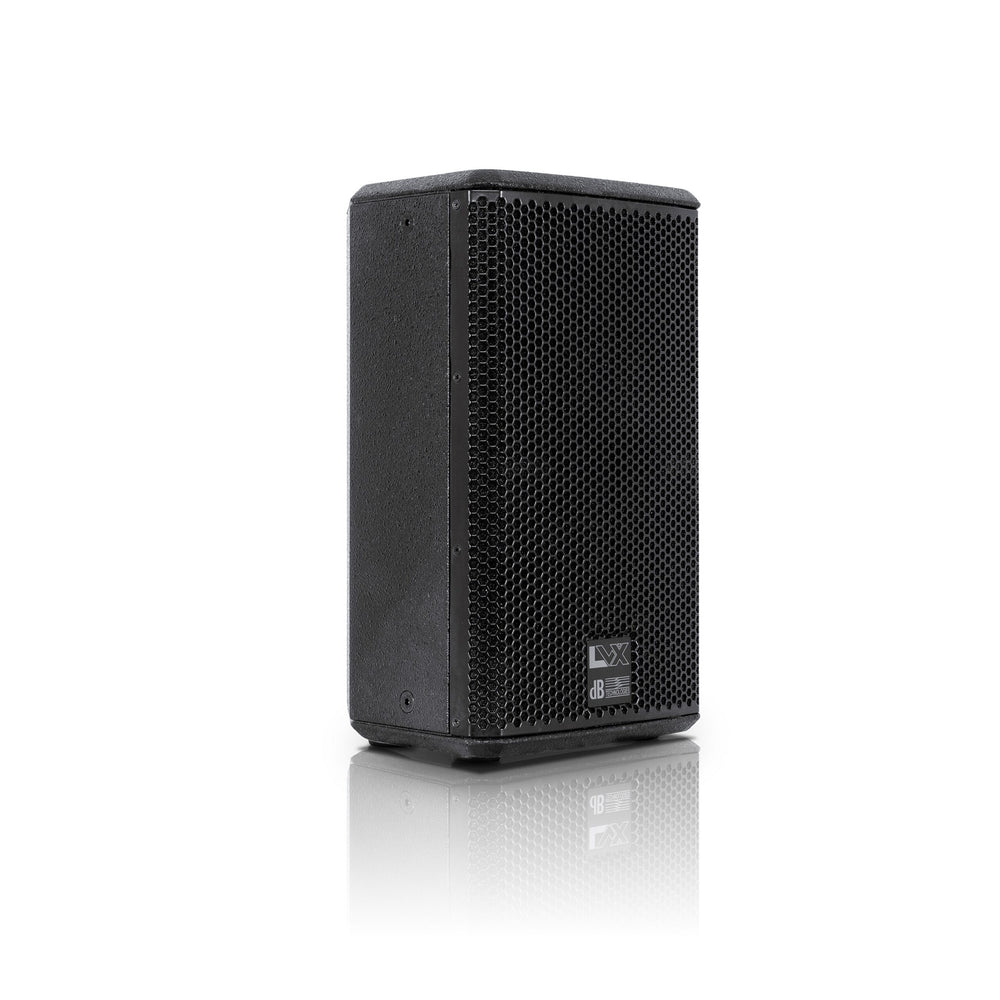

dB Technologies LVX P8 2-Way 8 Inch Active Speaker
LVX P cabinets are equipped with premium components and are designed to render speech, live or background music in medium to large venues delivering a clear, detailed audio performance. Full range LVX P8 provides a 90x70 dispersion pattern and is equipped with a rotatable horn to guarantee the same HF coverage even in case of horizontal install. The solid plywood enclosures features a clean, install-friendly design featuring 12 M8-thread rigging points to ease installation with dedicated horizontal (WB-LP10H or vertical brackets (VB-LP810V). The cabinet features an integrated handle on back side and a 36 mm pole mount plate.
Key Features
- 2-way passive speaker
- Clean design
- M8-thread rigging points
- Rotatable horn for vertical or horizontal use
- Wooden lightweight enclosure
Technical Specifications
Speaker Type
2-Way Active Speaker
Acoustical data
Frequency Response <-10dB>
65 - 20.000 Hz
Frequency Response <-6dB>
80 - 19.000 Hz
Max SPL
121 dB
HF
1"
Directivity
90 x 70
Horn
Rotatable CD Horn
LF
8"
Amplifier
Amp Technology
Digipro G2
Amp Class
Class-D
Peak Power
800W
PRG Power
400 W
Processor
Controller
DSP 24bit/48kHz
System Presets
Flat, Processed
Limiter
Dual Active Peak, RMS, Thermal
Crossover Frequency LF-HF
2050 Hz
Slope LF-HF
24 dB/Octave
Mechanics
Housing
MDF
Angles Up
Monitor use 40
Handles
1x top side, recessed
Rigging points
10 x M8
Pole Mount
D36 mm
Width
260 mm (10.24 in)
Height
420 mm (16.54 in)
Depth
260 mm (10.24 in)
Weight
10.1 kg (22.27 lbs)
