dB Technologies RDNET CONTROL 8 USB Master Control Interface for DVA Network Software
dB Technologies RDNET CONTROL 8 USB Master Control Interface for DVA Network Software

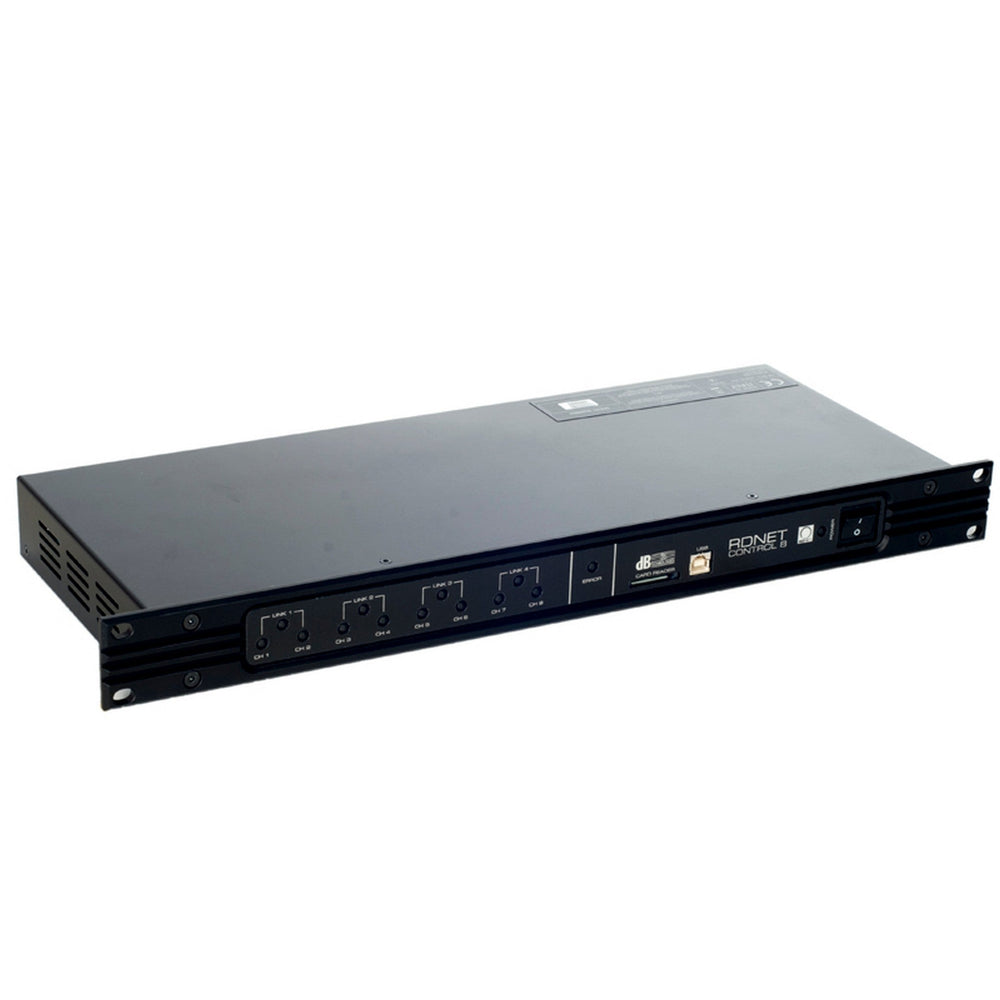

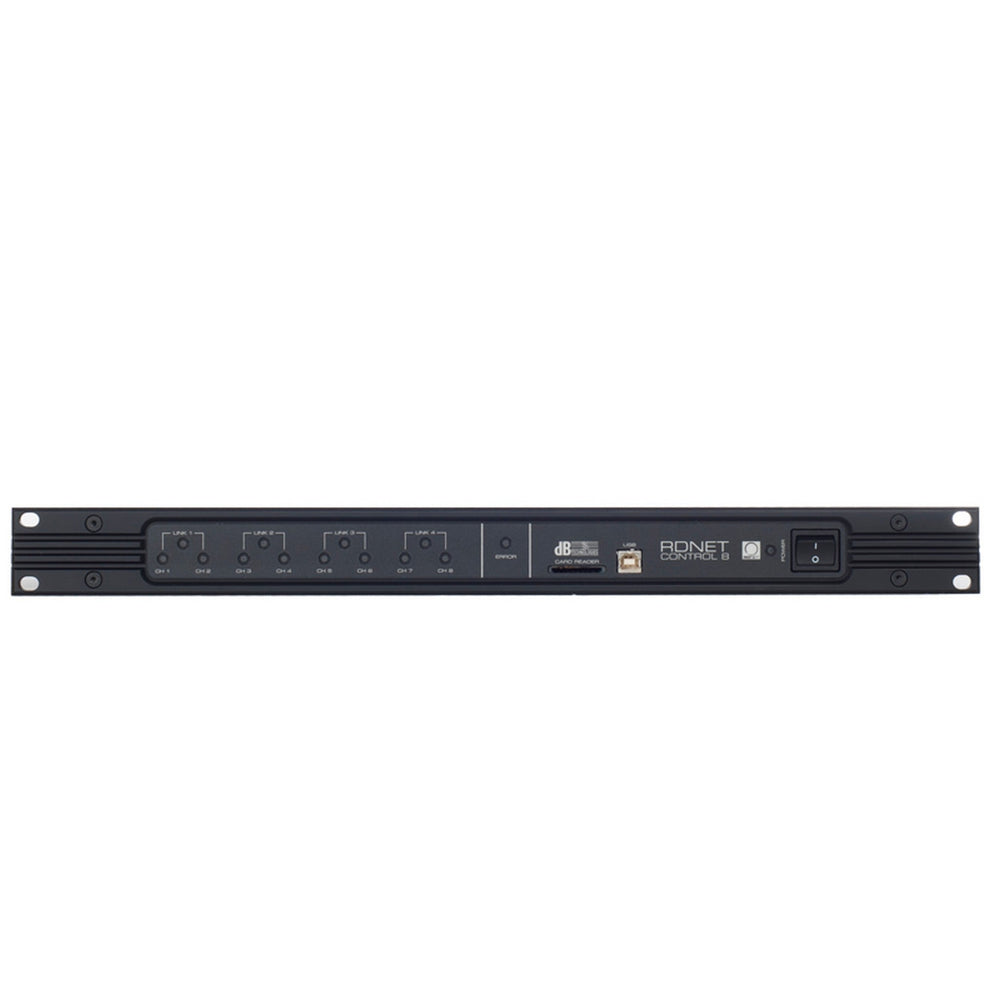

RDNET CONTROL 8 is a hardware interface to connect dB Technologies RDNET compatible devices, to a Personal Computer (PC) by means of an USB connection or ethernet connection.
This appliance can be used on a stand or installed in a standard 19ā rack.
The overall dimensions consist of a single unit; fastening is performed by 4 screws to be inserted into slots located on side flaps.
RDNET CONTROL8 is a hardware interface to connect diffusers or accessory appliances to a Personal Computer (PC).
RDNET system uses a proprietary serial protocol especially developed to create a data network which can remotely manage up to 256 compatible devices (including DVA and VIO Series)
The interface is managed by PC through a suitable software running on Microsoft Windows operating systems.
The audio devices are connected to RDNET CONTROL 8 control unit, which performs the main function of data routing between PC and devices themselves.
RDNETsystem allows monitoring the status of each devices, i.e. the main values to be taken (VU-meter, temperatures, logistic status, etc.).
Key Features
- Hardware interface for RDNet devices with standard EIA RS-485
- Up to 8 subnet managed with max. 32 devices for each subnet (256 total devices)
- Network connections through RJ45-RJ45 CAT-5 cables or XLR-XLR balanced audio cables (as alternative to RJ-45)

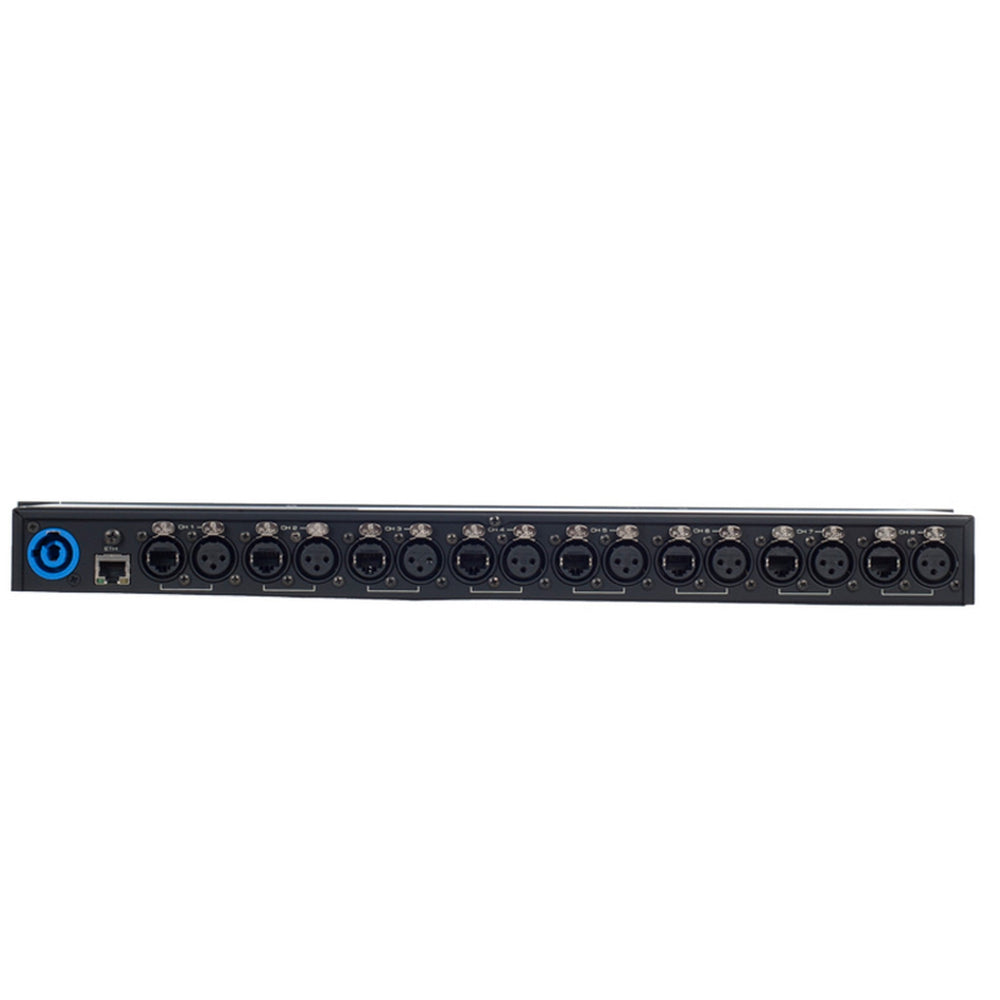

- PC connection through Ethernet (remote) or USB (local) sockets
- DVA NETWORK software to manage in real time parameters like output level, mute, equalization, delay, etc.
