Description

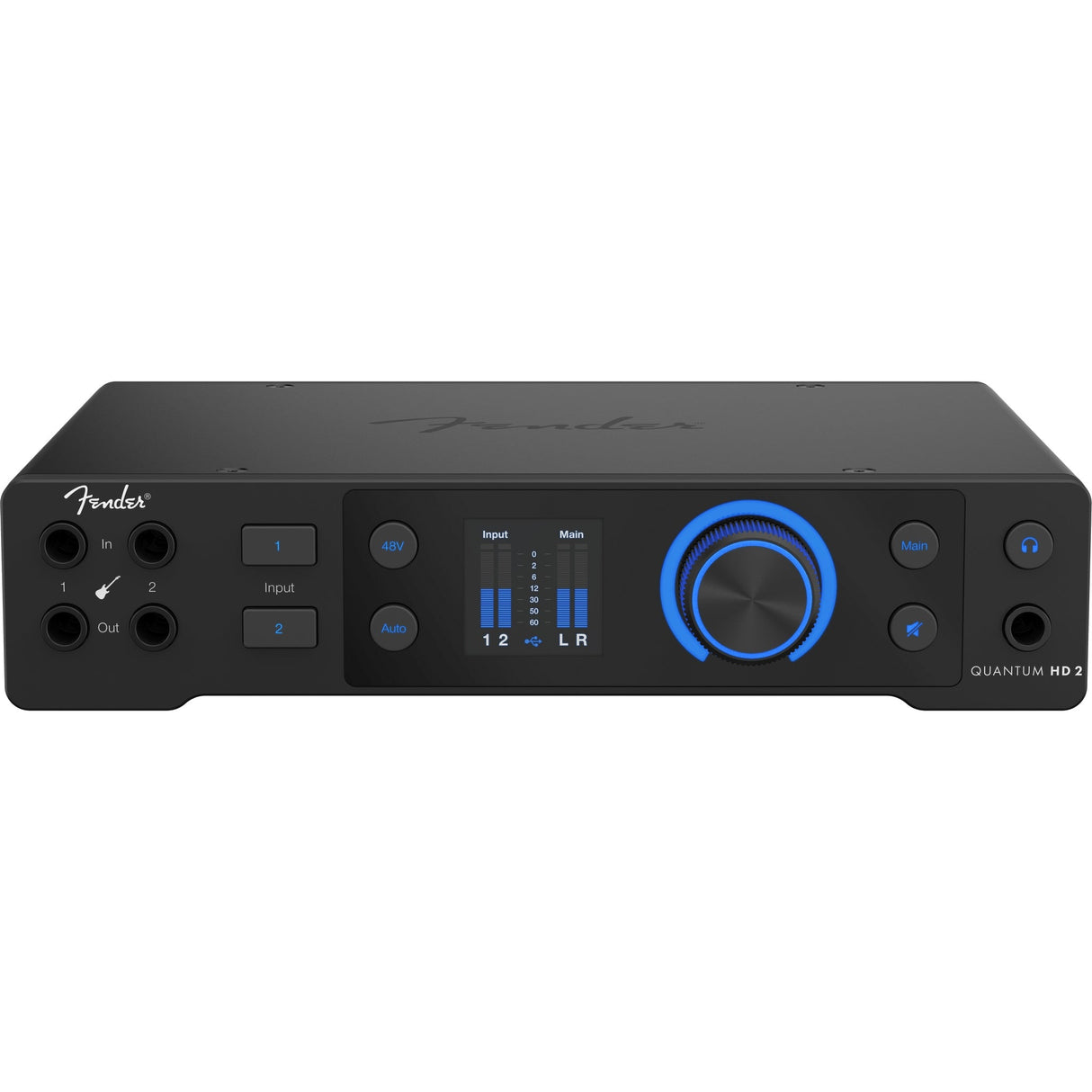

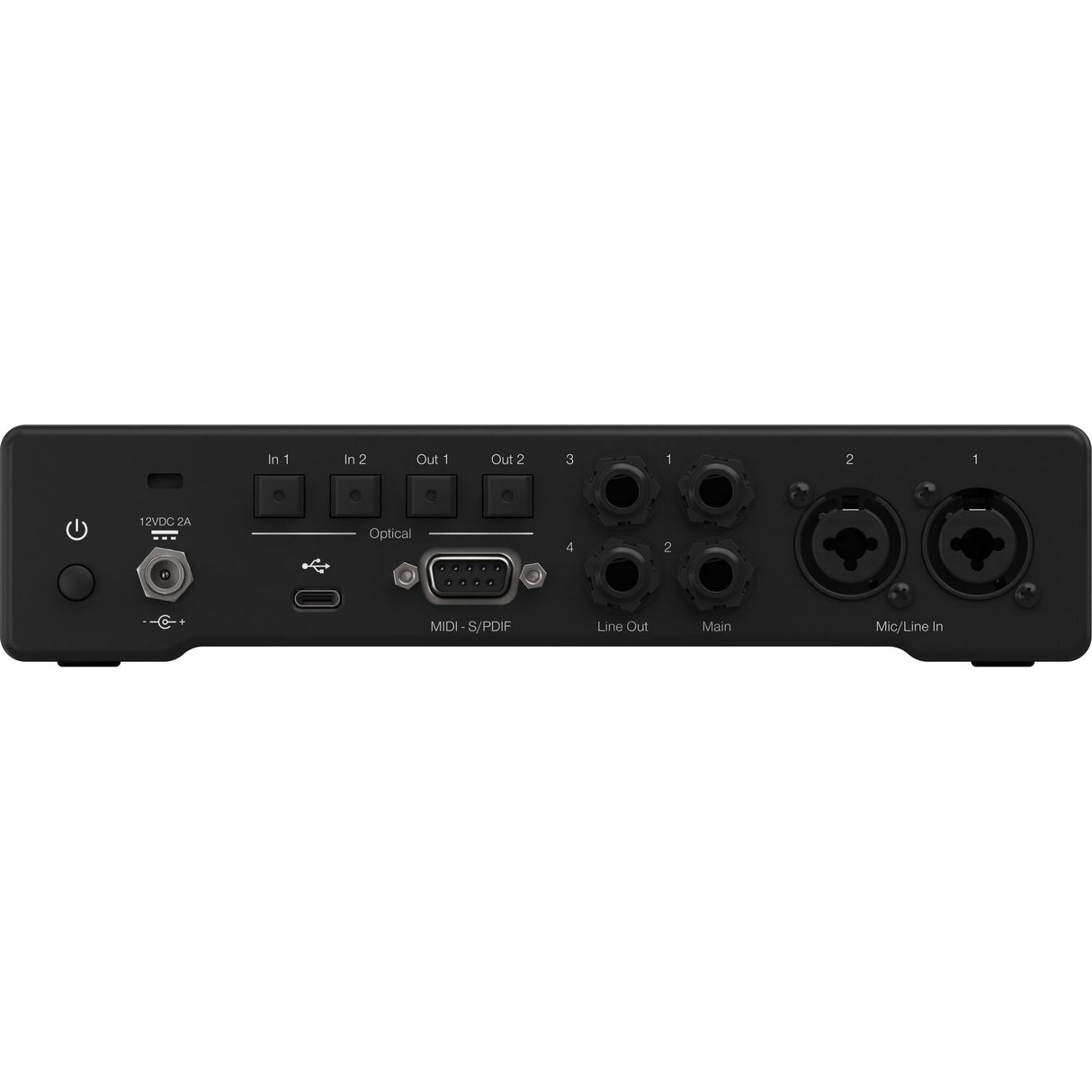

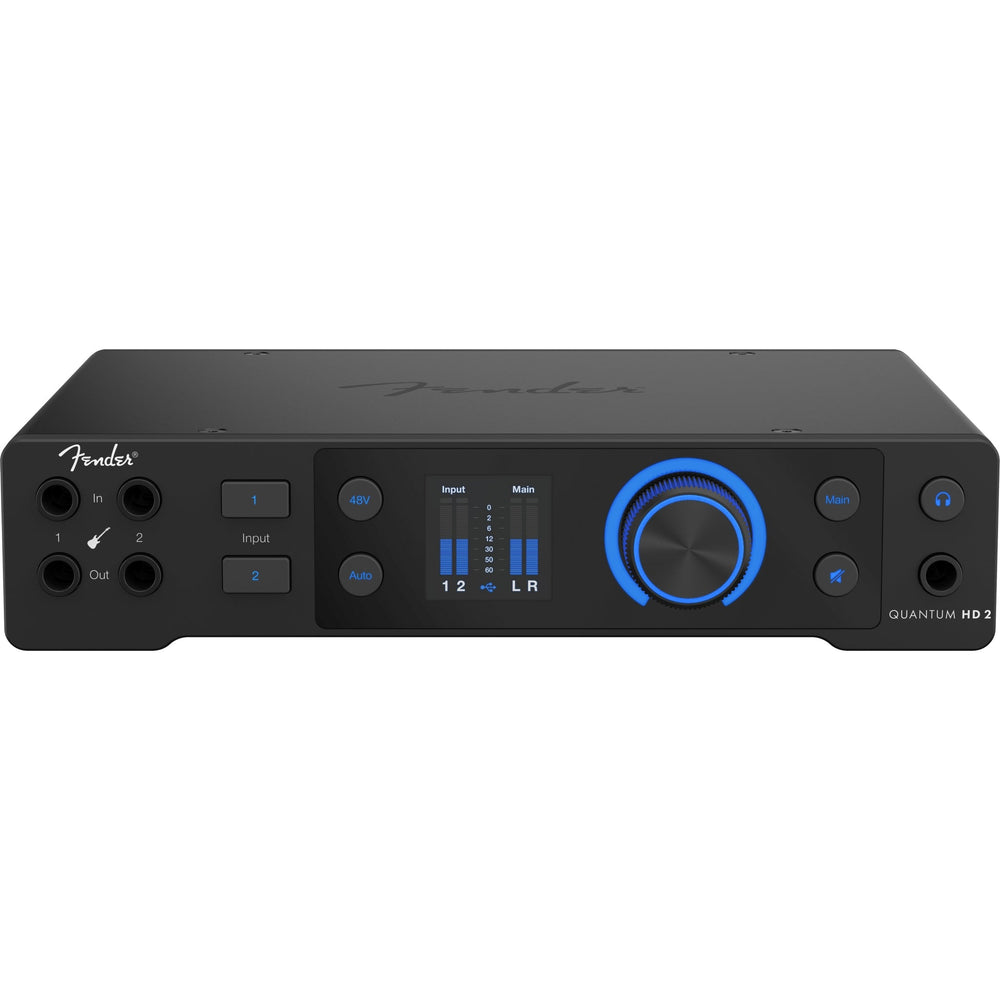

Fender Quantum HD 2 USB-C Audio Interface
The Fender Quantum HD 2 is a USB-C audio interface designed for musicians, producers, and project studios requiring accurate audio capture in a compact format. It enables high-quality recording and monitoring for vocals, instruments, and line-level sources, supporting recording, mixing, and playback workflows. This makes it ideal for home studios, mobile recording rigs, and streamlined production setups where space efficiency and signal clarity are critical.
The interface features Fender MAX-HD microphone preamps and high-performance converters to capture detailed audio with low noise and wide dynamic range. Front-facing instrument inputs and onboard DSP monitoring allow for low-latency tracking and flexible signal routing. USB-C connectivity ensures stable integration with modern digital audio workstations.
In real-world use, the Quantum HD 2 supports efficient session workflows with simple control, reliable monitoring, and flexible I/O for everyday recording tasks. MIDI connectivity and software-based control expand compatibility with external devices, making it suitable for both fixed and portable studio environments.
Key Features
- 2 x 4 USB-C Audio Interface: Supports multi-channel recording and playback over USB-C
- MAX-HD Microphone Preamps: Designed for low-noise, high-headroom microphone capture
- High-Resolution Audio: 32-bit converters with sample rates up to 192 kHz
- Front-Facing Instrument Inputs: Optimized for direct guitar and bass recording
- DSP Monitoring and Loopback: Enables low-latency monitoring and flexible routing
Technical Specifications
General
Microphone Inputs
Connection Type: XLR Female (Combo), Balanced
Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Input Impedance: 1600 Ohms
Dynamic Range: 116 dB (A-Weighted, Minimum Gain)
EIN: -130 dBu (Maximum Gain, 150 Ohms, 20 Hz to 20 kHz, A-Weighted)
THD+N: 0.002% (1 kHz, Minimum Gain)
Gain Range: 75 dB
Maximum Input Level: +18 dBu (Balanced, Minimum Gain)
Phantom Power: +48 VDC
Line Inputs
Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Input Impedance: 10k Ohms
Dynamic Range: 118 dB (A-Weighted, Minimum Gain)
THD+N: 0.001% (1 kHz, Minimum Gain)
Gain Range: +10 dB
Maximum Input Level: +18 dBu (Balanced, Minimum Gain)
Instrument Inputs
Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Dynamic Range: 111 dB (A-Weighted, Minimum Gain)
THD+N: 0.003% (1 kHz, Minimum Gain)
Gain Range: 75 dB
Maximum Input Level: +21 dBu (Unbalanced, Minimum Gain)
Line Outputs
Connection Type: 1/4" TRS Female
Main Outputs
Connection Type: 1/4" TRS Female
Headphone Outputs
Connection Type: One 1/4" TRS Female Stereo
Frequency Response: 20 Hz to 20 kHz, +/- 0.3 dB (Unity Gain, Reference 1 kHz)
Dynamic Range: 118 dB (A-Weighted)
THD+N: 0.003% (1 kHz)
Impedance Working Range: 33 Ohms
Maximum Output Level: 11 dBu (50 Ohms)
MIDI I/O
Connection Type: 5-Pin Female DIN
Power
Voltage: 120V
Voltage Requirements: 100–240 VAC, 50–60 Hz
Digital Audio
Connectivity: USB-C
Bit Depth: 32-bit
Dynamic Range: 124 dB
Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
Measurements
Height: 1.9" (48.3 mm)
Depth: 7.5" (191 mm)
Width: 8.5" (216 mm)
Weight
2.9 lbs (1.3 kg)
