Fender Studio Quantum HD 8 USB-C Audio Interface
Authorized Dealer
Free Shipping
Last 1
Pick up available In-StoreEstimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

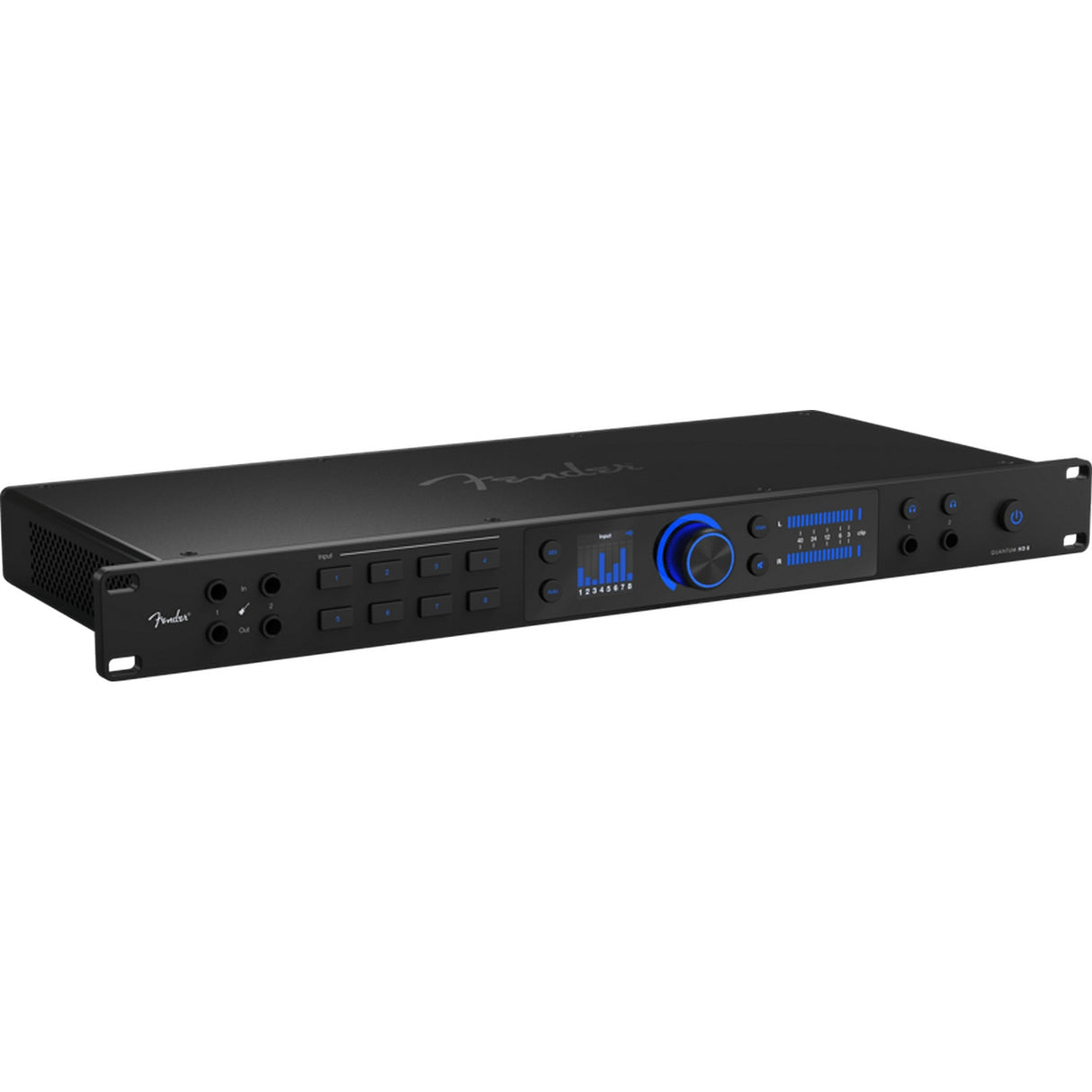

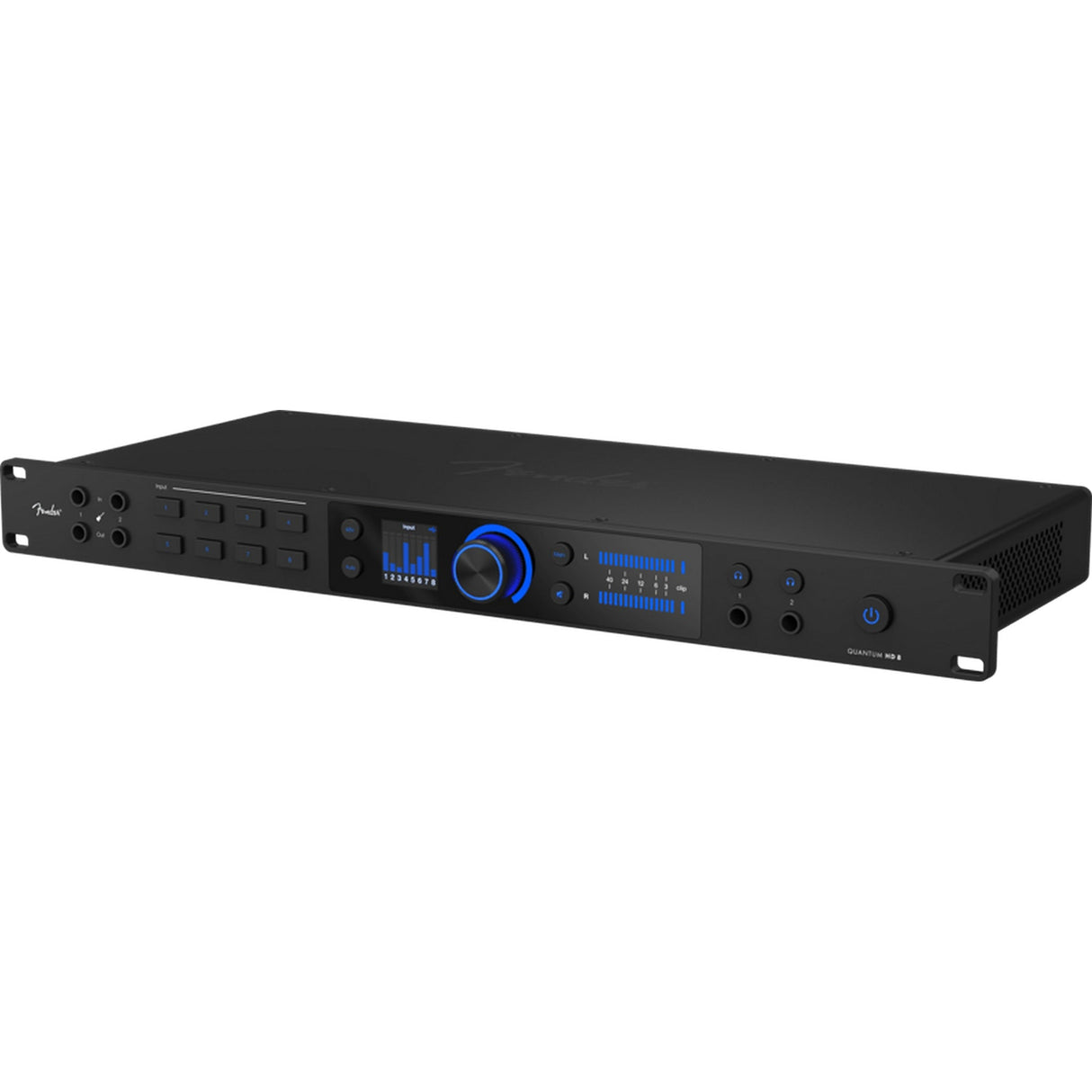

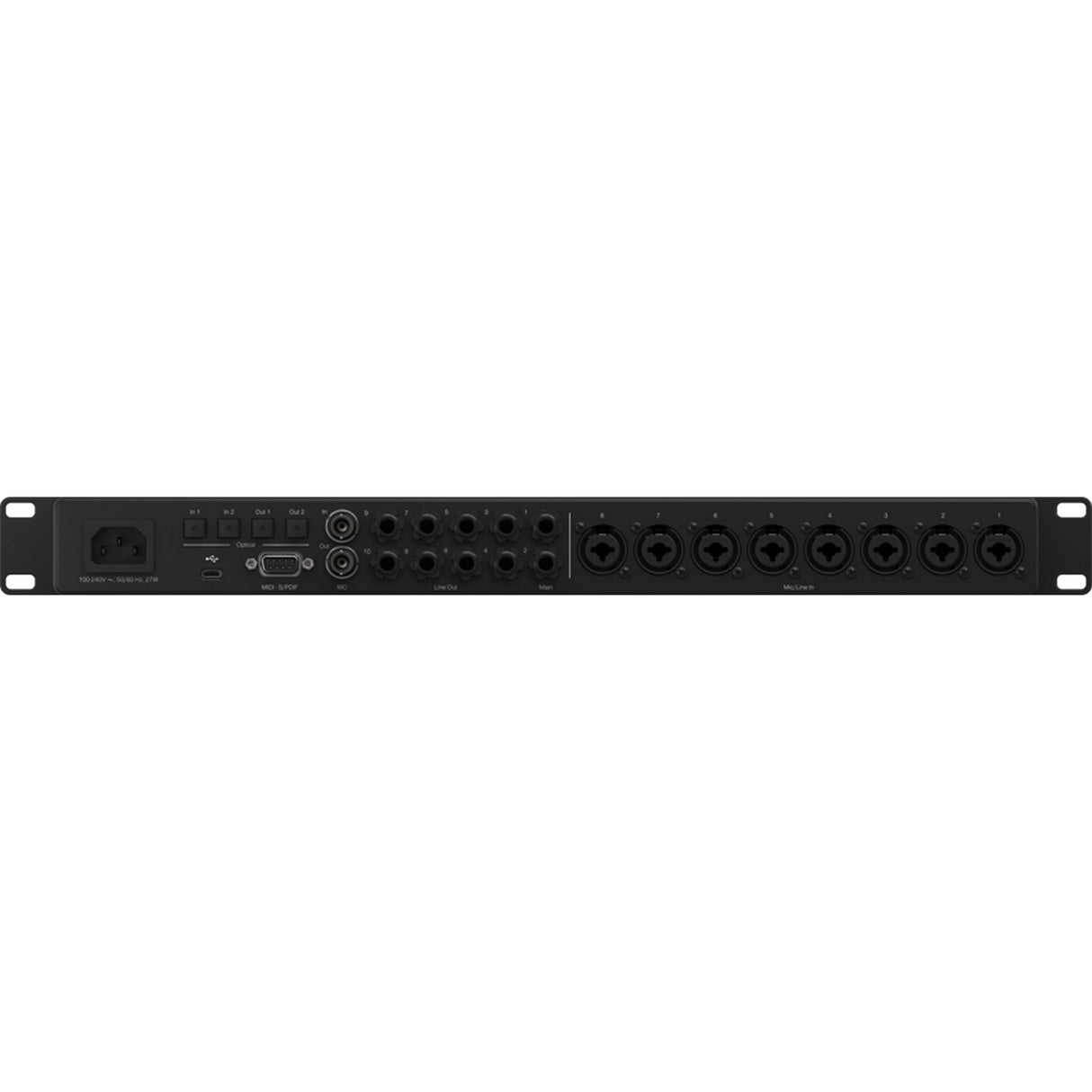

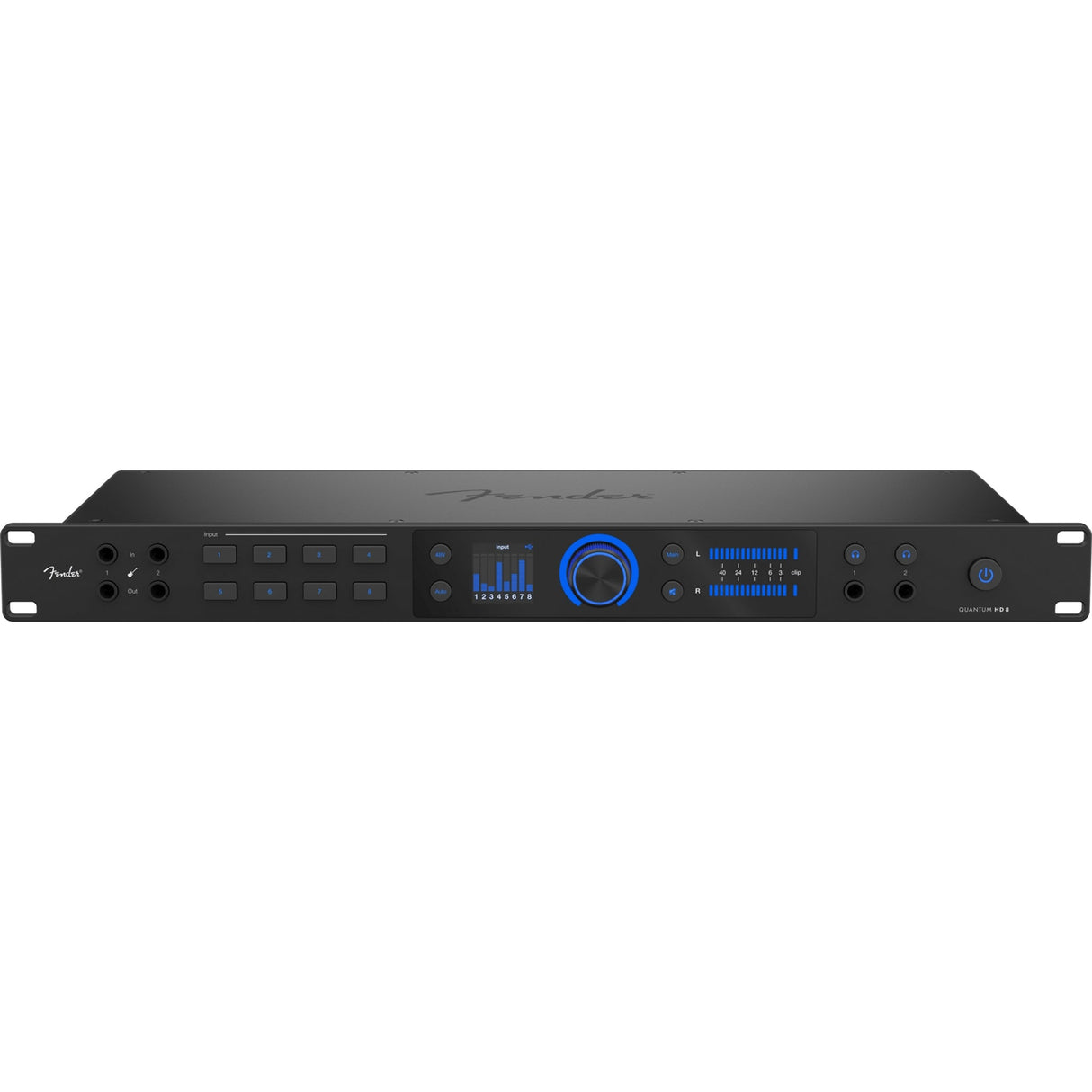

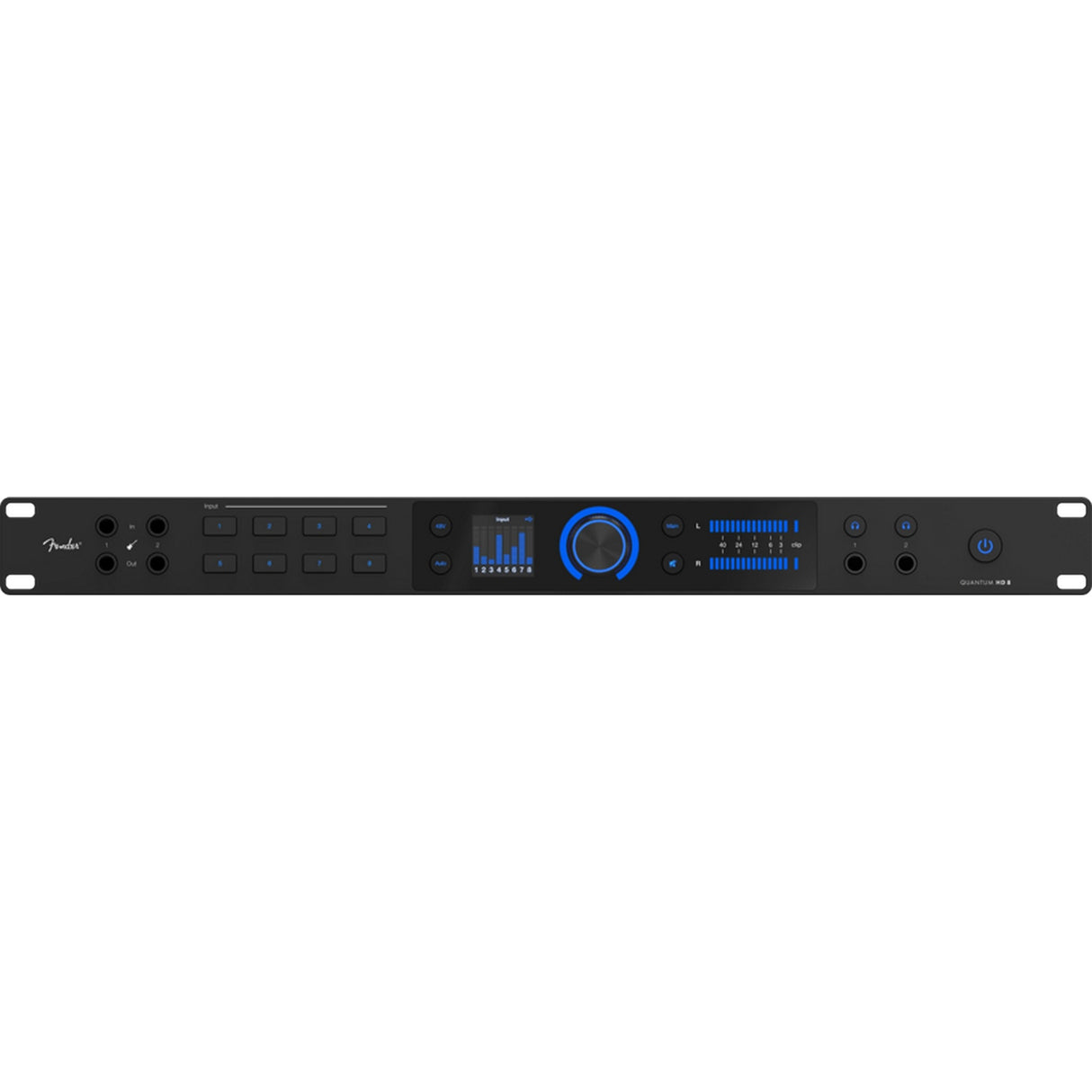

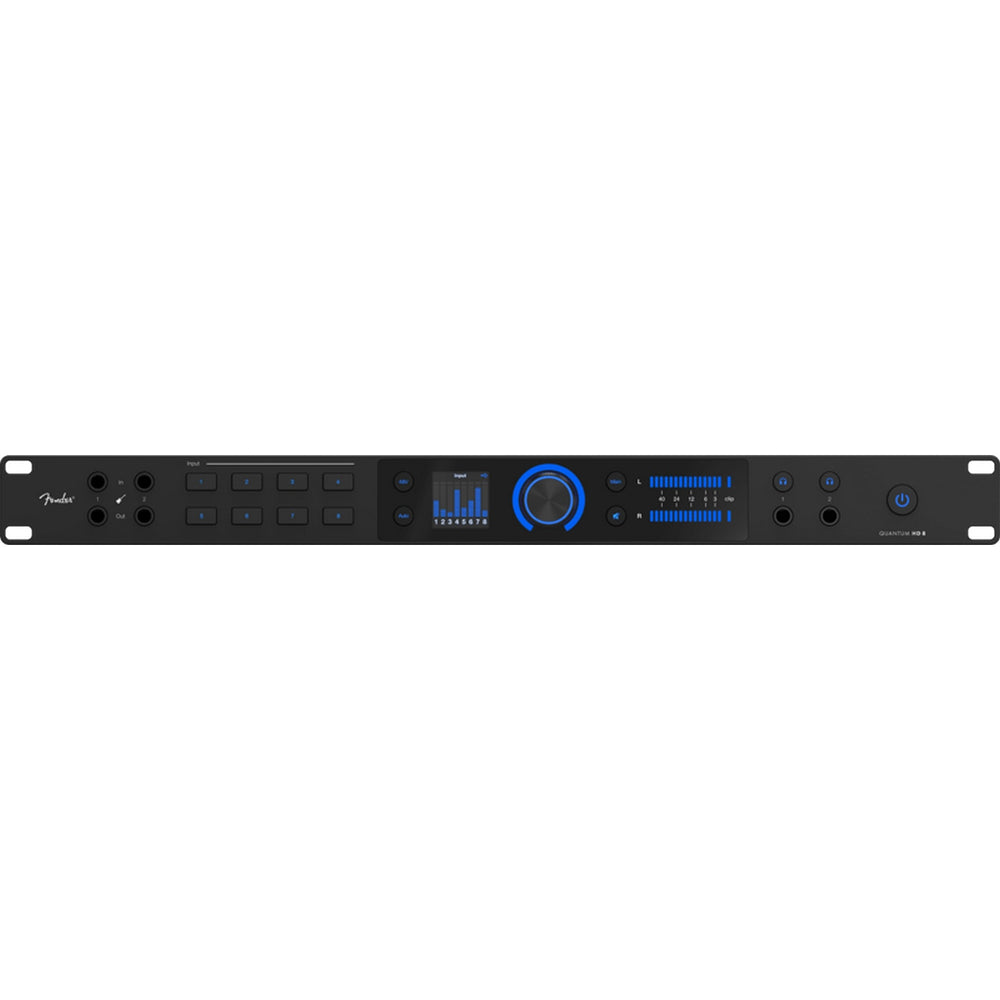

Fender Quantum HD 8 USB-C Audio Interface
The Fender Quantum HD 8 is a USB-C audio interface designed for studio recording and production environments. It enables multi-channel audio capture and monitoring for musicians, producers, and engineers, supporting recording, mixing, and playback workflows. This makes it ideal for band tracking, project studios, and content creation setups where flexible I O and reliable signal handling are critical.
The interface provides multiple analog and digital inputs alongside onboard DSP mixing and routing for low-latency monitoring. It supports integration with digital audio workstations through USB-C connectivity and allows system control through software-based mixers and routing tools. Digital expansion and MIDI connectivity extend compatibility with external devices and studio hardware.
In real-world use, the Quantum HD 8 supports efficient session management and streamlined monitoring for recording and streaming tasks. Its control and routing options allow users to adapt quickly to changing session needs without interrupting workflow. This makes it suitable for both fixed studio installations and evolving production setups.
Key Features
- 26 x 30 USB-C Recording Interface: Supports multi-channel recording and playback over a single USB-C connection
- MAX-HD Microphone Preamps: Designed to handle microphones and line-level sources in studio workflows
- ADAT Expansion: Enables digital I O expansion and standalone operation with compatible equipment
- Front-Facing Instrument Inputs: Optimized for direct connection of guitar and bass instruments
- DSP Monitoring and Routing: Provides internal mixing and loopback routing for recording and streaming
Technical Specifications
Microphone Inputs
Connection Type: XLR Female Combo, Balanced
Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Input Impedance: 1600 Ohms
Dynamic Range: 118 dB (A-Weighted, Minimum Gain)
EIN: -130 dBu (Maximum Gain, 150 Ohms, 20 Hz to 20 kHz, A-Weighted)
THD+N: 0.002% (1 kHz, Minimum Gain)
Gain Range: 75 dB
Maximum Input Level: 18 dBu (Balanced, Minimum Gain)
Phantom Power: +48 VDC
Line Inputs
Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Input Impedance: 10k Ohms
Dynamic Range: 118 dB (A-Weighted, Minimum Gain)
THD+N: 0.001% (1 kHz, Minimum Gain)
Gain Range: +10 dB
Maximum Input Level: 18 dBu (Balanced, Minimum Gain)
Instrument Inputs
Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Dynamic Range: 118 dB (A-Weighted, Minimum Gain)
THD+N: 0.003% (1 kHz, Minimum Gain)
Gain Range: 75 dB
Maximum Input Level: 21 dBu (Unbalanced, Minimum Gain)
Line Outputs
Connection Type: 1/4" TRS Female
Main Outputs
Connection Type: 1/4" TRS Female
Headphone Outputs
Connection Type: Two 1/4" TRS Female Stereo
Frequency Response: 20 Hz to 20 kHz, +/- 0.3 dB (Unity Gain, Reference 1 kHz)
Output Impedance: 33 Ohms
MIDI I O
Connection Type: 5-Pin Female DIN
Power
Voltage: 120V
Voltage Requirements: 100-240 VAC, 50-60 Hz
Digital Audio
Connectivity: USB-C
Bit Depth: 32-bit
Dynamic Range: 124 dB
Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
Measurements
Height: 1.7" (43 mm)
Depth: 8.6" (218 mm)
Width: 19" (483 mm)
Weight
6.3 lbs (2.9 kg)
