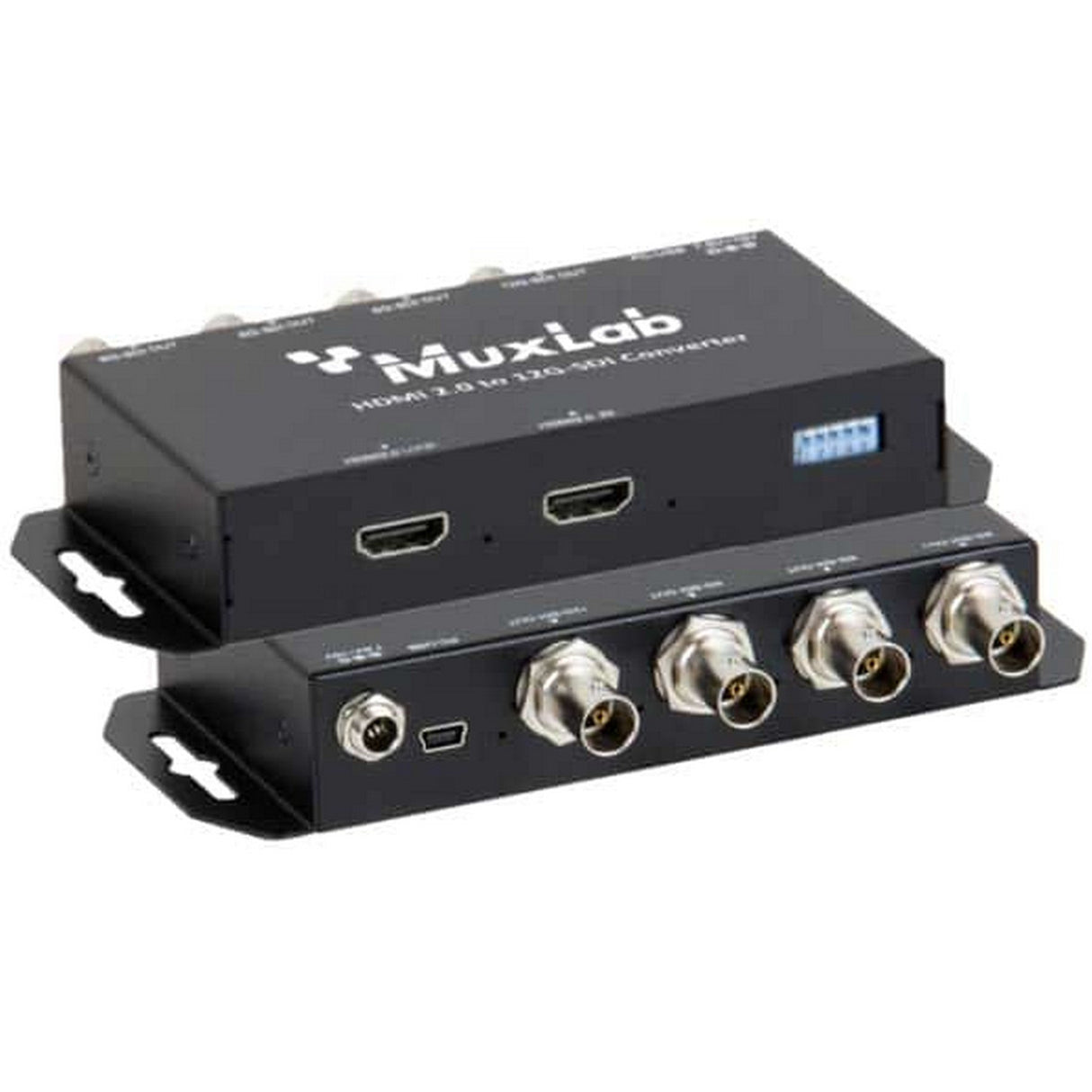

MuxLab 500741 HDMI 2.0 to 12G-SDI Converter
The HDMI 2.0 to 12G-SDI Converter (Model 500741) from MuxLab is a compact, high-performance solution designed for seamlessly converting HDMI video signals into broadcast-grade SDI outputs. Whether you’re working in live events, broadcast production, post-production, medical imaging, or outside-broadcast vehicles, this converter ensures your HDMI-source - such as a camera or computer - can feed into SDI-based workflows with minimal delay, maximum reliability, and support for professional-level formats.
This unit accepts a single HDMI 2.0 input, while offering a local HDMI loop-out - ideal for monitoring - and up to four SDI outputs: one 12G-SDI output and three 6G-SDI outputs. This gives you flexible routing options across multiple SDI devices, enabling easy integration into SDI-based decks, monitors, recorders, or live-event distribution systems.
Supporting resolutions up to DCI/UHD 4K at 60 Hz, with embedded multi-channel (up to 8-channel) 24-bit audio, the 500741 ensures that both video and audio arrive at SDI destinations with full fidelity. The converter also offers auto-source format detection, making installation and use plug-and-play. For professional environments, it includes a mini-USB port for firmware upgrades and configuration via software, and its rugged metal housing with mounting brackets makes it deployment-ready for broadcast racks or field rigs.
Key Features
- Convert HDMI 2.0 input to SDI - 1 x HDMI input, 4 x SDI outputs (1 x 12G-SDI, 3 x 6G-SDI) plus HDMI 2.0 loop-out
- Supports resolutions up to DCI 4K 60 Hz (UHD 4K60), ideal for high-end video production.
- Supports multi-standard SDI (12G, 6G, 3G, HD, SD), including single-link, dual-link, and quad-link (2SI) modes.
- Embedded 8-channel, 24-bit audio output (supports up to 192 kHz over SDI) for professional audio passthrough.
- Automatic source format detection - no manual configuration needed for video format matching.
- Rugged metal enclosure with integrated mounting brackets - suitable for rack-mount or field use.
- Firmware upgrade and configuration via mini-USB using MuxLab SDI Manager software.
Technical Specifications
Weight: 0 lbs (0.000 kg)
Video I/O: 1 x HDMI 2.0 input; 1 x HDMI 2.0 loop-out; 1 x 12G-SDI BNC output; 3 x 6G-SDI BNC outputs
Supported Resolutions: DCI 4K up to 4096 x 2160 (60 fps), UHD 4K up to 3840 x 2160 (60 fps), 1080p, 1080i, 720p and lower HD/SD formats
Audio Output: Embedded SDI: up to 8-channel, 24-bit (supports up to 192 kHz)
SDI Standards Supported: 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI; single-link, dual-link, quad-link (2 Sample Interleave)
Power Supply: 12 V DC, locking connector for secure power connection
Control & Firmware: Mini-USB port for configuration and firmware upgrade via MuxLab SDI Manager software
Enclosure: Metal housing with mounting brackets for rack or shelf installation
What’s Included
- MuxLab HDMI 2.0 to 12G-SDI Converter (Model 500741)
- 12 V DC Power Supply (locking connector)
- USB-A to Mini-USB Cable (for firmware updates / configuration)
- Integrated mounting brackets for rack or shelf installation
