Decimator Design DMON-16SL 16 Channel Multi Viewer with HDMI Outputs

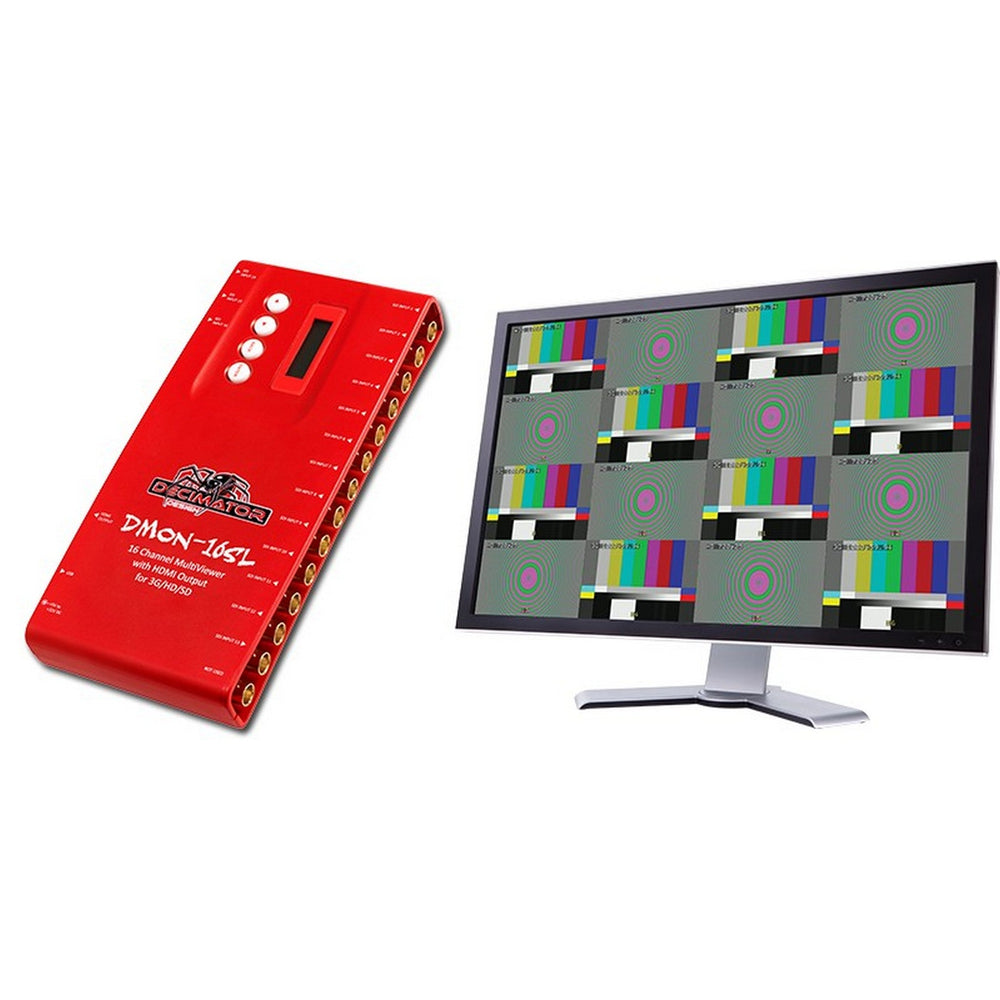

The Decimator Design DMON-16SL is a low cost miniature (3G/HD/SD)-SDI 1 to 16 Channel Multi-Viewer and a truly portable converter, that incorporates our new easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.
Key Features
- Custom Layouts with various standard layouts
- Fixed Identifier overlay per window with individual enables, custom positioning and size
- Audio ID overlay
- Fast switching between inputs using Full-Screen scaling
- Selectable output format in both Full-Screen and Multi-Viewer mode
- Low latency buffering for each input allowing non-synchronous inputs
- HDMI output
- 16 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
- Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
- Variable aspect ratios per window
- In Pass-Through mode the selected input is passed through to the HDMI output
Technical Specifications
SDI INPUT FORMATS
3G:SMPTE 424M@2.97 and 2.967Gb/s
1080p@60/59.94/50Hz
HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s
1080i@60/59.94/50Hz
1080p/psf@30/29.97/25/24/23.98Hz
720p@60/59.94/50/30/29.97/25/24/23.98Hz
SD:SMPTE 259M@270Mb/s
625i50
525i59.94
HDMI OUTPUT FORMATS
1080p@60/59.94/50Hz
1080i@60/59.94/50Hz
1080p@30/29.97/25/24/23.98Hz
720p@60/59.94/50/30/29.97/25
625i50
525i59.94
POWER
+5V to +32V DC
Positive Centre Pin
LCD / BUTTON MENU OPTIONS
HDMI output type
Output Select
Multi-Viewer Output Format
Multi-Viewer Number of Windows
Multi-Viewer Layout
Multi-Viewer Audio Source
Multi-Viewer Reference
Full Screen is Scaled
Input Routing
Setup
INPUTS
16 x (3G/HD/SD)-SDI
Input Equalization > 100M using Belden 1694A
USB for control and updates
OUTPUTS
HDMI Type A
DIMENSIONS
220mm x 103.7mm x 29.5mm (8.7" x 4.1" x 1.2")
