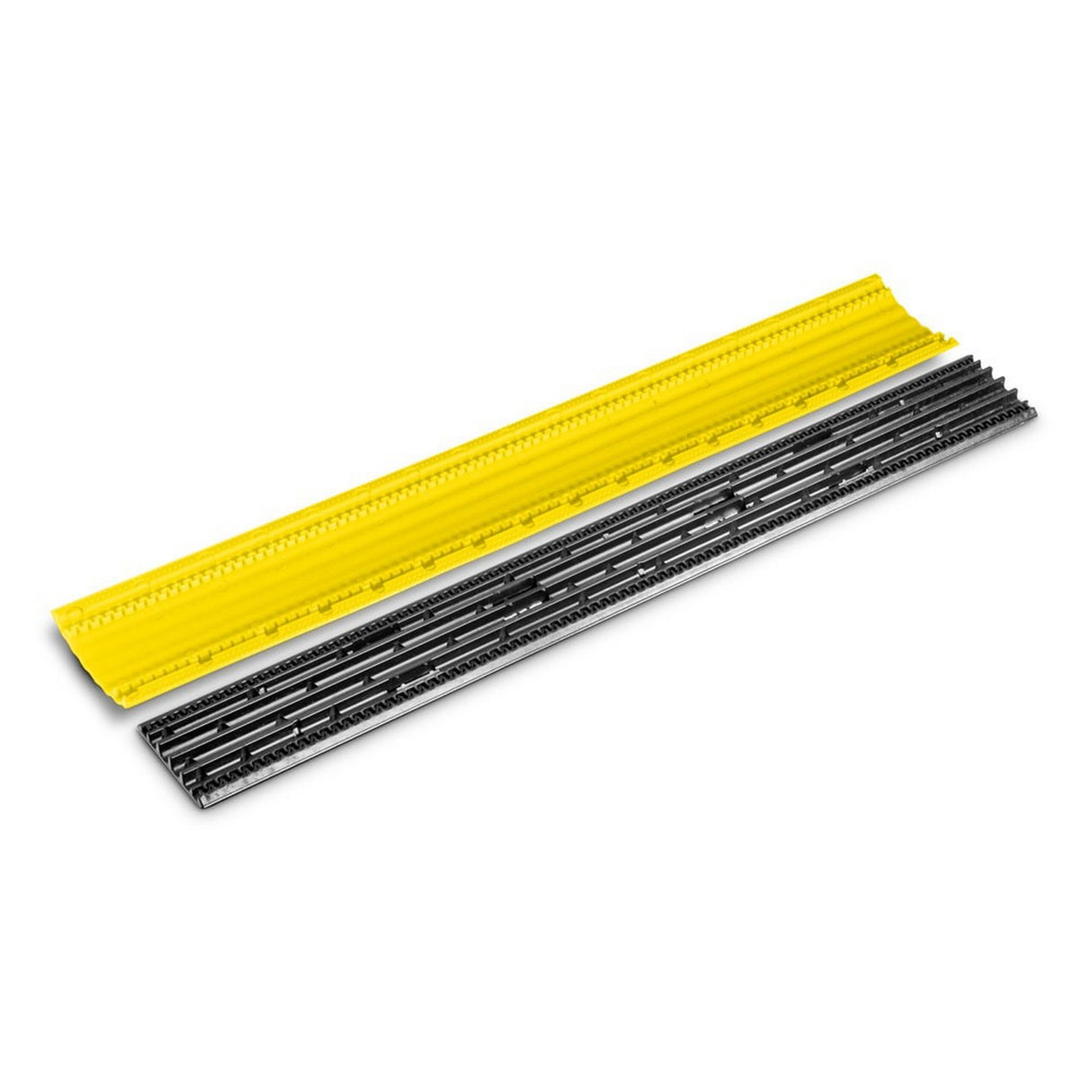

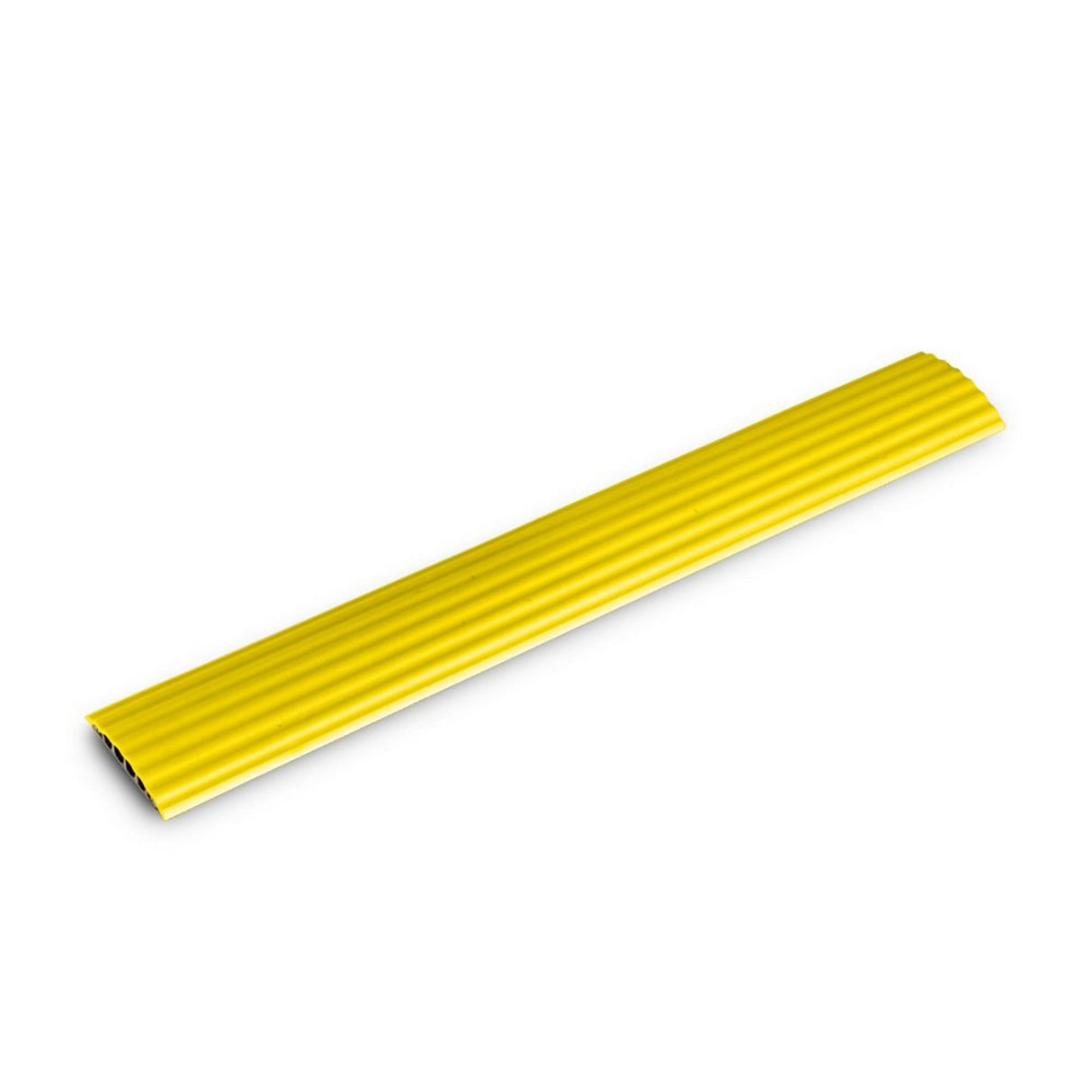

Defender 85160YEL OFFICE Cable Duct, 4-Channel Yellow

Defender 85160YEL OFFICE Cable Duct, 4-Channel Yellow

Available with a choice of black, grey and yellow colors the Defender OFFICE cable protection system is the elegant solution for secure pedestrian traffic in conference facilities, exhibitions, public buildings, retail outlets, shopping malls, trade shows and offices. Featuring straight, 90 and end ramps with cutting guides for length adjustment, zigzag connection and bolt holes for ground fixing the Defender OFFICE system provides versatile cable routing while preventing tripping hazards.

Key Features

• Non-slip, ultra-flat cable protector made of recyclable polyurethane for indoors
• zigzag connector system, pre-drilled mounting holes, cutting guides for shortening
• 4 channels: 2 channels each 10 x 10 mm and 12 x 12 mm
• Complies with German workplace accident prevention regulations (- 3 A1 ArbStttV)
• Fire resistance class B2 (DIN 4102), DEKRA-certified (DIN 31000, EN 61537)
• Resistant to oil, acids, solvents, and petrol
• Dimensions 87 x 12 x 2 cm; Weight 1.24 kg
• Reliable protection for cables and personnel
• Available in black (Item No. 85160), grey (Item No. 85160GREY) and yellow (Item No. 85160YEL)
• Curves and end ramps for flexible cable protection are available as accessories

Technical Specifications

Product type
Cable Protectors
Type
4 Channels
Length
870 mm
Width
120 mm
Height
21 mm
Channels
4
Width channel 1
10 mm
Height channel 1
10 mm
Width channel 2
12 mm
Height channel 2
12 mm
Width channel 3
12 mm
Height channel 3
12 mm
Width channel 4
10 mm
Height channel 4
10 mm
Material
polyurethane
Max. load
Office crossover
Fire protection class
B1
Weight
1,197 kg
Special feature
DEKRA-certified
