Condition: New

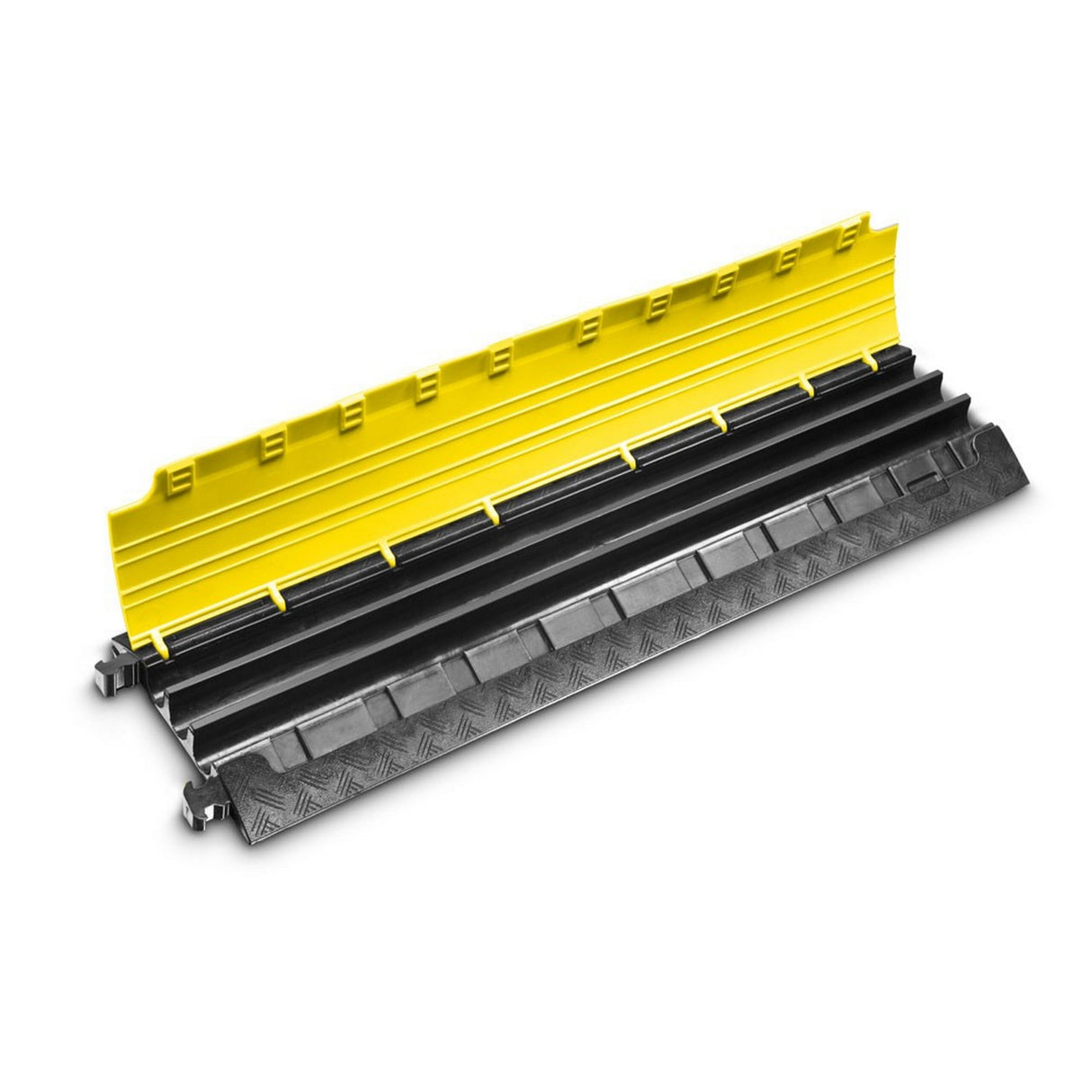

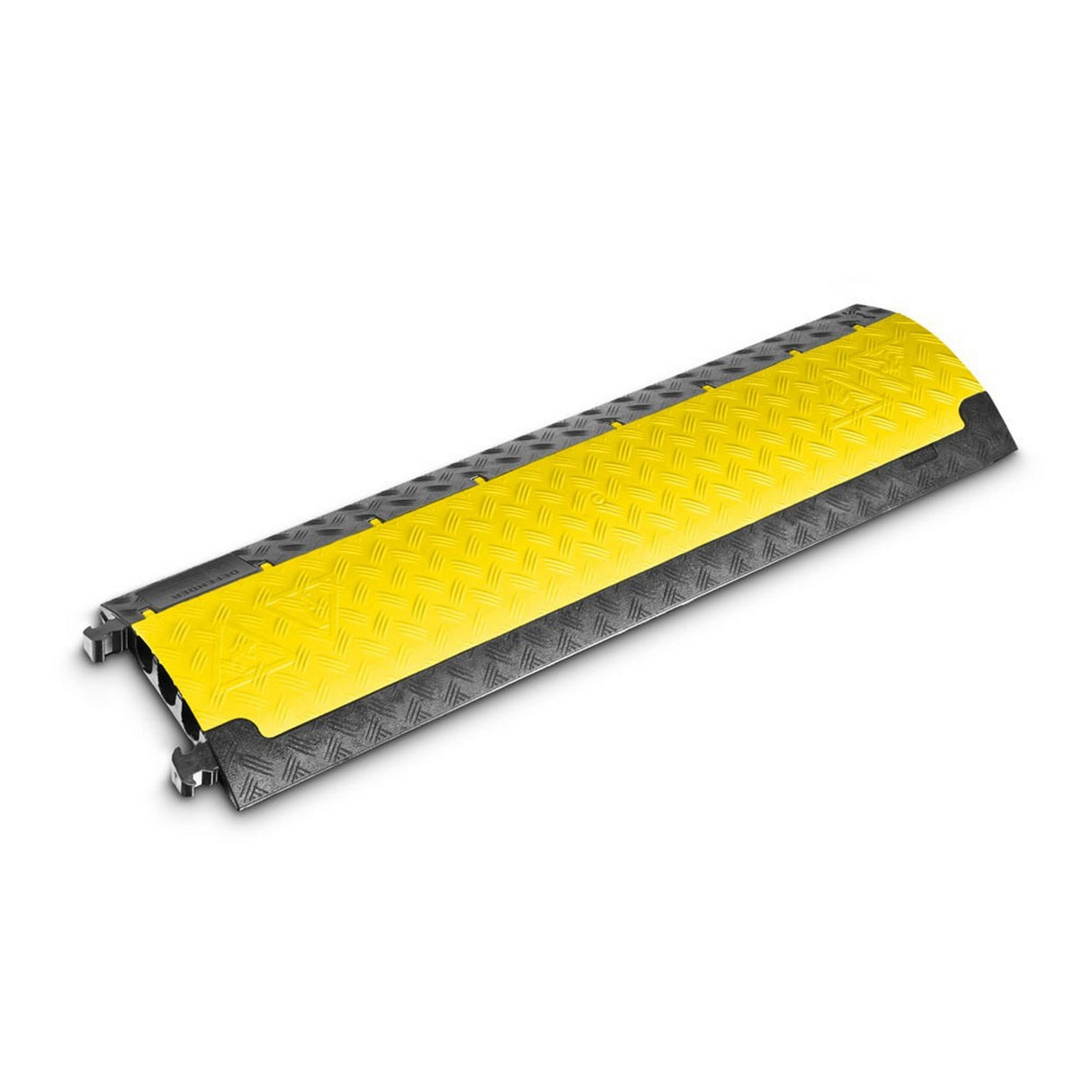

Defender 85200 MINI Cable Protector, 3-Channel
The Defender MINI cable crossovers are also available with either a black or yellow lid and are suitable for indoor and outdoor use. The flat, compact, 3-channel cable crossover with integrated connector plugs and non-slip base provides optimum support on a wide variety of floors. Separately available end ramps (male/female) ensure safe and orderly insertion and removal of cables. Defender MINI cable crossovers withstand a load of 2 tonnes on an area of 20 x 20 cm, so they are suitable for light vehicles, trolleys and pedestrians. Defender MINI cable crossovers can be used at carnival events, trade shows, exhibitions, shopping centres and storage facilities as well as in theatres, studios and TV stations. Not suitable for road traffic.
Key Features
- Compact, non-slip cable protector made of black, recyclable polyurethane
- Yellow polyethylene lid with high warning effect and secure closure (also available with black lid, Item No. 85200BLK)
- Patented, self-cleaning lid hinge
- 3 channels: 1 channel 35 x 35 mm, 2 channels 35 x 30 mm
- Load bearing capacity approx. 2t / 20 x 20 cm
- Fire resistance class B2 (DIN 4102), DEKRA-certified (DIN 31000, EN 61537)
- Resistant to oil, acids, solvents, and petrol
- Dimensions 100 x 29 x 4.8 cm; Weight 5 kg
- Reliable protection for cables and personnel for indoor and outdoor use
- Not suitable for vehicular traffic
- End ramps for secure cable inlet and exit as accessories
Technical Specifications
Product type
   Cable  Protectors
   Type
   3 Channels
   Width
   290 mm
   Height
   48 mm
   Length
   1000 mm
   Channels
   3
   Width channel 1
   35 mm
   Height channel 1
   30 mm
   Width channel 2
   35 mm
   Height channel 2
   35 mm
   Width channel 3
   35 mm
   Height channel 3
   30 mm
   Material
   polyurethane
   Max. load
   approx. 2 t  on a surface area of 20 x 20 cm
   Chemical resistance
   acid-resistant  , oil-resistant , petrol-resistant
   Hardness range
   88 Shore - 4  Shore
   Fire protection class
   B2
   Temperature range
   -30 to +60  C
   Weight
   4,652 kg
   Special feature
 DEKRA-certified
