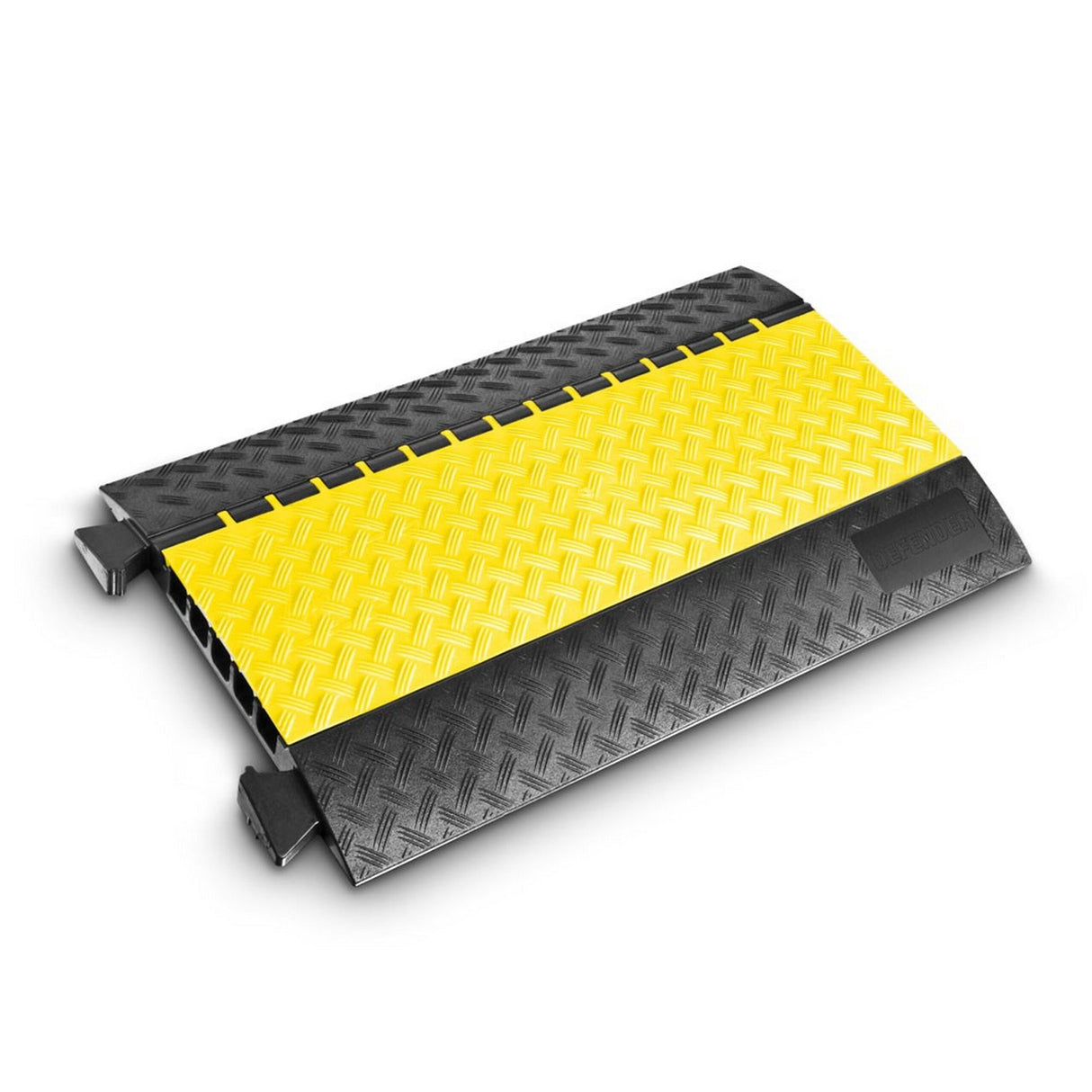

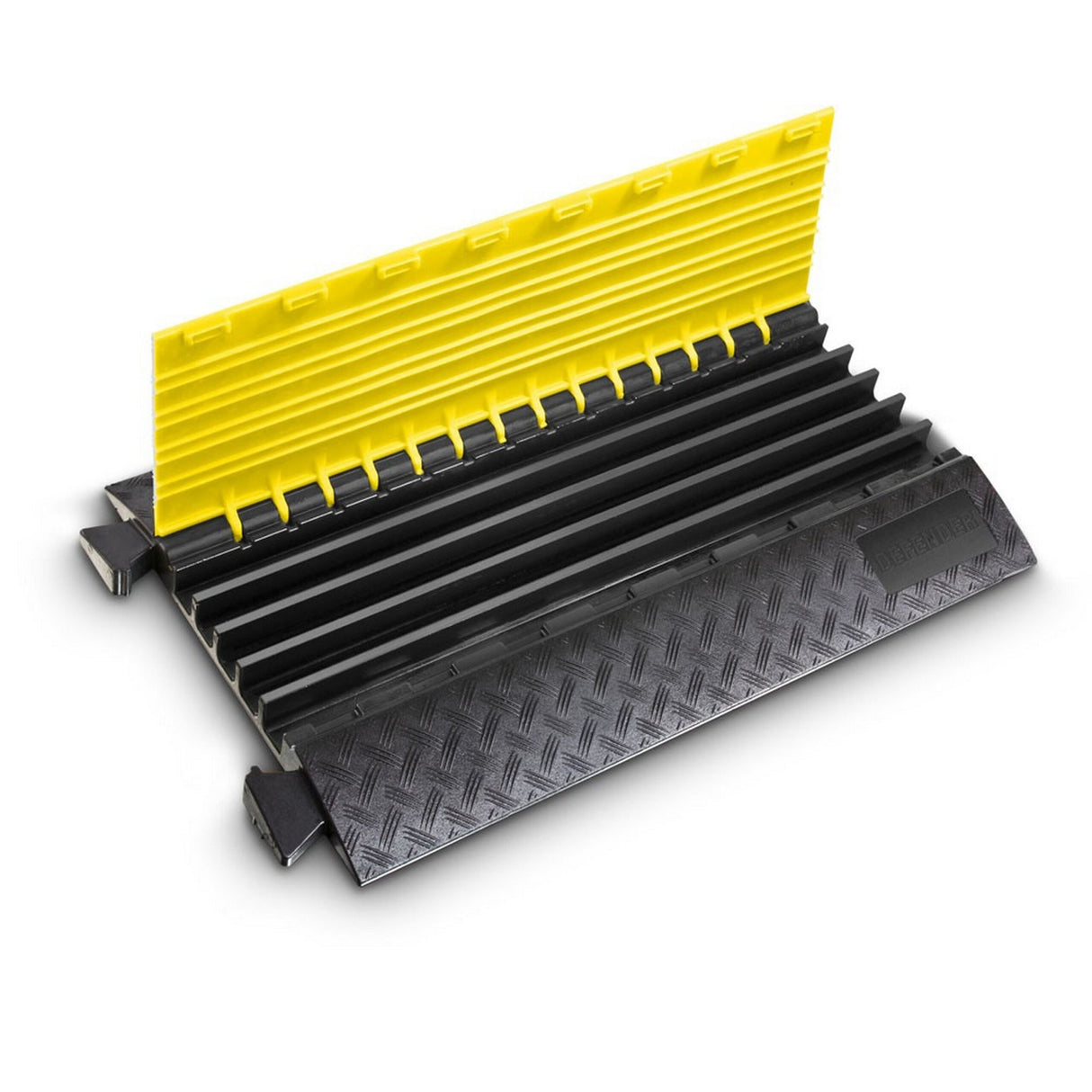

Defender 85300 MIDI 5 Cable Protector, 5-Channel

The Defender MIDI cable protection system has been designed for maximum routing versatility and secure crossing. Featuring a low profile, 5 t per 20 x 20 cm load capacity, integrated connectors and handles the straight ramp, 45 curve and end ramps are easily linked to form a continuous cable guard while five 34 x 36 mm channels allow for individual sound, lighting and power line arrangement. Defender MIDI cable protectors are ideal for a multitude of usages such as heavy wheeled traffic, construction sites, warehouses, carnivals, fairs, trade shows, exhibitions, shopping malls, broadcasting and music events.

Key Features

• Heavy-duty,non-slip all-round cable protector made of black, recyclable polyurethane with built-in carrying handles
• Yellow polyethylene lid with high warning effect and secure closure
• Patented, self-cleaning lid hinge
• 5 channels 34 x 36 mm
• Load bearing capacity approx. 5 t / 20 x 20 cm
• Fire resistance class B2 (DIN 4102), DEKRA-certified (DIN 31000, EN 61537)
• Resistant to oil, acids, solvents, and petrol
• Dimensions 87 x 54.2 x 5.2 cm; Weight 11.5 kg
• Reliable protection for cables and personnel for indoor and outdoor use
• Also available with pre-drilled mounting holes with a blue lid (Item No. 85300BLUE)
• Curves and end ramps for flexible cable protection are available as accessories

Technical Specifications

Product type
Cable Protectors
Type
5 Channels
Length
870 mm
Height
52 mm
Width
542 mm
Channels
5
Width channel 1
34 mm
Height channel 1
36 mm
Width channel 2
34 mm
Height channel 2
36 mm
Width channel 3
34 mm
Height channel 3
36 mm
Width channel 4
34 mm
Height channel 4
36 mm
Width channel 5
34 mm
Height channel 5
36 mm
Material
polyurethane
Max. load
approx. 5t on a surface area of 20 x 20 cm
Chemical resistance
acid-resistant , oil-resistant , petrol-resistant
Hardness range
88 Shore - 4 A Shore
Fire protection class
B2
Temperature range
-30C to 60C C
Weight
12,8 kg
Special feature
DEKRA-certified
