Description
Defender 85601 Ultra L 2 2 + 4 Channels Cable Protector

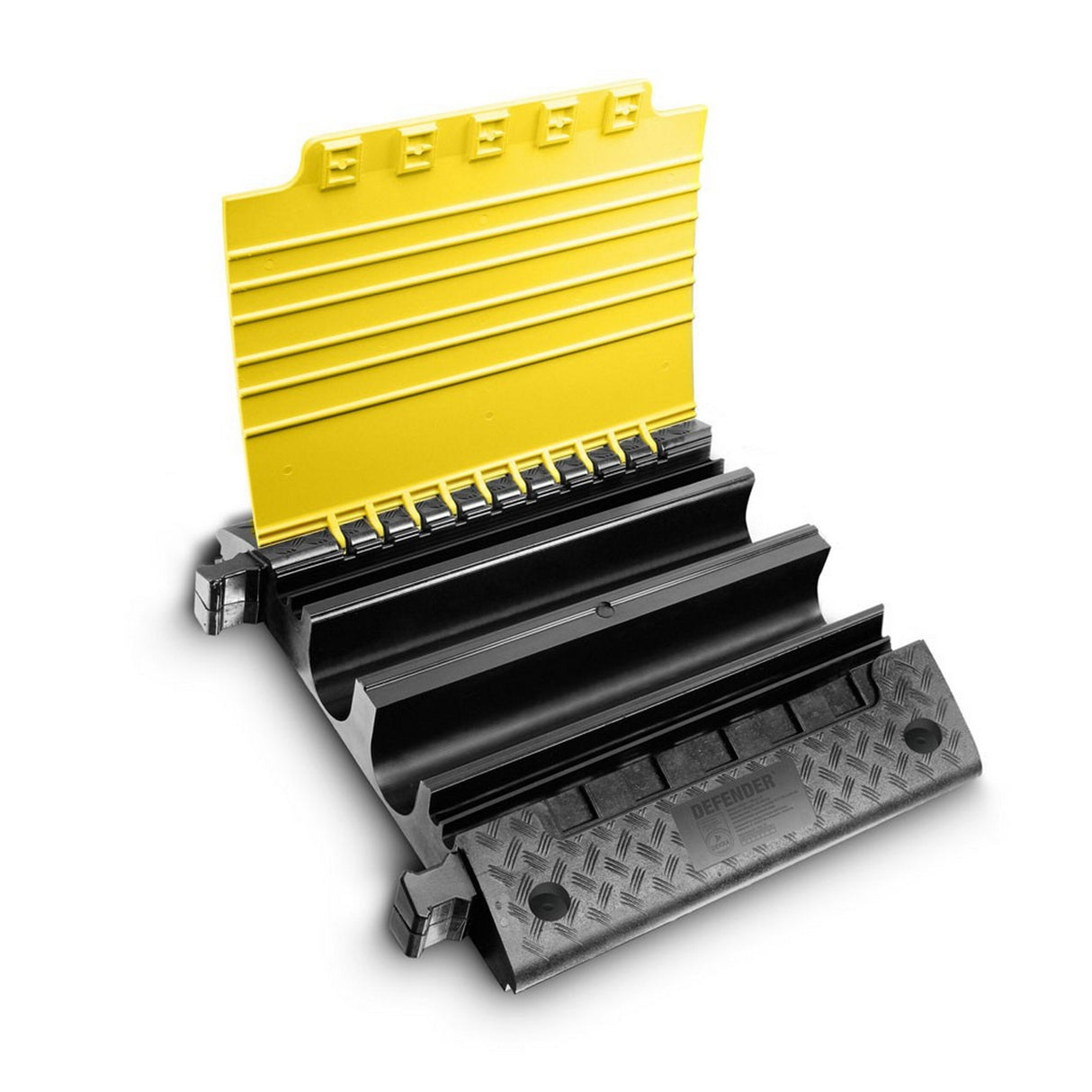

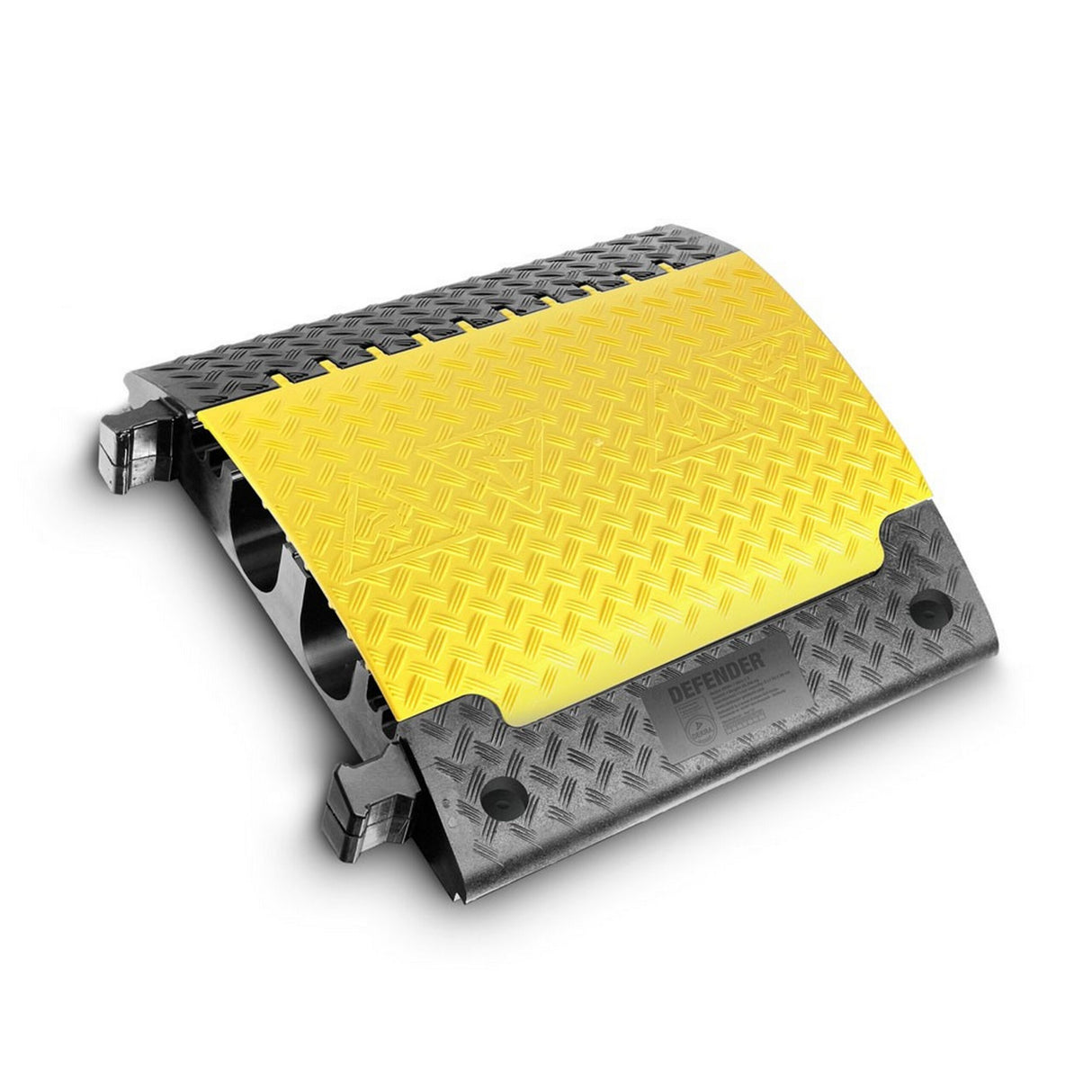

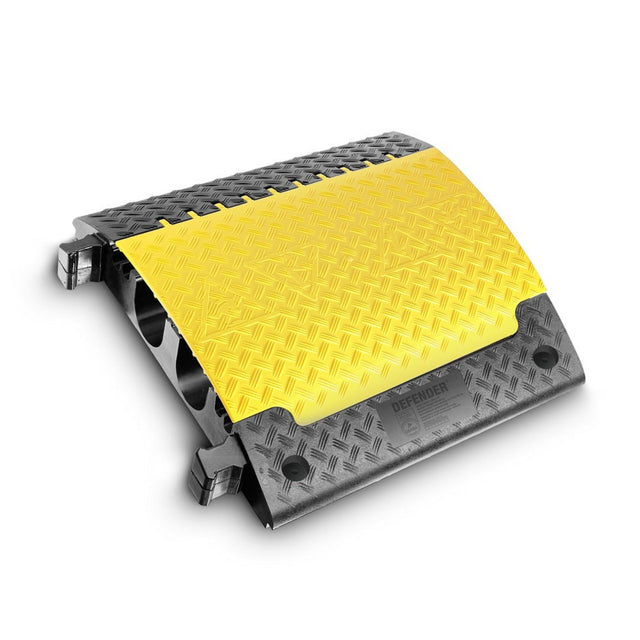

Defender Ultra L 2 heavy-duty cable crossovers are designed for the most demanding applications and feature two extra-large cable channels of 108 x 110 mm plus four channels with a diameter of 25 mm, as well as integrated connector plugs for easy coupling of several elements. The load bearing capacity is approx. 5 tons on a 20 x 20 cm surface area. This makes Ultra L 2 cable crossovers the ideal solution for heavy traffic, construction sites, warehouses, trade shows, carnivals and music events, as well as other applications involving particularly heavy use. They are equipped with all essential fixation holes for street installation.
Key Features
- Heavy duty cable protector made of black, recyclable polyurethane for demanding applications
- Non-slip, yellow polyethylene lidmaker with high warning effect and secure closure
- Patented, self-cleaning lidmaker hinge
- 6 channels: 2 channels 108 x 110 mm, 4 channels 25 mm in diameter
- Two channels suitable for A-suction hoses and multipin connectors
- Load bearing capacity approx. 5 t / 20 x 20 cm
- Fire resistance class B2 (DIN 4102), DEKRA-certified (DIN 31000, EN 61537)
- Resistant to oil, acids, solvents, and petrol
- Dimensions 70 x 76.6 x 12 cm
- Weight 28.295 kg
- Reliable protection for cables, hoses, and personnel for indoor and outdoor use
- 4 fixation holes for street mounting with 10 mm
Technical Specifications
Product type
Cable Protectors
Type
6 Channels
Length
705 mm
Width
765 mm
Height
120 mm
Channels
6
Width channel 1
25 mm
Height channel 1
25 mm
Width channel 2
25 mm
Height channel 2
25 mm
Width channel 3
108 mm
Height channel 3
110 mm
Width channel 4
108 mm
Height channel 4
110 mm
Width channel 5
25 mm
Height channel 5
25 mm
Width channel 6
25 mm
Height channel 6
25 mm
Material
Polyurethane
Max load
approx. 5 t on a surface area of 20 x 20 cm
Chemical resistance
acid-resistant , oil-resistant , Petrol-resistant
Hardness range
88 +/- 4 Shore
Fire protection class
B2
Temperature range
-30 - 60 C
Weight
27,13 kg
Special feature
4 fixation holes for street mounting with 10mm, DEKRA-certified
