DEITY SRD-Mini Portable 4-Channel RF Distributor
The DEITY SRD-Mini is an ultra-slim, portable active RF distribution system designed for location sound mixers and field production. It accepts two 50-Ω BNC inputs (A and B) and provides four SMA outputs per side (a 2→8 split), letting you power and route multiple passive or active antennas from a compact chassis.
Built with a CNC aluminum body and an active RF front end, the SRD-Mini compensates for gain loss and alerts you to RF overload conditions. It supports wide UHF coverage and multiple power options (USB-C, 4-pin DC, or pogo-pin Regional Power integration), making it bag-friendly for film, ENG and location sound setups.
Use the SRD-Mini to centralize antenna routing in a mixer bag, simplify antenna cabling, and supply power to active antenna circuitry while keeping the RF path low-noise and well isolated.
Key Features
- Function: Active 2→8 antenna/RF splitter (2 BNC inputs → 8 SMA outputs; split arranged as 1 A × 4 & 1 B × 4).
- Frequency Range: Ultra-wide UHF coverage (470 MHz – 1 GHz).

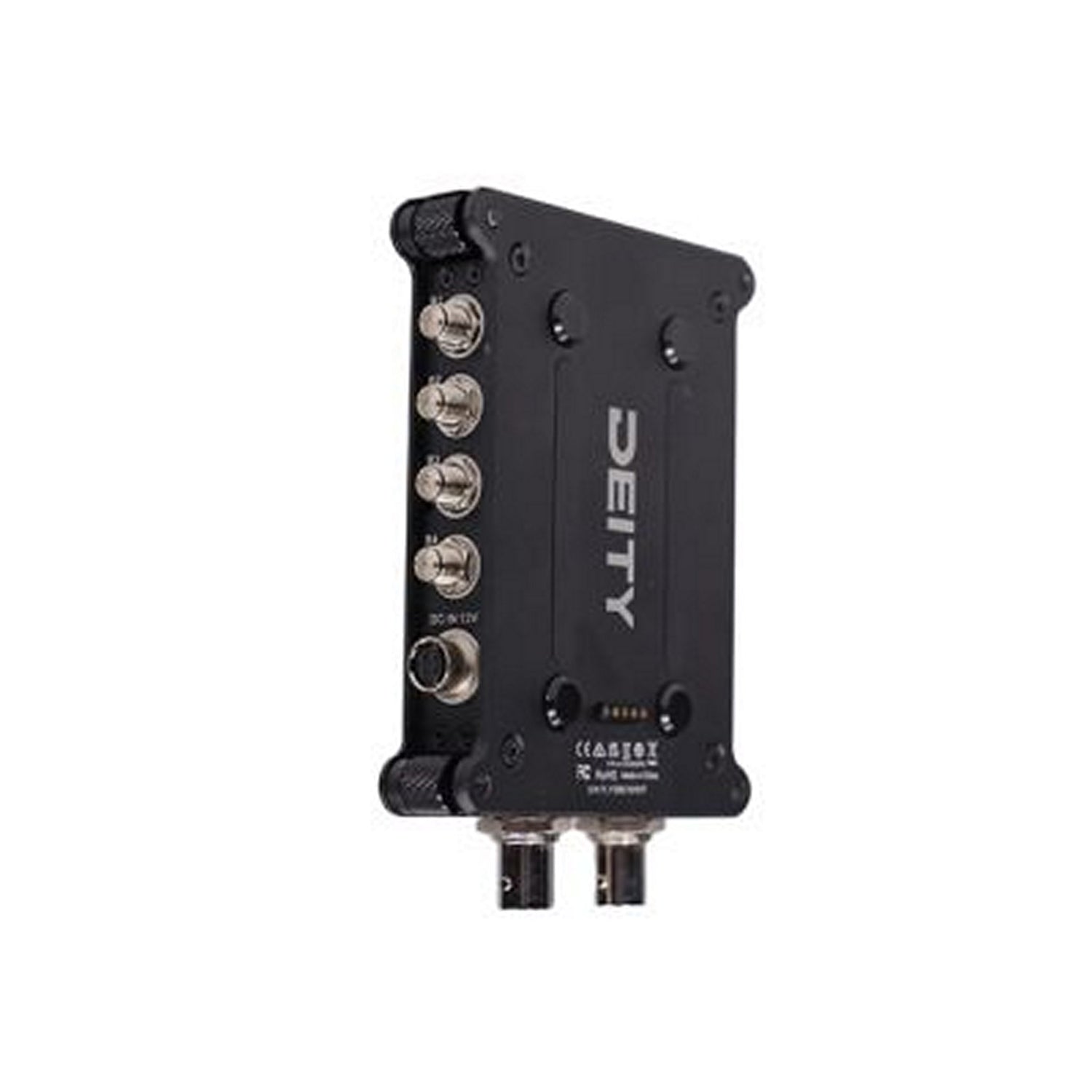

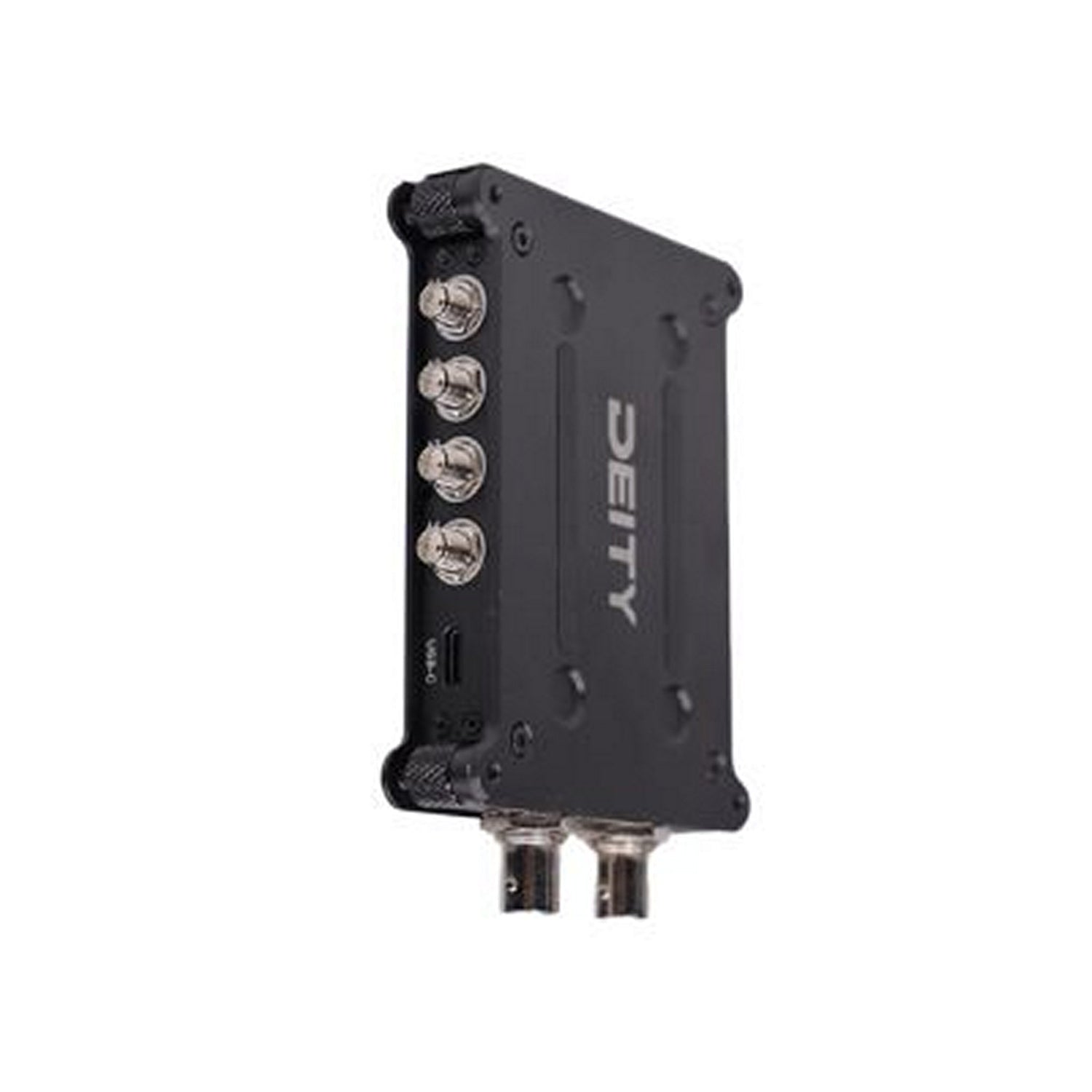

- Connectors: 2 × BNC inputs; 8 × SMA outputs; 1 × USB-C power; 4-pin DC (HRS4) power input; pogo-pin Regional Power interface (SPD-Mini compatible).

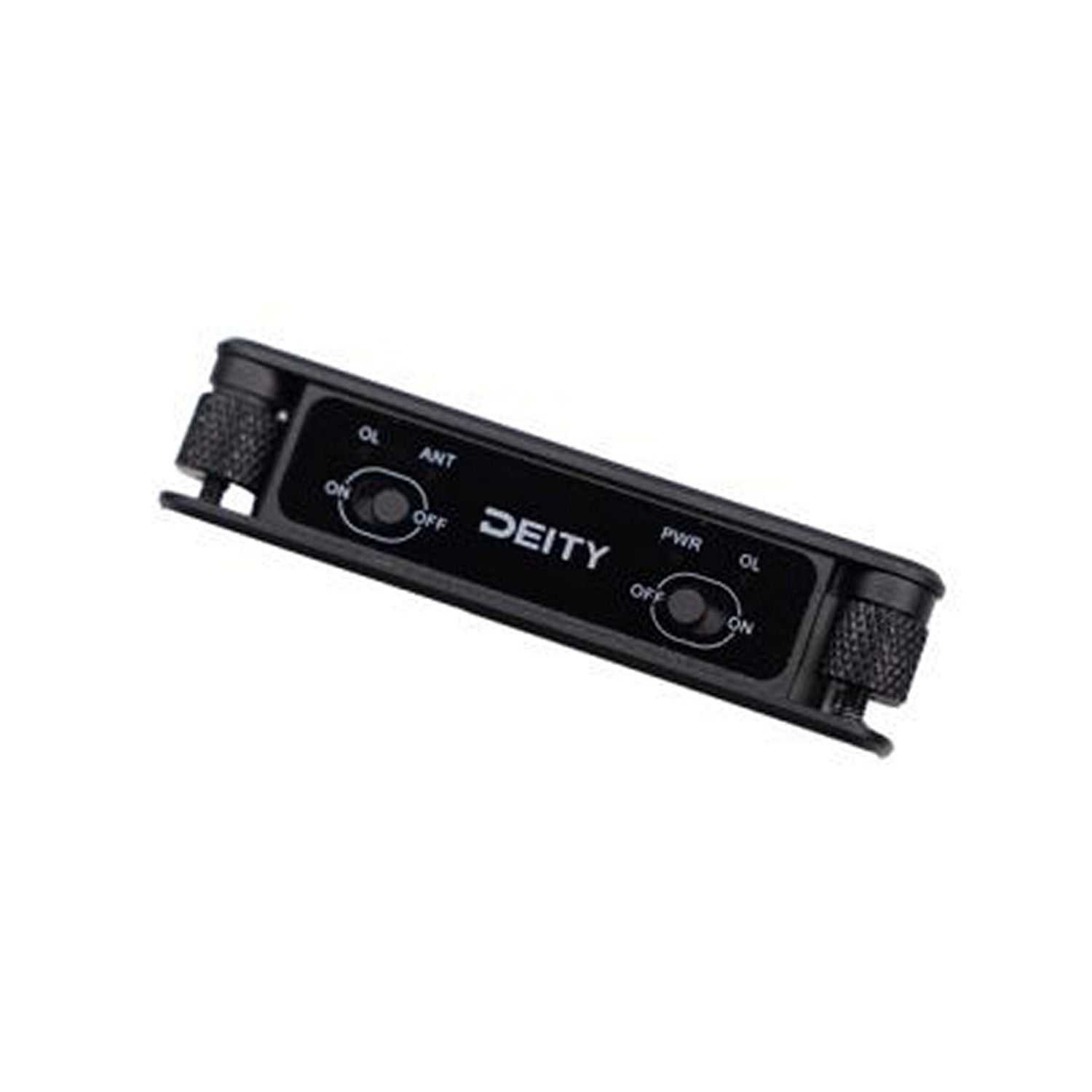

- Active Splitter: Low-noise active RF amps to compensate gain loss from splitting; indicator LEDs show overload condition per side and external power toggle per A/B side.
- Gain: +3 dB to +9 dB (adjustment/typical device gain range).
- Port Isolation: >20 dB minimum.
- Noise Figure: < 1.5 dB typical.
- Front-end tolerance: Front-end Max Input ~ +13 dBm; overload indication threshold ~ 0 dBm.
- Power Options: USB-C (5 V), 4-pin DC HRS4 (12–16.8 V), or Deity Regional Power pogo pins (SPD-Mini) for cable-less power integration.
- Construction: CNC aluminum chassis — compact and lightweight for bag use.
- Form Factor: Slim, bag-friendly profile for mounting/placement in sound bags or on carts.
Technical Specifications
- Frequency Range: 470 MHz – 1 GHz.
- RF Inputs: 2 × BNC, 50 Ω.
- RF Outputs: 8 × SMA, 50 Ω (4 per side A/B).
- Gain: +3 dB to +9 dB (typical range).
- Port Isolation: >20 dB (minimum).
- Noise Figure: < 1.5 dB.
- Front-end Max Input: +13 dBm (typical spec).
- Overload Indication: LED overload indication ≈ 0 dBm threshold.
- Power: USB-C 5 V, 4-pin HRS4 DC 12–16.8 V (≤160 mA typical), or SPD-Mini pogo-pin Regional Power.
- Material: CNC aluminum alloy body.
- Dimensions: 115.5 × 78 × 20.8 mm (4.55" × 3.07" × 0.82").
- Weight: ~185.5 g (0.41 lb / 0.1855 kg).
What's Included (typical kit / retail contents — verify kit SKU)
- 1 × DEITY SRD-Mini RF Distributor
- 1 × USB-C cable
- 1 × Quick start / user manual
- Mounting screws / hardware (if sold in kit form)
