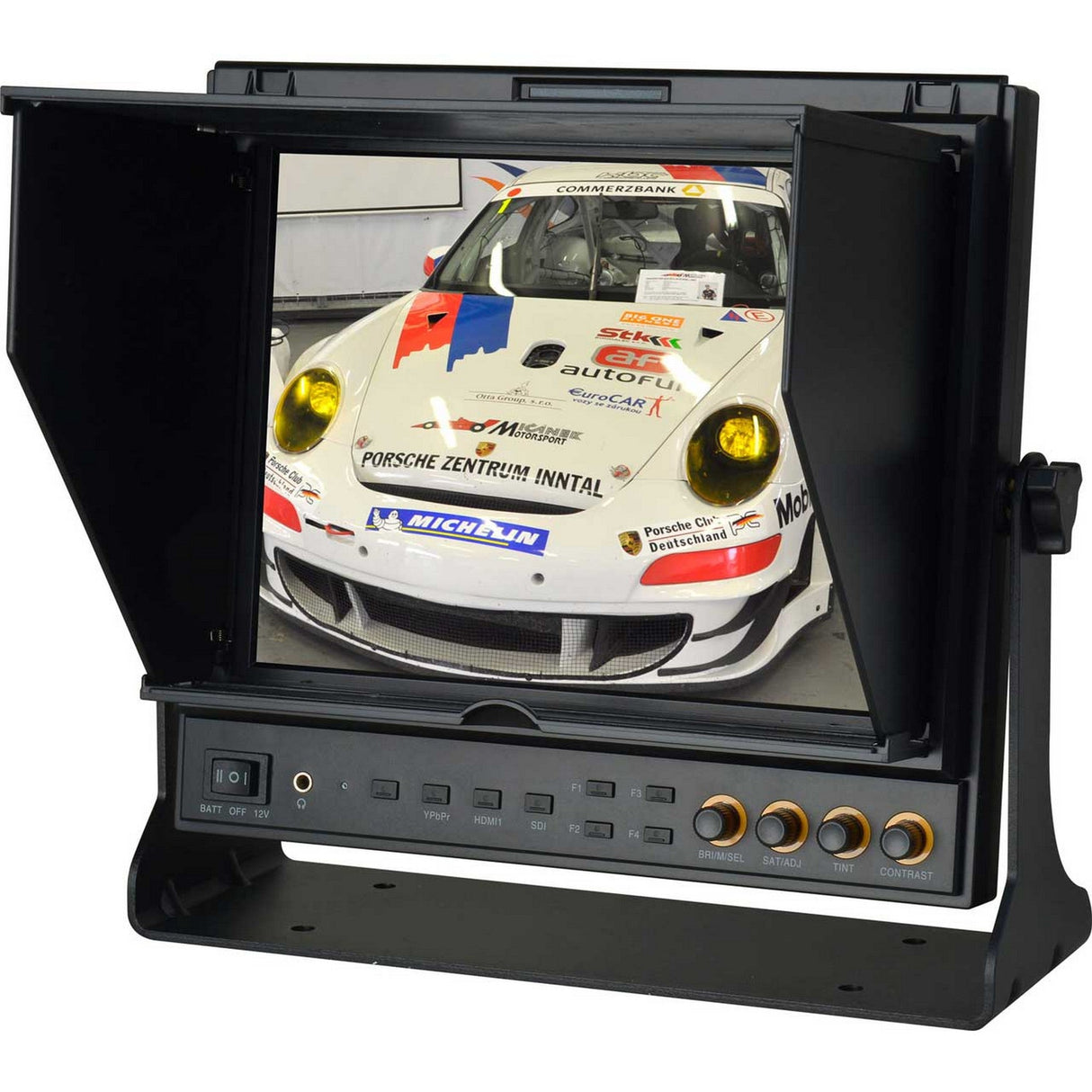

Delvcam 9.7 Inch SDI Monitor with Anton Bauer Battery Plate
Delvcam 9.7 Inch SDI Monitor with Anton Bauer Battery Plate
The DELV-SDI-10-AB 9.7" LCD with an Anton Bauer Battery Plate is the ideal size for a small broadcast desktop monitor but large enough to pick out the finest details in a shot. These monitors are known for displaying accurate and clear images with a natively high resolution providing clarity at an aspect ratio that works well with 16:9 and 4:3 content. The 1:1 pixel mapping allows you to maintain the original resolution of your camera's output and avoid any unexpected focus issues in post-production. This monitor also offers customizable peaking, false color, histogram, and exposure, auxiliary function buttons.
Key Features
- IPS panel 178 wide viewing angles,
- High resolution: 1024x768,
- High brightness: 400cd/m2,
- High contrast: 600:1,
- 3G-SDI & HDMI input,
- Wide voltage: DC 7-24V,
- TALLY interface & 5V charging,
- Comply with IP52 standard!
Technical Specifications
DISPLAY
Panel
9.7" LED backlit
Physical Resolution
1024x768, support up to 1920x1080
Aspect Ratio
4:3
Brightness
400cd/m2
Contrast
600:1
Viewing Angle
178/178(H/V)

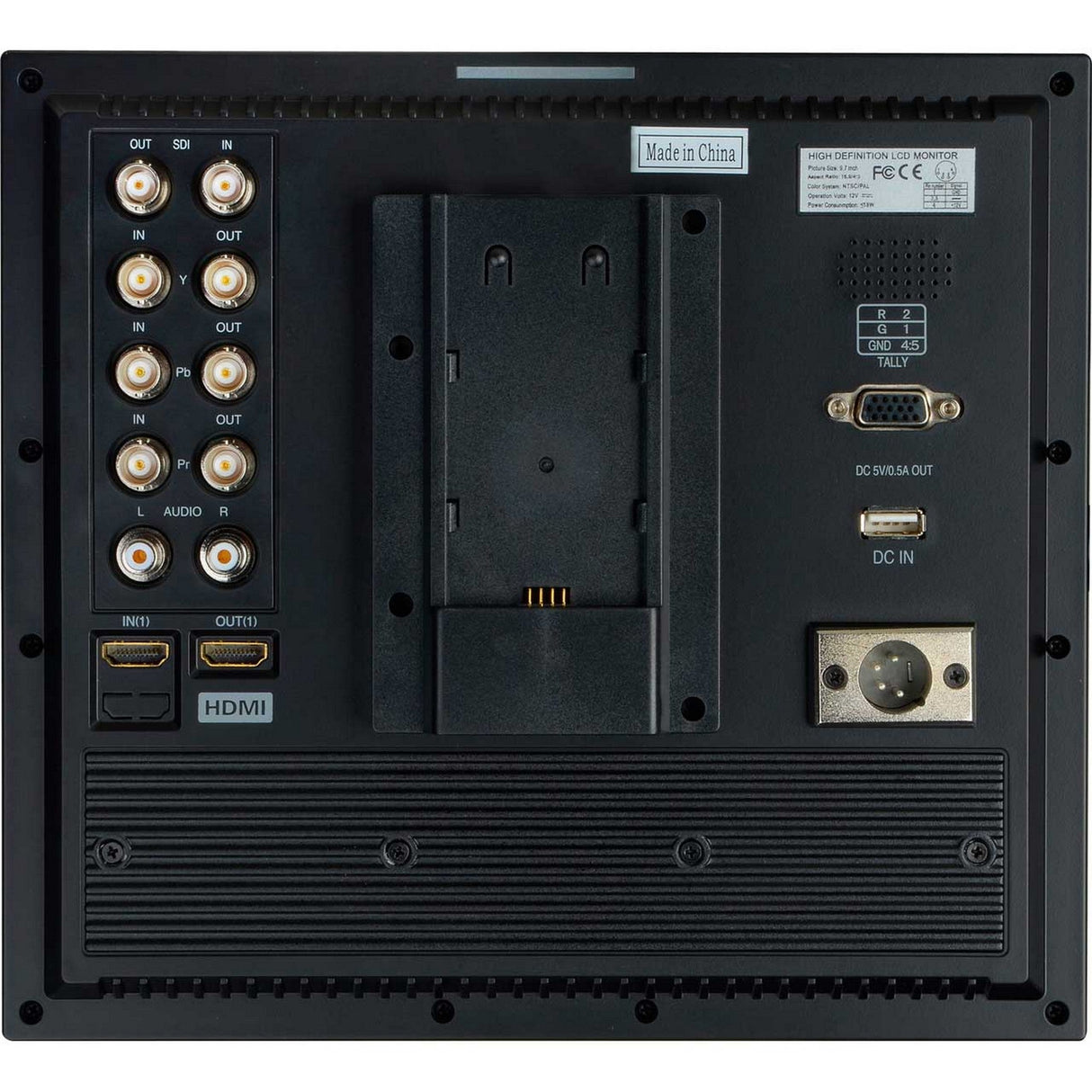

INPUT
3G-SDI 1
HDMI 1
YPbPr 3(BNC)
TALLY 1
AUDIO 2(L/R)
OUTPUT
3G-SDI 1
HDMI 1
YPbPr 3(BNC)
USB 1(5V for charging)
AUDIO
Speaker 1(build-in)
Ear Phone Slot 1
POWER
Current 1500mA
Input Voltage DC 7-24V(XLR)

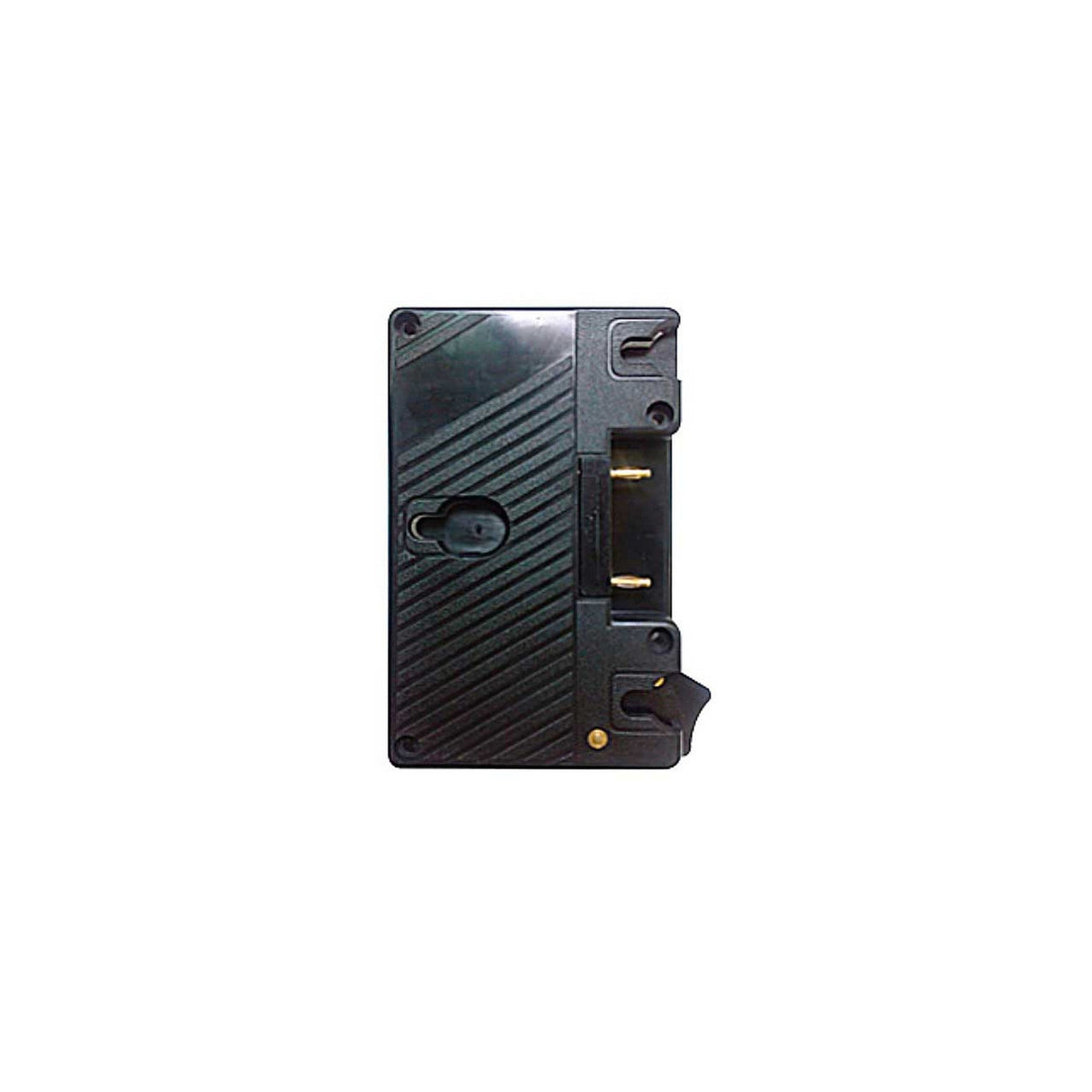

Battery Plate: Anton Bauer mount
F970 / QM91D / DU21 / LP-E6
Power Consumption =18W
ENVIRONMENT
Operating Temperature
-20C - 60C
Storage Temperature
-30C - 70C
DIMENSION
Dimension(LWD)
246x224x31/167.5mm (with cover)
Weight
1068g/1388g (with cover)

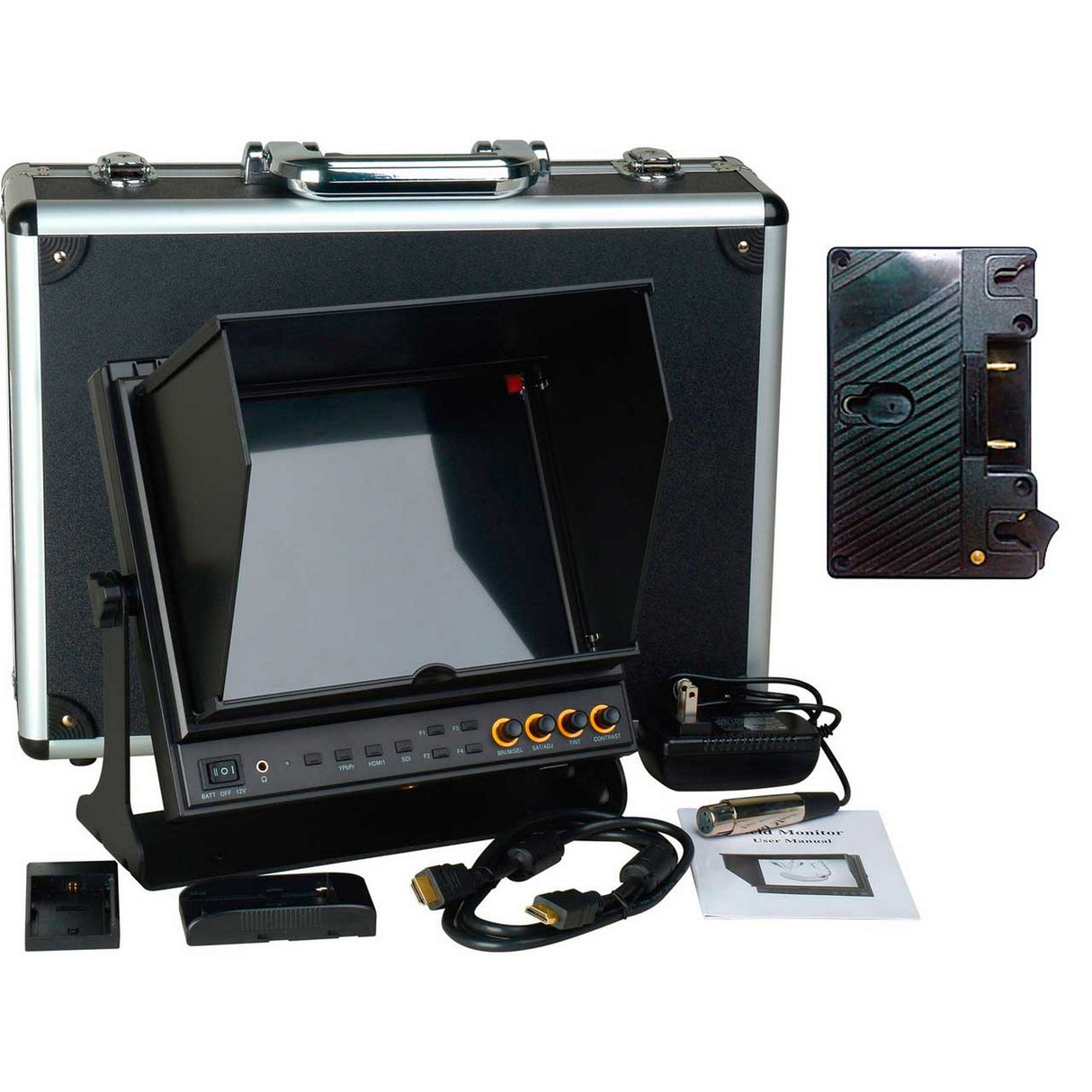

Item Includes
DELV-SDI-10
DELV-BPAB
