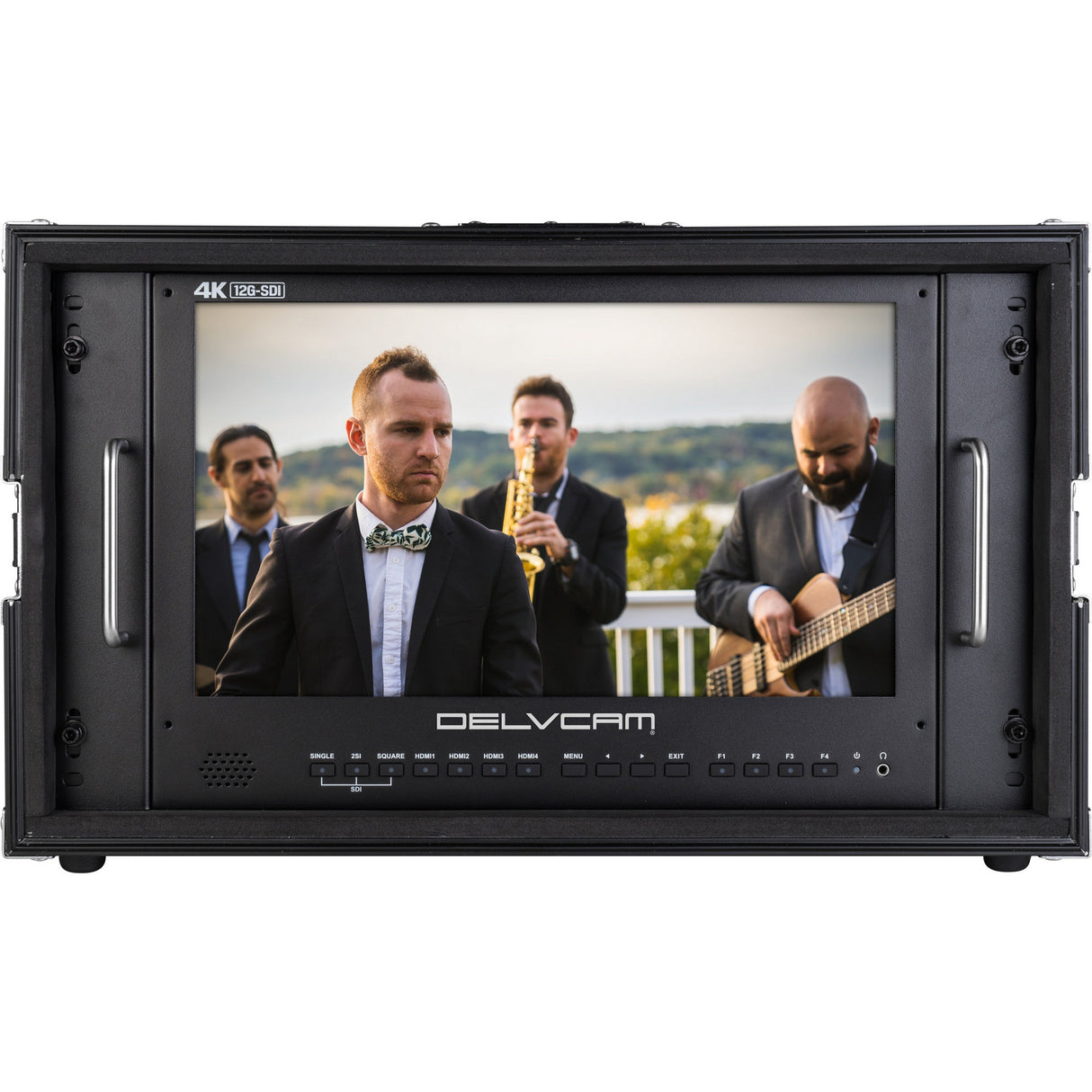

Delvcam DELV-12GSDI15 4K HDMI 12G-SDI Quad View IPS 6RU Rack Mountable Broadcast Monitor with Case, 15.6 Inch
The clear choice for field directors in critical 12G-SDI / Ultra HD 4K monitoring is the DELV-12GSDI15 broadcast monitor from Delvcam. This monitor is ready for on-location and post production applications featuring a 15" screen and rackmount housing for easy integration into film and video flypacks. The future-ready design supports all broadcast formats from 12G to SD ensuring compatibility with all sources. Among the many convenient features of the DELV-12GSDI15 is Split View and Quad View for monitoring multiple sources simultaneously between its dual 12G, dual 3G and HDMI inputs. Its 3840 x 2160 panel resolution delivers pixel perfect viewing from angles up to 176. The unit can be powered via Anton Bauer or V-Mount batteries or XLR input so it's ready to go wherever you need it. With a 6RU rack frame and Tally light, it's also the perfect choice for monitor wall application in trucks and small production vehicles.
Key Features
- Rack Mountable - fits standard 19ā 6RU equipment rack

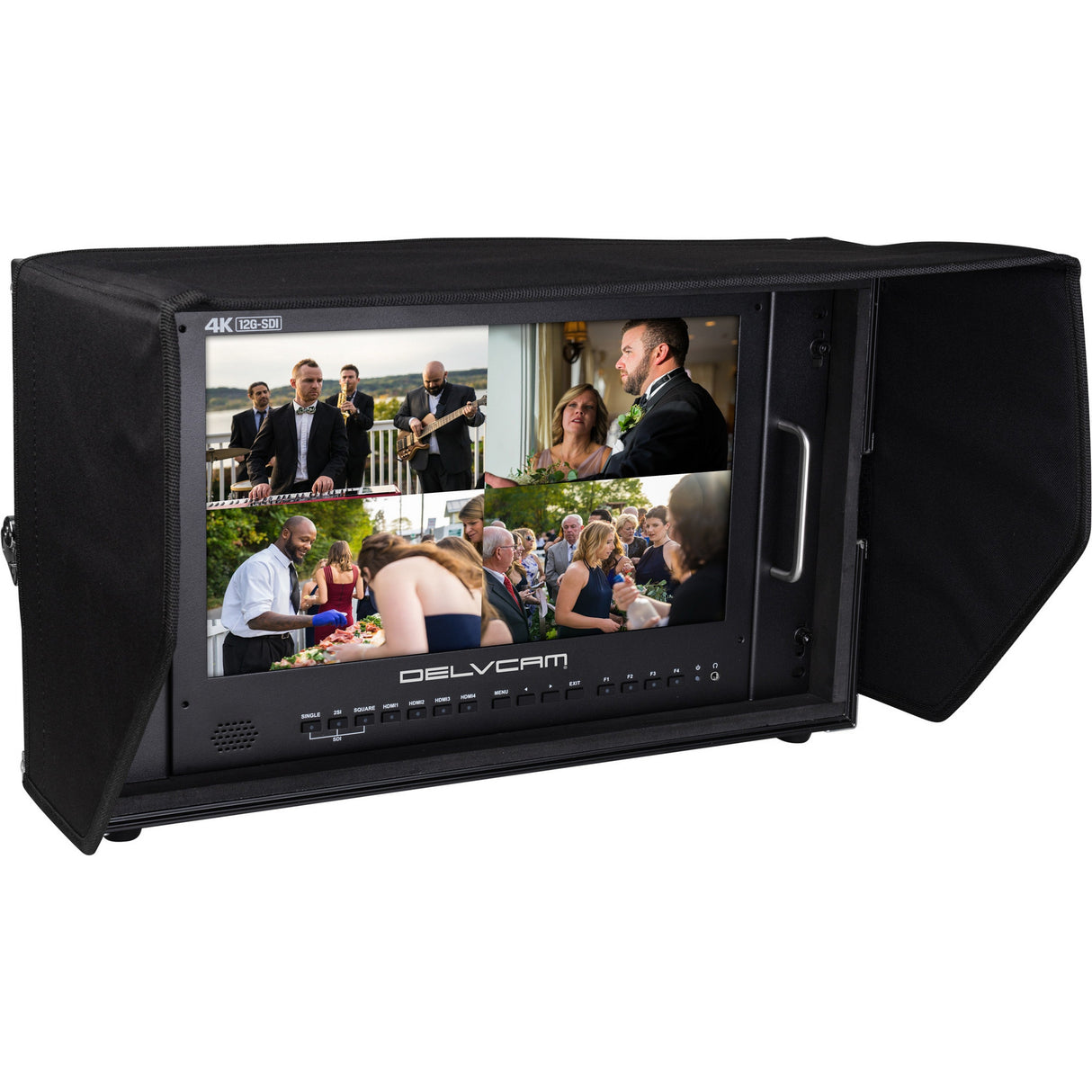

- Multiple Viewing Options - Full Screen, Split, Quad
- Supports Quad Link Square Division and Quad Link 2 Sample Interleave (2SI)
- Supports 12G/6G-SDI(4K) 2 Channel, 3G/HD-SDI (Level A/B) 2 Channel
- 4K HDMI Formats: HDMI 2.0 4K 60HZ & HDMI 1.4 4K 30Hz
- SDI Equalization and Re-Clocking
- Embedded Audio Meter (SDI only)
- High Contrast & Easy to View from Any Angle
- Rugged Metal Housing
- Removable Rugged Carrying Case for Transportation
Technical Specifications
Complies with ST2081-10 & ST2082-10 Single-Link / ST425-3 Dual/Quad-Link & ST425-5 Quad-Link
Aspect Ratio
16:9
Brightness
330cd/m
Contrast
1000:1
Resolution
3840x2160
Viewing Angle
176/176(H/V)
Special Functions
Tally Interface, Peaking, PIP, False Color, Check Field, Image Flip, Pixel to Pixel, Overscan, Underscan, Image Freeze, Center Marker, Screen Marker, Color Temperature, User Definable Function Buttons
Image Control
Split Screen, Quad View from different input signals simultaneously, User Adjustable Markers

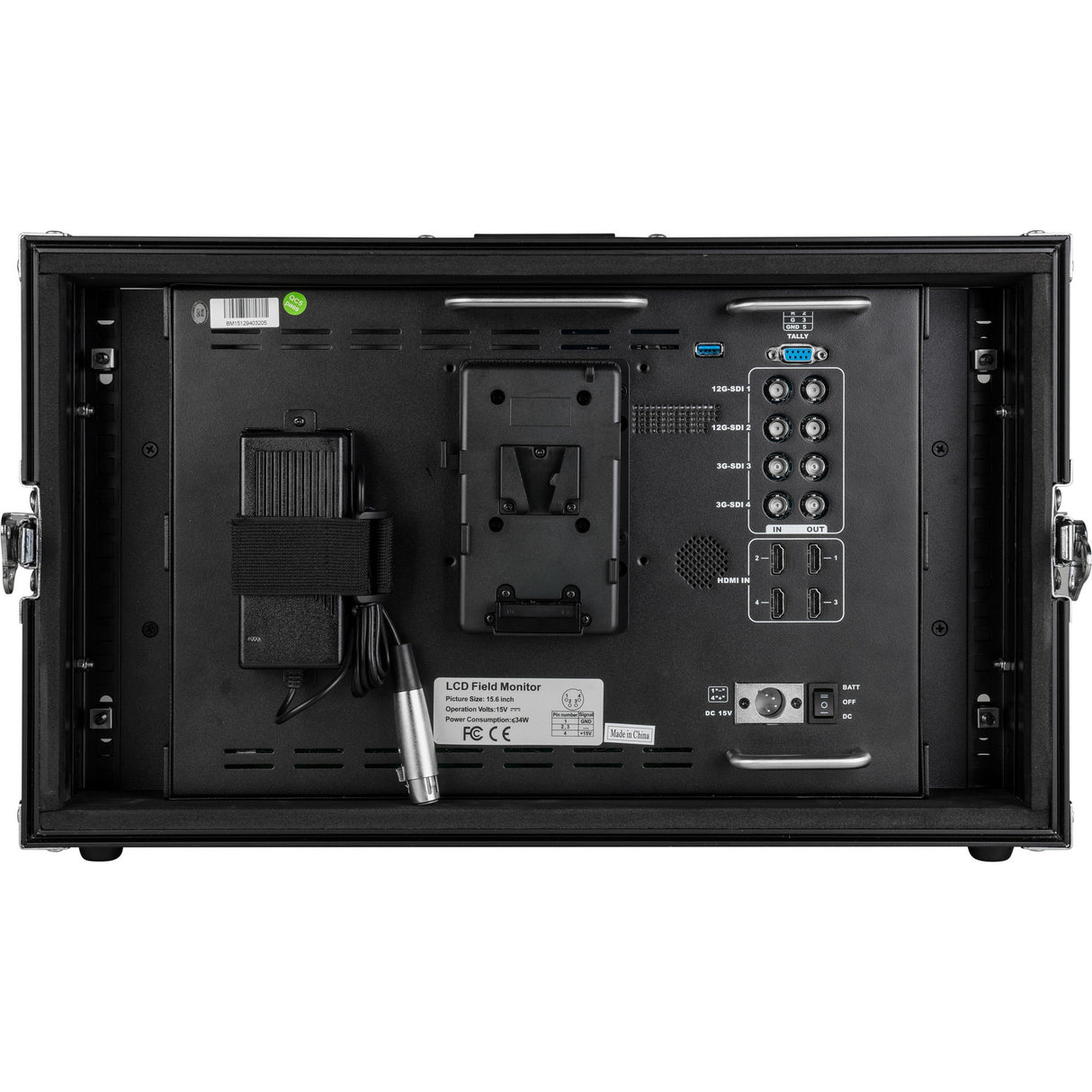

Input
2 12G-SDI, 2 3G-SDI, 1 HDMI 4K 60Hz, 3 HDMI 1.4 4K 30Hz, Tally
Output
2 12G-SDI, 2 3G-SDI
Backward compatible with 6G-SDI, 3G-SDI, HD-SDI, & SDI input signals
Screen/Size
15.6 inch 8bit IPS LCD Display
Audio
1-Speaker, 1-Earphone Jack
Battery Plate
V-Mount/Anton Bauer
Power Consumption
34W
Input Current
2.8A (15VDC)
Input Voltage
12/24VDC (XLR)
Dimensions
15.3x10.5x1.5 in/20.6x12x6.7 in with case
Weight
7.1 lb/ 26.5 lb with case
Item Includes
Collapsible Sunshade
Carrying Case
15V 4-Pin XLR Power Cable
Battery Plate Bracket
V-Mount Battery Plate
Tally Connector Kit
