Delvcam DELV-3GHD-17RD 17.3 inch 1RU Rack Drawer 3G-SDI Video Monitor
The Delvcam DELV-3GHD-17RD 17" rack drawer monitoring system is destined to become the central nervous system of your studio and production environments. Its built-in HDMI-SDI cross conversion is perfect for KVM system integration while the built-in audio metering and vector scope will simplify camera setups. The DELV-3GHD-17RD can be mounted in fly-packs or directly in your studio or truck racks and stows away as quickly as a laptop.

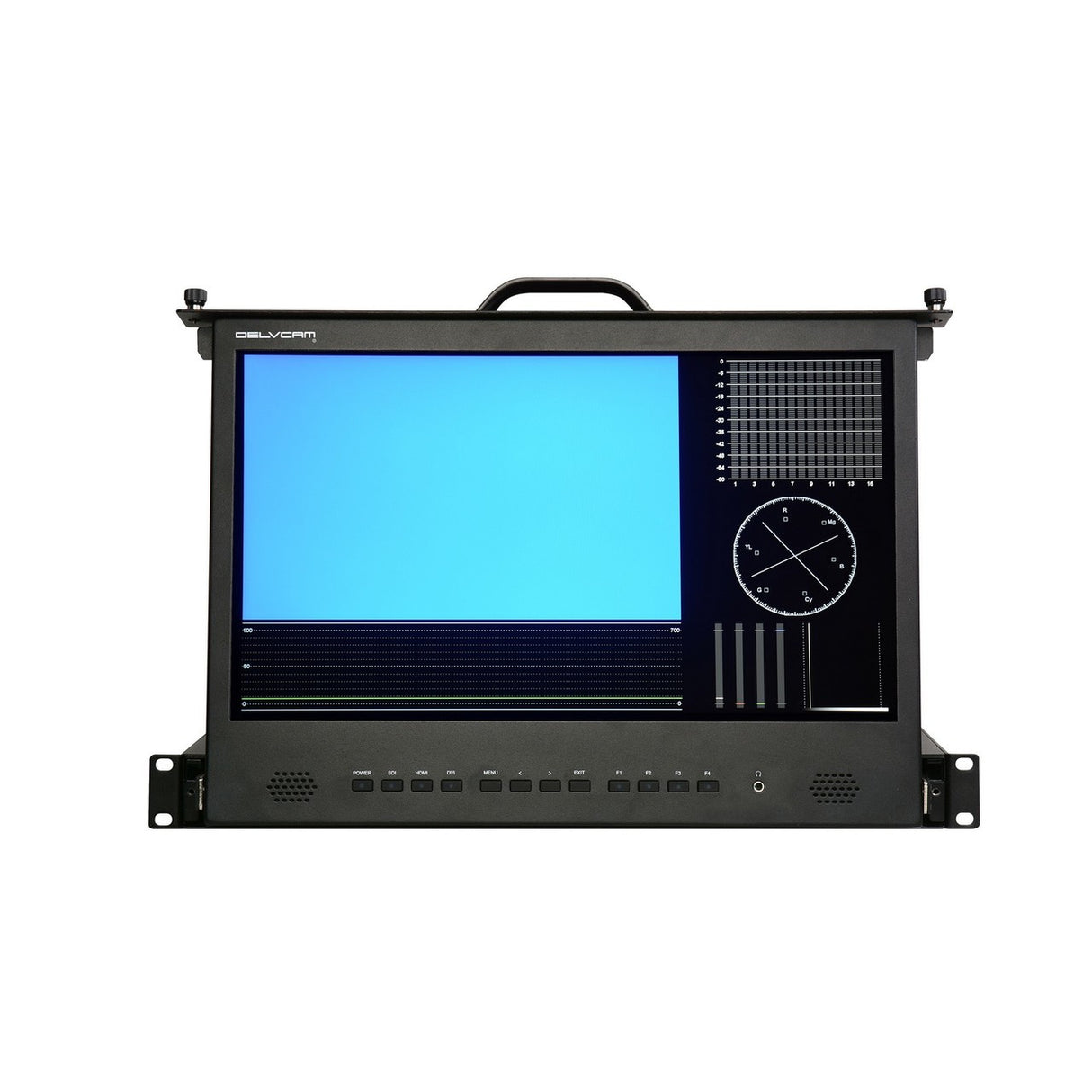

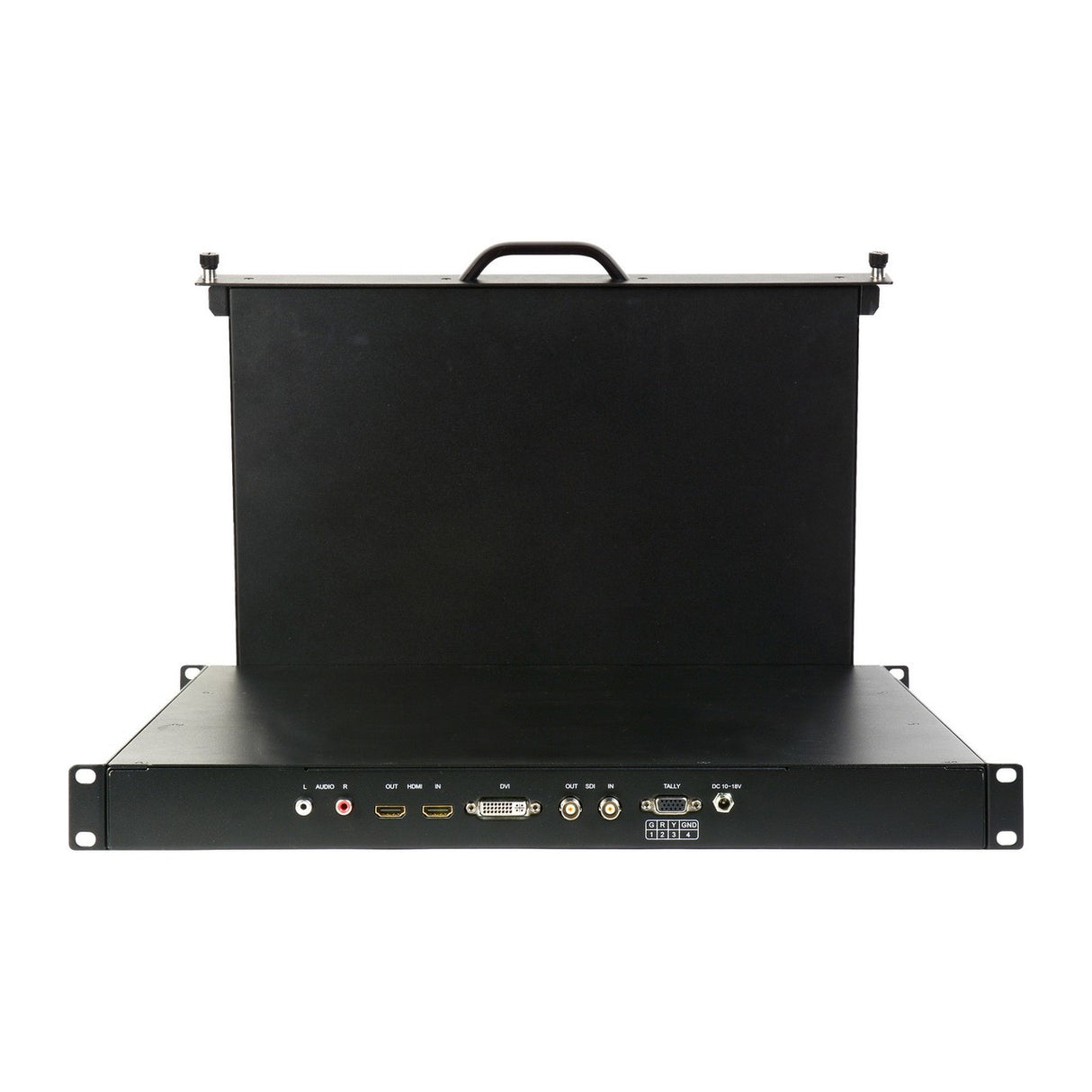

The DELV-3GHD-17RD boasts a crisp 17.3" IPS display panel with 1920x1080 resolution. The rear panel has host of inputs including 3G-SDI BNC, DVI, HDMI and Tally making it a perfect fit for any broadcast or live event production. For added stow-and-go convenience, the unit has an auto-power-down function when the monitor is folded shut into the drawer. The drawer front also houses captive screws to secure the monitor during transport when used in mobile environments.
Key Features

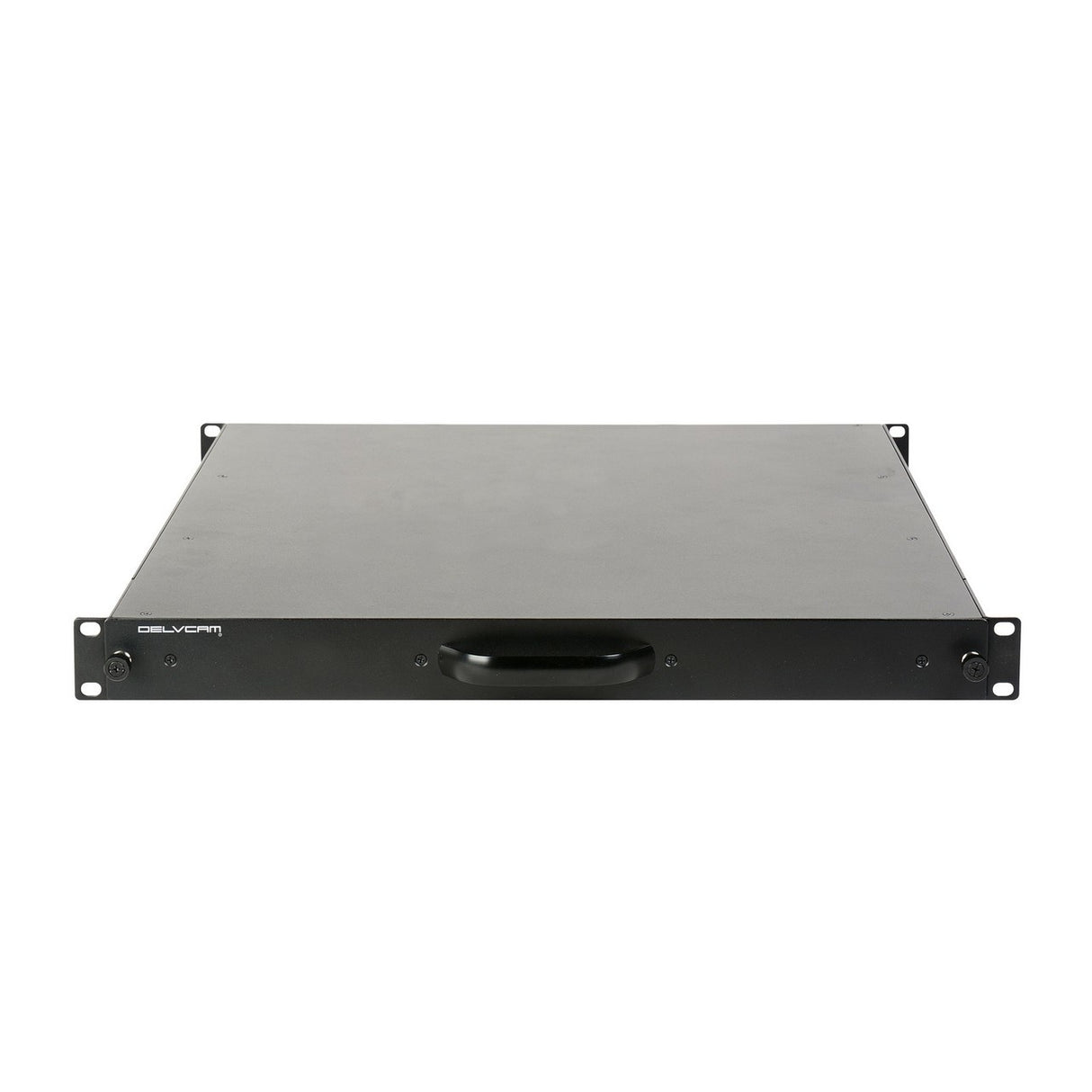

- 1RU Pull Out Drawer Monitor
- HDMI-SDI Cross Conversion & Vector Scope
- Embedded Audiometer
- Back Rail Adjustable to Rack
- Rack Mountable or Stand Alone
- 4 Adjustable Function Buttons
- Space Saving & Portable with Handle

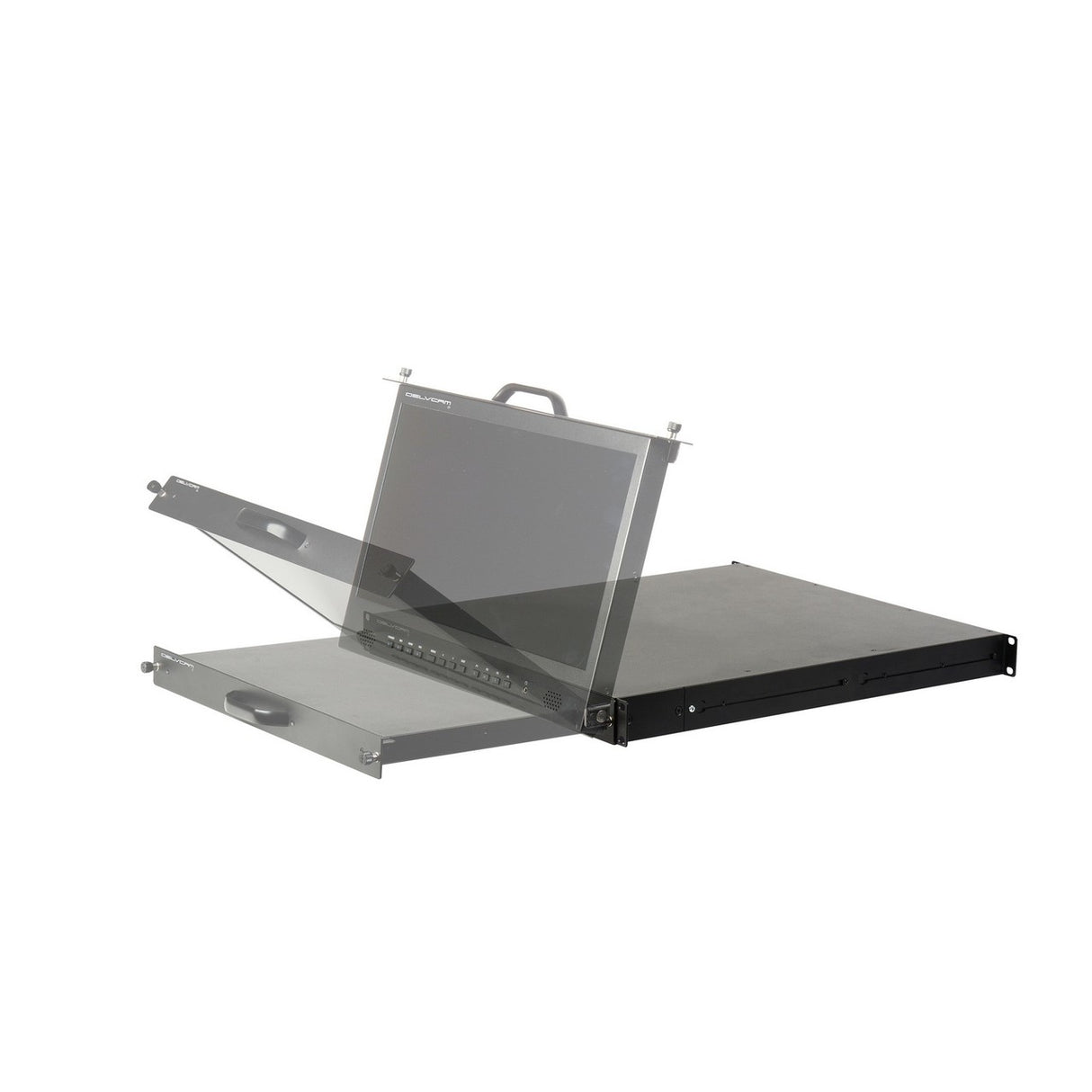

- Automatic Power Shut Off in Drawer Position
- Metal Housing Protection
- Full HD Resolution
- Tally Interface
Technical Specifications
Screen
17.3" IPS
Resolution
1920x1080
Brightness
300cd/m2
Aspect Ratio
16:9
Contrast
700:1
Viewing Angles
178 deg/ 178 deg H/V
Input
3G-SDI, HDMI, DVI, Audio (L/R), Tally
Output
3G-SDI, HDMI
Audio
2 Speakers, Earphone Jack
Current
2.8A
Input Voltage
15VDC
Power Consumption
32W
Dimensions
19x1.73x19.98in/ 482.5x44x507.5mm
Weight
18.96 lb/8.6kg
Special Functions
Picture: Brightness, Contrast, Saturation, Tint, Sharpness, Color Temp, Red Gain, Green Gain
Marker: Center, Aspect, Safety, Marker Color, Marker Mat, Thickness
Function: Scan, Aspect, Underscan, H/V Delay, Check Field, Zoom, Freeze, DSLR
Waveform: Peaking, Peaking Color, Peaking Level, False Color, Exposure, Exposure Level, Histogram
Audio: Volume, Level Meter, Audio Channel
System: HDMI/SDI Convert, Color Bar, OSD Time, Backlight, Fan, Reset
