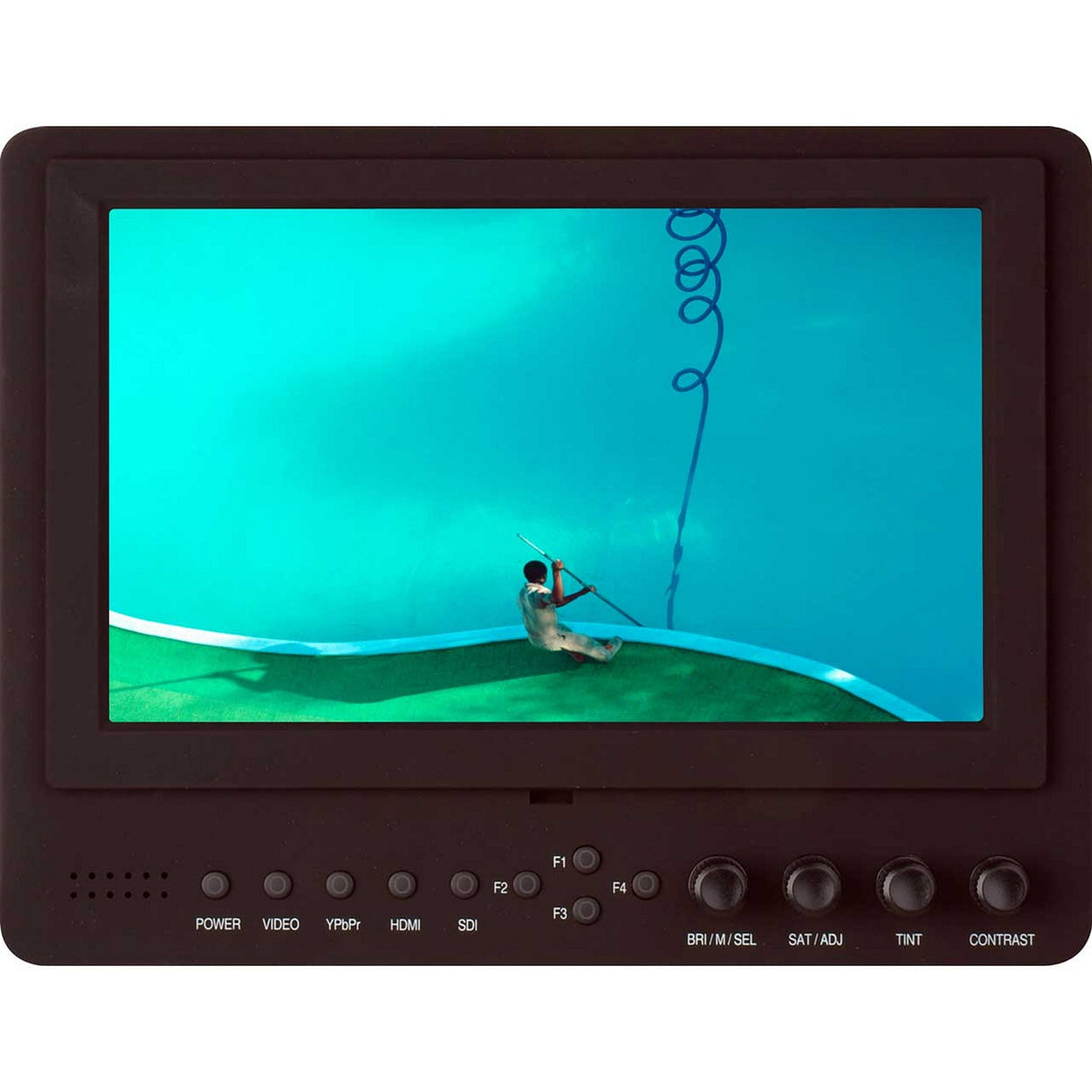

Delvcam DELV-SDI-7 7-Inch Advanced Function 3G-SDI Camera-Top LED Monitor with HDMI
Delvcam DELV-SDI-7 7-Inch Advanced Function 3G-SDI Camera-Top LED Monitor with HDMI
The Delvcam DELV-SDI-7 ushers in a new era of super-bright, high-resolution monitoring at a super low price. This 7 inch 16:9 LED field monitor is fully multiformat with 3G-SDI, HDMI, YPbPr and component video inputs. It also offers customizable peaking, false color, histogram, and exposure, auxiliary function buttons.
Key Features
Wide viewing angles
High contrast: 800:1
Flexible frame rates :24PFS,25FPS,30FPS ,50FPS and 60FPS
5D-II camera mode
3G-SDI, YPbPr & HDMI input/ouput
Flexible folding sunshade
Wide voltage: DC 7-24V
Technical Specifications
Display
Panel 7" LED backlit
Physical Resolution
1024x600, support up to 1920x1080
Aspect Ratio
16:9
Brightness
250cd/m2
Contrast
800:1
Viewing Angle 160/150(H/V)
Compatibility
SDI A, SDI B limited to1080i60
Input
3G-SDI 1x; HDMI 1x; YPbPr: 1x (BNC); Video: 1x; Audio 1x
Output
3G-SDI 1x; HDMI 1x; Composite Video 1x
YPbPr Supported Formats: 480i/59.94Hz; 480p/59.94Hz; 576i/50Hz; 576p/50Hz; 720p/50Hz; 720p/59.94Hz; 720p/60Hz; 1080i/50Hz; 1080p/50Hz; 1080p/59.94Hz; 1080i/59.94Hz; 1080i/60Hz
HDMI Supported Formats: 480i/59.94Hz; 480p/59.94Hz; 576i/50Hz; 576p/50Hz; 720p/29.97Hz; 720p/30Hz; 720p/50Hz; 720p/59.94Hz; 720p/60Hz; 1035i/59.95Hz; 1035i/60Hz; 1080p/23.98Hz; 1080p/24Hz; 1080p/25Hz; 1080p/29.97Hz; 1080p/30Hz; 1080i/50Hz; 1080p/50Hz; 1080p/59.94Hz; 1080i/59.94Hz; 1080i/60Hz
HD-SDI Supported Formats: 480i/59.94Hz; 576i/50Hz; 720p/29.97Hz; 720p/30Hz; 720p/50Hz; 720p/59.94Hz; 720p/60Hz; 1080p/23.98Hz; 1080p/24Hz; 1080p/25Hz; 1080p/29.97Hz; 1080p/30Hz; 1080i/50Hz; 1080p/50Hz; 1080p/59.94Hz; 1080i/59.94Hz; 1080i/60Hz
Power Current
800mA
Input Voltage
DC 7-24V (XLR)
Battery Plate Compatibility
LPE6, F970, DU21, QM91D: V-mount / Anton Bauer mount
Power Consumption
10W
Operating Temperature
-20C - 60C
Storage Temperature
-30C - 70C
Dimension(LWD)
7.66 x 5.91 x 1.52 inch
Weight
1.06 lbs/1.41 lbs (with cover)
Item Includes
Flexible Folding Sunshade Cover
Battery Plate QM91D
Battery Plate F-970
HDMI Type A-C
DC Adapter
Shoe Mount Adapter
