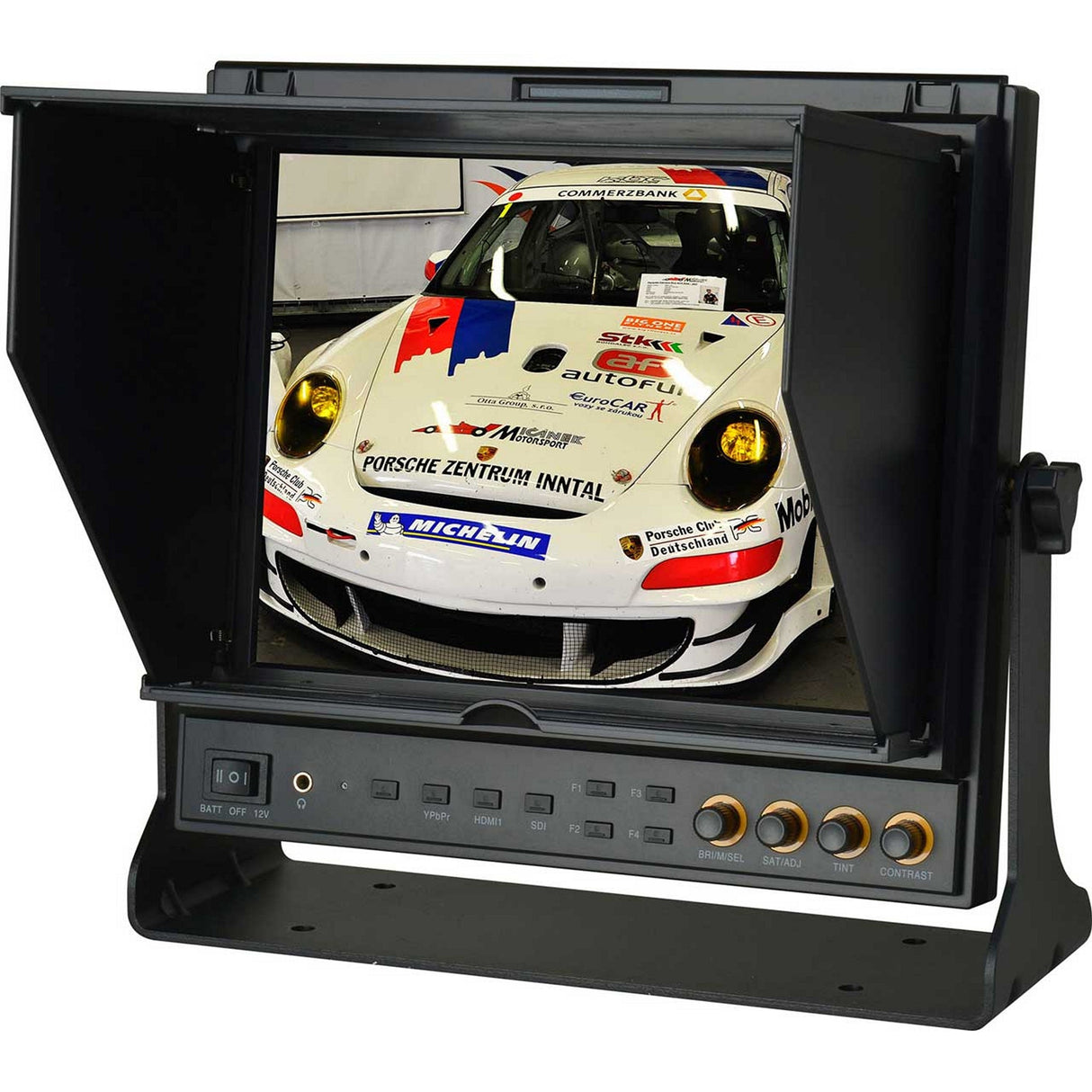

Delvcam SDI-10 9.7 Inch SDI Monitor With Dual HDMI Input/Output
Delvcam SDI-10 9.7 Inch SDI Monitor With Dual HDMI Input/Output
Free Shipping
Delvcam SDI-10 9.7 Inch SDI Monitor With Dual HDMI Input/Output
The DELV-SDI-10 9.7" LCD is the ideal size for a small broadcast desktop monitor but large enough to pick out the finest details in a shot. These monitors are known for displaying accurate and clear images with a natively high resolution providing clarity at an aspect ratio that works well with 16:9 and 4:3 content. The 1:1 pixel mapping allows you to maintain the original resolution of your camera's output and avoid any unexpected focus issues in post-production. This monitor also offers customizable peaking, false color, histogram, and exposure, auxiliary function buttons.
Key Features
- IPS panel 178Ā° wide viewing angles
- 3G-SDI & HDMI input
- Wide voltage: DC 7-24V
- TALLY interface & 5V charging
- Comply with IP52 standard
Technical Specifications
DISPLAY
Panel 9.7" LED backlit
Physical Resolution 1024x768, support up to 1920x1080
Aspect Ratio 4:3
Brightness 400cd/m2
Contrast 600:1
Viewing Angle 178Ā°/178Ā°(H/V)
Response Time (ms): SDI 2.278, HDMI 6.444, AV 1.75, YPBPR 1.486
Compatibility: SDI A, SDI B limited to1080i60
INPUT
3G-SDI 1
HDMI 1
YPbPr 3(BNC)
TALLY 1
AUDIO 2(L/R)
OUTPUT
3G-SDI 1
HDMI 1
YPbPr 3(BNC)
USB 1(5V for charging)
AUDIO
Speaker 1(build-in)
Ear Phone Slot 1
POWER
Current 1500mA
Input Voltage DC 7-24V(XLR)
Battery Plate: LPE6, F970, DU21, QM91D
V-mount / Anton Bauer mount /
Power Consumption =18W
ENVIRONMENT
Operating Temperature -20C - 60C
Storage Temperature -30C - 70C
DIMENSION
Dimension(LWD) 9.69 x 8.82 x 1.22 inch
Weight 2.36 lbs/3.06 lbs (with cover)
