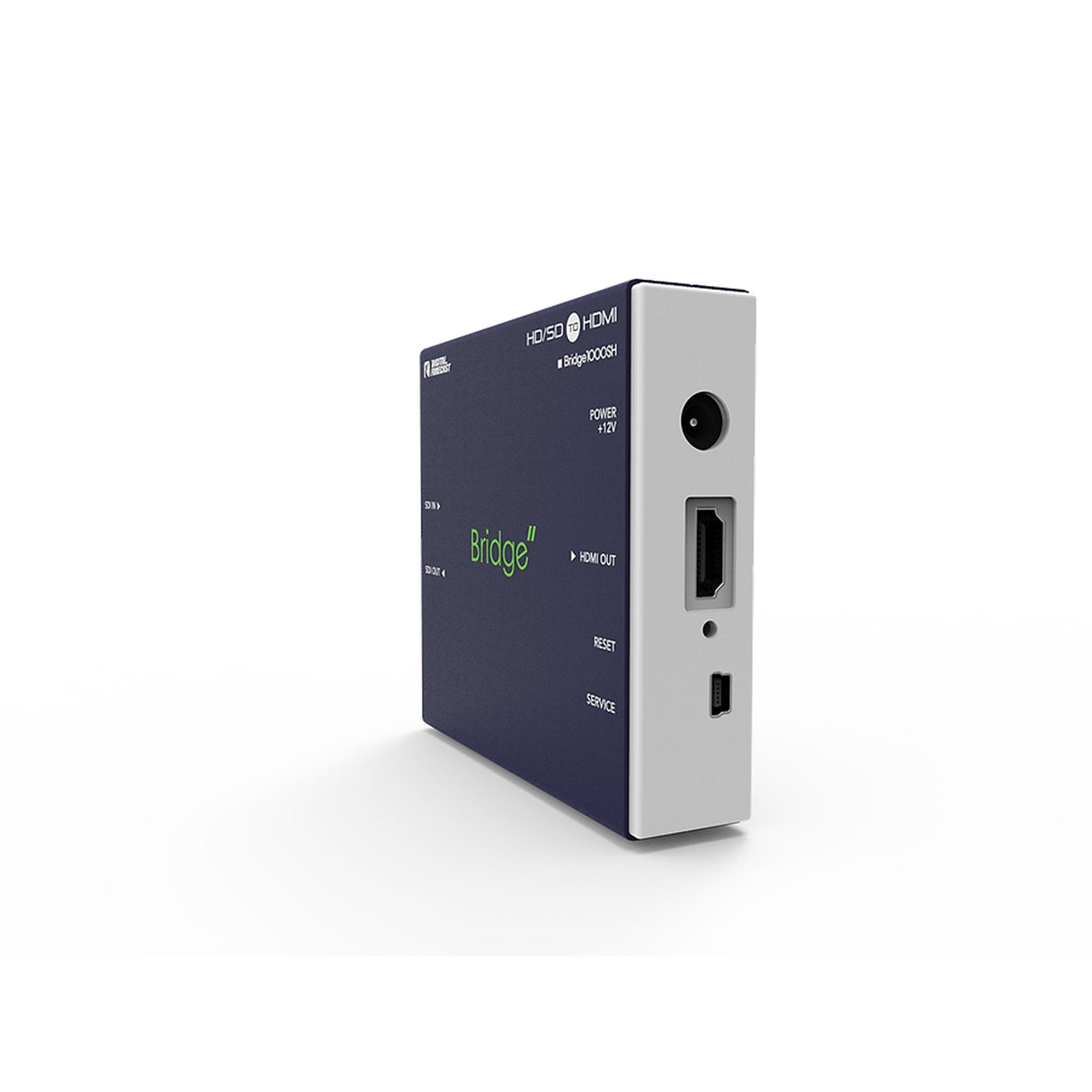

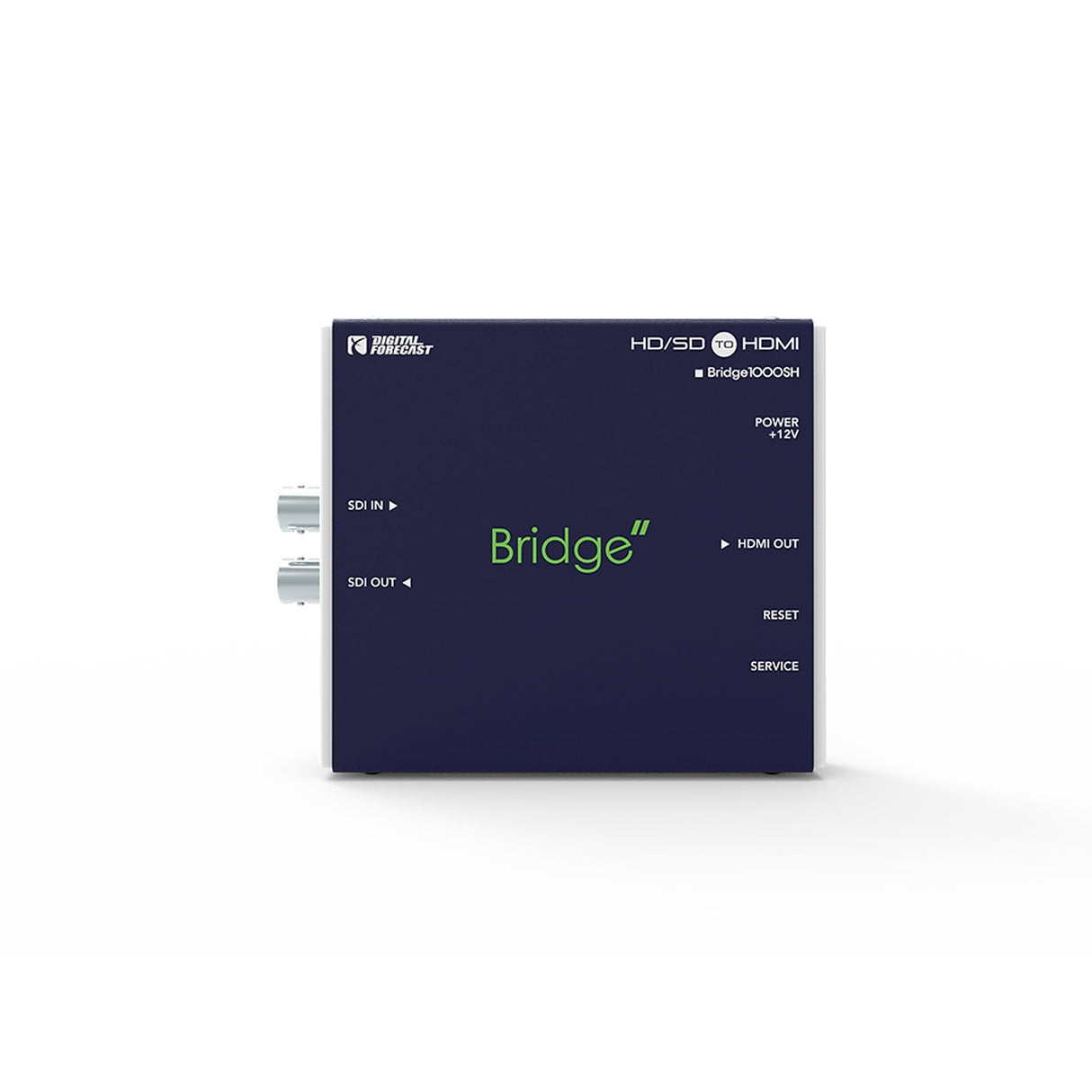

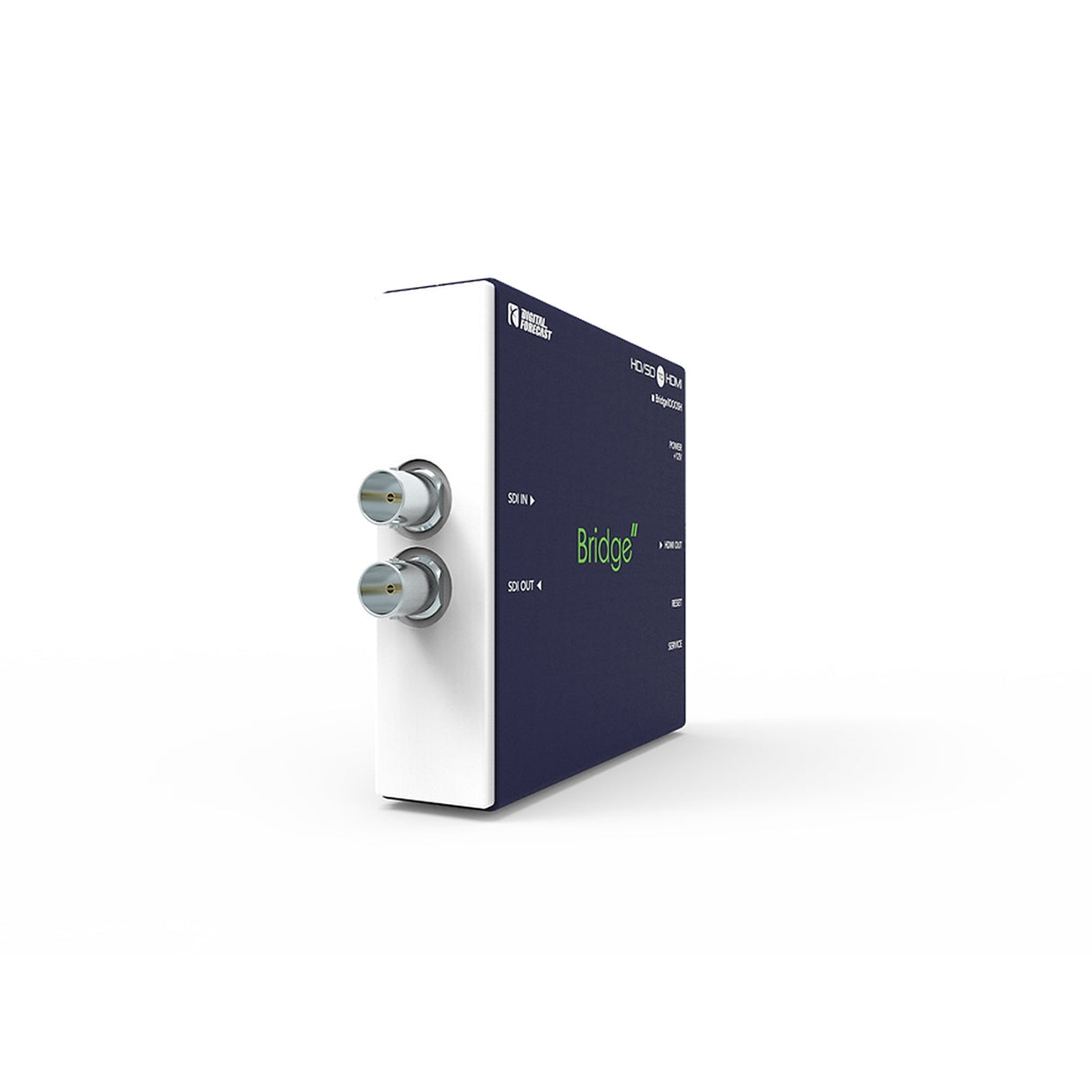

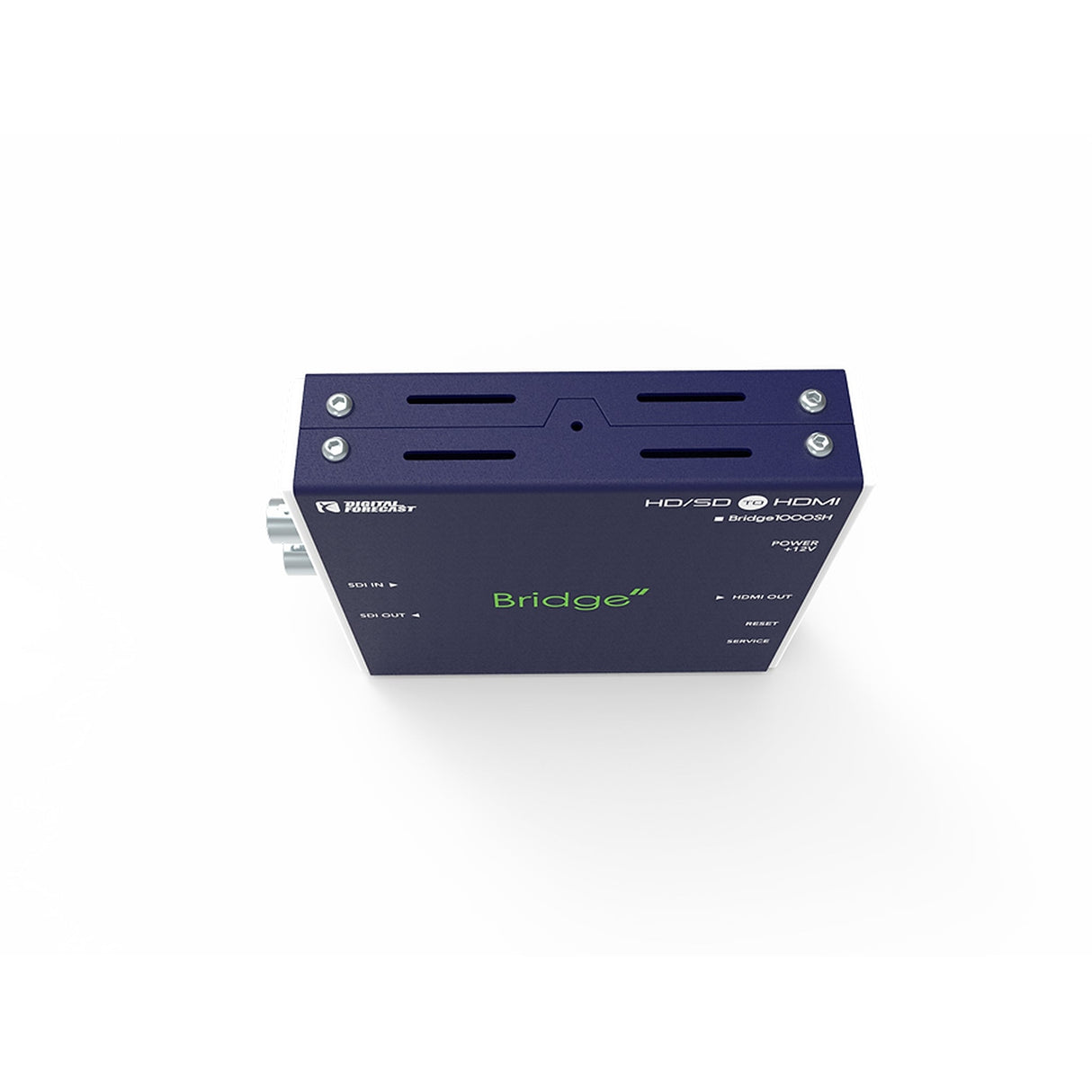

Digital Forecast Bridge 1000 SH HD/SDI to HDMI Converter

Bridge1000_SH is a device that will convert an HD SDI signal of SMPTE standards into the HDMI signal. It'supports up to 1080p60 format, It'supports 1 Re-clocking out.

Key Features

• HD/SDI to HDMI converter
• Input standartd format bypass
• SDI signal monitoring for TV
• 1 HD/SDI input ( SD/HD/3G )
• 1 HD/SDI input Re-clocking out
• 1 HDMI out ( SD/HD/3G )
• Low power consumption
• DC 7V ~ 24V wide operating range

Technical Specifications

Physical
Dimension (W x H x D)
106 x 96 x 25 (mm)
Weight
165 g
Power Level
12 VDC
Power Consumption
5.0Watts (Max : 6Watts)
Humidity
0 to 95% RH, non-condensing
Supports HDMI v1.3
Supports multi-rate SDI formats
SMPTE 125M: NTSC (480i 59.94), PAL (576i 50)
SMPTE 296M: 720p (60/59.94/50)
SMPTE-274M,SMPTE-292M: 1080i (60/59.94/50)
1080p (30/29.97/25/24/23.98)
SMPTE-424M: 1080p (60/59.94) 3G
