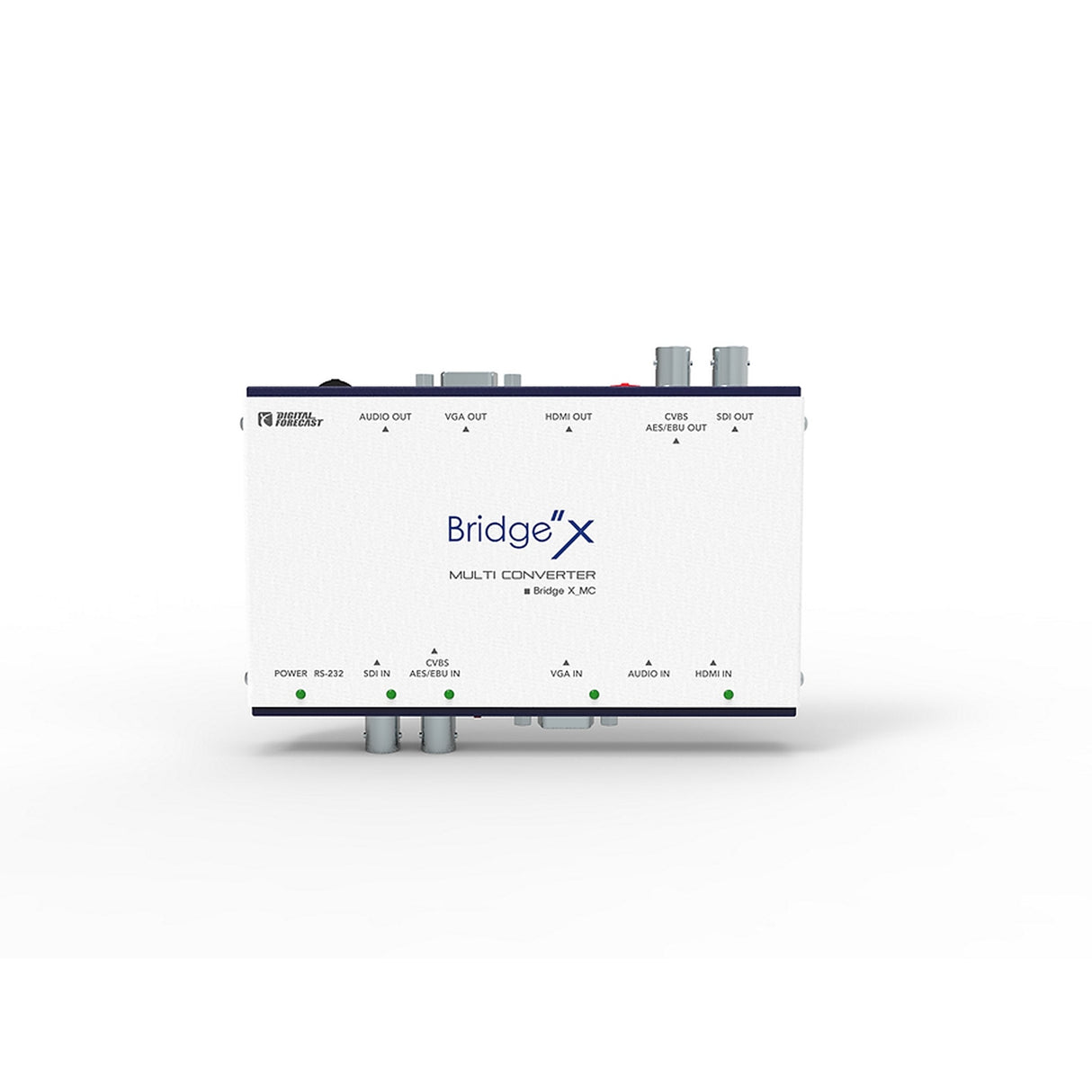

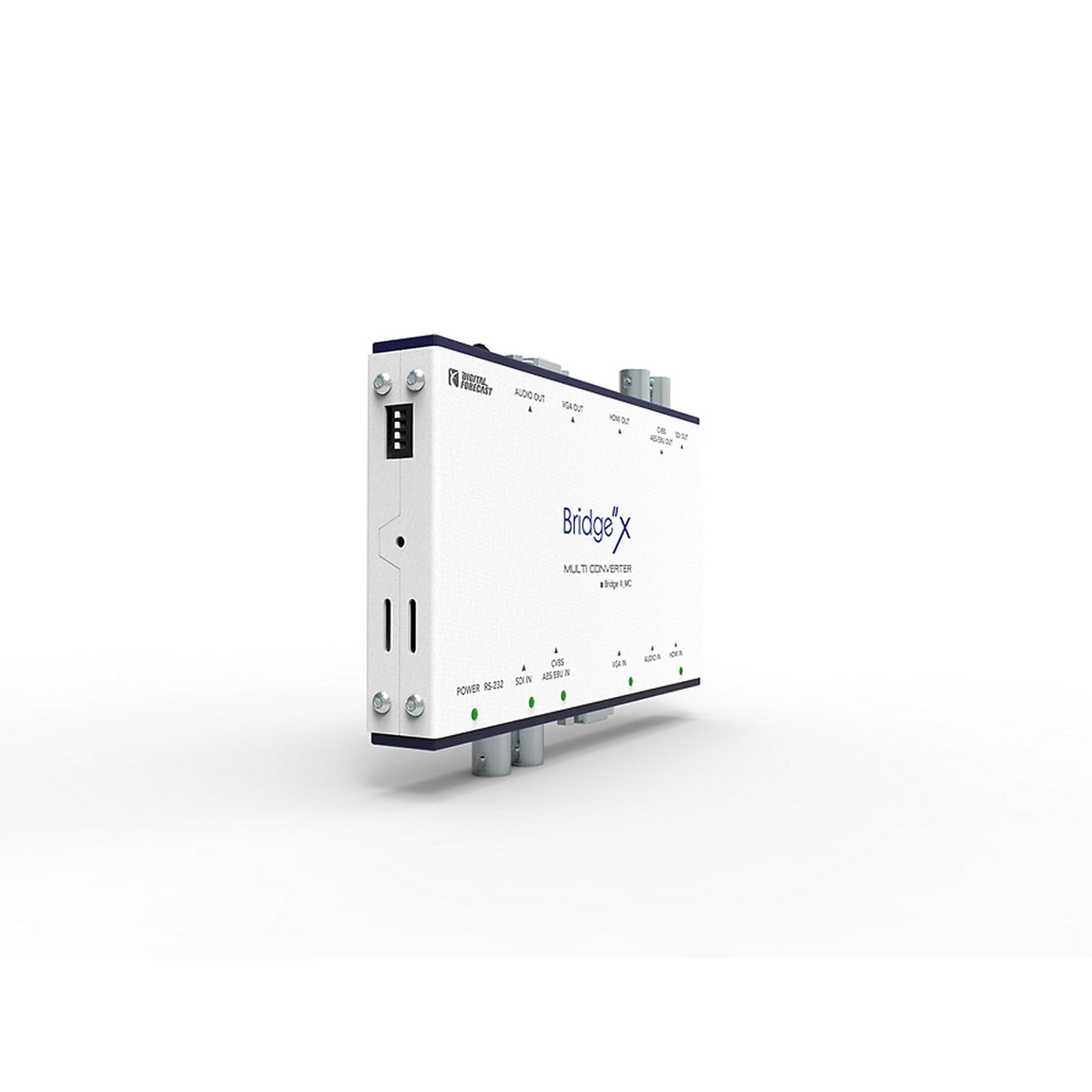

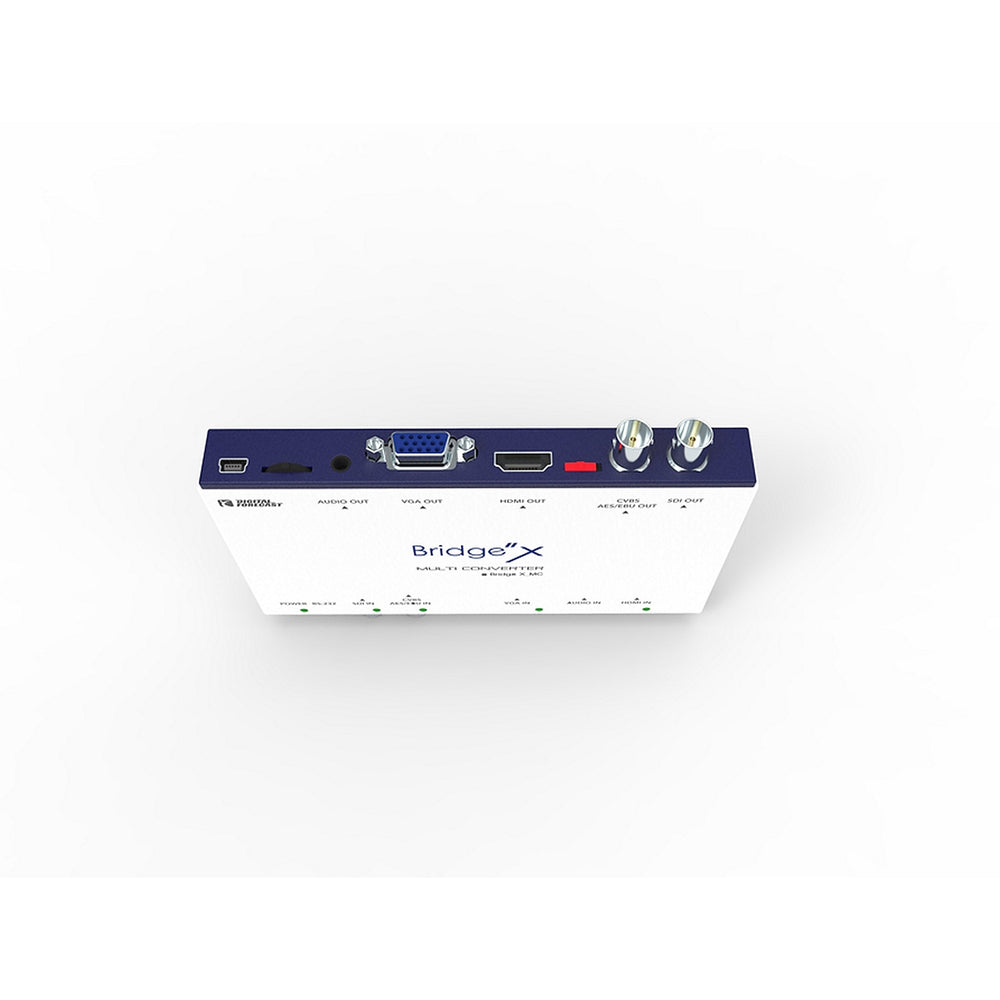

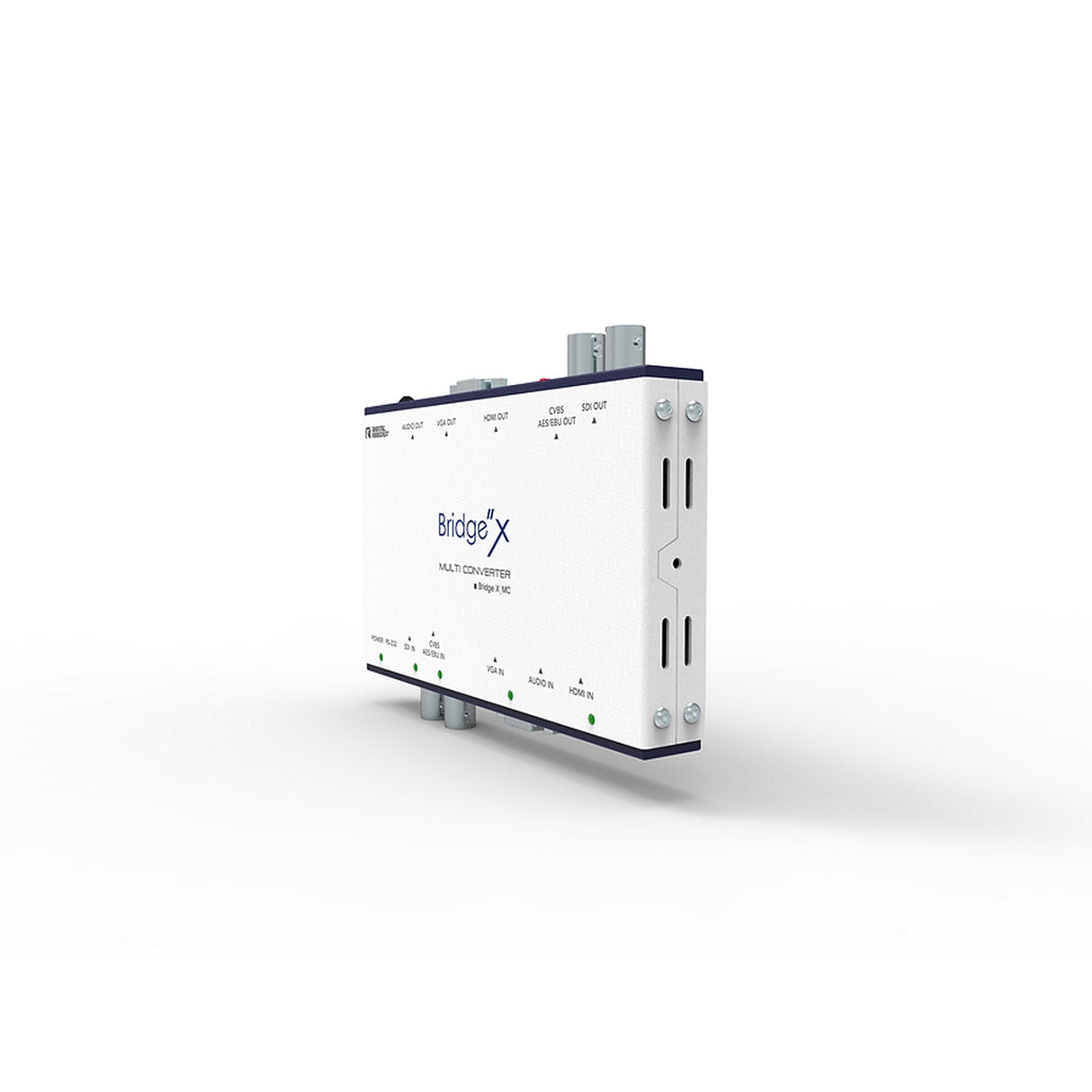

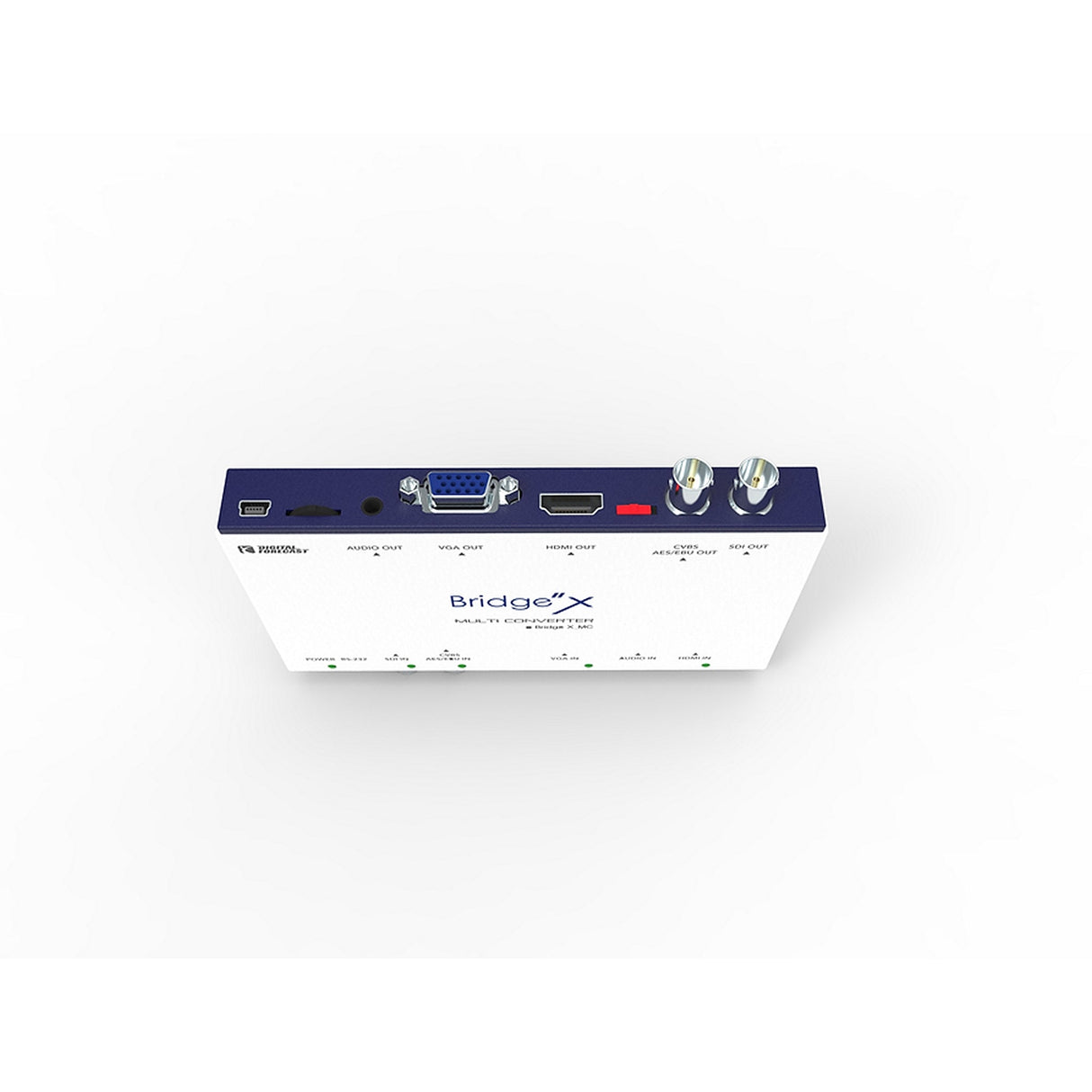

Digital Forecast Bridge X_MC Up/Down/Cross/Scan Multi Converter
Bridge X MC converts video transcoder for all analog and digital video/audio signals. It converts any input signals CVBS, AES/EBU, SDI, VGA, COMPONENT, Analog Audio, HDMI to any of those output signals simultaneously. Multi format up/down/cross converting and Audio Mux, DeMux Function.
Key Features
- Up/Down/Cross/Scan converter
- Audio Mux Function
- HDMI in/output
- Audio Mux Function
- Audio DeMux Function
- User selectable output format
- User selectable output ARC
- Multiple standard video/audio signal
- (CVBS, AES/EBU, SDI, VGA, COMPONENT, Analog Audio, HDMI)
Technical Specifications
Physical
Dimension (W x H x D)
153 x 91 x 20.4 (mm)
Weight
210 g
Power Level
+12 VDC
Power Consumption
10 Watts
Humidity
0 to 95% RH, non-condensing
Digital Video
Supports HDMI v1.3 formats
Supports multi-rate SDI formats
NTSC (480i 59.94), PAL (576i 50)720p (60/59.94/50)
1080i (60/59.94/50) 1080p (30/29.97/25/24/23.98)
1080p (60/59.94) 3G
