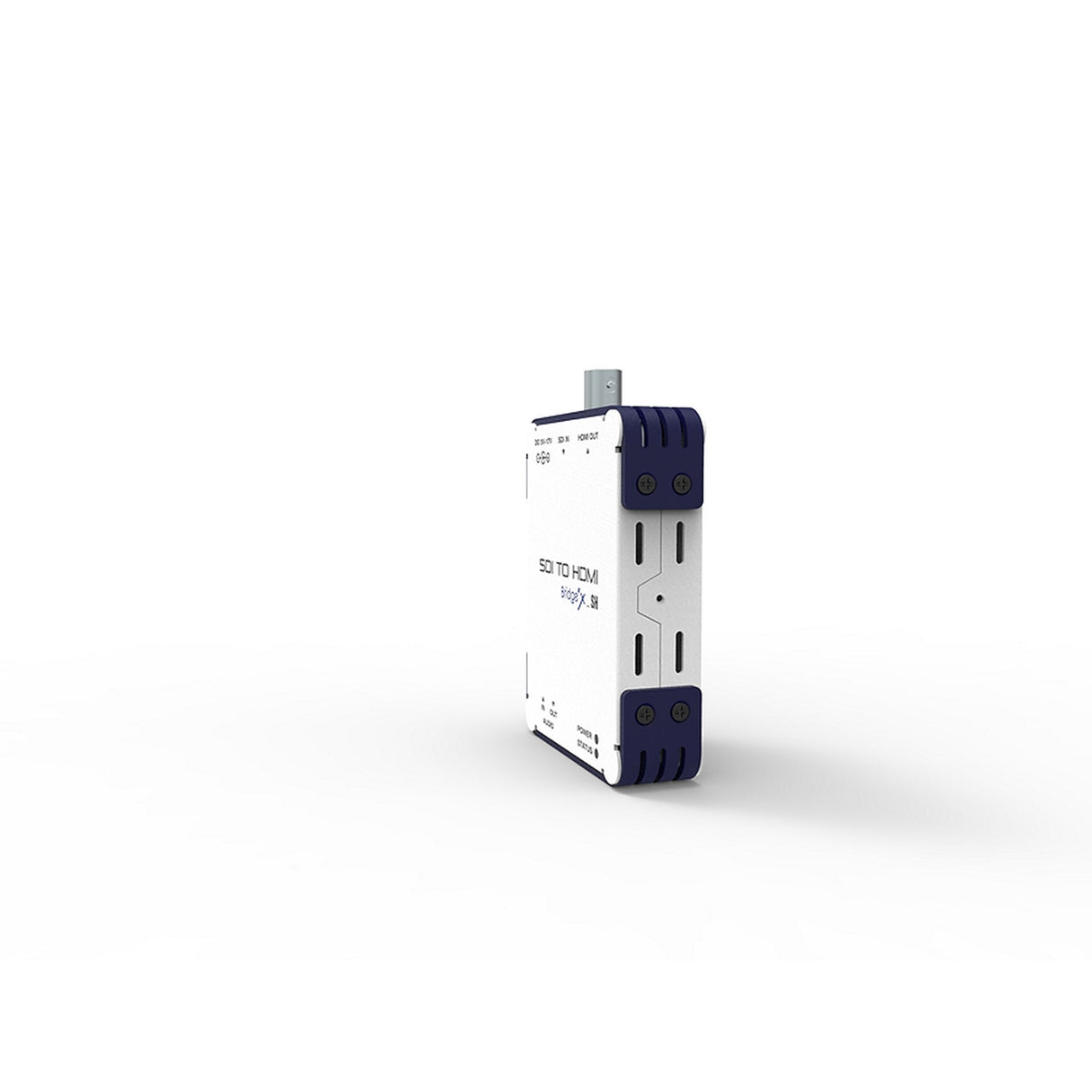

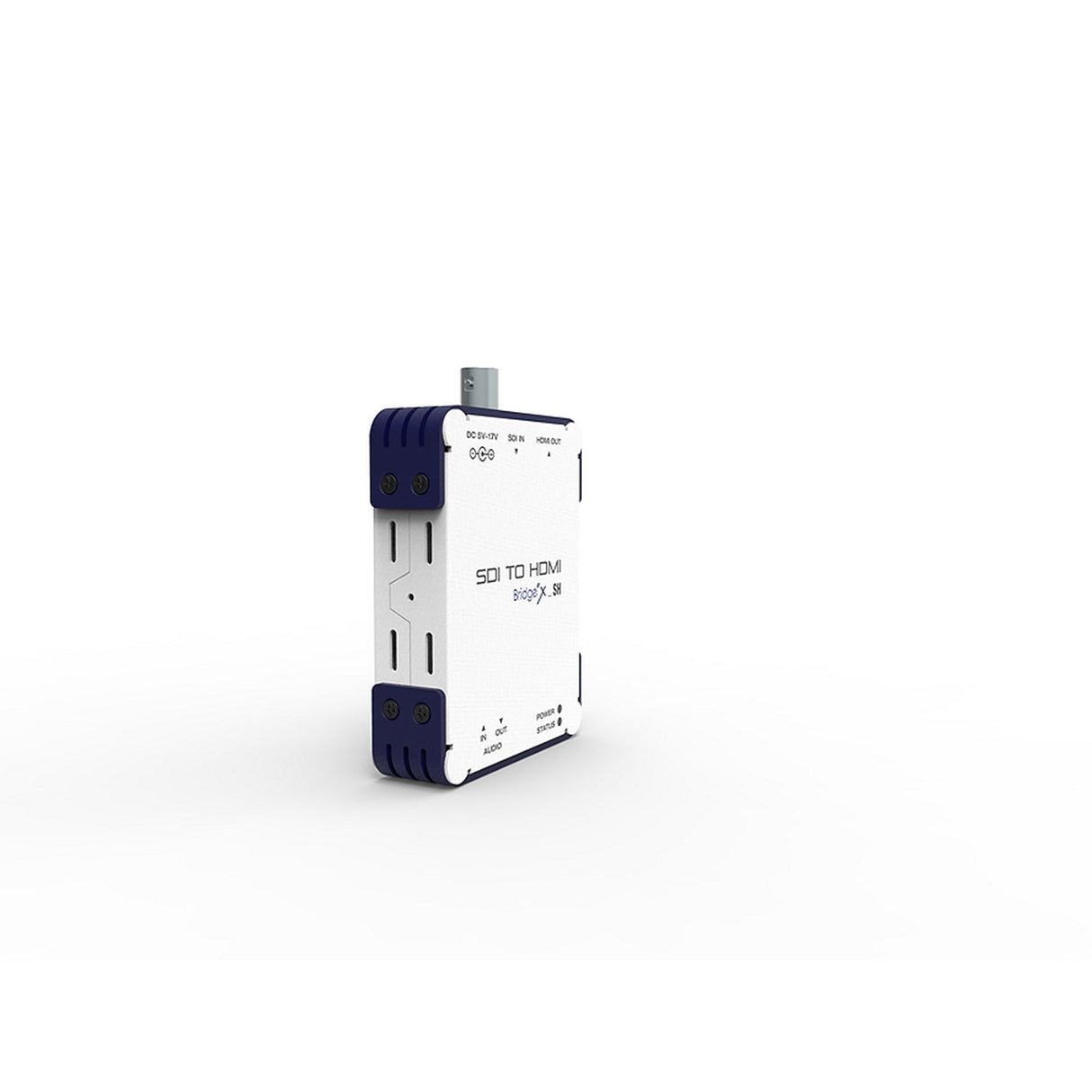

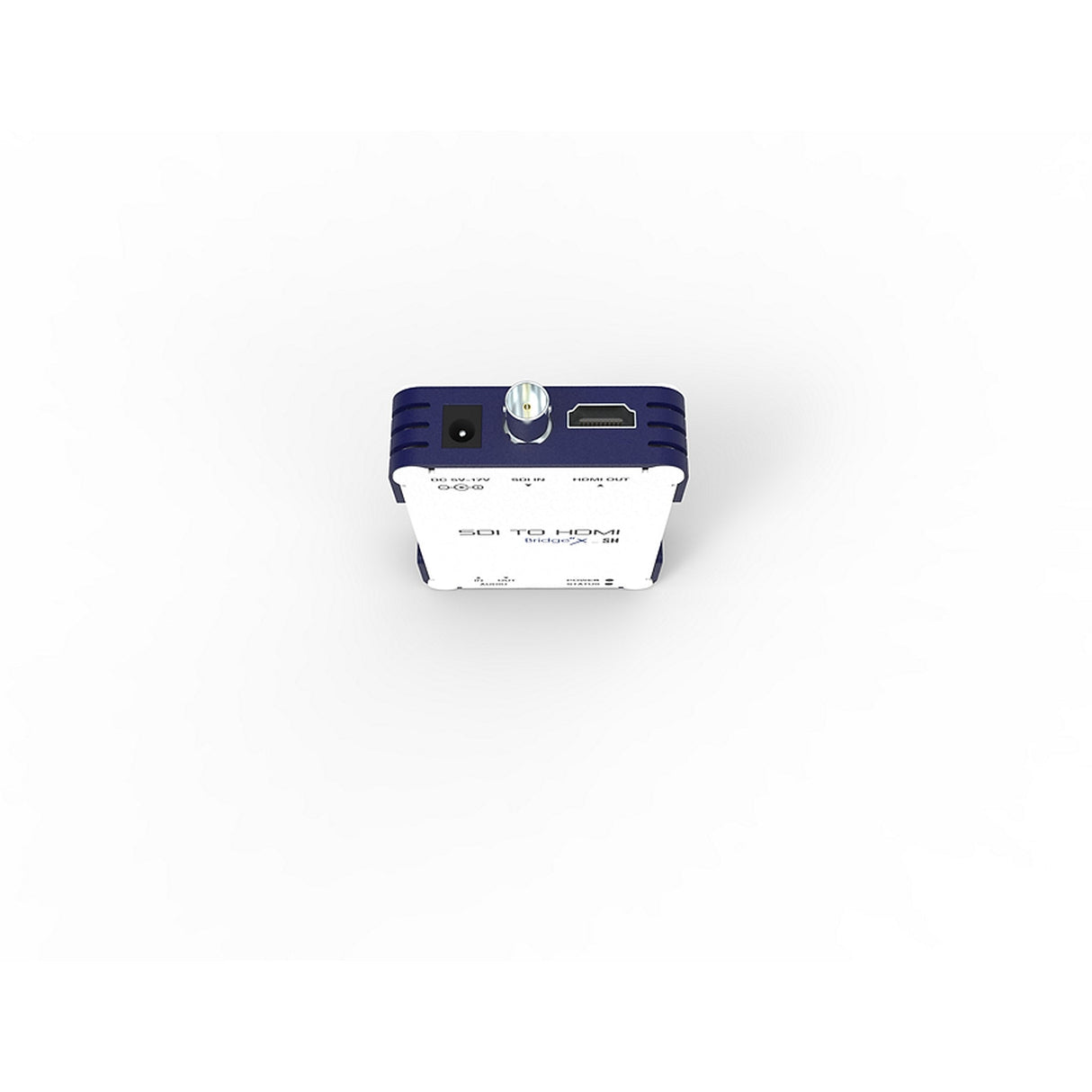

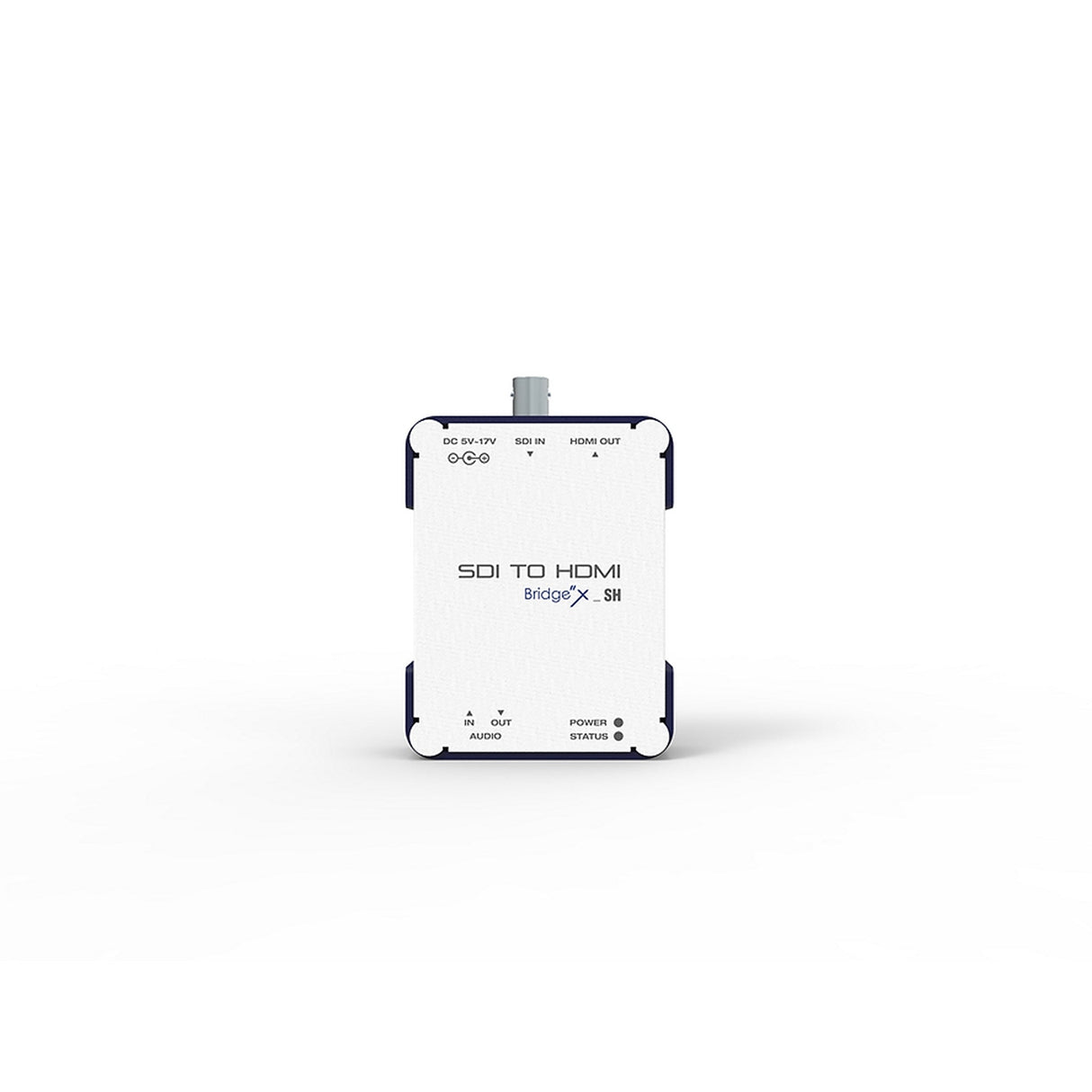

Digital Forecast Bridge X_SH SDI to HDMI Converter
Bridge X_SH is a device that convert to HDMI signal from an SDI signal of SMPTE standards. The format is supported from 480i to 1080p60. In addition, it can insert analog audio into HDMI signal and extract analog audio from HDMI signal.
Key Features
- SDI to HDMI converter
- Zero delay conversion & timing
- 1 SDI input (SD/HD/FHD all standard format)
- 1 HDMI output (SD/HD/FHD all standard format)
- 1 External stereo analog audio input / output (MUX or DMX)
- Selectable mix audio source between embedded HDMI and analog
- DC 7V ~ 17V wide operating power range
- Support rack mount frame (1U max 6 units)
Technical Specifications
Physical
Dimension (W x H x D)
70 x 90 x 22 (mm)
Weight
100g
Power Level
7V ~ 17 VDC
Power Consumption
3.5 Watts (Max: 4Watts)
Humidity
0 to 95% RH, non-condensing
Data Rate
3G
Signal Level
800mVp-p +/- 50m
Digital Video
Supports HDMI v1.3
Supports multi-rate SDI formats
SMPTE 125M
NTSC (480i 59.94), PAL (576i 50)
SMPTE 296M
720p (60/59.94/50)
SMPTE-274M,SMPTE-292M
1080i (60/59.94/50), 1080p (30/29.97/25/24/23.98)
SMPTE-424M
1080p (60/59.94) 3G
