Digital Forecast UHD M_OTR TX/RX 12G-SDI Optic Extender Set
Product Overview: 12G-SDI Fiber Optic Extender for Long-Distance Video

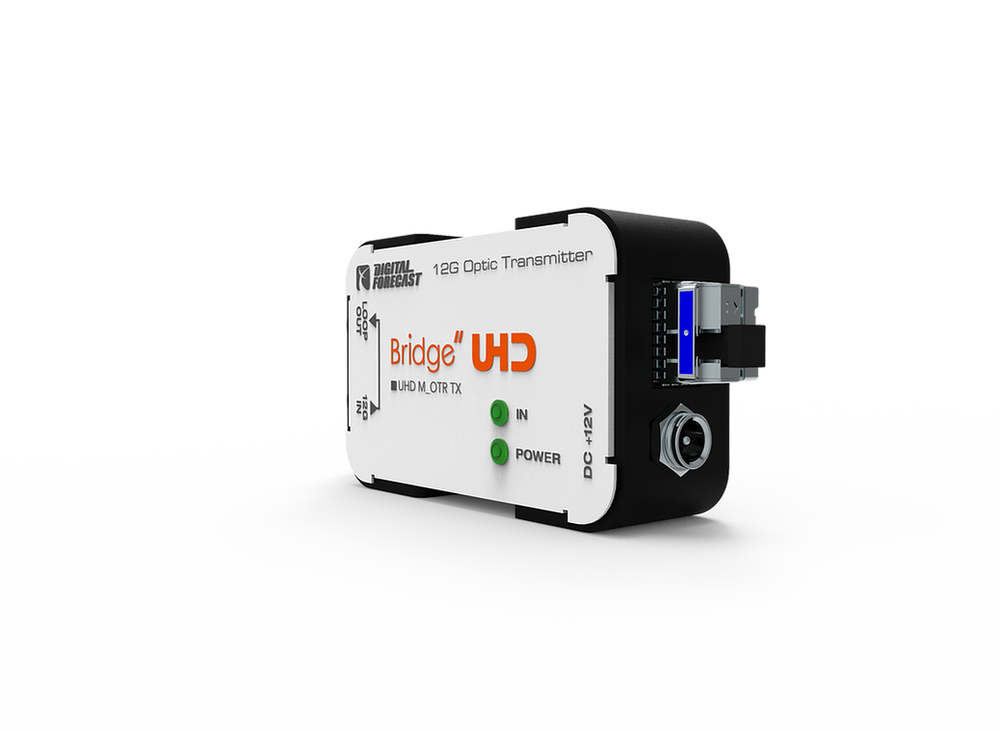

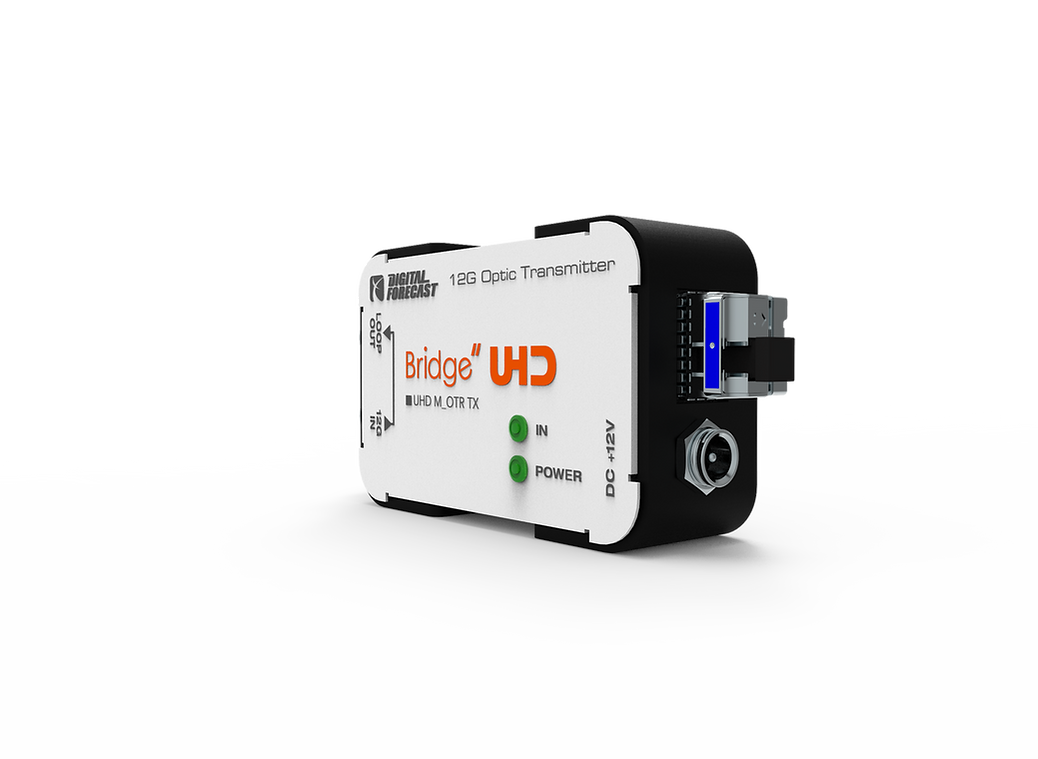

The DIGITAL FORECAST UHD M_OTR TX/RX is a micro-compact 12G-SDI optic extender pair designed to convert a 12G-SDI signal to optical for reliable, long-range transmission over LC single mode fiber. It’s built for professional video workflows where maintaining signal integrity over distance is critical, including UHD/4K SDI transport in studio, OB, and installed environments.
Using a single-core (single LC fiber strand) approach, this 12G-SDI over fiber extender set supports runs up to 10 km and includes the required 12G SFP module. With a 12G-SDI input plus loop out on the TX and dual 12G-SDI outputs on the RX, it integrates cleanly into routing, monitoring, and distribution setups while keeping the footprint small and power draw low.
Key Features
- Micro-Compact Size: Space-saving TX/RX pair for tight racks, carts, and field kits.
- 12G-SDI Input With Loop Out: 1x 12G-SDI input plus loop out for local feed-through on the transmitter.

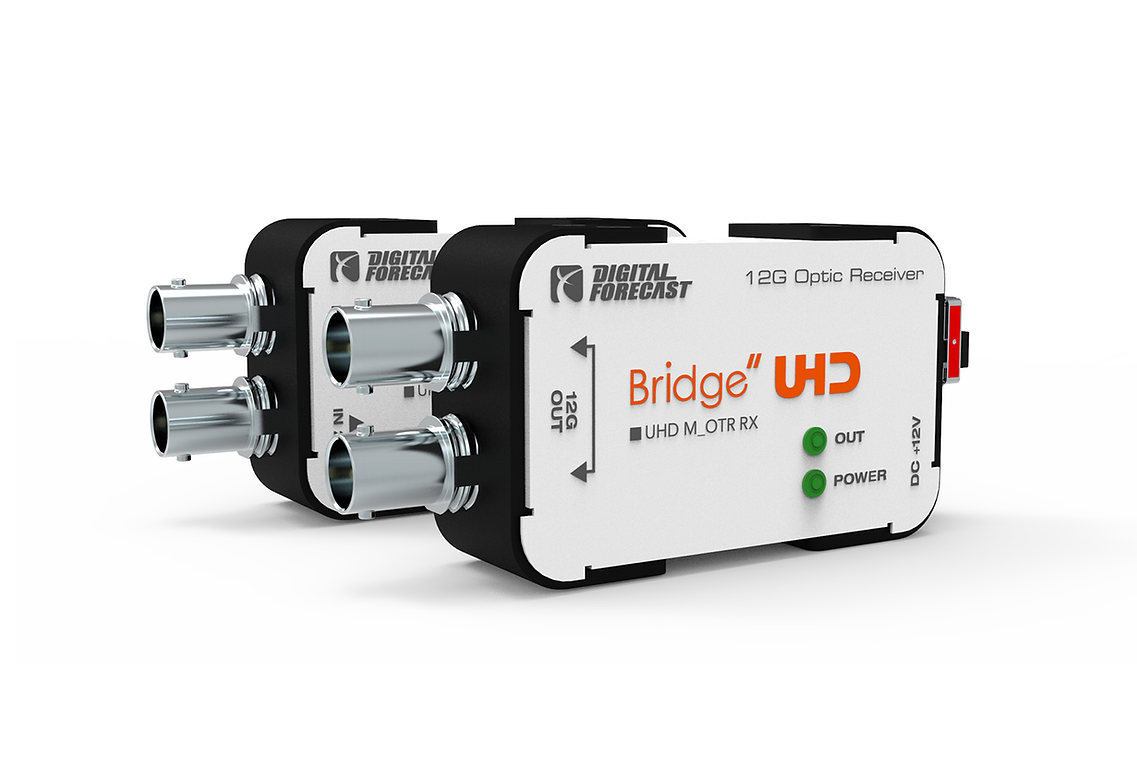

- Dual 12G-SDI Outputs: 2x 12G-SDI outputs on the receiver for flexible distribution.
- LC Single Mode Fiber: Designed for long-distance optical transmission using LC single mode connectivity.
- Single Core Transmission: Uses a single LC fiber strand to simplify fiber runs.
- 12G SFP Module Included: Includes the 12G SFP module required for optical operation.
- Up To 10 km Reach: Supports long-range 12G-SDI optical transmission up to 10 km.
Technical Specifications
- Signal Conversion: 12G-SDI to Optical
- TX Video Input: 1x 12G-SDI
- TX Loop Out: 1x 12G-SDI Loop Out
- RX Video Outputs: 2x 12G-SDI
- Fiber Type: LC Single Mode
- Fiber Core: Single Core (Single LC fiber strand)
- Maximum Transmission Distance: Up to 10 km
- SFP Module: 12G SFP module included
- Power Level: 7V to 16V DC
- Power Consumption: 3.1 W (Max 4 W)
- Operating Temperature: 0°C to 55°C
- Humidity: 0% to 95% RH (Non-condensing)
- Signal Level: 800 mVp-p ± 80 mV
- Dimensions: W 80.0 mm x L 59.4 mm x H 22.5 mm (3.15 in x 2.34 in x 0.89 in)
- Weight: 105 g
- Warranty: Limited 2-Year Manufacturer Warranty
What's Included
- 1x Digital Forecast UHD M_OTR TX
- 1x Digital Forecast UHD M_OTR RX
- 2x Power Adapter
