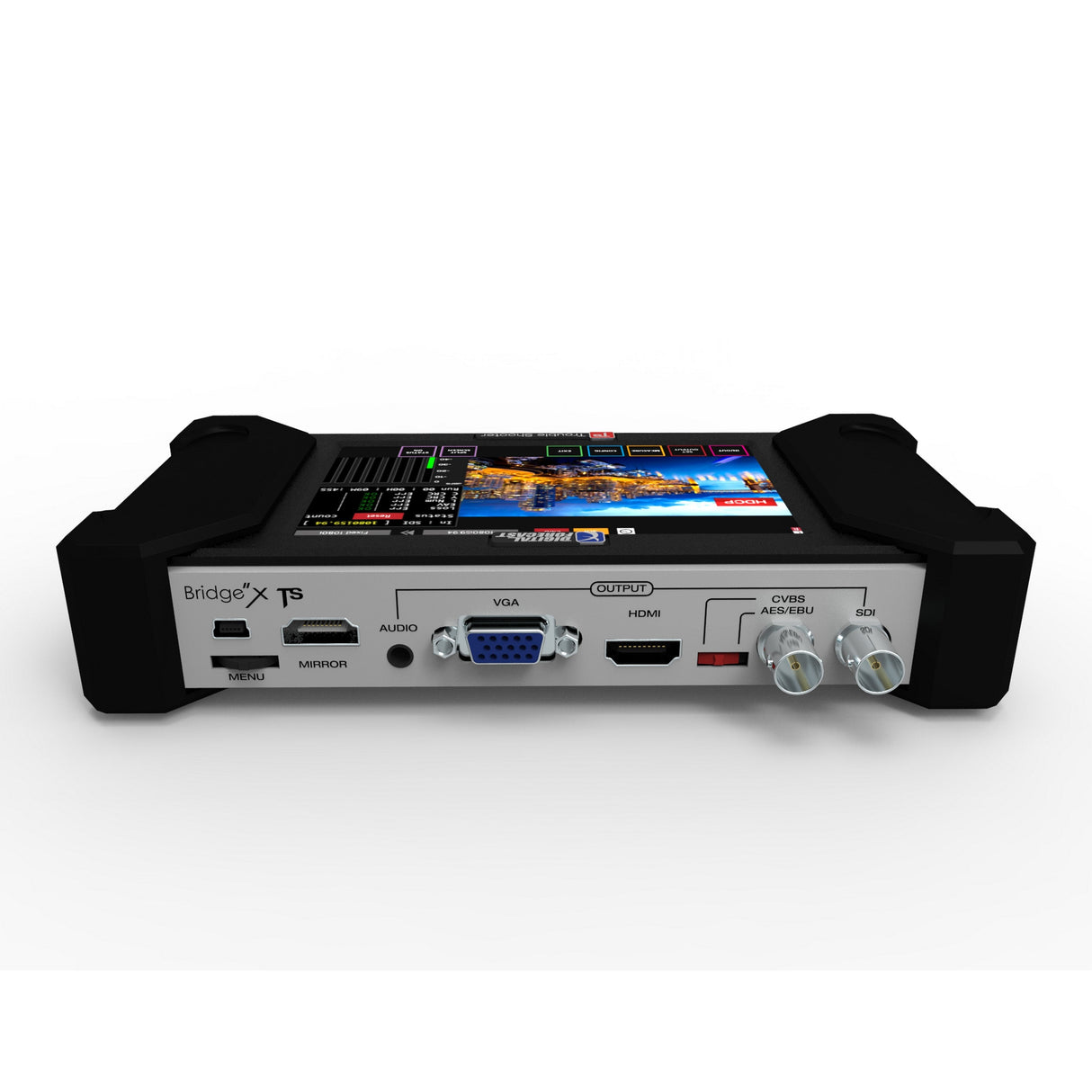

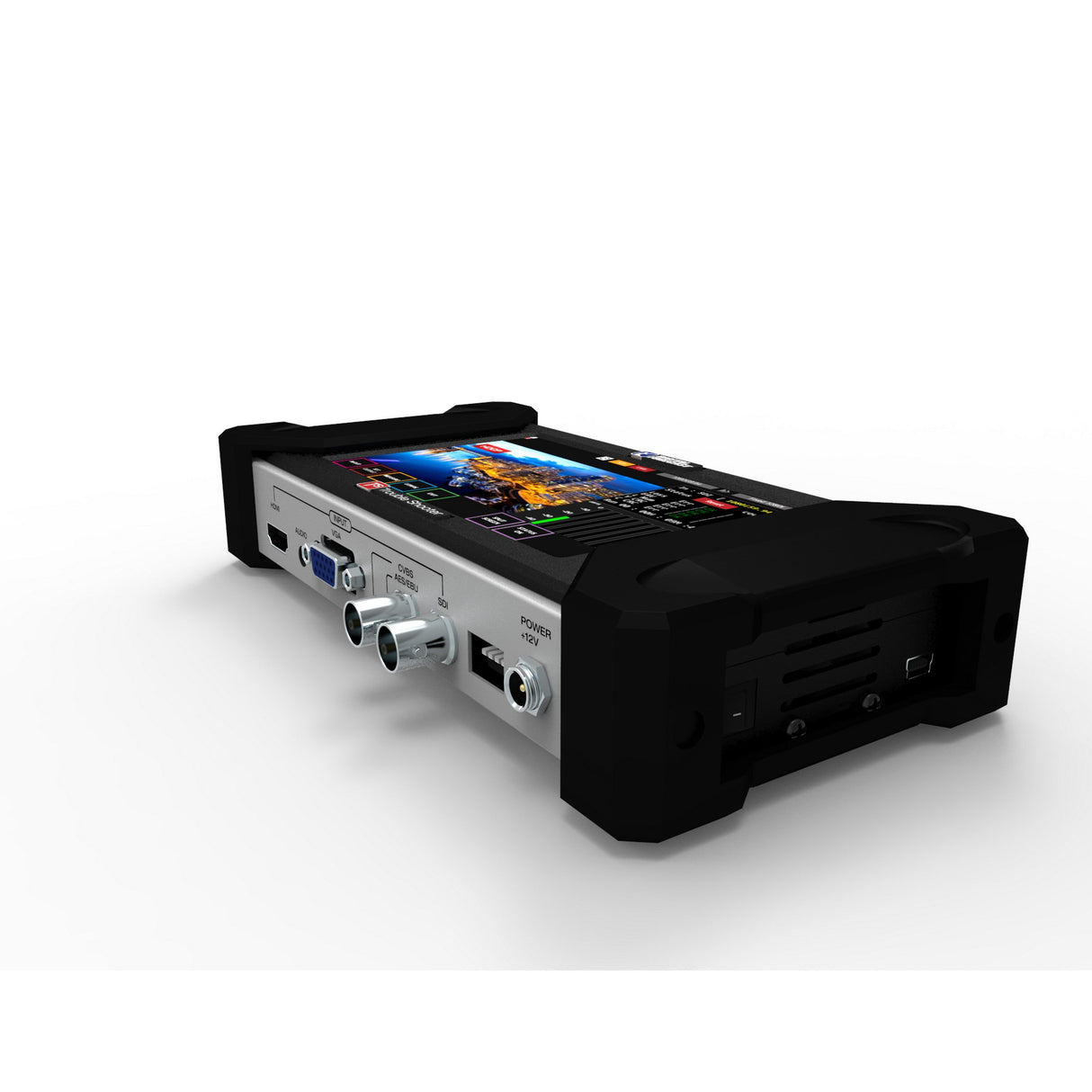

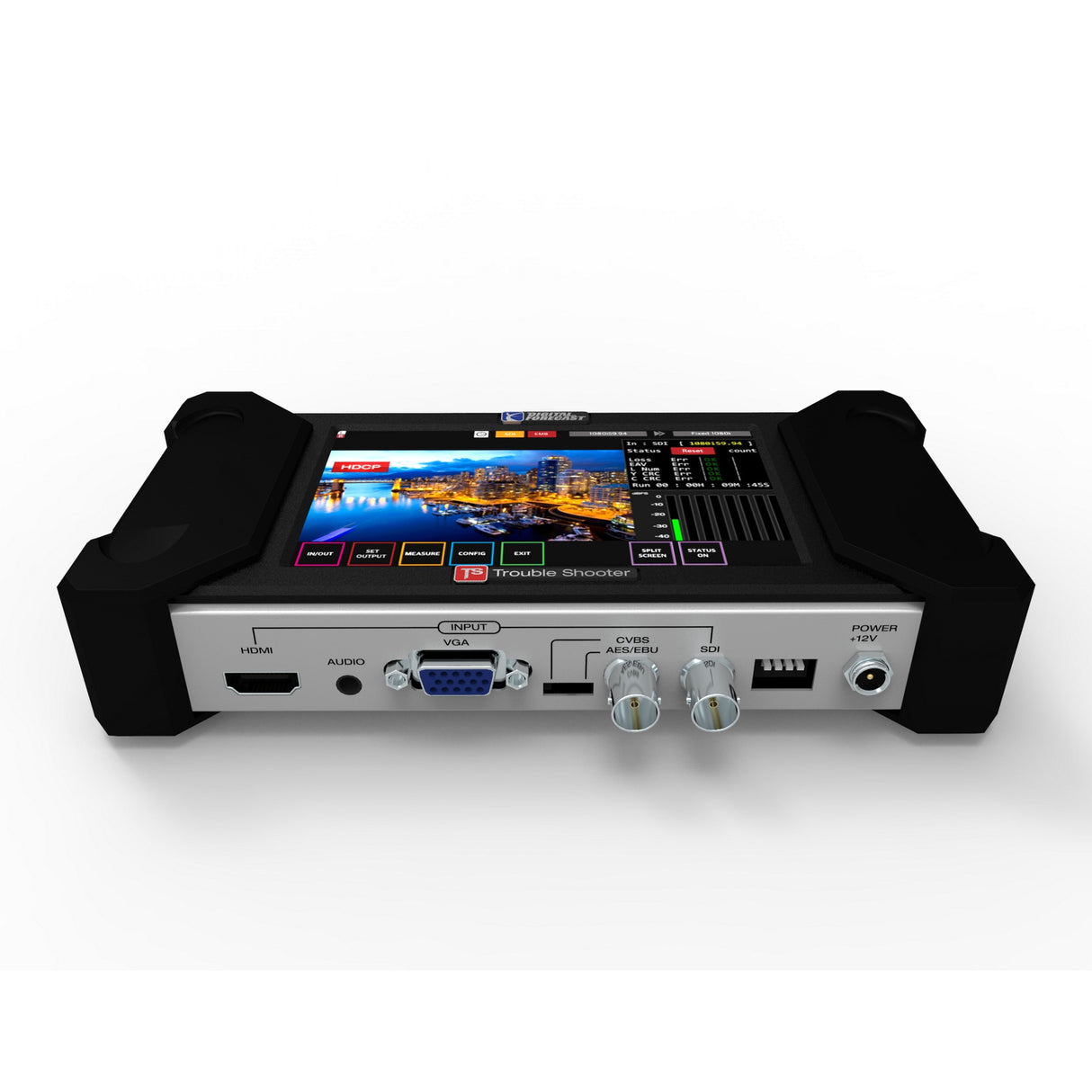

Digital Forecast X-TS V3 Multi-Platform Signal Converter and Measurement

Bridge X TS is a device that supports a variety of inputs and outputs. This device can be used in a installation construction, maintenance service of video or audio signal. You can see the signal status to the LCD panel. Even if any one of the input signal, the converted signals are all output. Also this device has the ability to measure the built-in SDI Jitter and Cable length.

Key Features

• Up/Down/Cross/Scan converter
• Multiple standard Video / Audio signal
• (CVBS, AES/EBU, SDI, VGA, COMPONENT, Analog audio, HDMI)
• Analog audio MUX / DEMUX
• Jitter Measurement for SDI signal (720p, 1080i, 1080p)
• Test Pattern Generator (Stop screen and Moving Box screen)
• OSD function menu
• Audio level check (Most 8 channels are monitored)

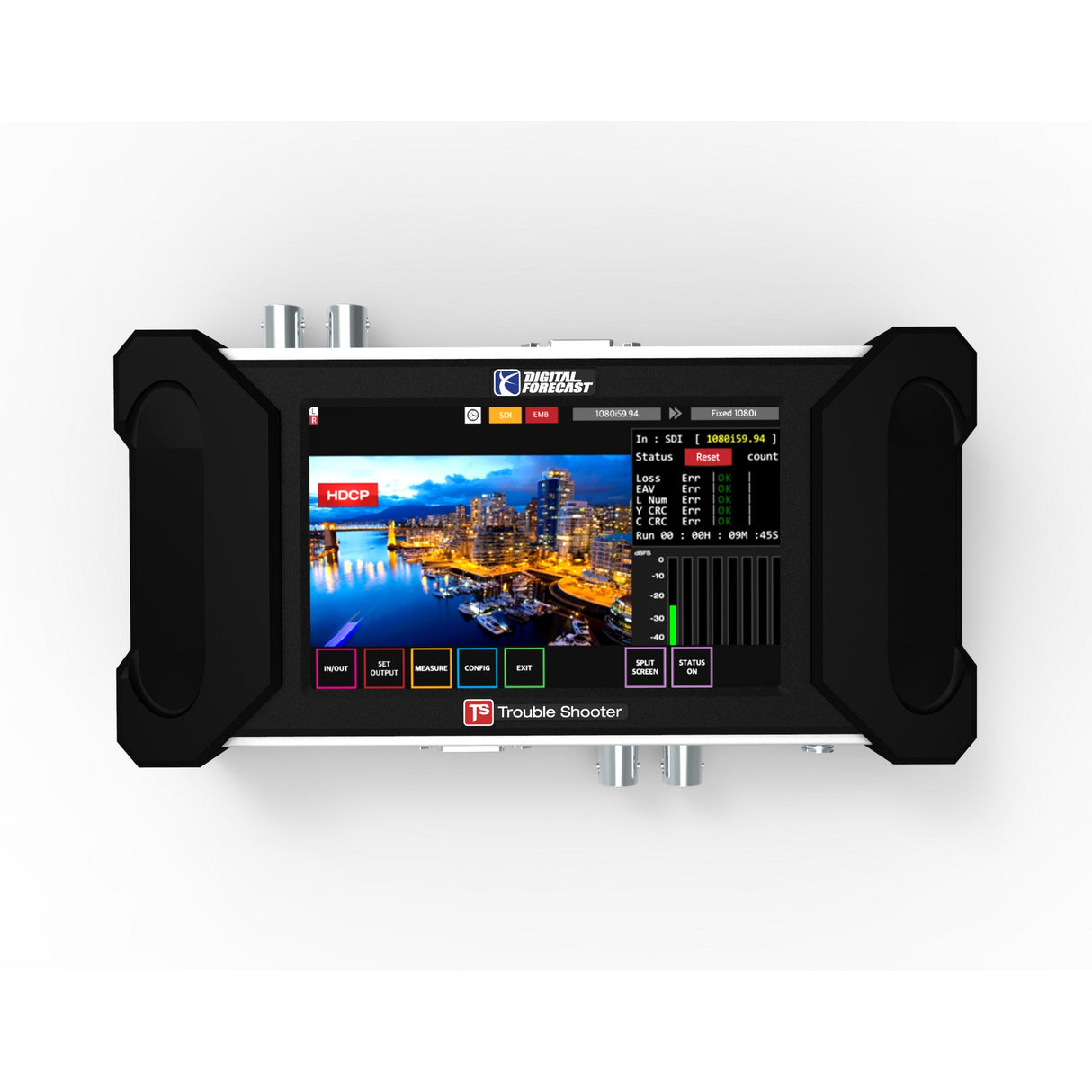

• Touch Screen LCD Built in For Input signal monitoring (5 Inch 800x480)
• External battery mounting plate (Option)
• 12V DC Power supply (Operational Voltage Range : 7 ~ 17V DC)

Technical Specifications

Supports HDMI v1.3
Supports VGA, Comp, CVBS format
Supports multi-rate SDI formats
- SMPTE 125M: NTSC (480i 59.94), PAL (576i 50)
- SMPTE 296M: 720p (60/59.94/50)
- SMPTE-274M: 1080i (60/59.94/50)
- SMPTE-292M: 1080p (30/29.97/25/24/23.98)
- SMPTE-424M: 1080p (60/59.94/50) 3G
