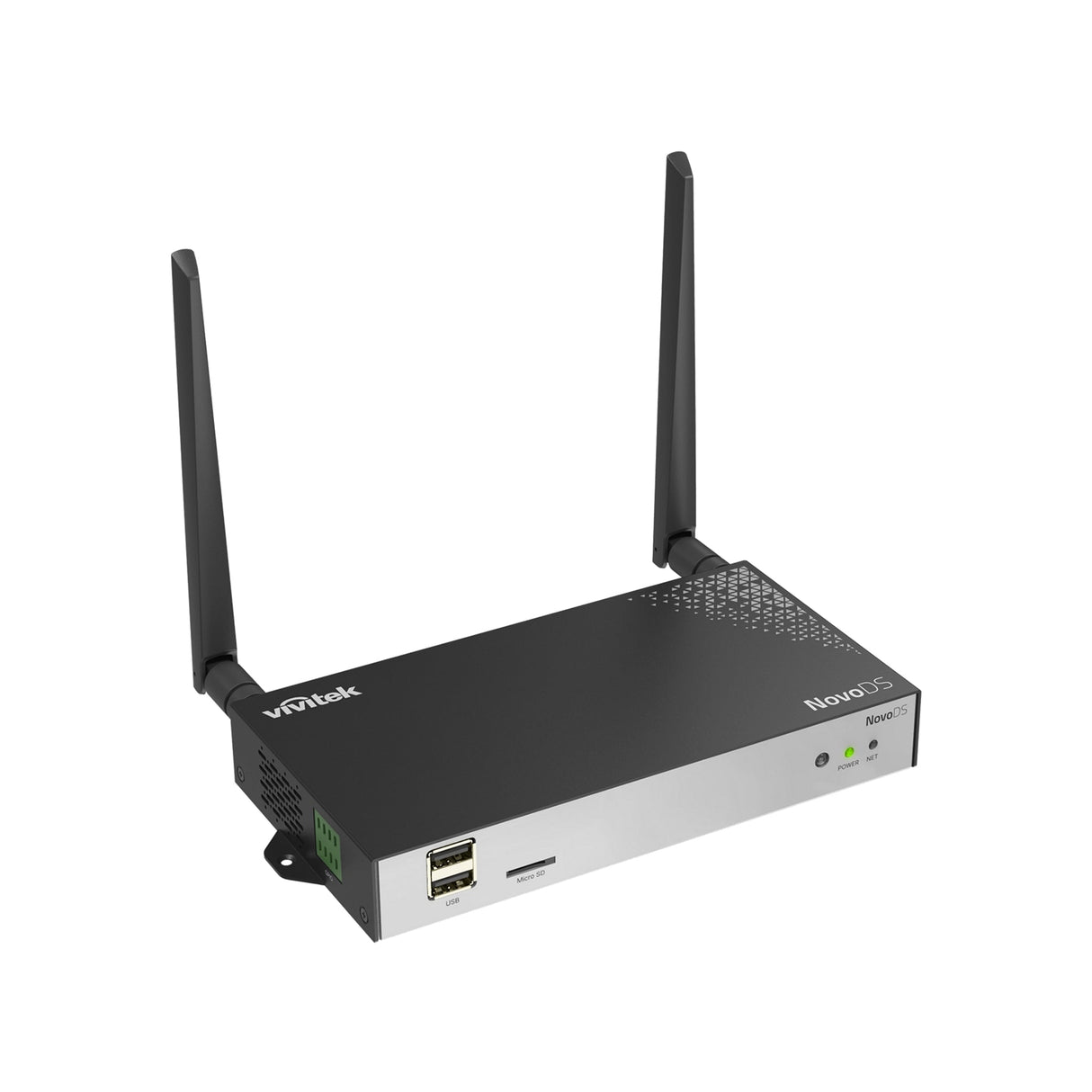

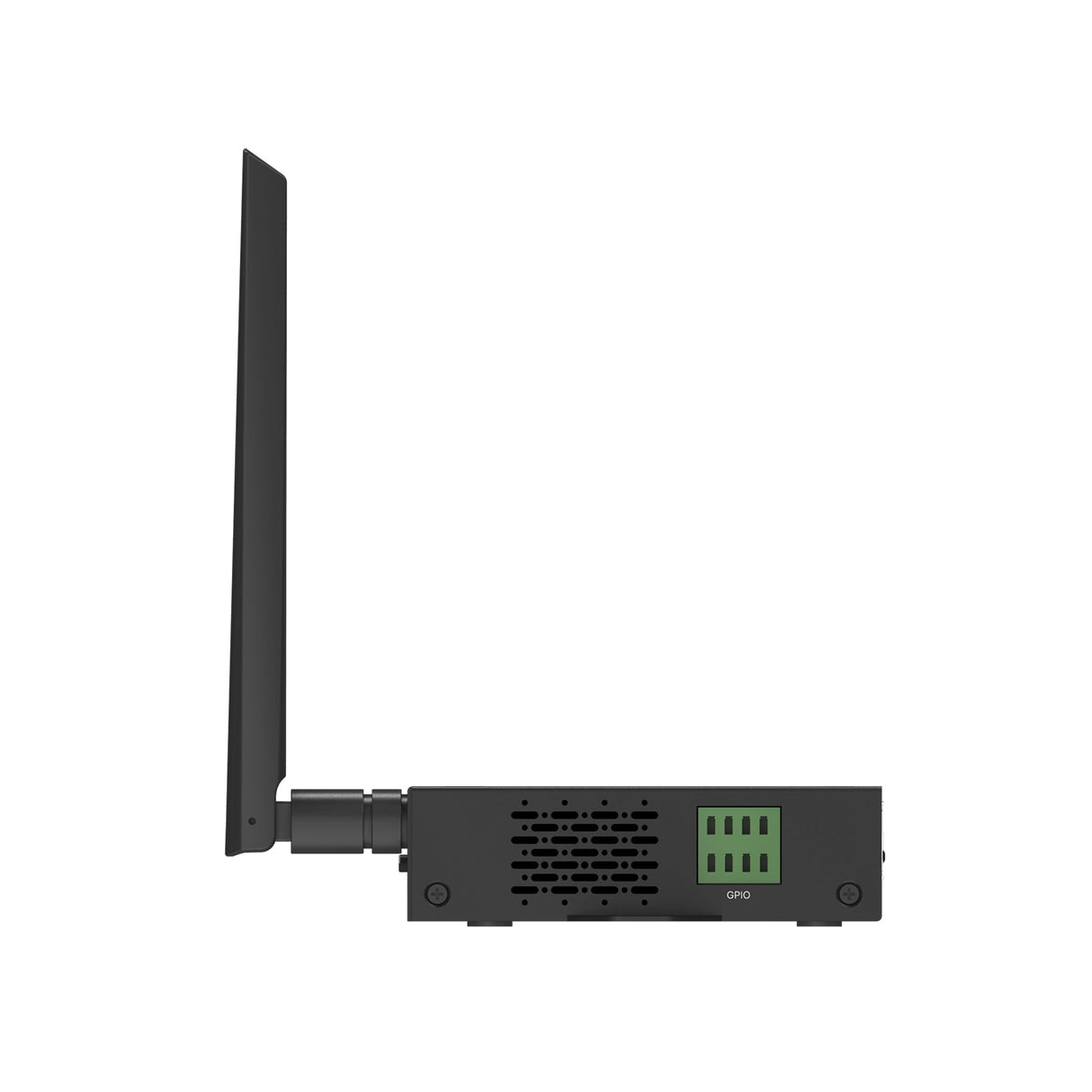

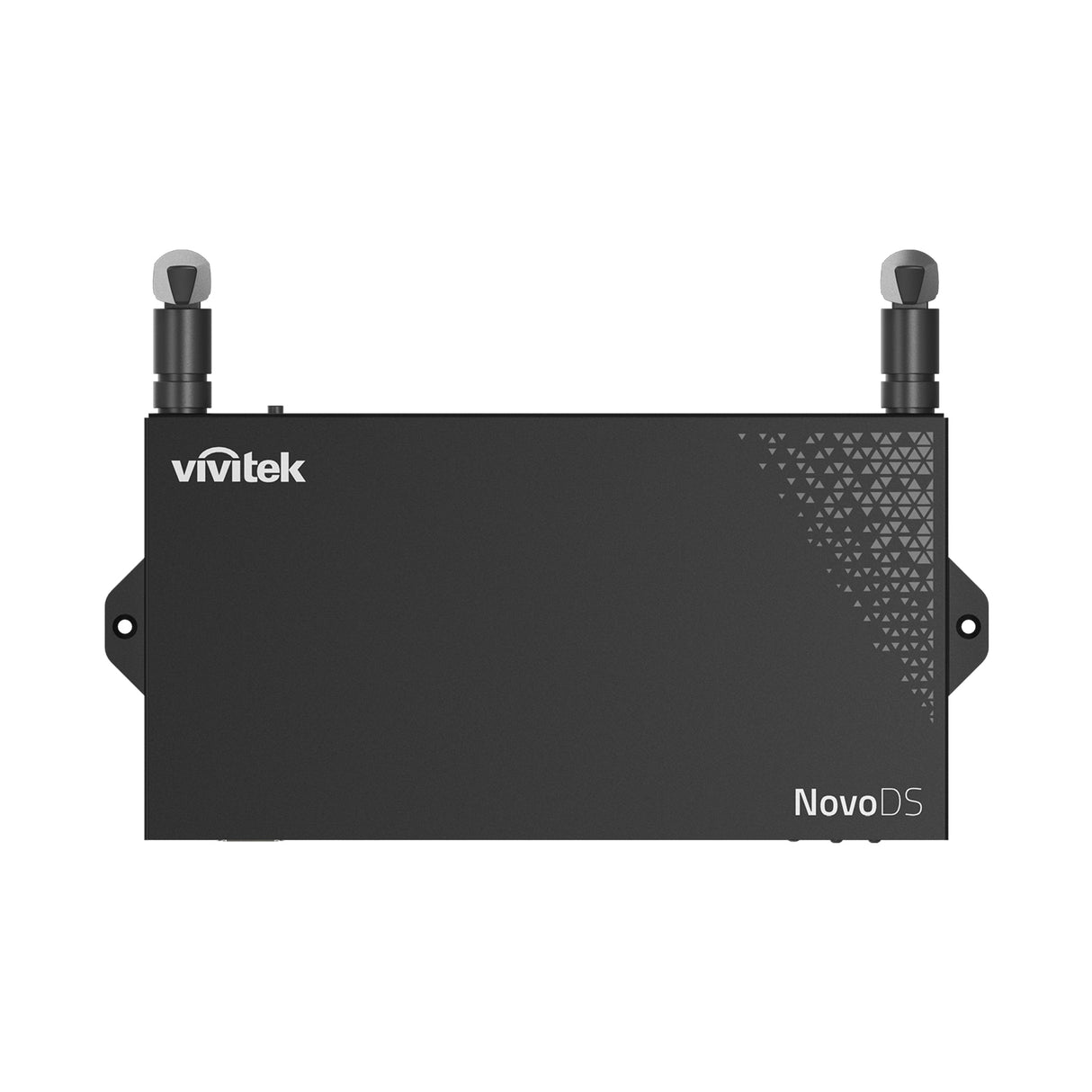

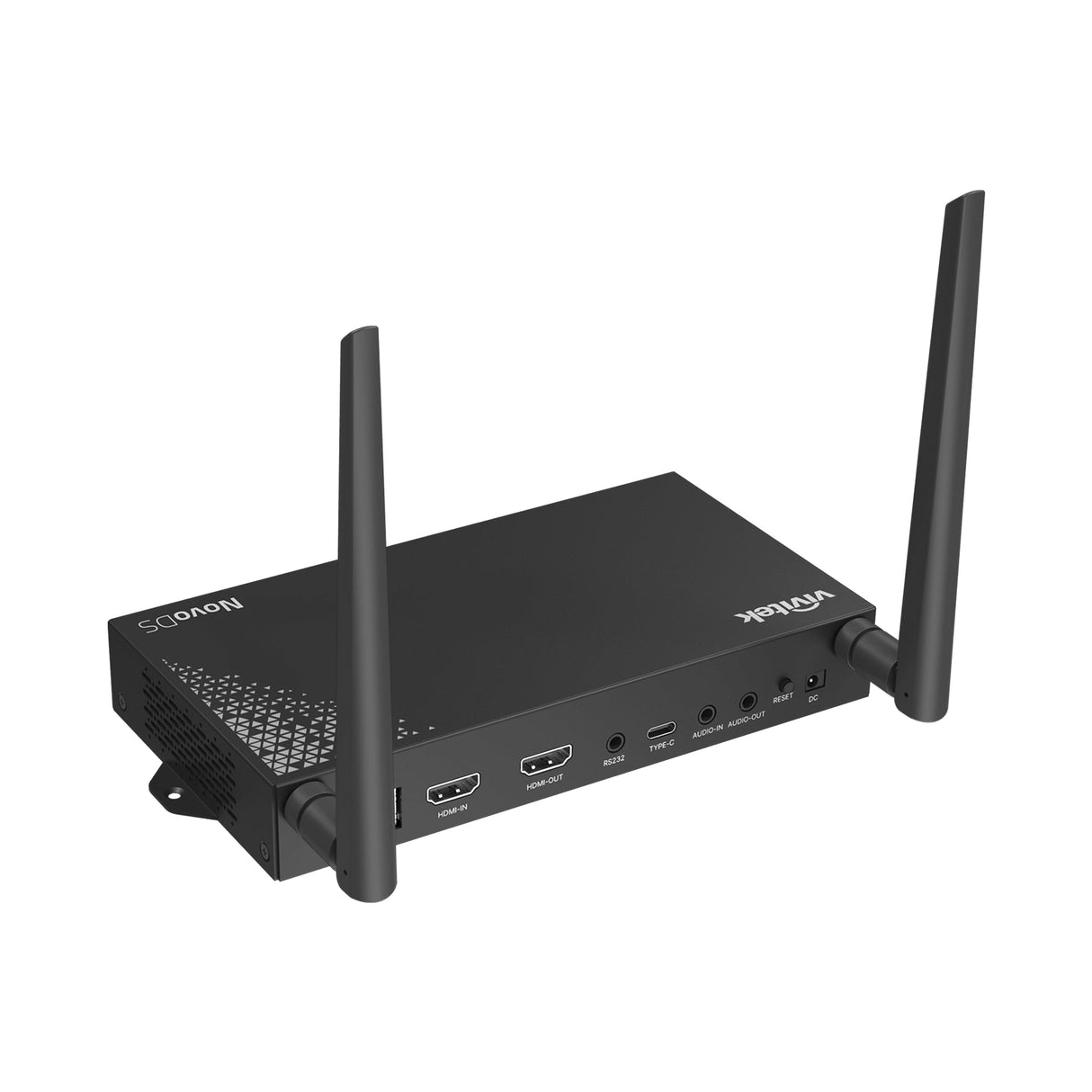

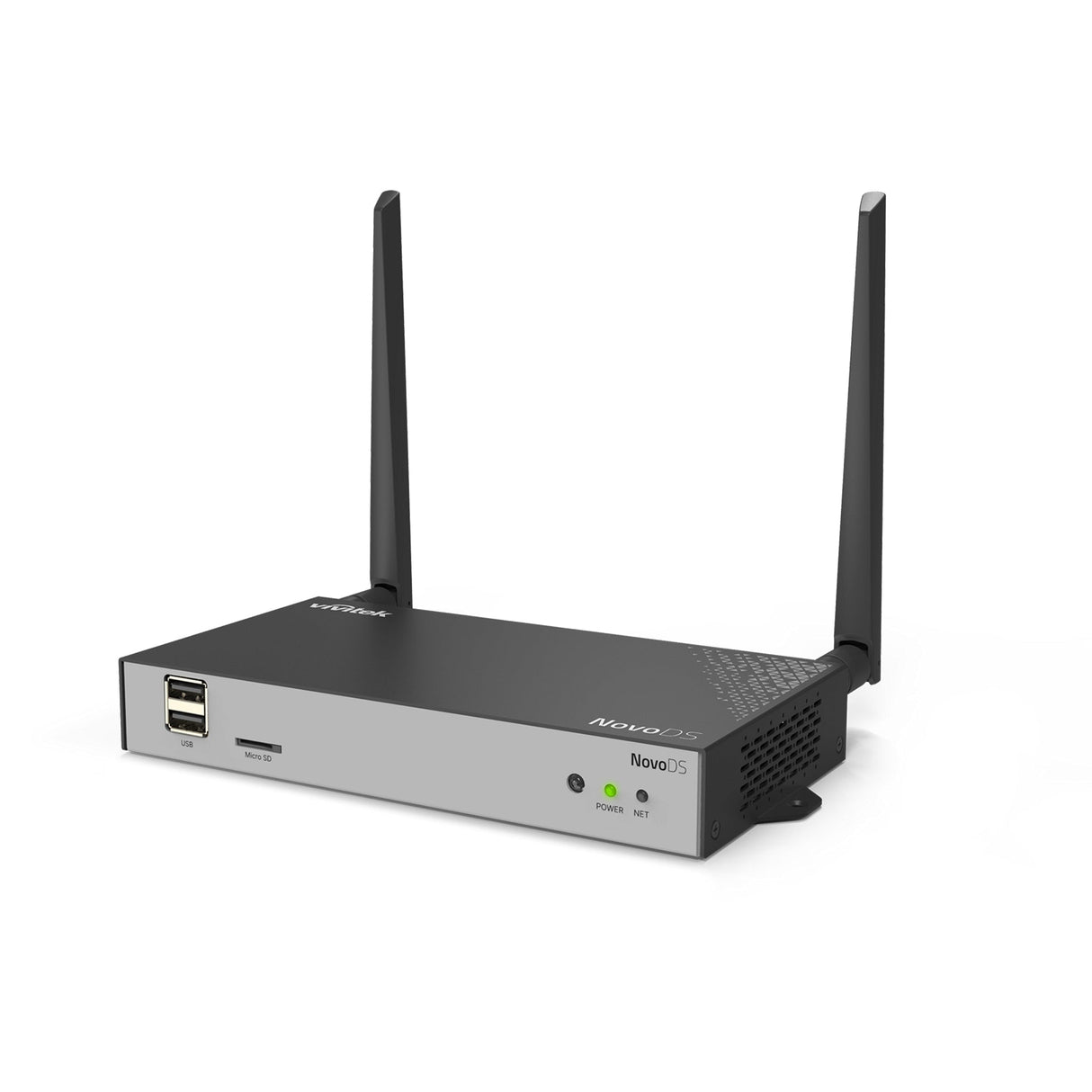

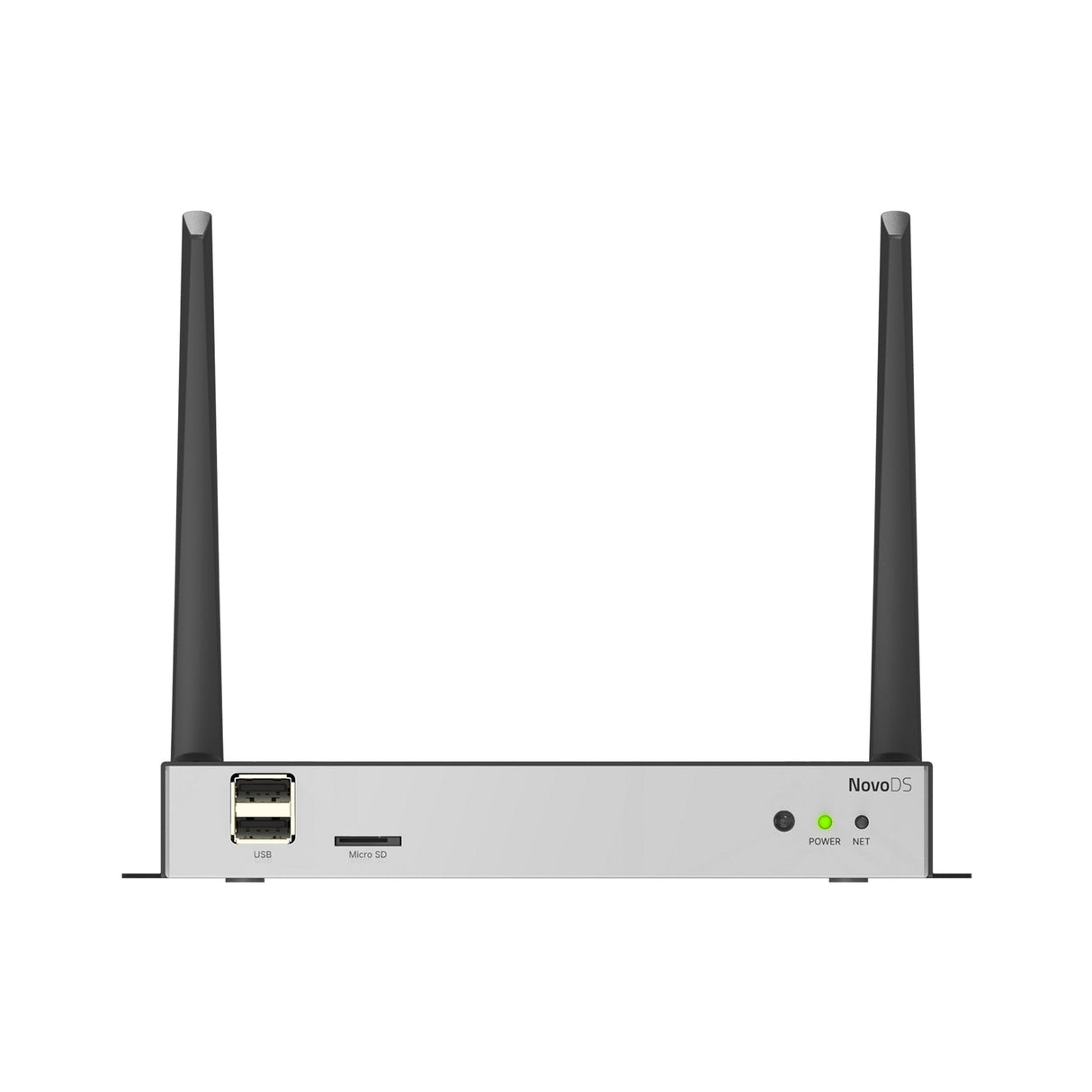

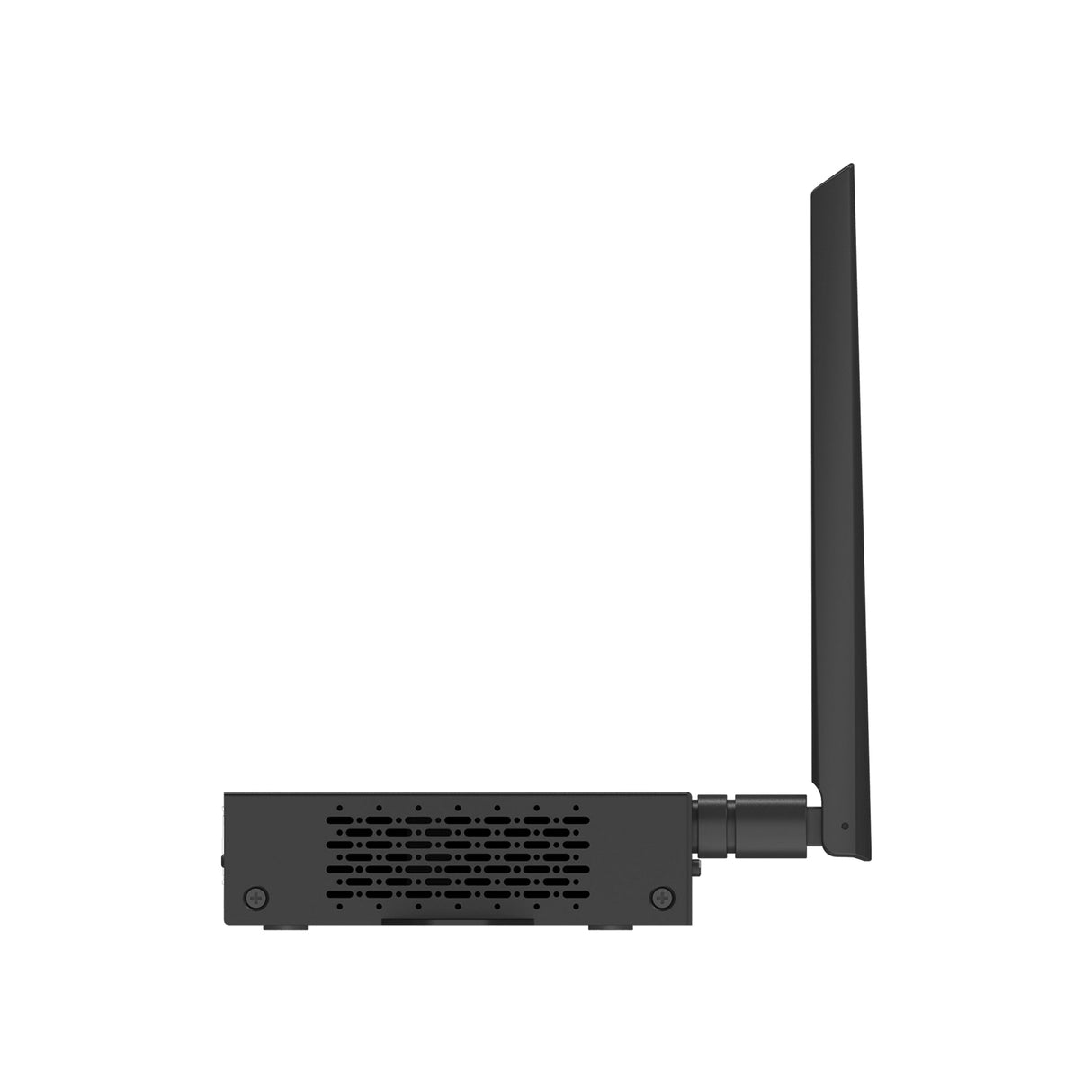

Vivitek NovoDS DS310 High-Performance 4K Digital Signage Player

Enhance Your Space with NovoDS Digital Signage Solution
NovoDS is the perfect solution for producing dynamic visual displays in public or corporate spaces. The digital signage content can include media files, rich text, web pages, and social media in a wide range of customizable configurations. The NovoDS Solution is equipped with NovoDS studio and DS cloud, allowing for content to be conveniently updated. With drag-and-drop customization and an intuitive playlist editor, even non-technical staff will feel comfortable using this solution.

Key Features

• NovoDS is a versatile digital signage solution designed for both corporate and public spaces.
• It allows users to create dynamic visual displays using various media files, rich text, webpages, and social media.
• The content can be fully customized to suit different environments and preferences.
• Updating content is convenient through the NovoDS studio and DS cloud platforms.
• The user-friendly interface enables easy customization of layouts and playlist editing.
• It offers plug-and-play functionality for effortless setup and configuration.
• The digital signage player supports true 4K resolution, delivering stunning visuals with exceptional detail.
• The high-performance CPU ensures excellent video processing and HTML rendering capabilities.
• NovoDS Studio and DS Cloud provide content management solutions without requiring programming skills.
• The device offers customizable templates and intuitive playlist creation for a fully personalized experience.
• Content can be displayed directly from the built-in storage, microSD slot, or USB flash drive.
• It features a GPIO interface for building interactive signage applications.
• The device can be centrally managed and monitored remotely, simplifying maintenance.
• It is based on Android 11.0, providing stability and security.
• Data transmission is encrypted with AES 256 for enhanced security.
• The metal casing enhances durability, ensuring long-lasting performance.
• A Kensington security slot is included to prevent theft or unauthorized movement of the device.

Technical Specifications

OS system
Android 11.0
RAM
4GB
Display Resolutions
3840 x 2160 (16:9, UHD 4k@60fps),
1920 x 1080 (16:9, 1080P@60fps),
1280 x 720 (16:9, 720P@60fps)
Display Orientation
Portrait, Landscape
Storage
Internal: 32GB (eMMC Flash)
External: microSD Card Slot (Up to 32GB), USB Type A/C Flash Drive (Up to 32GB)
Ethernet
RJ45 (10/100/1000 Mbps)
Wireless
Wi-Fi: 802.11 b/g/n/ac (2.4GHz & 5GHz), 2T2R, Bluetooth 5.0
Media Formats Supported
Images: JPEG, PNG, GIF, BMP
Video: MP2, MP4, H.264, VC-1 (WMV) (Support up to 4k@60FPS)
Audio: MP3, WMA, AAC
Other: Scrolling text with custom visual effects
Input Connection Ports
USB2.0 Type A (x1)
USB3.0 Type A (x1),
USB Type C (x1),
microSD Slot, RS-232 (3.5mm)
Power Input (5V/2A)
GPIO (3.3V x1, GND x1, GPIO x4)
Output Connection Ports
HDMI-Out v2.0 (HDCP v2.2 Compliant), Audio-Out (3.5mm),
LED Indicator
Green (System Power On),
Red (System in Standby),
Blue (Network Activity)
Button/Switch
Reset Button
Power Supply
DC jack: 5V/2A, 10W
RJ45: Power over Ethernet (IEEE802.3 af)
Accessories
AC Power Adapter (Depends on Region),
Power Cable,
HDMI Cable,
Wi-Fi Antenna
Security Solutions
Kensington Security Slot
Weight
490g (17.3oz)
Dimensions (L x W x H)
96mm x 178mm x 28mm (3.8” x 7.0” x 1.10”)
