Audio-Technica ATW-3211N893XTH 3000 Series Network Wireless MicroEarset System (DE2 470-530 MHz) - Professional UHF

Audio-Technica ATW-3211N893XTH DE2 3000 Series Network Wireless MicroEarset System, DE2 470-530 MHz, Beige

The Audio-Technica ATW-3211N893XTH DE2 3000 Series Network Wireless MicroEarset System, operating in the DE2 470-530 MHz frequency band, brings cutting-edge technology to your audio setup. This fourth-generation wireless system is designed to handle the demands of today’s congested UHF spectrum, giving you unprecedented power and flexibility. Offering a wide 60 MHz tuning range, it supports an impressive 300 feet (100 meters) operating range. With seamless frequency scanning and selection via the IR sync functionality, this system ensures you stay connected even in the most challenging environments.

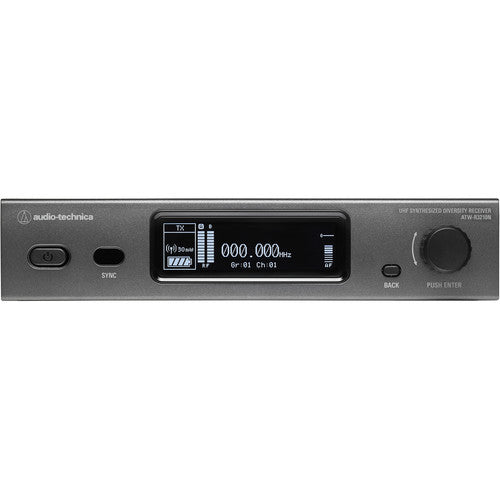

Perfect for live performances, broadcast applications, and more, this network-enabled system features the ATW-R3210N receiver, offering network monitoring and control via the Wireless Manager software. The true diversity operation minimizes dropouts, while the auto squelch function maximizes range by mitigating potential interference. The highly intuitive design allows users to quickly switch to a backup frequency with the multifunction button in case of unexpected interference, making it extremely reliable for professional use.

Equipped with OLED screens on both transmitters and receivers, the Audio-Technica 3000 Series ensures optimal visibility of key settings and alerts, even in low-light environments. Moreover, the rugged cH-style connector on the body-pack transmitter offers a secure connection to lavalier mics, headworn mics, and cables. Additionally, the system includes a tactile mute toggle switch for physical confirmation of mute status when the transmitter display is not visible.

Key Features

• 60 MHz UHF Tuning Bandwidth: Extremely wide frequency range provides maximum versatility and channel selection.
• Backup Frequency Switching: Multifunction button allows quick switching to a preset backup frequency.
• Network-Enabled Wireless Control: Supports Wireless Manager software for centralized system monitoring and control.
• True Diversity Reception: Dual-antenna operation minimizes signal dropouts and improves reliability.
• Auto Squelch Optimization: Automatically adjusts squelch to maximize operating range while reducing interference.
• Frequency Scan & IR Sync: Built-in scanning and infrared syncing simplify system setup.
• Dual-Mode Receiver Display: Switchable display modes show essential metering or performance data.
• OLED Display Readouts: High-contrast OLED screens on both transmitters and receivers ensure clear visibility.
• Low Handling Noise Design: Handheld transmitter minimizes mechanical noise and supports interchangeable Audio-Technica capsules.
• Rugged cH-Style Connector: Durable body-pack connector provides secure microphone attachment.
• Smart Charging Compatibility: Integrated charging terminals work with optional smart charging docks.
• Powered Antenna Support: Supplies antenna power for active antennas and in-line RF accessories.
• Ground-Lift Noise Control: Ground-lift switch helps eliminate hum caused by ground loops.
• Balanced & Unbalanced Outputs: Provides XLR and 1/4-inch audio outputs for flexible system integration.

Specifications

• Operating Frequencies: DE2: 470.125 to 529.975 MHz
• Minimum Frequency Step: 25 kHz
• Modulation Mode: FM
• Maximum Deviation: ATW-T3201: ±38 kHz, ATW-T3202: ±36 kHz
• Dynamic Range: > 115 dB (A-weighted), typical
• Total Harmonic Distortion: < 1.0%
• Operating Range: 100 m (328 feet)
• Operating Temperature Range: -5° C to +45° C (23° F to 113° F)
• Frequency Response: ATW-T3201: 31 Hz to 15,500 Hz, ATW-T3202: 25 Hz to 16,700 Hz
• Maximum Simultaneous Use: 40 channels per band
• Receiving System: True Diversity
• Image Rejection: 60 dB nominal
• RF Sensitivity: 20 dBuV at 60 dBA S/N ratio
• Antenna Power: 12 V DC, 160 mA (combined)
• Maximum Output Level: XLR balanced: +14 dBV, 6.3 mm unbalanced: +8 dBV
• Antenna Input: BNC-type, 50 ohms
• Power Supply: 100-240 V AC (50/60 Hz) to 12 V DC 1 A
• Dimensions: 210 mm × 191 mm × 43.4 mm
• Net Weight: 1100 g (38.8 oz)
• Accessories Included: Two flexible UHF antennas, AC adapter, rack-mount adapters

Package Contents

• ATW-3211N893XTH DE2 Wireless MicroEarset System.
• Two flexible UHF antennas.
• AC adapter.
• Rack-mount adapters.
