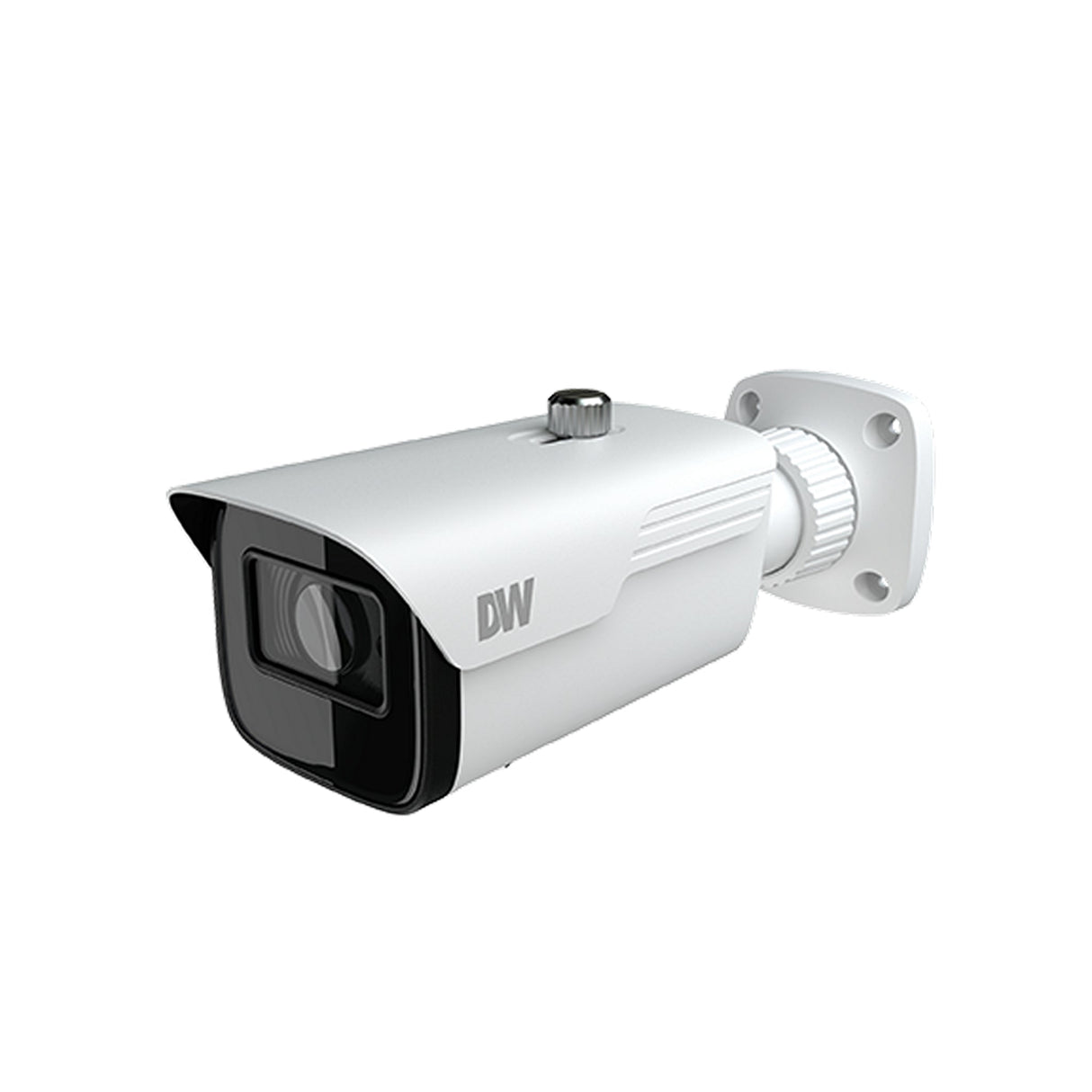

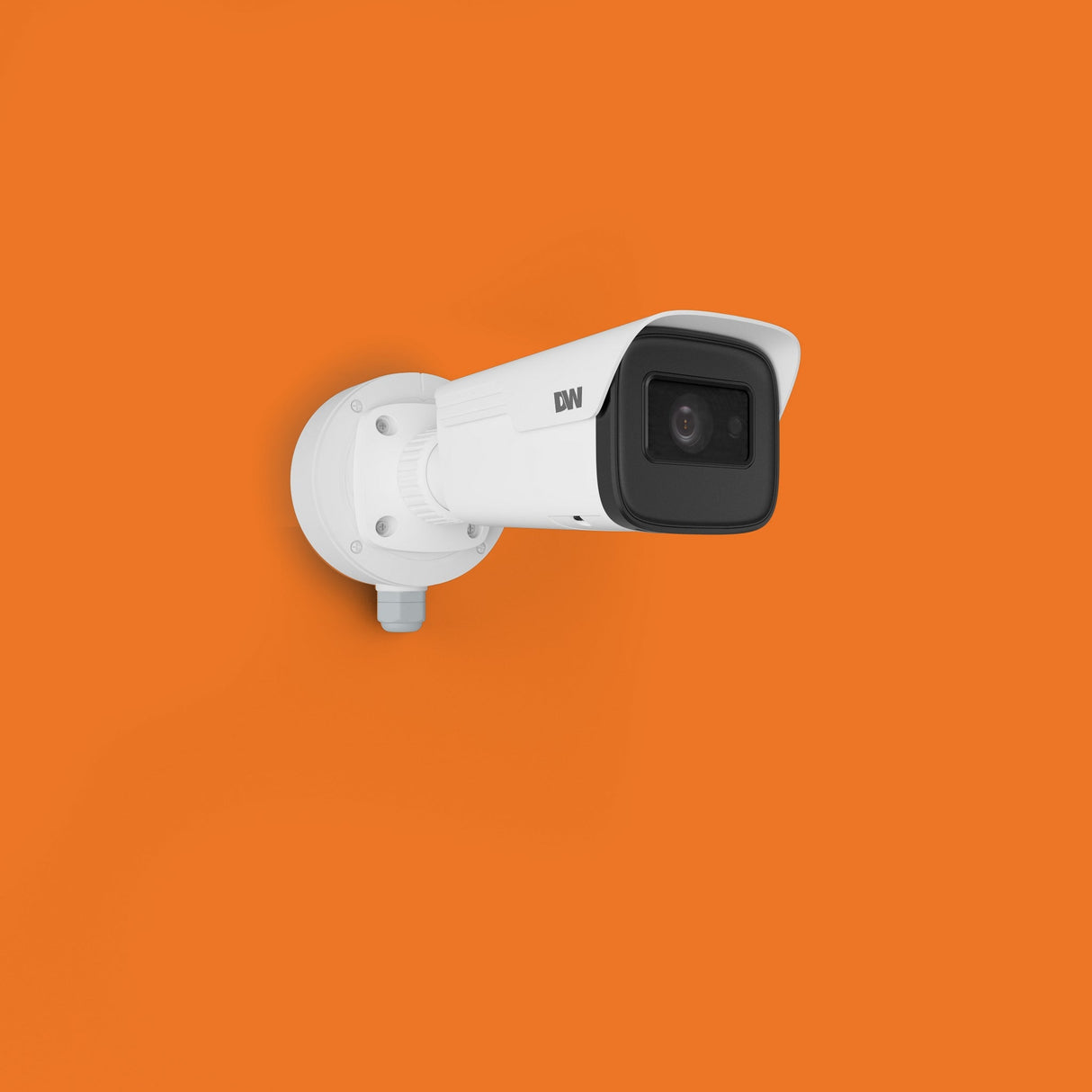

Digital Watchdog MEGApix V-Class cameras are NDAA-compliant video solutions that deliver crystal-clear real-time 4MP video. These cost-effective cameras feature basic video analytics and standard features such as Smart IR WDR and H.265 codec support. They are ideal for small to medium-sized businesses looking for solutions that enhance their existing video solution.

Line crossing
Once a pre-defined line is crossed from either direction, an event notification will be sent.

Perimeter intrusion
Once a pre-defined area is set, any crossing of the lines towards the area, out of the area, or both, will trigger an alarm.

Video tampering detection - abnormal color detection
When the camera’s color reproduction is changed, an event notification will be sent.

Video tampering detection - scene change
When the camera is moved, and the Field of View (FoV) is different, an event notification will be sent.

Video tampering detection - video blur
When a sudden blur or loss in visibility is detected, an event notification will be sent.

Smart IR
Smart IR adjusts the image for IR cameras to prevent excessive illumination on objects that are in the front of the scene and offers a clear image in B/W without any loss of detail.

True Wide Dynamic Range (WDR)
Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.

H.265 codec support
High-Efficiency video codec standards deliver 25% to 50% better data compression while maintaining video quality.

Key Features

• MEGApix V-Class cameras from Digital Watchdog are compliant with NDAA regulations.
• These cameras provide high-quality, real-time 4MP video.
• They offer basic video analytics and standard features like Smart IR WDR and H.265 codec support.
• Ideal for small to medium-sized businesses seeking to enhance their existing video solutions.
• Equipped with a 4MP 1/3” image sensor, delivering real-time 30fps.
• Features a 2.8~12mm varifocal lens with motorized zoom and auto-focus.
• Provides True Wide Dynamic Range (WDR) for improved image quality.
• Supports multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream.
• Includes advanced video analytics such as line crossing, perimeter intrusion, and video tampering detection.
• Offers additional features like Smart DNR 3D digital noise reduction and programmable privacy zones.
• Comes with a 5-year warranty and is NDAA compliant.
• Built-in web server and audio input for added convenience.
• Designed with IP67 dust-tight and waterproof rating, as well as IK10-rated impact resistance.
• Supports PoE Class 3 and DC12V power options.
• Compatible with ONVIF standards, specifically profile S.
• Provides a range of up to 164ft with Smart IR for enhanced night vision.
• Offers features like motion detection, auto gain control, backlight compensation, and auto white balance.
• Includes a micro-SD/SDHC/SDXC class 10 card slot for local storage (card not included).
• Equipped with De-Fog extreme weather image compensation for clear footage in challenging conditions.

Technical Specifications

Image sensor
4MP 1/3” CMOS sensor (x4)
Maximum resolution
4MP
Minimum Scene Illumination in color
0.0 lux (B/W), 0.005 lux (color)
Total Pixels
2560 (H) x 1440 (V)
LENS
Advanced Lens Features
Auto focus, Motorized zoom
Focal Length
2.8mm ~ 12mm
Horizontal Field of View (HFOV)
92°~31°
IR Distance
164' range Smart IR
Lens Type
Vari-focal Lens
I/O
Audio compression
G.711A / U
I/O Audio in/out
*Cameras provide a line level audio. The use of amplified microphones and speakers is recommended., 1 input, 1 microphone built-in
OPERATIONAL
3D digital noise reduction
Smart DNR 3D Digital Noise Reduction
Auto gain control
Auto
Camera Analytics
Line Crossing, Perimeter Intrusion, video Tampering Detection (Scene Change, Video Blur, Abnormal Color Detection)
Day and night
Auto day/night, Day (color), Night (B/W)
De-fog
Yes
Memory slot
Micro SD/SDHC/SDXC class 10 card (card not included), Up to 1TB micro SD / FAT32
Mirror/flip
Yes
Motion Detection
Yes
Operational Notifications
Email, FTP server
Privacy Zones
8 programmable privacy masks
Sharpness
Yes
Shutter Mode
Auto, Manual
Shutter Speed
1/30 ~ 1/100000
White Balance
Yes
Wide Dynamic Range (WDR)
True WDR 120dB
NETWORK
Bitrate Control
Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
IP
IPv4, IPv6
LAN
802.3 compliance 10/100 LAN
Network resolution
4MP, 3MP,2.1MP/1080P, 720P, D1, 480×240, CIF (60Hz: 1 ~ 30fps; 50Hz: 1~25fps)
Network Web Viewer
Microsoft Edge browser, Windows OS
Protocol
802.1x, DDNS, DHCP, FTP, HTTP, HTTPs, ICMP, IGMP, NTP, ONVIF, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, UDP, UPnP
Security
Digest authentication (ID/PW), IP filtering, MAC filtering
Stream Speed
Up to 30fps at all resolutions
Streaming Capability
Dual-stream at different rates and resolutions
Video Bitrate
64Kbps~8Mbps
Video Compression Type
H.264, H.265, MJPEG
Video Management Software
Any ONVIF conformant CMS, DW Spectrum IPVMS
ENVIRONMENTAL
Compliance
CE FCC NDAA Compliance ONVIF
Environmental Operating Humidity
0-95% RH (non-condensing)
Environmental Operating Temperature
-22 Degrees F ~ 140 Degrees F (-30 Degrees C ~ 60 Degrees C)

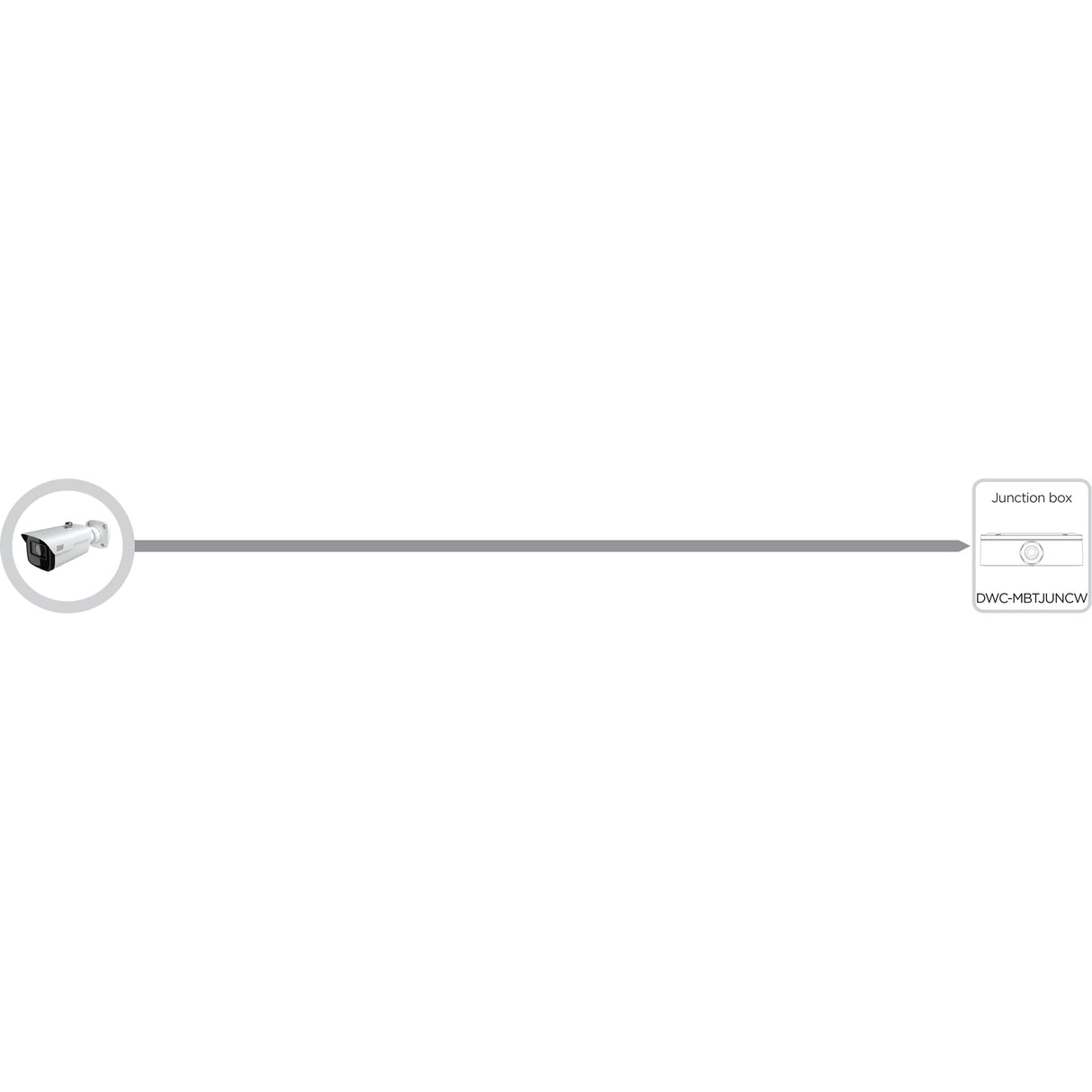

Mounting Accessories (Required/Optional)
Optional. Sold separately
MECHANICAL
Camera Dimensions (H X W X D)
*Dimensions based on the position of the sun shield cover, 8.69” x 3.16” x 2.77” (220.8 x 80.5 x70.6 mm)
Camera Weight
1.52 lbs (0.69 kg)
Housing
Bullet
IK rating
IK10 Rated
IP rating
Weather Resistant (IP67)
Materials
Aluminum die-casting
ELECTRICAL
Power Consumption
DC12V: max 8.0W, 666.6mA, PoE: max 8.0W
Power Requirements
(Adapter not included), IEEE 802.3af Class 3, PoE
GENERAL
Warranty
5 Year Warranty
