Abnormal color detection is a feature in video tampering detection systems that alerts users when there is a change in the camera's color reproduction. This can be useful in identifying instances where the video has been tampered with or altered. When such a change is detected, an event notification is automatically sent to notify the relevant parties.

Line crossing is a functionality that allows users to define a specific line in a video surveillance system. When this pre-defined line is crossed from either direction, an event notification is triggered and sent to the designated recipients. This feature is particularly useful in scenarios where monitoring the movement across a specific line is critical, such as in access control or perimeter security applications.

Perimeter intrusion detection is a powerful tool in video surveillance systems that helps identify any unauthorized entry into a pre-defined area. By setting up virtual lines around the perimeter, any crossing of these lines towards or out of the area will activate an alarm. This feature provides an added layer of security by alerting users to potential intrusions and enabling them to take appropriate action in a timely manner.

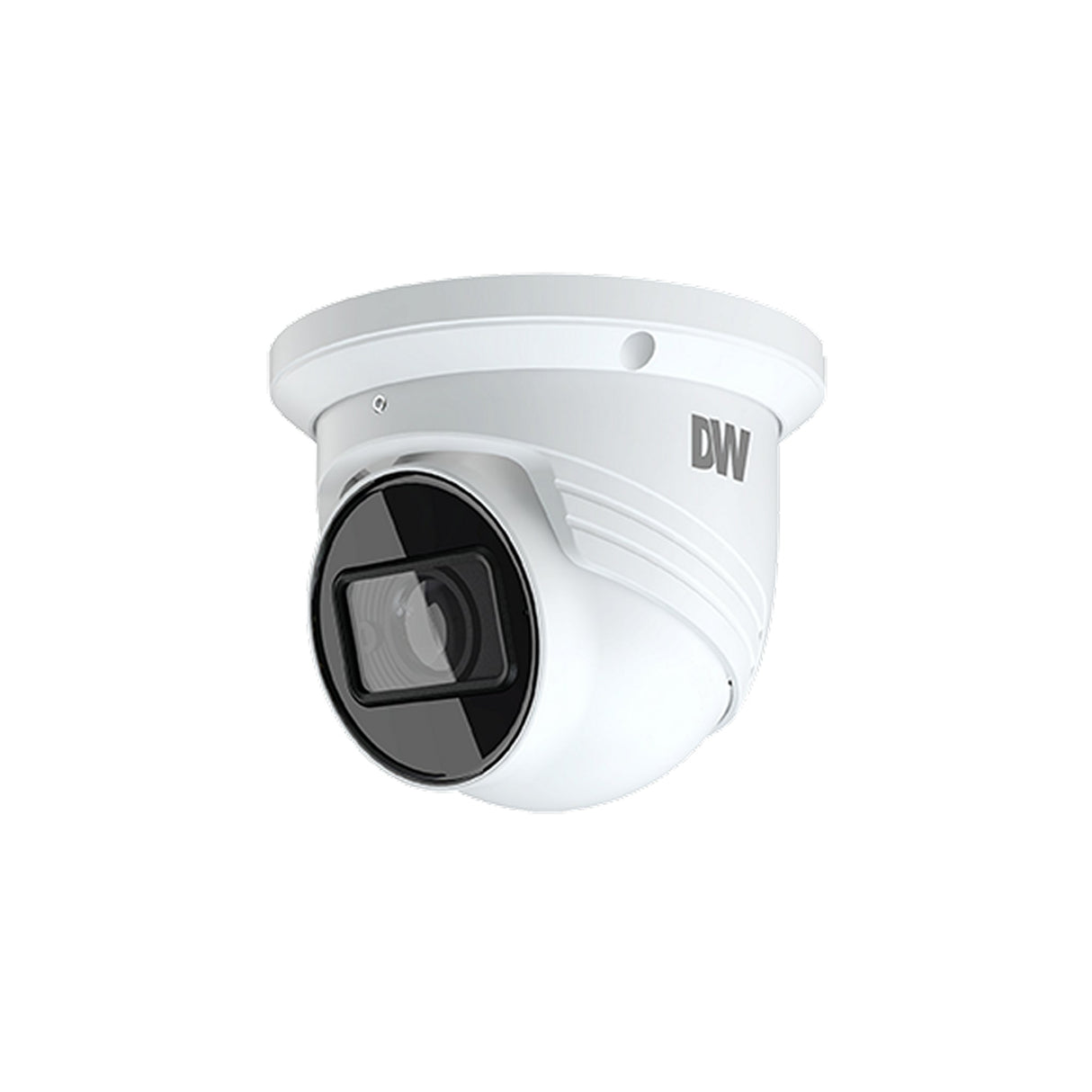

Key Features

• MEGApix V-Class cameras from Digital Watchdog are compliant with the NDAA regulations.
• These cameras provide high-quality real-time 4MP video.
• They offer basic video analytics and standard features like Smart IR WDR and H.265 codec support.
• Designed for small to medium-sized businesses seeking to enhance their existing video solutions.
• Equipped with a 4MP 1/3" image sensor, delivering real-time 30fps video.
• Features a 2.8~12mm varifocal lens with motorized zoom and auto-focus.
• Provides True Wide Dynamic Range (WDR) for improved image quality.
• Supports multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream.
• Includes advanced video analytics such as line crossing, perimeter intrusion, and video tampering detection.
• Offers additional features like Smart DNR 3D digital noise reduction, programmable privacy zones, and motion detection.
• Supports audio input through the built-in microphone and has a Micro SD/SDHC/SDXC class 10 card slot.
• Built-in web server for easy access and PoE Class 3 and DC12V power options.
• Compliant with ONVIF standards, specifically profile S.
• Built to withstand extreme weather conditions with IP67 dust-tight and waterproof rating.
• Designed to be impact-resistant with an IK 10 rating.
• Comes with a 5-year warranty for added peace of mind.

Technical Specifications

Image sensor
4MP 1/3” CMOS sensor (x4)
Maximum resolution
4MP
Minimum Scene Illumination in color
0.0 lux (B/W), 0.005 lux (color)
Total Pixels
2560 (H) x 1440 (V)
LENS
Advanced Lens Features
Auto focus, Motorized zoom
Focal Length
2.8mm ~ 12mm
Horizontal Field of View (HFOV)
92°~31°
IR Distance
164' range Smart IR
Lens Type
Vari-focal Lens
I/O
Audio compression
G.711A / U
I/O Audio in/out
*Cameras provide a line level audio. The use of amplified microphones and speakers is recommended., 1 input, 1 microphone built-in
OPERATIONAL
3D digital noise reduction
Smart DNR 3D Digital Noise Reduction
Auto gain control
Auto
Camera Analytics
Line Crossing, Perimeter Intrusion, video Tampering Detection (Scene Change, Video Blur, Abnormal Color Detection)
Day and night
Auto Day/night, Day (color), Night (B/W)
De-fog
Yes
Memory slot
Micro SD/SDHC/SDXC class 10 card (card not included), Up to 1TB micro-SD / FAT32
Mirror/flip
Yes
Motion Detection
Yes
Operational Notifications
Email, FTP server
Privacy Zones
8 programmable privacy masks
Sharpness
Yes
Shutter Mode
Auto, Manual
Shutter Speed
1/30 ~ 1/100000
White Balance
Yes
Wide Dynamic Range (WDR)
True WDR 120dB
NETWORK
Bitrate Control
Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
IP
IPv4, IPv6
LAN
802.3 compliance 10/100 LAN
Network resolution
4MP, 3MP,2.1MP/1080P, 720P, D1, 480×240, CIF (60Hz: 1 ~ 30fps; 50Hz: 1~25fps)
Network Web Viewer
Microsoft Edge browser, Windows OS
Protocol
802.1x, DDNS, DHCP, FTP, HTTP, HTTPs, ICMP, IGMP, NTP, ONVIF, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, UDP, UPnP
Security
Digest authentication (ID/PW), IP filtering, MAC filtering
Stream Speed
Up to 30fps at all resolutions
Streaming Capability
Dual-stream at different rates and resolutions
Video Bitrate
64Kbps~8Mbps
Video Compression Type
H.264, H.265, MJPEG
Video Management Software
Any ONVIF conformant CMS, DW Spectrum IPVMS
ENVIRONMENTAL
Compliance
CE FCC NDAA Compliance ONVIF
Environmental Operating Humidity
0-95% RH (non-condensing)
Environmental Operating Temperature
-22 Degrees F ~ 140 Degrees F (-30 Degrees C ~ 60 Degrees C)

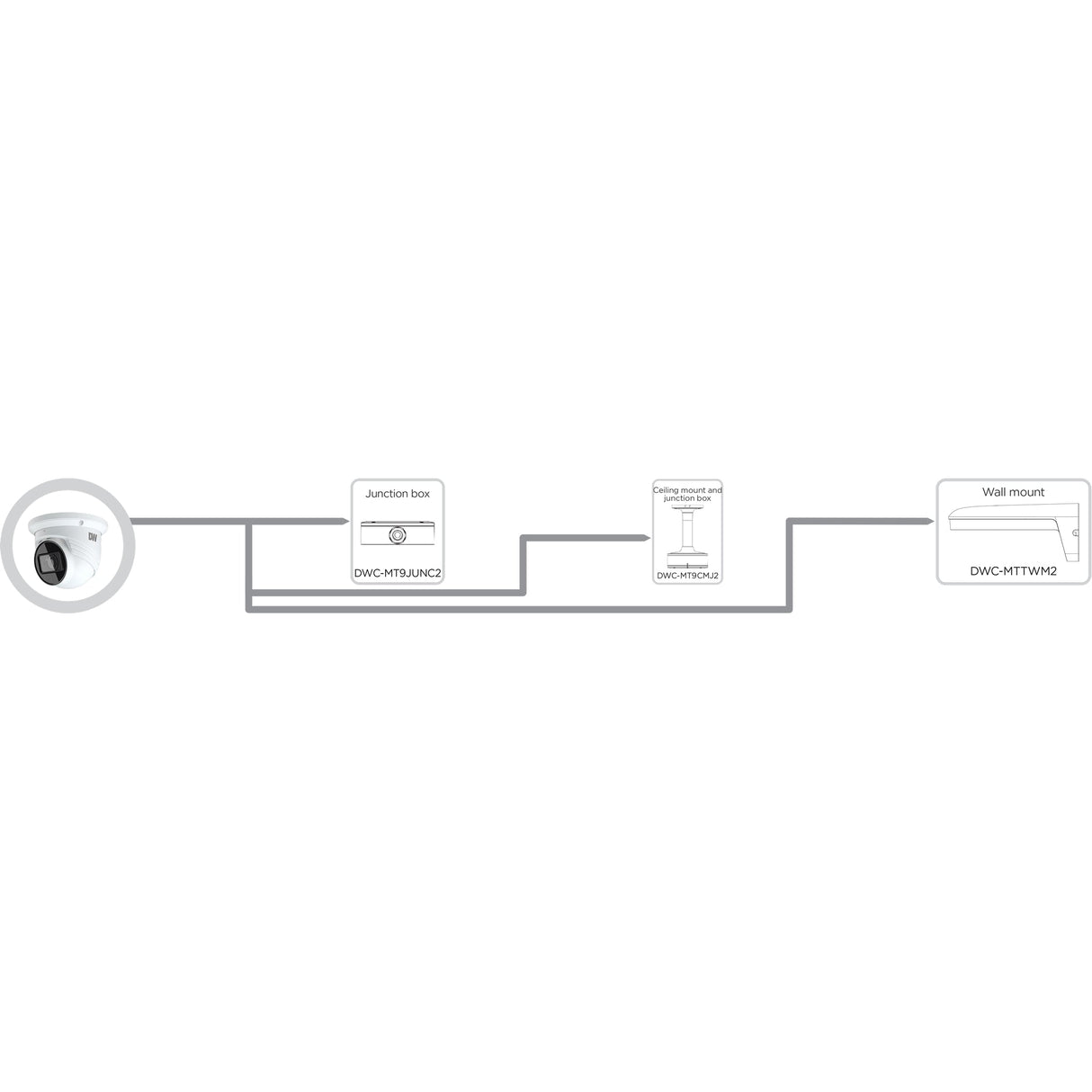

Mounting Accessories (Required/Optional)
Optional. Sold separately
MECHANICAL
Camera Dimensions (H X W X D)
5.16” x 4.29” (131.1 x 109 mm)
Camera Weight
1.45 lb (0.66 kg)
Housing
Turret
IK rating
IK10 Rated
IP rating
Weather Resistant (IP67)
Materials
Aluminum die-casting
ELECTRICAL
Power Consumption
DC12V: max 8.0W, 666.6mA, PoE: max 8.0W
Power Requirements
(Adapter not included), IEEE 802.3af Class 3, PoE
GENERAL
Warranty
5 Year Warranty
