Description
DigitaLinx DL-1H1V1U-WP-W: Effortlessly Extend Audio/Video and USB Signals over Long Distances
The DigitaLinx DL-1H1V1U-WP-W is a 2x1 auto-switching HDBaseT 2.0 transmitter that allows you to extend HDMI, VGA, and USB 2.0 signals up to 330 feet (100 meters) using standard CAT6 cabling. This wall plate transmitter is ideal for conference rooms, classrooms, and other applications where you need to extend audio/video and USB signals over long distances without sacrificing quality.
Key Features
- Extends HDMI, VGA with audio, analog audio, and USB 2.0 signals up to 330 feet (100 meters)
- Auto-switching between HDMI and VGA inputs
- Integrated RS232 for control of display power (on/off)
- Supports high resolutions up to 4K@60Hz (4:2:0 color sampling, 8-bit depth)
- Supports HDCP 2.2 for content protection
- Independent pass-through analog audio for additional audio flexibility

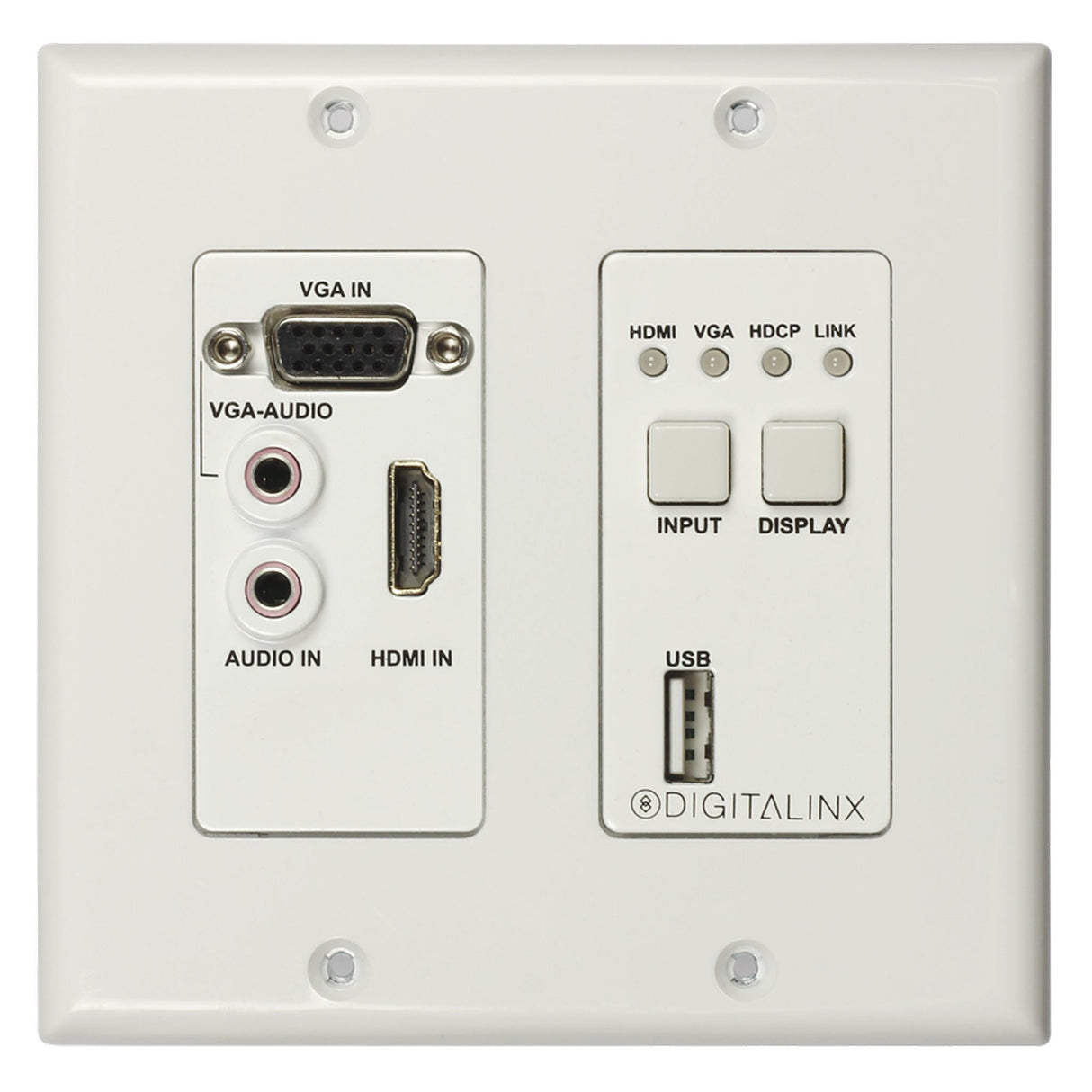

- Front panel controls for manual input selection and display power
- Power over Ethernet (PoE) compatible for simplified installation (requires compatible receiver)
- Includes a 2-meter USB A-A cable
Product Specifications
- Inputs: 1x HDMI, 1x VGA with audio, 1x USB Type-A
- Output: HDBaseT
- Maximum Resolution: 4K@60Hz (4:2:0, 8-bit)
- Distance: Up to 330 feet (100 meters) over CAT6 cable
- Power: Local power supply or PoE (receiver dependent)
- Dimensions: Wall plate form factor
- Warranty: 2 years
Note: Requires a compatible HDBaseT 2.0 receiver (DL-HD2-RX or DL-HD2A-RX) for operation.
