DigitaLinx DL-AS61 4 HDMI 2 VGA Input Auto Switcher

DigitaLinx DL-AS61 4 HDMI 2 VGA Input Auto Switcher

The DigitaLinx DL-AS61 is a compact multi-format switcher with support for video resolutions up to UHD (3840x2160). With multiple built-in EDID settings, including an EDID pass-through option, the highest quality digital video signal will be routed directly to the display. When a VGA video signal is connected, the video signal will be scaled up to 1920x1200.

Key Features

• HDMI supports 1080p, 3D and 4K video
• 2.0/5.1 audio
• VGA scaling up to 1920x1200 with audio embedding
• Built-in EDID settings and EDID pass-through
• HDMI output with analog and optical audio outputs
• Manual, RS232, IR, and automatic switching

Technical Specifications

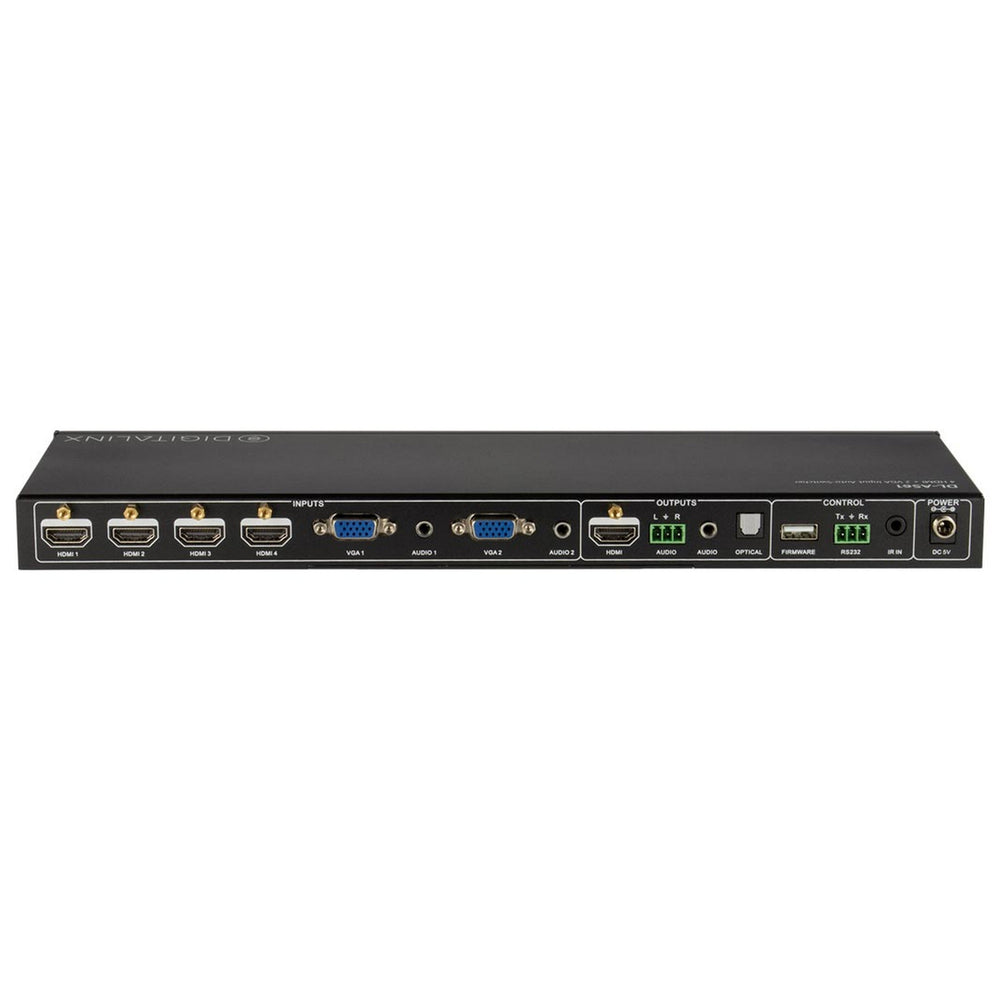

Input/Output Connections
HDMI Input
Four (4) HDMI Type A Receptacle
VGA Inputs
Two (2) Female HD15-F Connector
Analog Audio Inputs
Two (2) 3.5mm TRS Jack
HDMI Output
One (1) HDMI Type A Receptacle
Digital (Optical) Audio Output
One (1) EIAJ Optical Connector
Analog Audio Outputs
One (1) 3.5mm TRS Jack, One (1) 3-Pole/3.5mm Euroblock
IR Input
One (1) 3.5mm TRS Jack
RS232
One (1) 3-Pole/3.5mm Euroblock
5V DC Power
One (1) Threaded Barrel (5.5 mm OD; 2.6 mm ID)

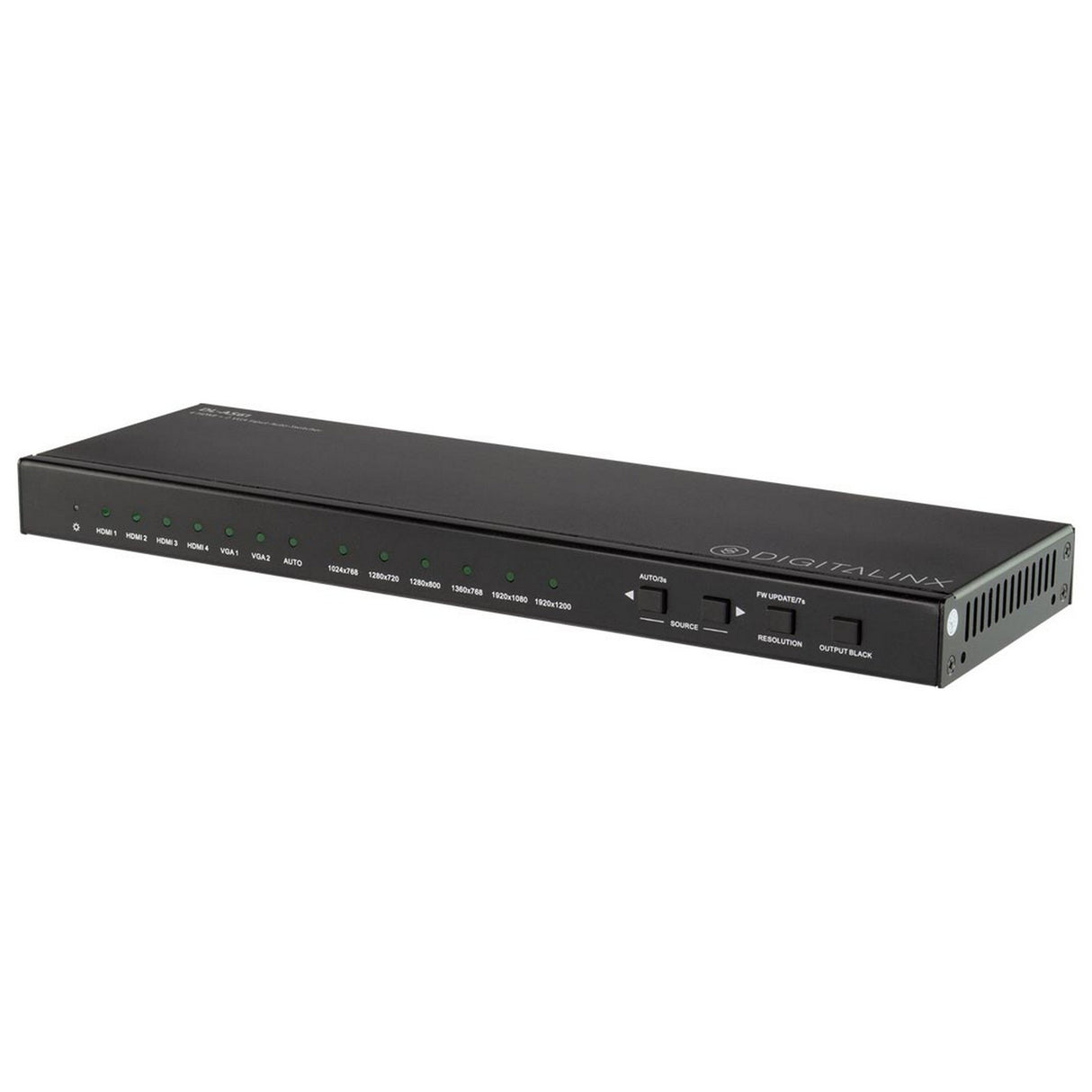

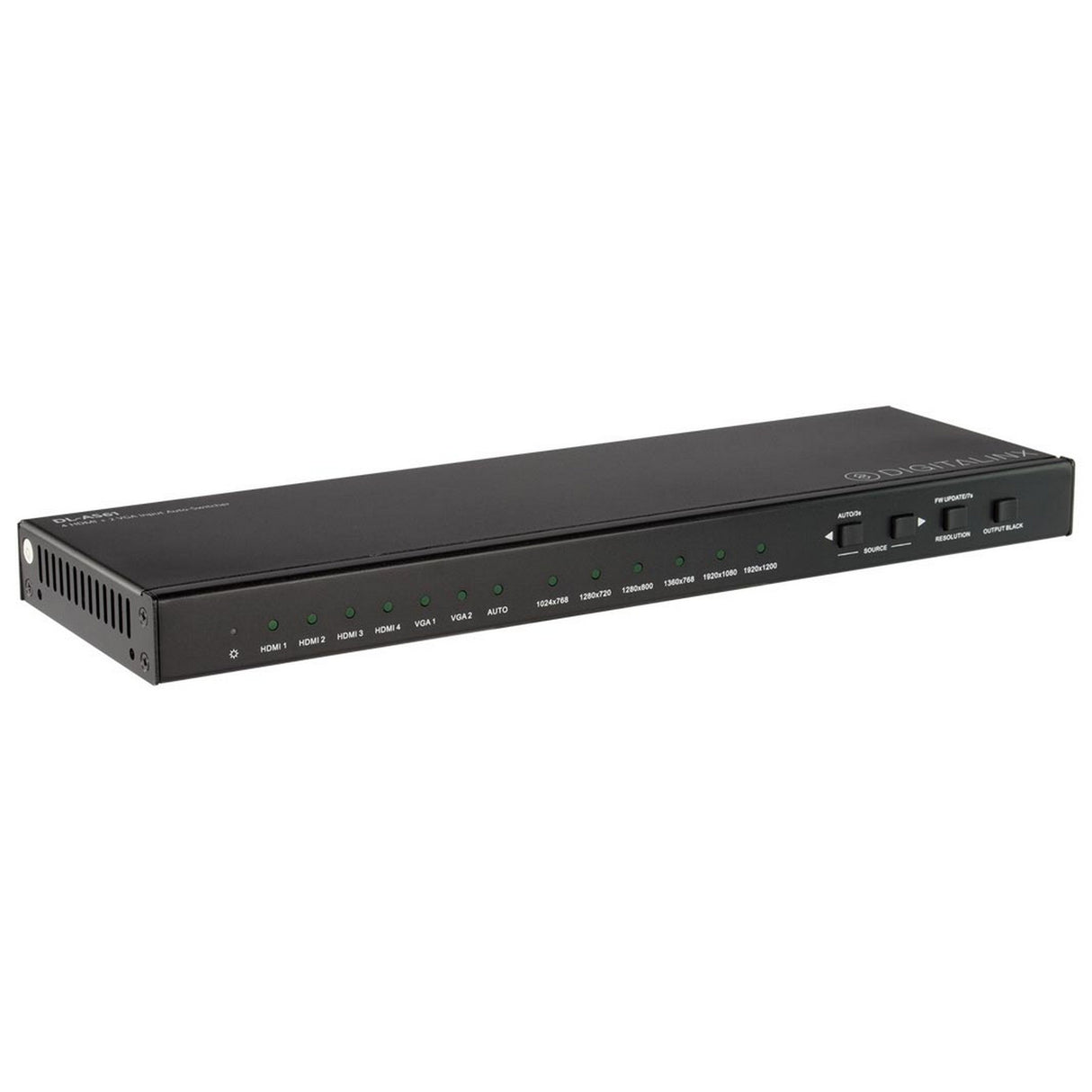

Front Panel Control
Four (4) Pushbuttons
Firmware
One (1) USB Type A Receptacle
Supported Audio, Video, and Control
Supported Input Resolutions (HDMI/DVI)
800x600@60Hz, 800x600@72Hz, 800x600@75Hz, 1024x768@42Hz, 1024x768@60Hz, 1024x768@70Hz, 1024x768@75Hz, 1024x768@85Hz, 1152x864@75Hz, 1280x768@60Hz, 1280x768@75Hz, 1280x768@85Hz, 1280x960@60Hz, 1280x960@85Hz, 1280x1024@60Hz, 1280x1024@75Hz, 1280x1024@85Hz, 1365x1024@60Hz, 1365x1024@60Hz, 1600x1024@60Hz, 1600x1200@60Hz, 1600x1200@65Hz, 1600x1200@70Hz, 1600x1200@75Hz, 1600x1200@85Hz, 1680x1050@60Hz, 1792x1344@60Hz, 1856x1392@60Hz, 1856x1392@75Hz, 1920x1080@60Hz, 1920x1200@60Hz, 1920x1440@60Hz, 3840x2160@24Hz, 3840x2160@30Hz, 3840x2160@25Hz, 4096x2160@24Hz, 4096x2160@25Hz, 4096x2160@30Hz
Supported Input Resolutions (VGA)
800x600@60Hz, 800x600@72Hz, 800x600@75Hz, 1024x768@60Hz, 1024x768@70Hz, 1024x768@75Hz, 1280x768@60Hz, 1280x768@75Hz, 1280x960@60Hz, 1280x1024@60Hz, 1280x1024@75Hz, 1365x1024@60Hz, 1365x1024@75Hz, 1600x1024@60Hz, 1600x1200@60Hz, 1600x1200@65Hz, 1600x1200@70Hz, 1600x1200@75Hz, 1680x1050@60Hz, 1792x1344@60Hz, 1920x1080@60Hz, 1920x1200@60Hz
VGA Scaling Resolutions
1024x768@60Hz, 1280x720@60Hz, 1280x800@60Hz, 1360x768@60Hz, 1920x1080@60Hz, 1920x1200@60Hz
Video Compliance
HDMI, HDCP
HDMI EDID
Pass-through from Display, 1080p/PCM 2ch, 1080p/PCM 6ch, 1080p3D/PCM 6ch, 1080i/PCM 2 ch, 4k@30/PCM 2ch
VGA EDID
1360x768
Embedded Audio Input/Output
Up to PCM 6 channel
Digital (Optical) Audio Output
PCM: 6 channel (5.1) at 16, 20, or 24 bit
Analog Audio Frequency Response
20Hz-20KHz
Analog Audio Input Impedance
>10k ohm
Analog Audio Output Impedance
50 ohm
Input DDC Signal
5.0 volts p-p (TTL)
Input Video Signal
0.5 to 1.0 volts p-p
Maximum Passive HDMI Distance
5 m (16 ft)
IR Carrier Frequency Range
33-55kHz at 5 volts
RS232 Baud Rate
9600 baud
Chassis and Environmental
Enclosure
Painted aluminum
Dimensions (H x W x D)
28 mm x 350 mm x 110 mm (1.10 in x 13.78 in x 4.33 in)
Shipping Weight
0.82 kg (1.8 lbs.)
Operating Temperature (Environment)
0° to +40° C (+32° to +104° F)
Operating Temperature (Chassis)
31° C (88° F) (S); 38° C (100° F) (R)
Operating Humidity (Environment)
20% to 90%, Non-condensing
Storage Temperature (Environment)
-10° to +60° C (+14° to +140° F)
Storage Humidity (Environment)
20% to 90%, Non-condensing
Power, ESD, and Regulatory
Maximum Power Consumption
3.8 watts
Power Supply Input Voltage
100-240v AC at 50/60 Hz at 0.45 A
Power Supply Output Rating
5V DC at 3 A
ESD Protection
15kV
Device Regulatory
CE, FCC, RoHS
Power Supply Regulatory
CE, RoHS, UL, SGS, FCC
Other
Standard Warranty
2 Years
Diagnostic Indicators
Power, Selected Input, VGA Output Resolution
Included Items
Installation guide, power supply, AC adapters (AU, EU, UK, and US), RS232 cable, IR receiver, IR remote with batteries, rubber feet, mounting “L” brackets (2 ea), mounting screws (4 ea)
