DigitaLinx DL-AVX2100-H2 Advanced HDMI 2.0 Over AVX Extender Set

DigitaLinx DL-AVX2100-H2 Advanced HDMI 2.0 Over AVX Extender Set

Liberty AV’s DL-AVX2100-H2 is an advanced multi-media extender set which connects various audio, video, power, ethernet and control signals via a single unshielded twisted pair cable. Using AVX technology, digital audio/video/control/ethernet signals can be transmitted up to 100 meters. Designed for the residential market, UHD video can be sent from the source to the display while sending both advanced audio return (ARC) and enhanced audio return channel (eArc) to your A/V receiver or equipment in your rack area.

Key Features

• Overview: Transmit flawless zero-latency Video up to 4K60 4:4:4 w/HDR, Multi-Channel Audio, eARC / ARC, Pass Gigabit Ethernet, and Control Signals over one Category Cable up to 100 meters

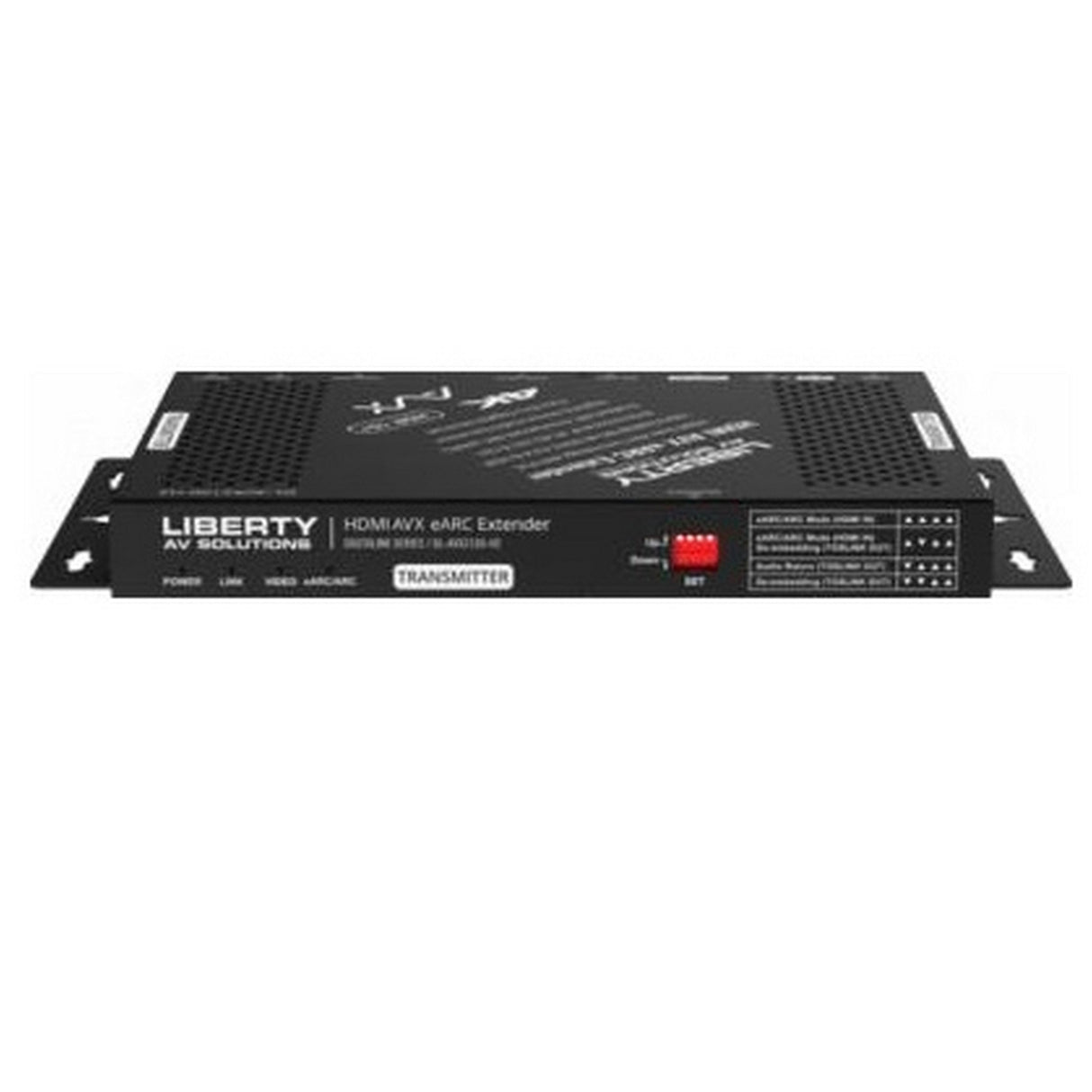

• Transmitter Ports: Front panel led indicators, 2 x 3.5mm female jacks for IR communication, 1 x female HDMI type A,- 1 x female AVX RJ45 port, 1 x female LAN RJ45 port, 1 x female TOSLINK connector, 1 x Reset button

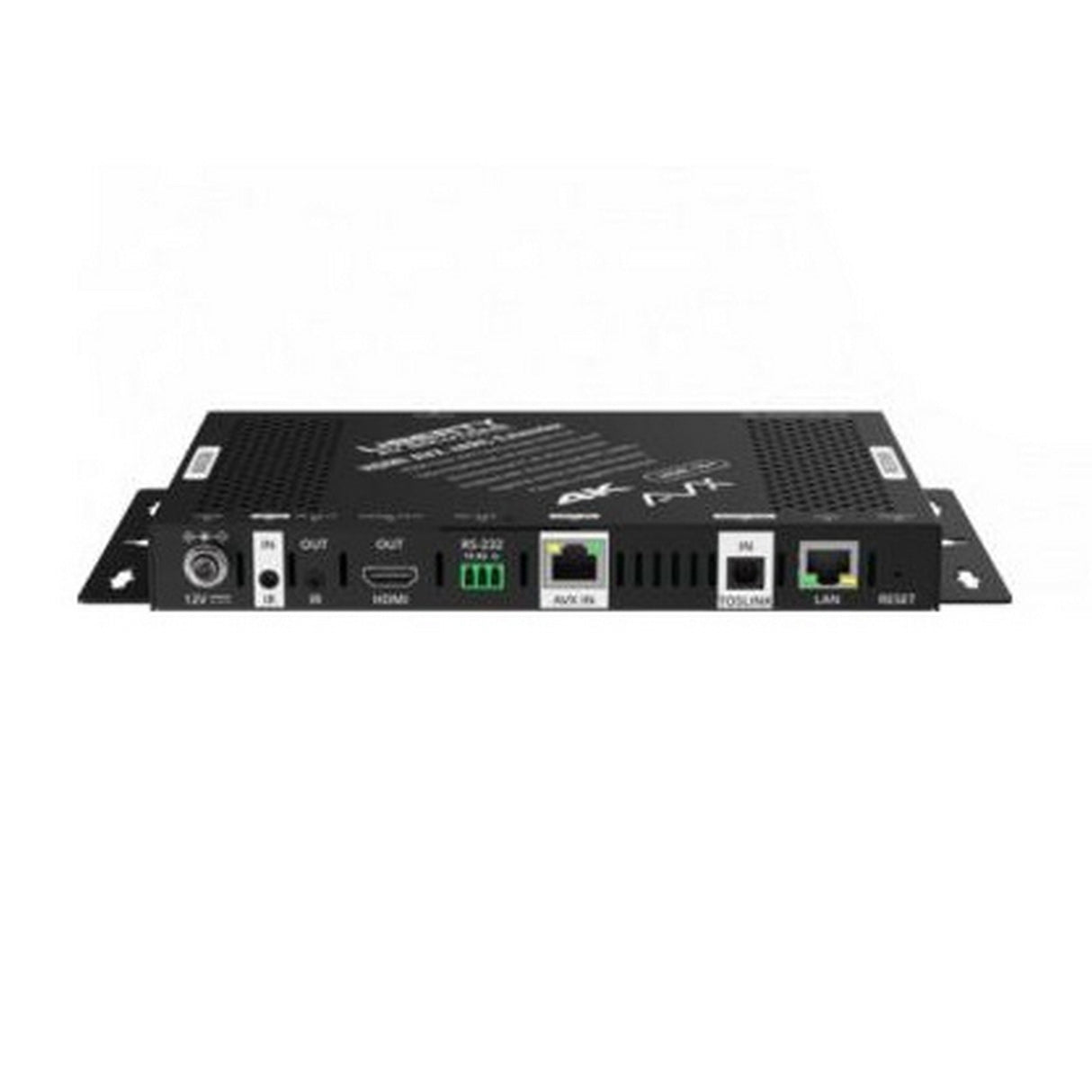

• Receiver Ports: Front panel led indicators, 2 x 3.5mm female jacks for IR communication, 1 x female HDMI type A,- 1 x female AVX RJ45 port, 1 x female LAN RJ45 port, 1 x female TOSLINK connector, 1 x Reset button
• Video Resolutions: Supports a full range of resolutions up to 4K60 4:4:4
• Dynamic Metadata HDR: HDR formats such as Dolby Vision, HDR10+, HLG
• Audio Protocols: DTS-HD, Dolby TrueHD, 7.1ch digital audio, Dolby Atmos, DTS-X, and all other digital audio standard formats
• eARC/ARC Support: ARC & eARC up to 8 channels from the Receiver back to the Transmitter which includes Dolby Atmos and DTS-X, TOSLINK supporting S/PDIF up to 5.1 channels. Toslink digital audio extension and Toslink audio de-embedding up to 5.1
• Control Protocols: Extend bi-directional IR, RS-232, CEC, and Ethernet control
• Commercial Design: Eliminate cable clutter by extending multimedia signals using two metal chassis with vented slots for heat dissipation. Provided mounting brackets and screws allow you to mount the devices behind a display, inside a closet, on an equipment rack, or other various locations
• Compliance: AVX 1.0, HDMI 2.0/1.4 backwards compatible, HDCP2.3/ 2.2/1.4 backwards compatible, Dolby
• Ethernet Data Transfer Rate: Pass up to 1 Gigabit of Ethernet speed
• Power Over Cable (PoC) - Bi-directional PoC allows one power adapter to power both the transmitter and receiver
