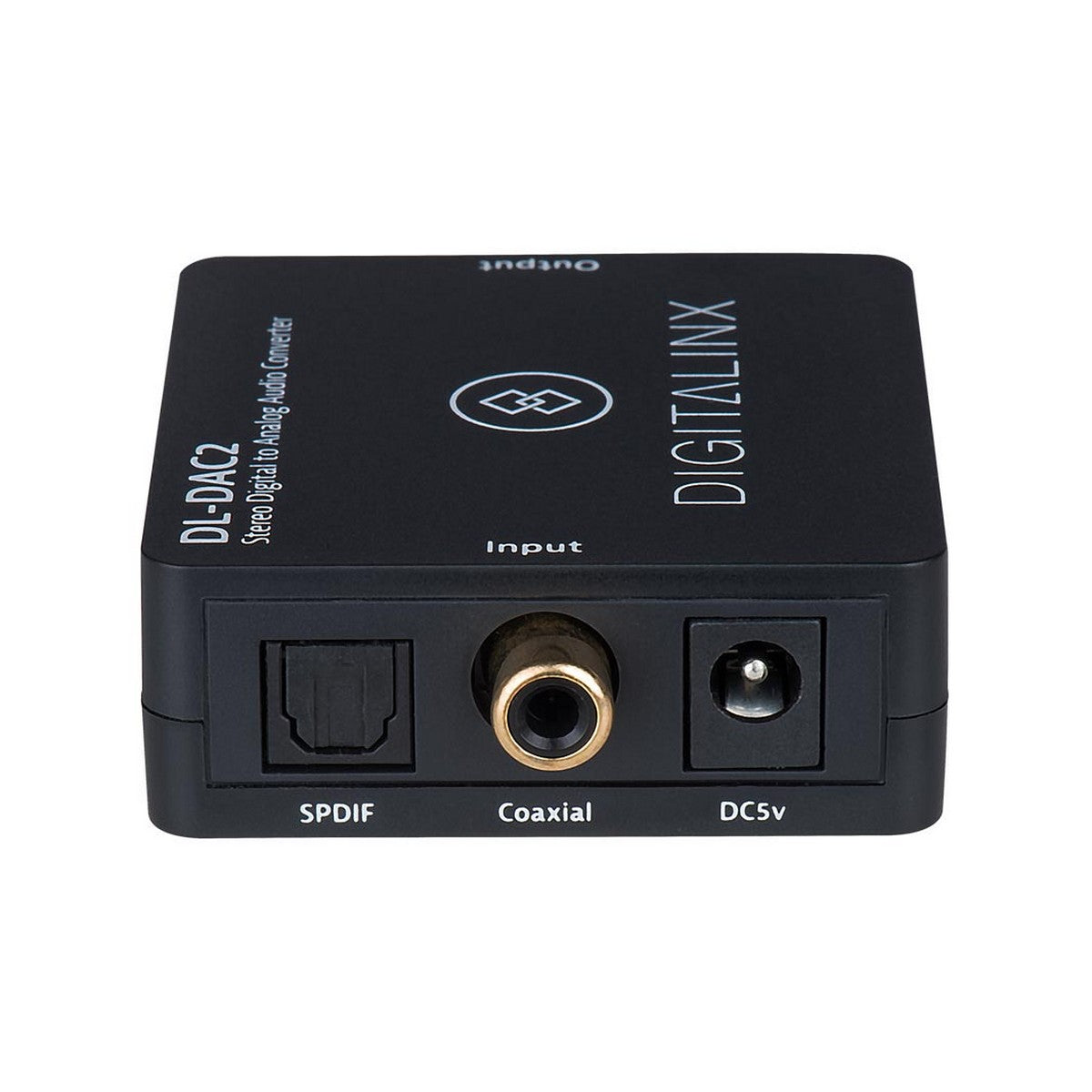

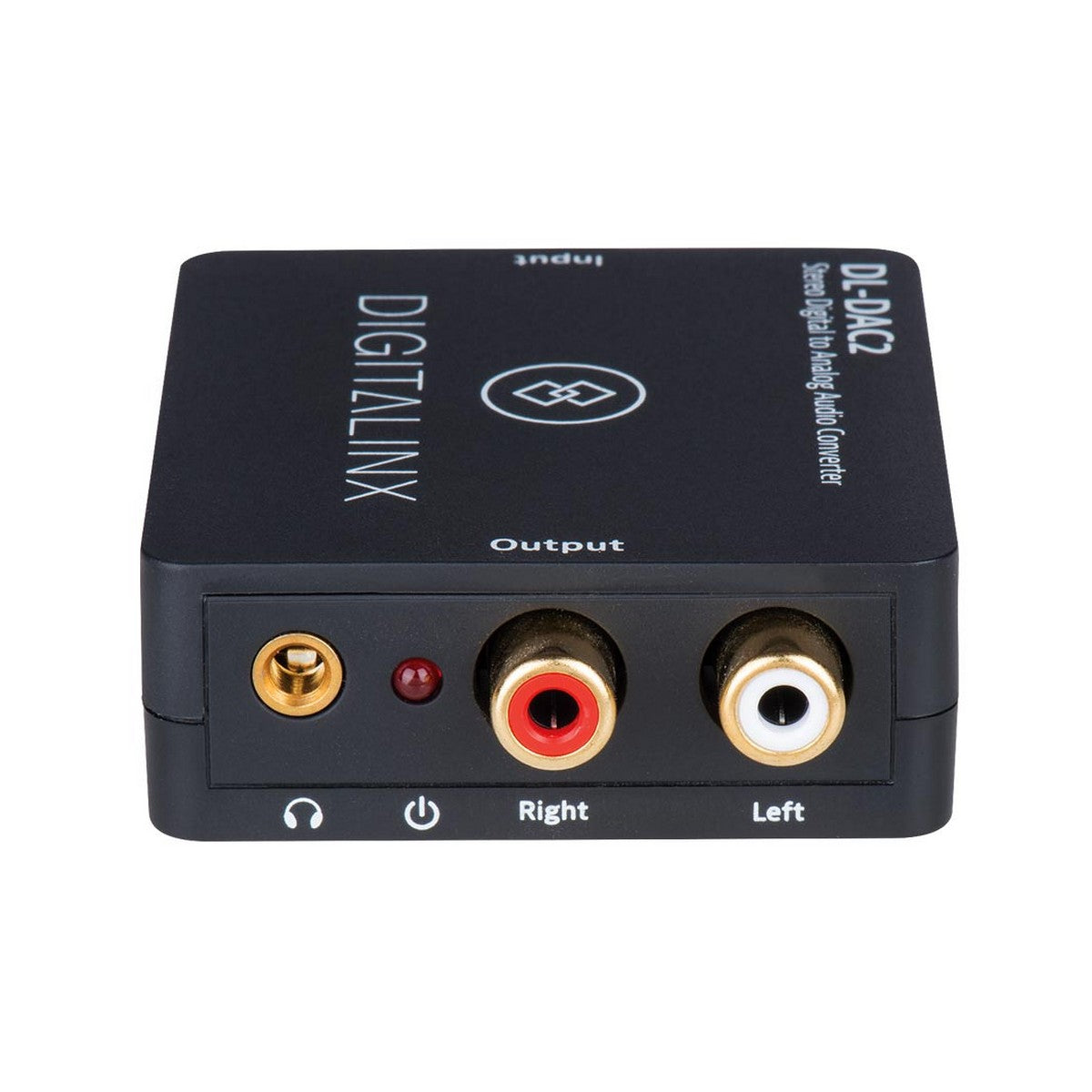

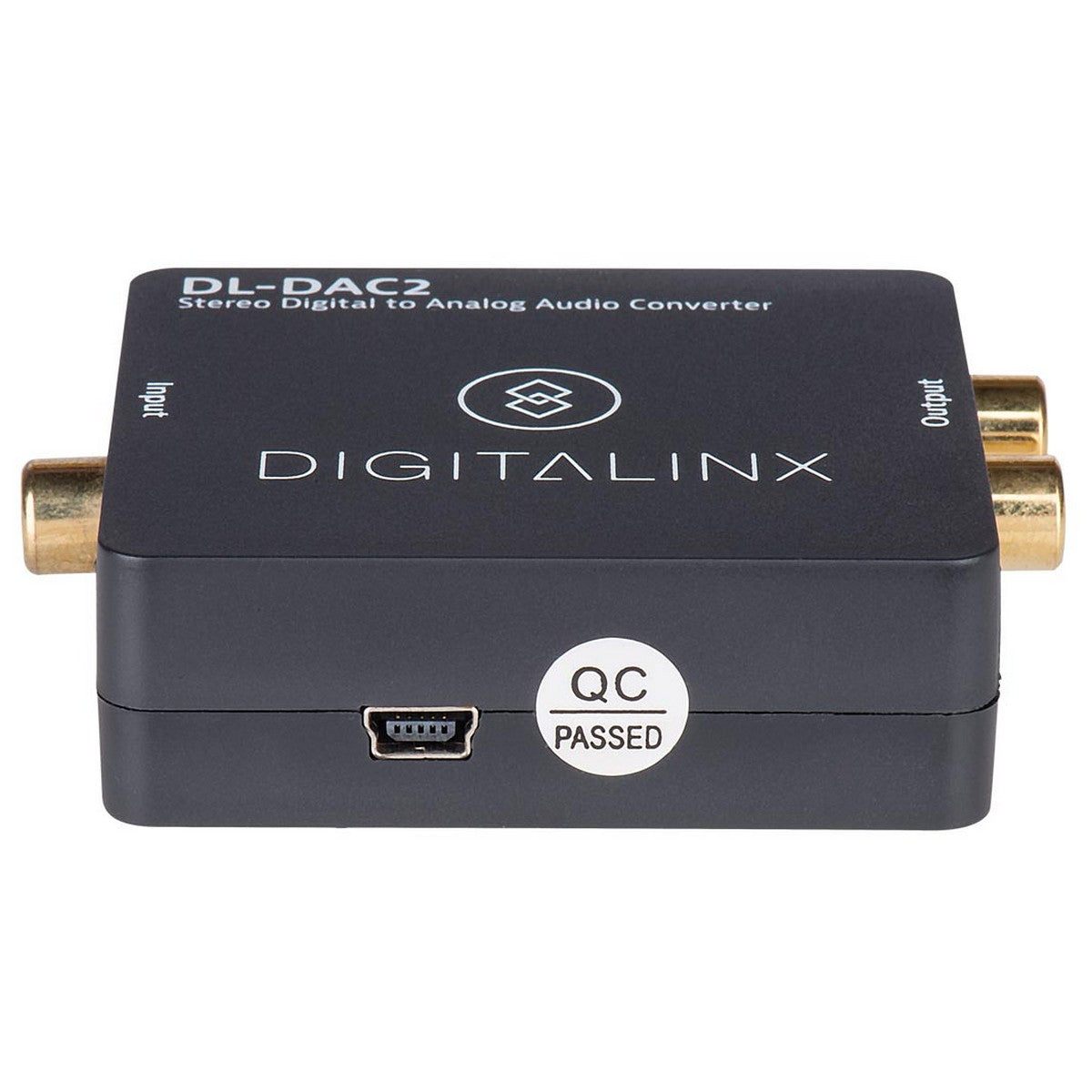

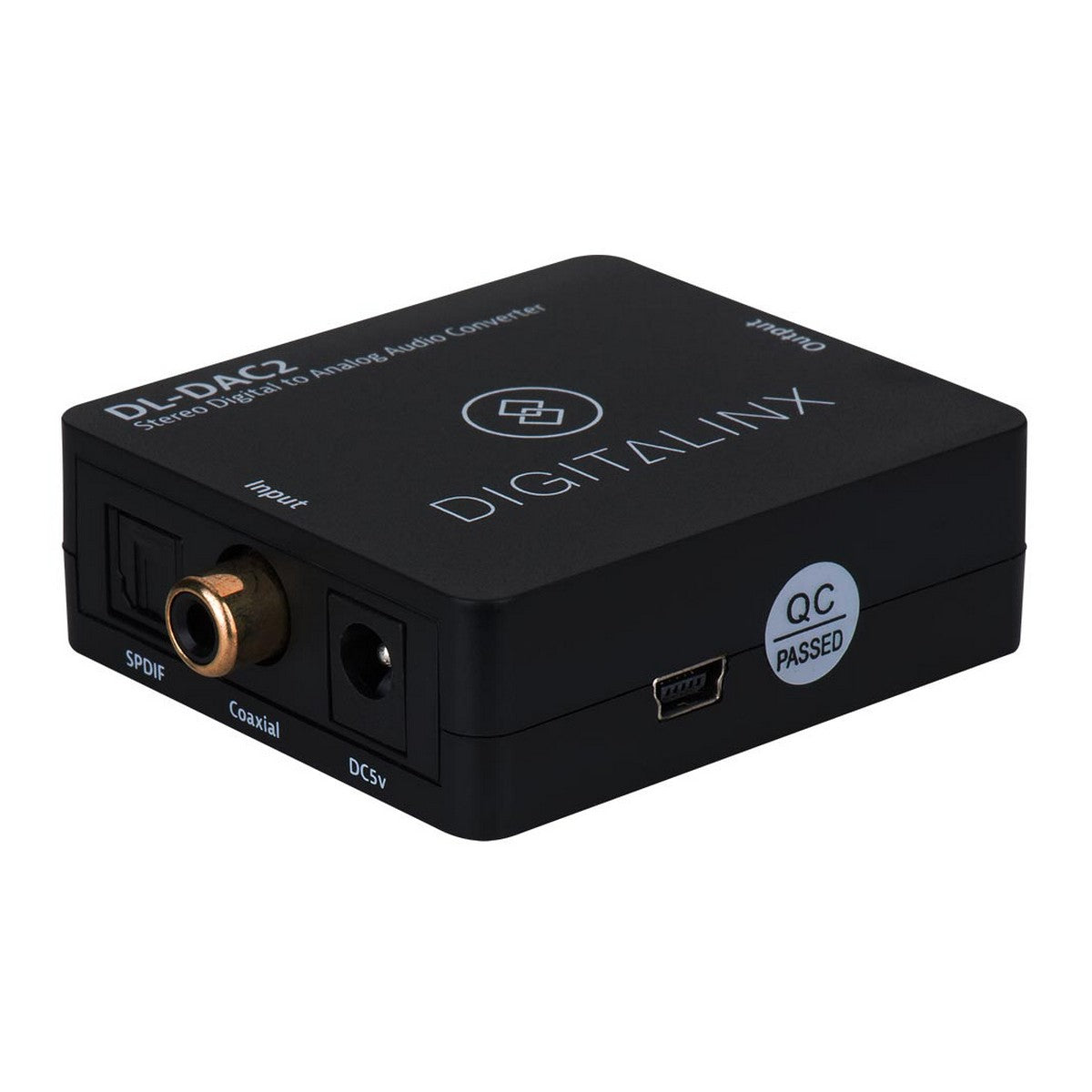

DigitaLinx DL-DAC2 Digitalinx Stereo Digital to Analog Audio Converter
DigitaLinx DL-DAC2 Digitalinx Stereo Digital to Analog Audio Converter
DigitaLinx DL-DAC2 Digitalinx Stereo Digital to Analog Audio Converter
The DigitaLinx DL-DAC2 is a PCM two channel to stereo audio converter. The DL-DAC2 features optical and digital coaxial input audio connections. Analog output is simultaneously available on the 3.5mm jack and the stereo RCA jacks.
Key Features
- Decodes stereo digital audio to stereo analog audio
- Digital optical and coaxial audio inputs
- Analog outputs (3.5mm and RCA) pass audio simultaneously
- Built-in surge protection, power LED
- Includes power supply; optional power via USB
Technical Specifications
SPDIF (Optical) Input: One EIAJ Optical Connector
Coaxial Input: One RCA Connector
Power Input: One 5.5mm Outside Diameter, 2.5mm Inside Diameter Barrel
USB Input: One USB Type B Mini Connector
Analog Output: Two RCA Connectors
Headphone Output: One 3.5mm Jack
Supported PCM 2 Channel Audio: 32 KHz, 44.1 KHz, 48 KHz, 96 KHz
Output Signal to Noise Ratio: 120dB
Enclosure: White ABS Plastic
Dimensions with Connectors (HxWxD): 20mm x 72mm x 55mm (0.79in x 2.83in x 2.17in)
Shipping Weight: 0.18 kg (0.4 lb)
Power Supply Input: 100-240V AC at 50/60 HZ
Power Supply Output: 5V DC; 1 Amp
Power Consumption: 2.5 watts (max)
Regulatory: FCC, CE, RoHS
Warranty: 2 years
Included Accessories: Power Supply
