DigitaLinx DL-DAC6 Digitalinx Digital to Analog Surround Sound Decoder
DigitaLinx DL-DAC6 Digitalinx Digital to Analog Surround Sound Decoder
Free Shipping
DigitaLinx DL-DAC6 Digitalinx Digital to Analog Surround Sound Decoder

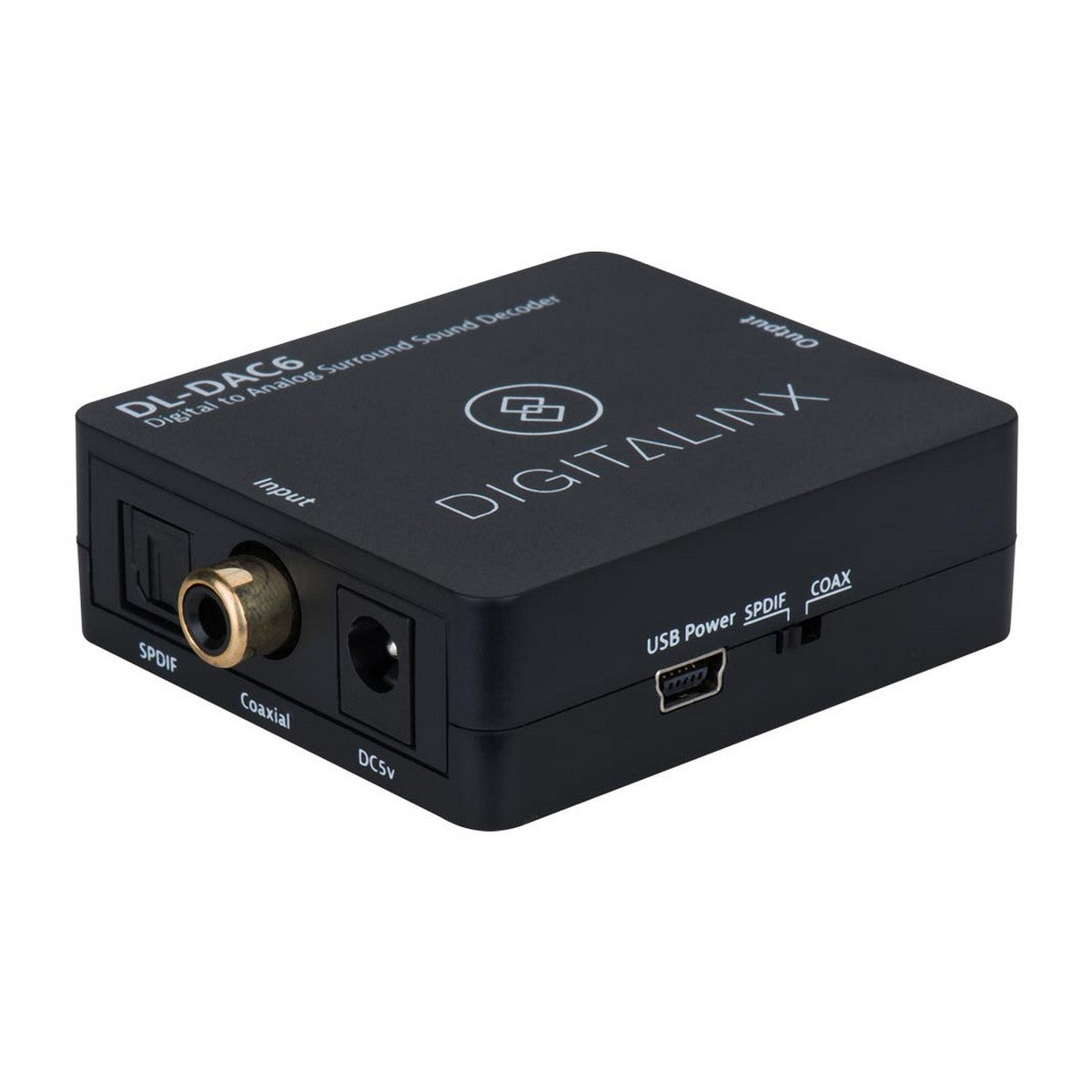

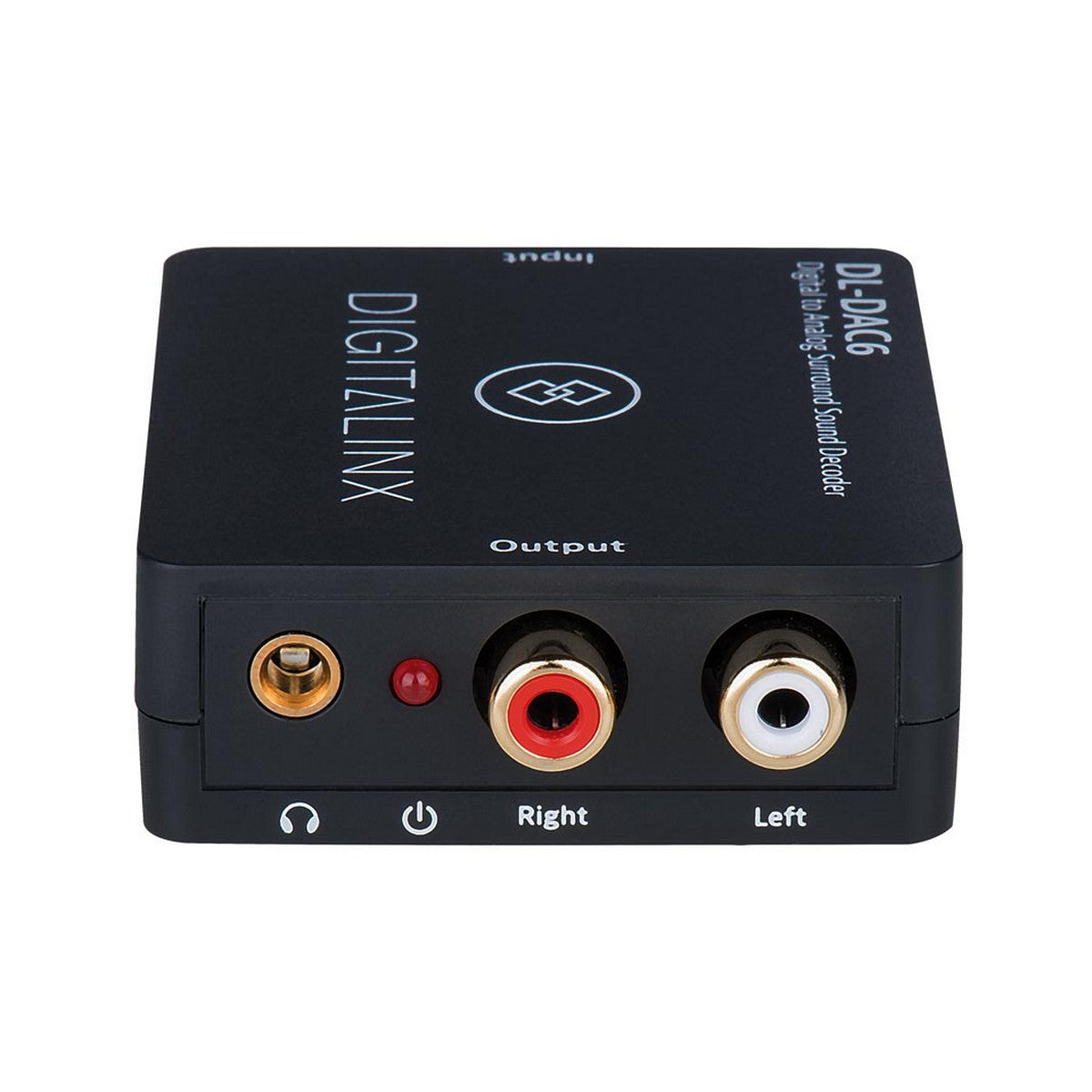

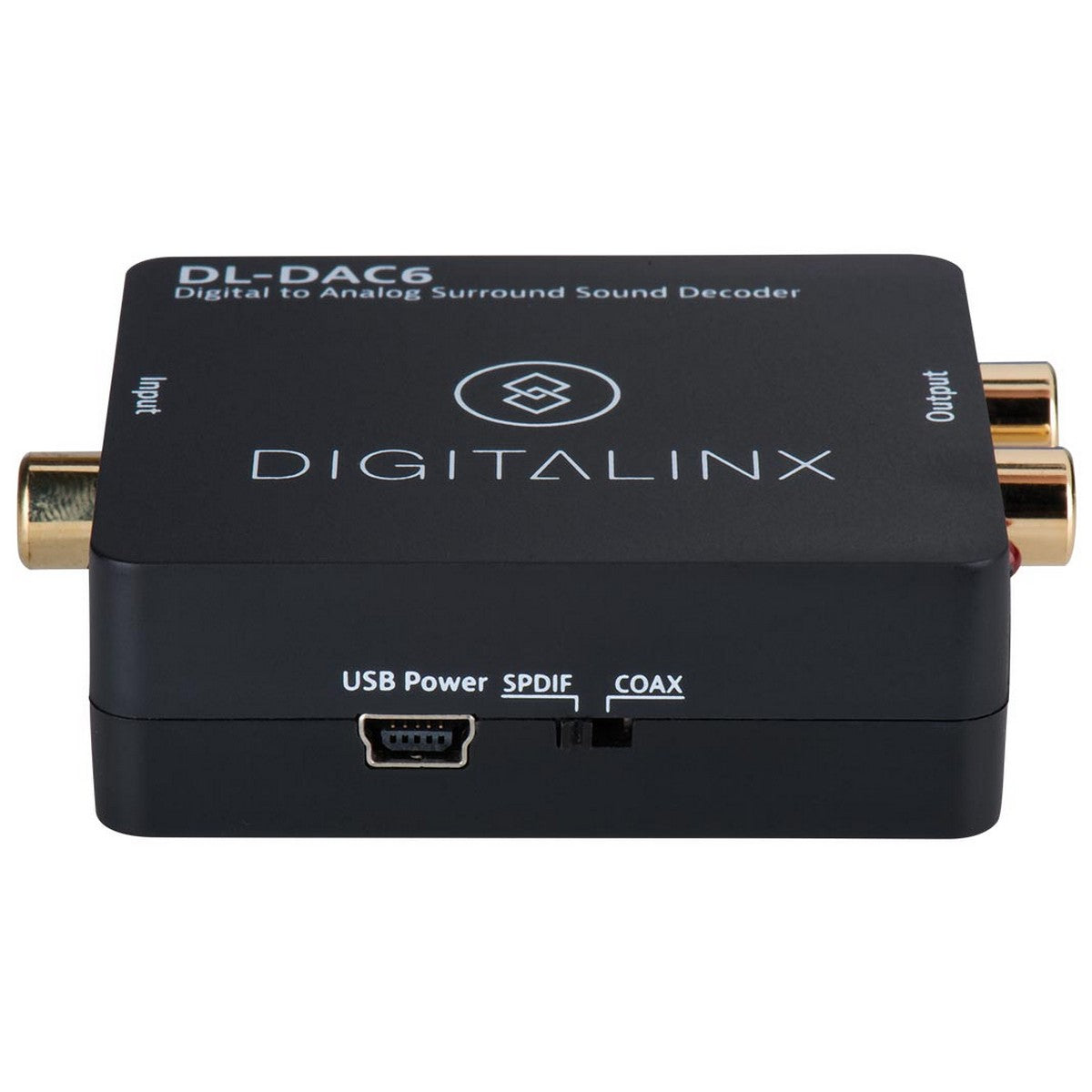

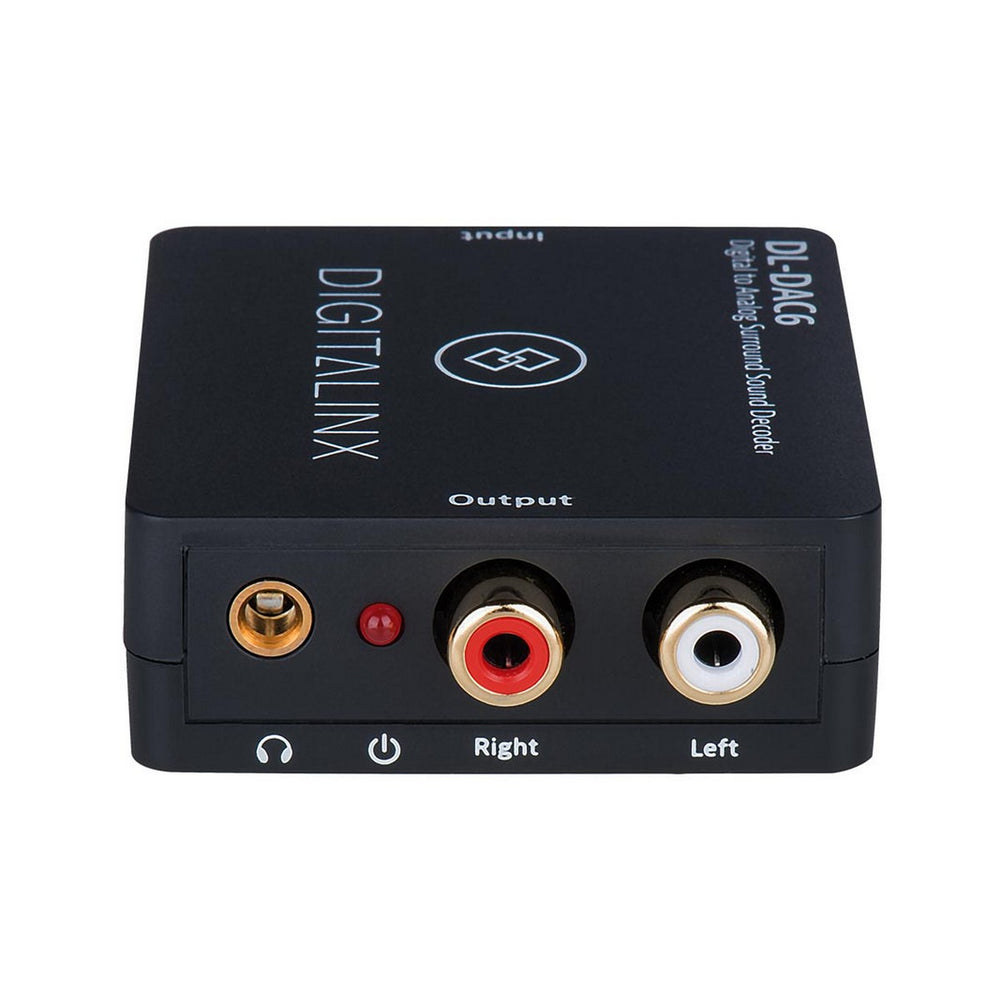

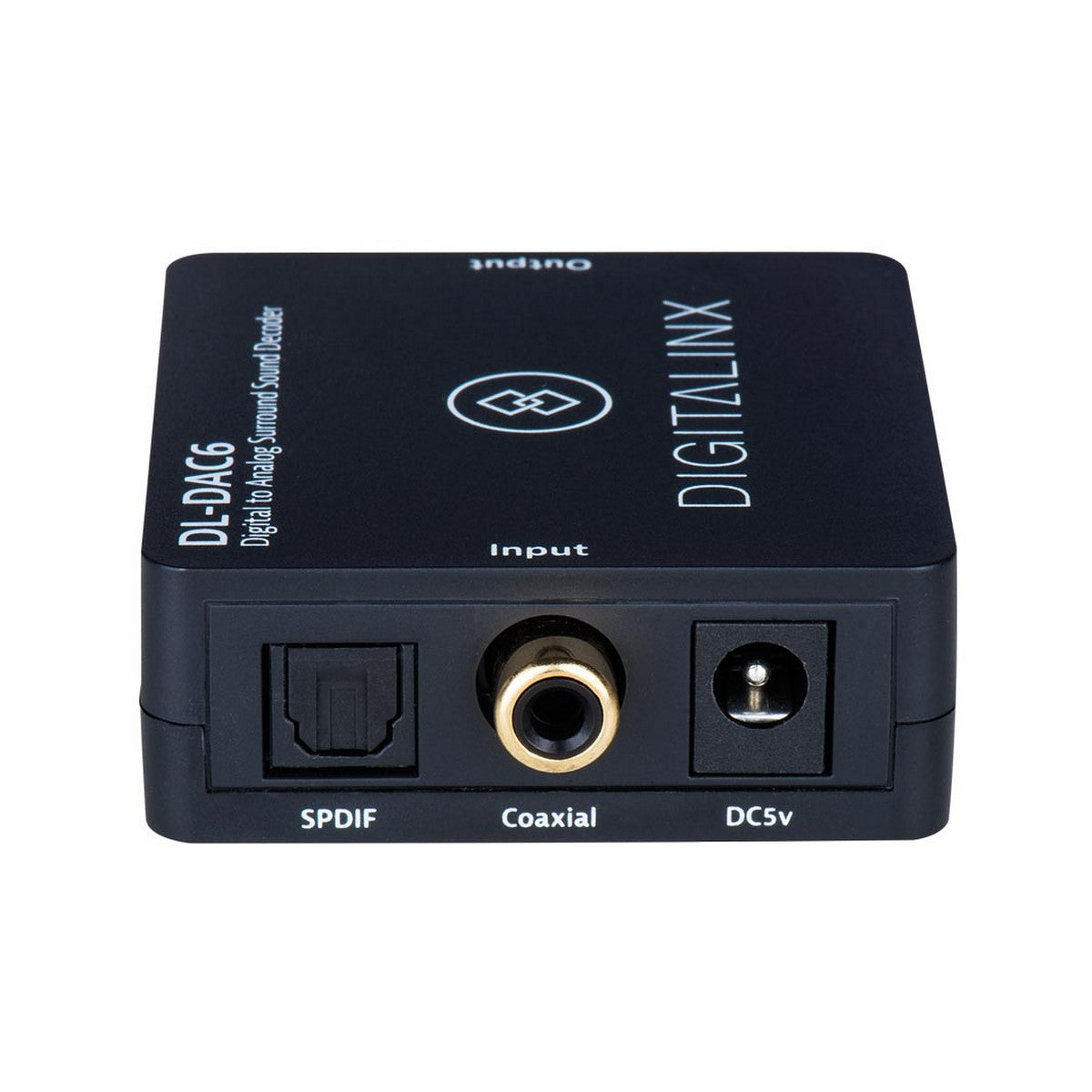

The DigitaLinx DL-DAC6 is a surround sound to stereo audio converter. The DL-DAC6 features optical and digital coaxial input audio connections. Analog output is simultaneously available on the 3.5mm jack and the stereo RCA jacks. The DL-DAC6 features a switch to specify which audio input is being used.
Key Features
- Decodes digital surround audio to stereo analog audio
- Digital optical and coaxial audio inputs
- Analog outputs (3.5mm and RCA) pass audio simultaneously
- Built-in surge protection, power LED
- Includes power supply; optional power via USB
Technical Specifications
SPDIF (Optical) Input: One EIAJ Optical Connector
Coaxial Input: One RCA Connector
Power Input: One 5.5mm Outside Diameter, 2.5mm Inside Diameter Barrel
USB Input: One USB Type B Mini Connector
Analog Output: Two RCA Connectors
Headphone Output: One 3.5mm Jack
Supported PCM 6 Channel Audio: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz
Supported Digital Audio: Dolby Digital, DTS, and PCM: 6 channel (5.1) at 16, 20, or 24 bit
Output Signal to Noise Ratio: 120dB
Enclosure: White ABS Plastic
Dimensions with Connectors (H x W x D): 20mm x 72mm x 55mm (0.79 in x 2.83 in x 2.17 in)
Shipping Weight: 0.18kg (0.4lb)
Power Supply Input: 100-240V AC at 50/60Hz
Power Supply Output: 5V DC; 1 Amp
Power Consumption: 2.5 watts (max)
Regulatory: FCC, CE, RoHS
Warranty: 2 years
Included Accessories: Power Supply
