DigitaLinx DL-HD70 HDMI Over Twisted Pair Set with power and control

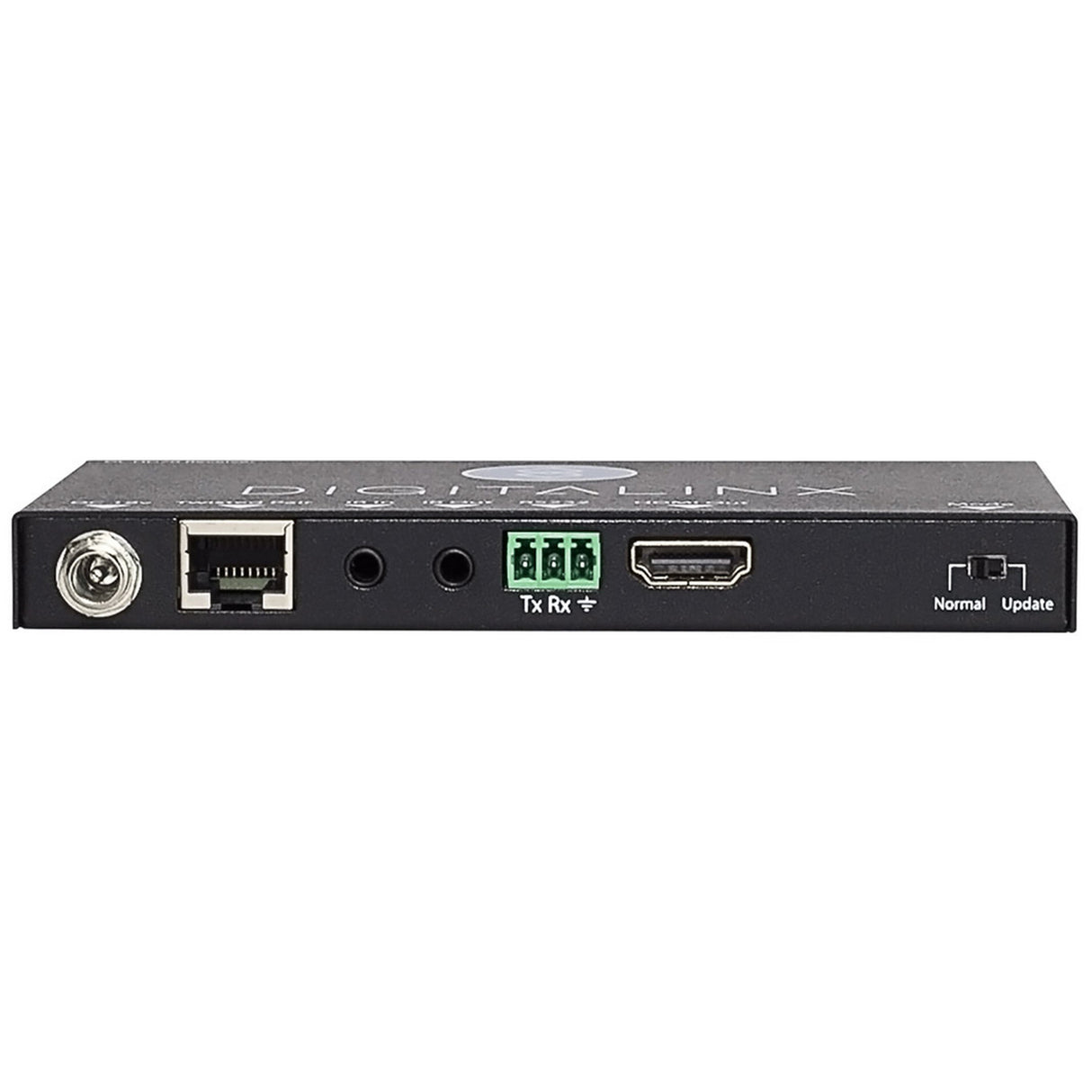

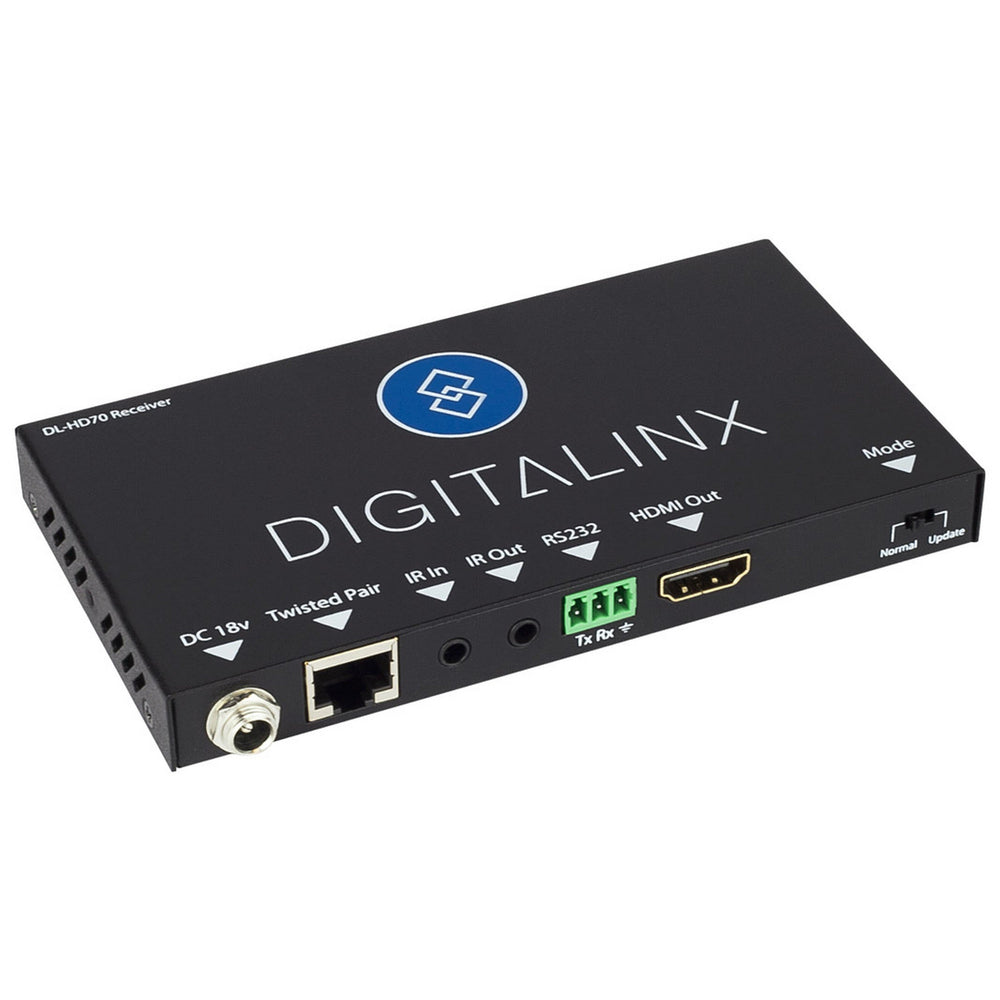

DL-HD70 is a Black HDMI over Twisted Pair Set with power and control
Key Features
- HDMI transmission up to 230 feet (70m)
- 1080p, 4Kx2K (UHD) & 3D compatible
- CEC supported
- Built-in surge protection

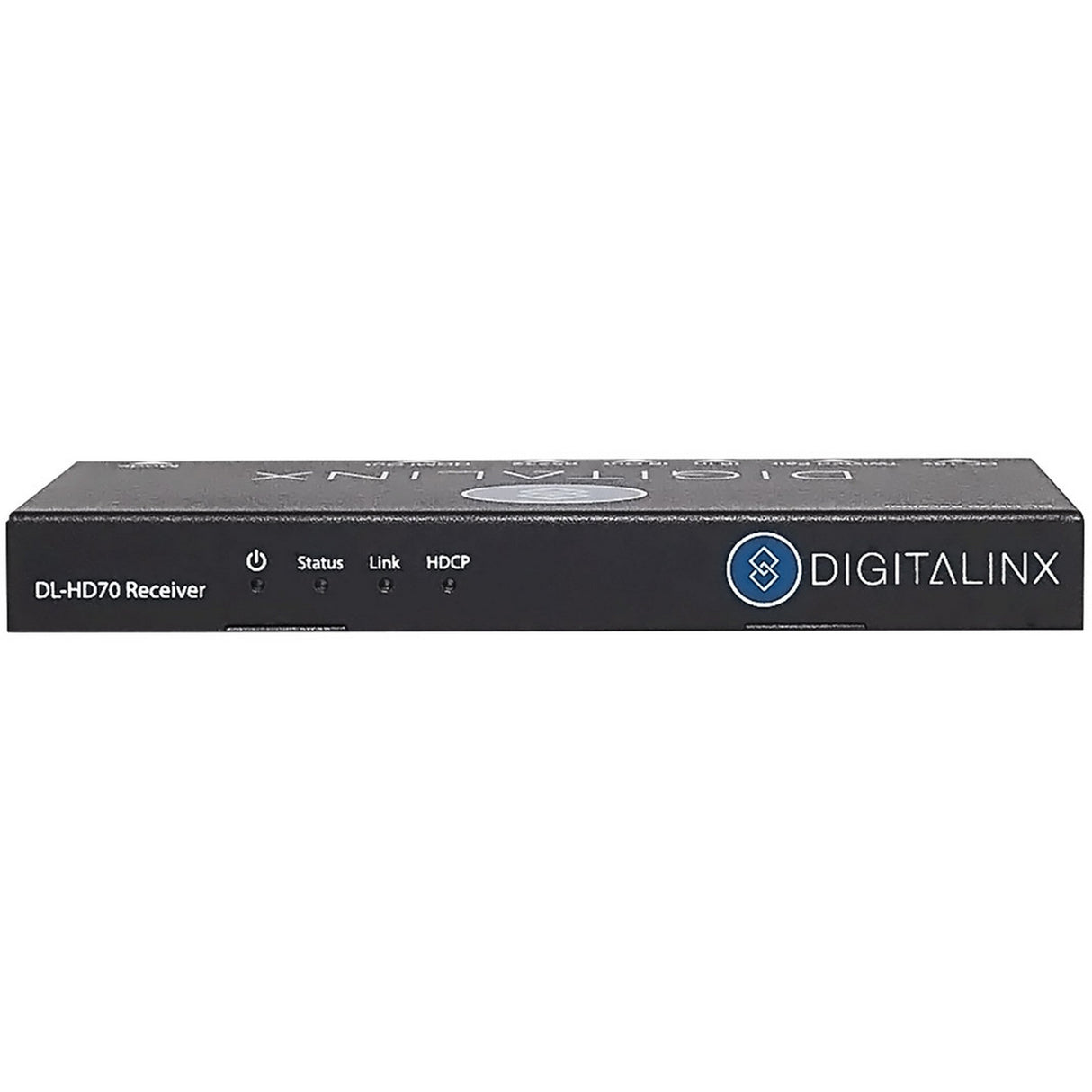

- Diagnostic LEDs
- HDCP 2.2 compliant
- Bidirectional Wideband IR and RS232 passthrough
- Flexible power design (use power supply at TX or RX)
- Locking Power Connector
Technical Specifications
Input DDC Signal: 5.0 volts p-p (TTL)
Maximum HDMI Distance: 5m (Pre-made cable)
IR Carrier Frequency Range: 33-55 kHz at 5 volts
Maximum Distance: 70m
Bandwidth: 10.2 Gbps
Gain: 0 dB - 10 dB at 100MHz
Resolution Range: 800x600 - 1920x1200
Signal to Noise Ratio: > 70 dB at 100 MHz over 100 m
Return Loss: <-30dB at 5 kHz
Total Harmonic Distortion: <0.005% at 1kHz
Enclosure: Painted Steel
Dimensions: 5.31 x 2.91 x 0.59 in
Shipping Weight: 1.8 lbs
