DigitaLinx DL-HD70LS | Slim HDMI Over Twisted Pair 70m HDBaseT Comp...
DigitaLinx DL-HD70LS Slim HDMI Over Twisted Pair 70m HDBaseT Complete Set
The DigitaLinx DL-HD70LS extender set transmits HDMI (1080p, 4Kx2K (UHD) & 3D), including HDCP 2.2, and bidirectional IR up to 70 meters away using a single solid core, shielded Category 5e twisted pair cable. Built-in surge protection helps ensure hassle-free and robust installations. The 12 volt power supply is secured with a screw-on connector to prevent the power from being accidentally disconnected. The DL-HD70LS is sold only as a set. The individual transmitter and receiver are not compatible with other HDBaseT devices due to proprietary PoE circuitry.
Key Features
- HDMI transmission up to 230 feet (70m)
- Complete set Includes TX, RX, Power Supply, and IR flasher/emitter
- 1080p, 4Kx2K & 3D compatible; CEC supported
- Built-in surge protection; diagnostic LEDs
- HDCP 2.2 compliant
- Bidirectional Wideband IR
- Power from TX supplies RX
- Locking power connector (power supply included)
Technical Specifications

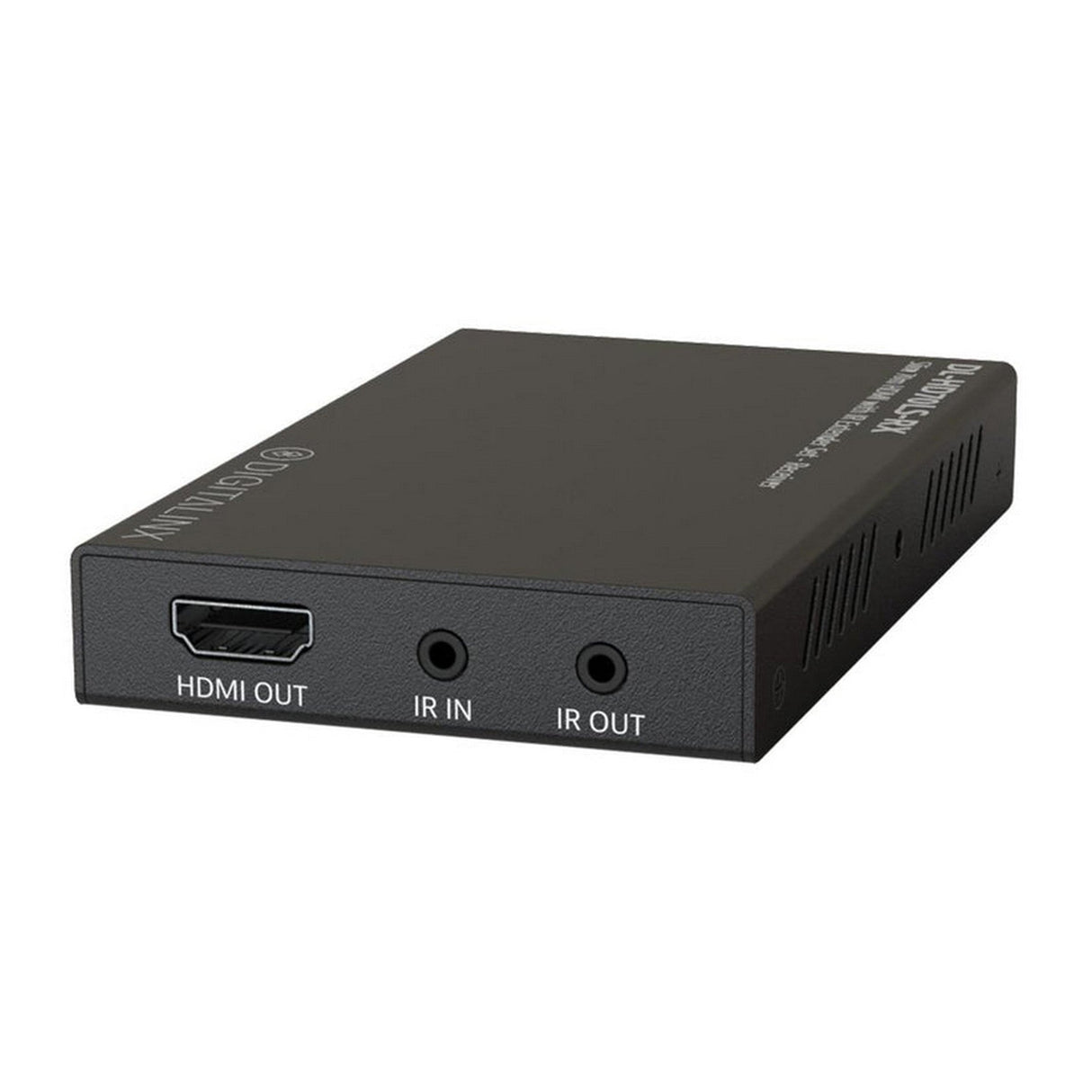

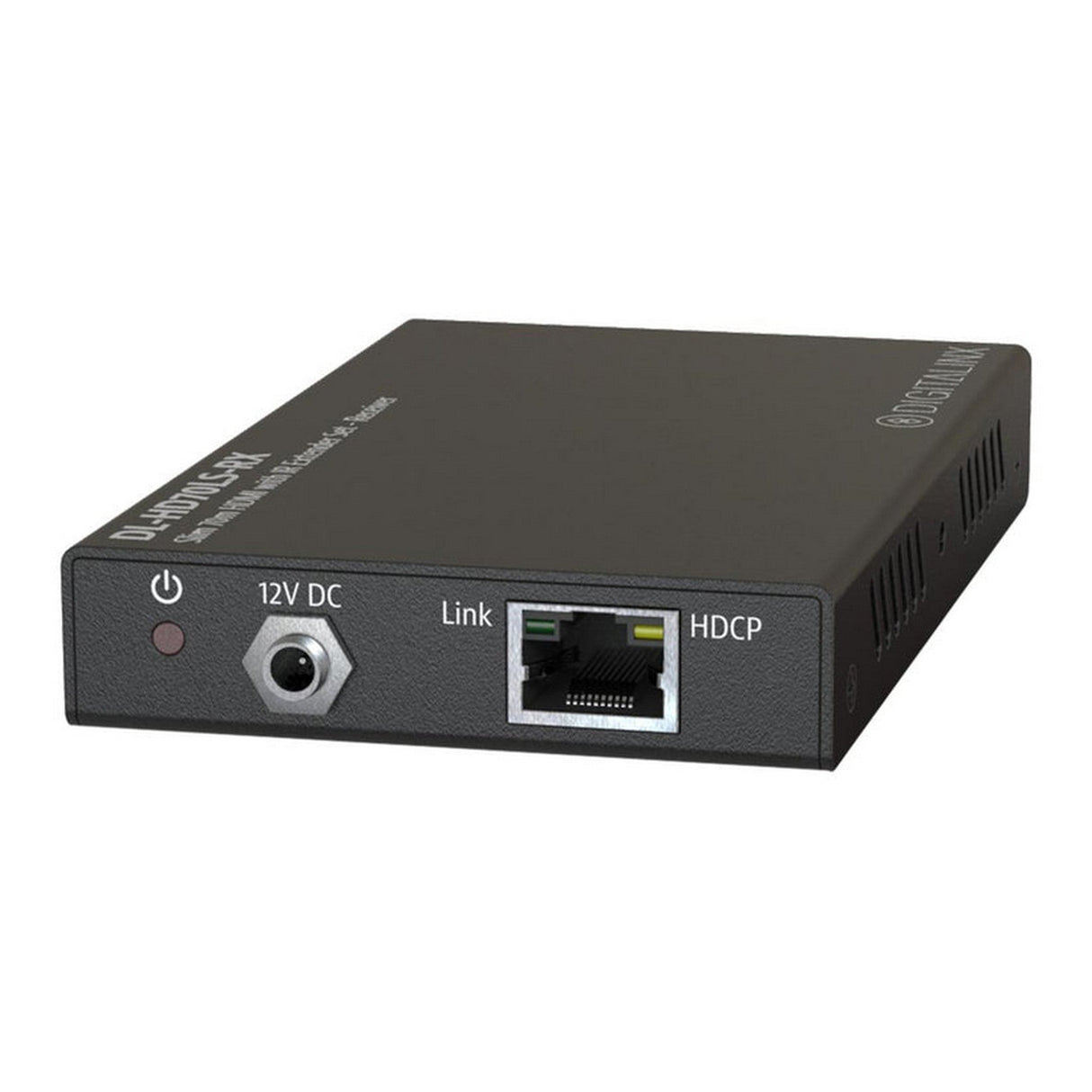

I/O Connections
HDMI: One (1) HDMI Type A Receptacle
Twisted Pair: One (1) 8P8C port (Shielded RJ45)
IR Input: One (1) 3.5mm TRS Jack
IR Output: One (1) 3.5mm TS Jack
12V DC Power: One (1) 5.5 mm Outside Diameter, 2.1 mm Inside Diameter Barrel (Locking)
Supported Audio and Video
Maximum Video Compatibility
70 m: Deep Color 36/30/24 Bit at 1080p
40 m: Deep Color 48 Bit at 1080p, 3D, and 4k x 2k (UHD) up to 30 Hz: RGB, YCbCr 4:4:4, YCbCr 4:2:2; up to 60 Hz: YCbCr 4:2:0
Video Compliance: HDMI, HDCP 1.3 through 2.2, and CEC (Consumer Electronics Control)
Embedded Audio: Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
Input DDC Signal: 5.0 volts p-p (TTL)
Input Video Signal: 0.5 to 1.0 volts p-p
IR Carrier Frequency Range: 33-55kHz at 5 volts
HDBaseT Signal Characteristics
Maximum Distance: 70 m
Cable Requirements: Solid core shielded Category 5e, Category 6 or greater with TIA/EIA-568B crimp pattern
Bandwidth: 10.2 Gbps
Gain: 0 dB - 10 dB at 100 MHz
Signal to Noise Ratio (SNR): > 70 dB at 100 MHz over 100 m
Return Loss: < -30 dB at 5 KHz
Total Harmonic Distortion (THD): < 0.005% at 1 KHz
Min-Max Signal Level: < 0.3 V - 1.45 Vp-p
Differential Phase Error: ±10° at 135 MHz over 100 m
