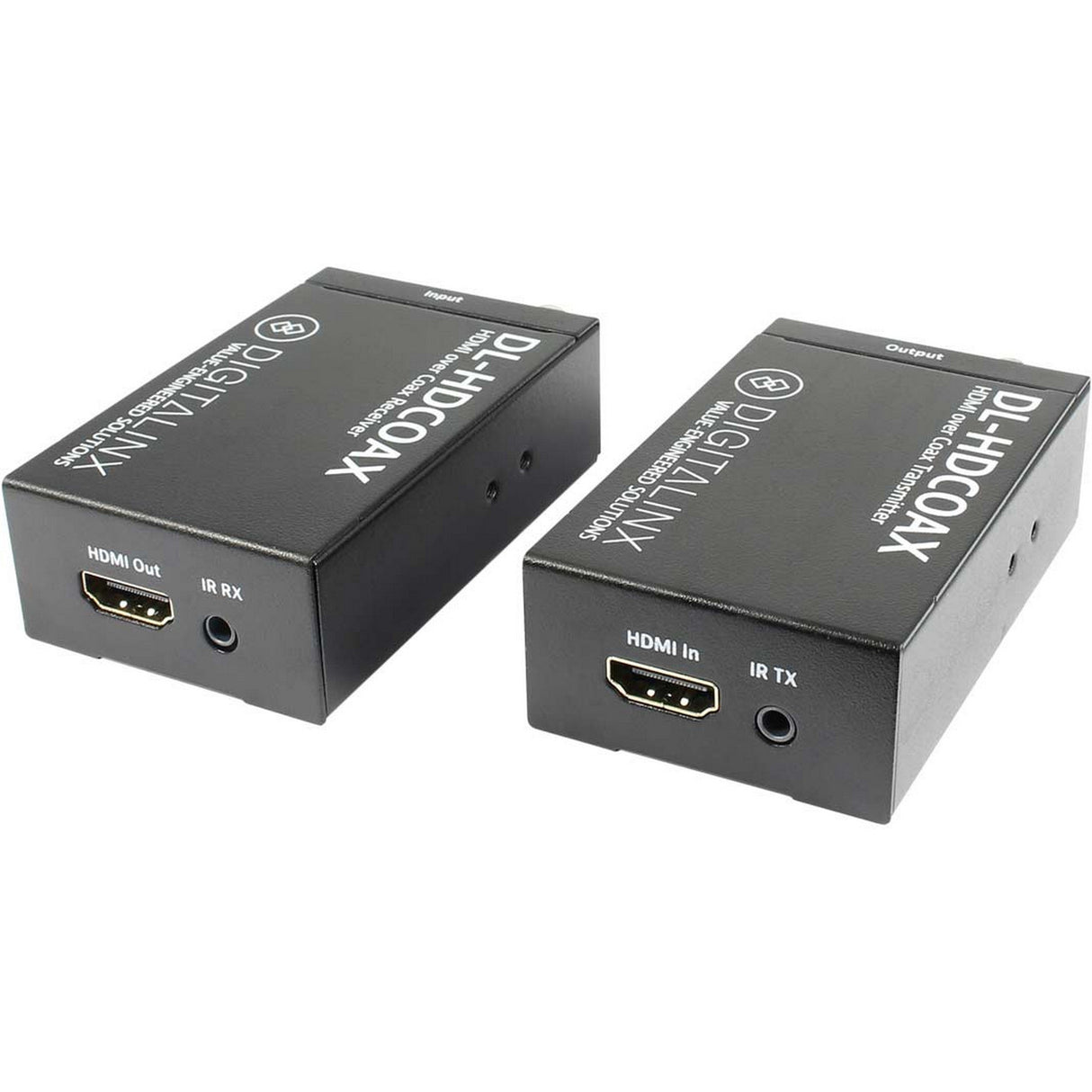

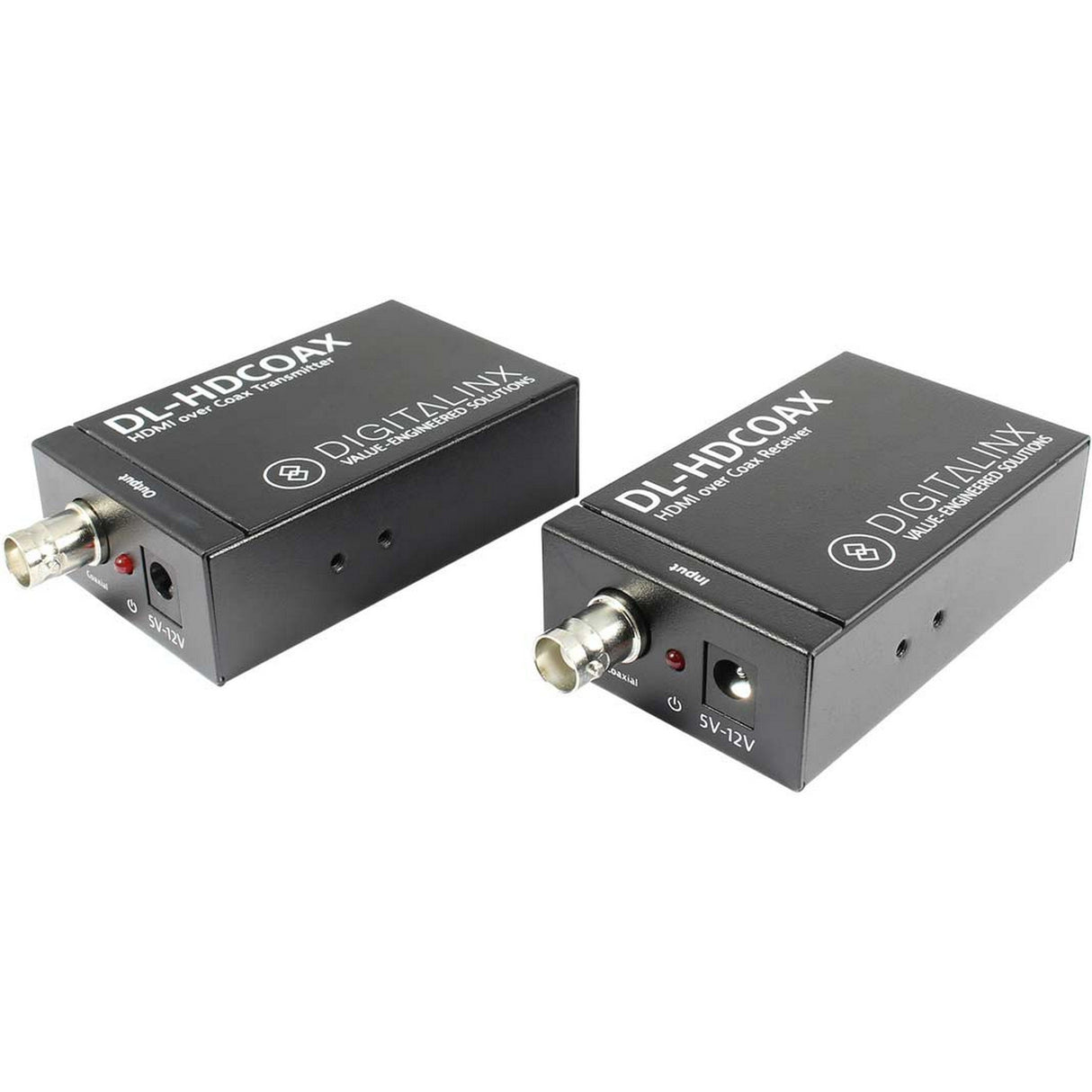

DigitaLinx DL-HDCOAX HDMI and IR Extension Over RG6 RG59
The Digitalinx DL-HDCOAX is an HDMI over Coax extender that accommodates distances up to 100 meters (328ft). The DL-HDCOAX supports resolutions up to 1080p and 48KHz Digital Audio.
Key Features
- HDMI and IR extension over a single RG6 or RG59 cable
- Extension up to 100 meters (328 feet)
- Control the source device from the display
- Locking BNC connectors
- 1080p compatible
- Compact design
- Power supplies and IR components are included
Technical Specifications
Transmitter I/O Connections
HDMI Input
One (1) HDMI Type A Receptacle
Coaxial connection
One (1) female BNC
Receiver I/O Connections
HDMI output
One (1) HDMI Type A Receptacle
Coaxial connection
One (1) female BNC
Supported Audio and Video
Maximum Coaxial distance
100 meters (328ft)
Maximum Passive HDMI Distance
5m (16 ft)
Deep Color Mode
36 bits (12 bits /color) bandwidth up to 225MHz
Supported Audio
48KHz LPCM Digital Audio
Video Compliance
HDMI 1.3, HDCP 1.1
Chassis and Environmental
Enclosure
Painted steel
Dimensions
80 mm x 41 mm x 25 mm (3.14 in x 1.61 in x 0.98 in)
Shipping Weight
0.54 kg (1.20lbs)
Operating Temperature
0° to +40° C (+32° to +104° F)
Operating Humidity
20% to 90%, Non-condensing
Storage Temperature
-20°C to +60° C (-4° to +140° F)
Storage Humidity
20% to 90%, Non-condensing
Power, ESD, and Regulatory
Power Supply Input Voltage
100-240v at 50/60 Hz at 0.15 A
Power Supply Output Rating
5v DC at 1 A
ESD Protection
15kV
Device Regulatory
CE, RoHS, FCC
Power Supply Regulatory
UL, FCC, LPS
Other
Warranty
2 years
Diagnostic Indicators
Power LED
Included Accessories
Installation guide, two power supplies, IR Tx cable, IR Rx cable
