DigitaLinx DL-HDCP-C | 1x1 HDCP 2.2 to 1.4 Converter

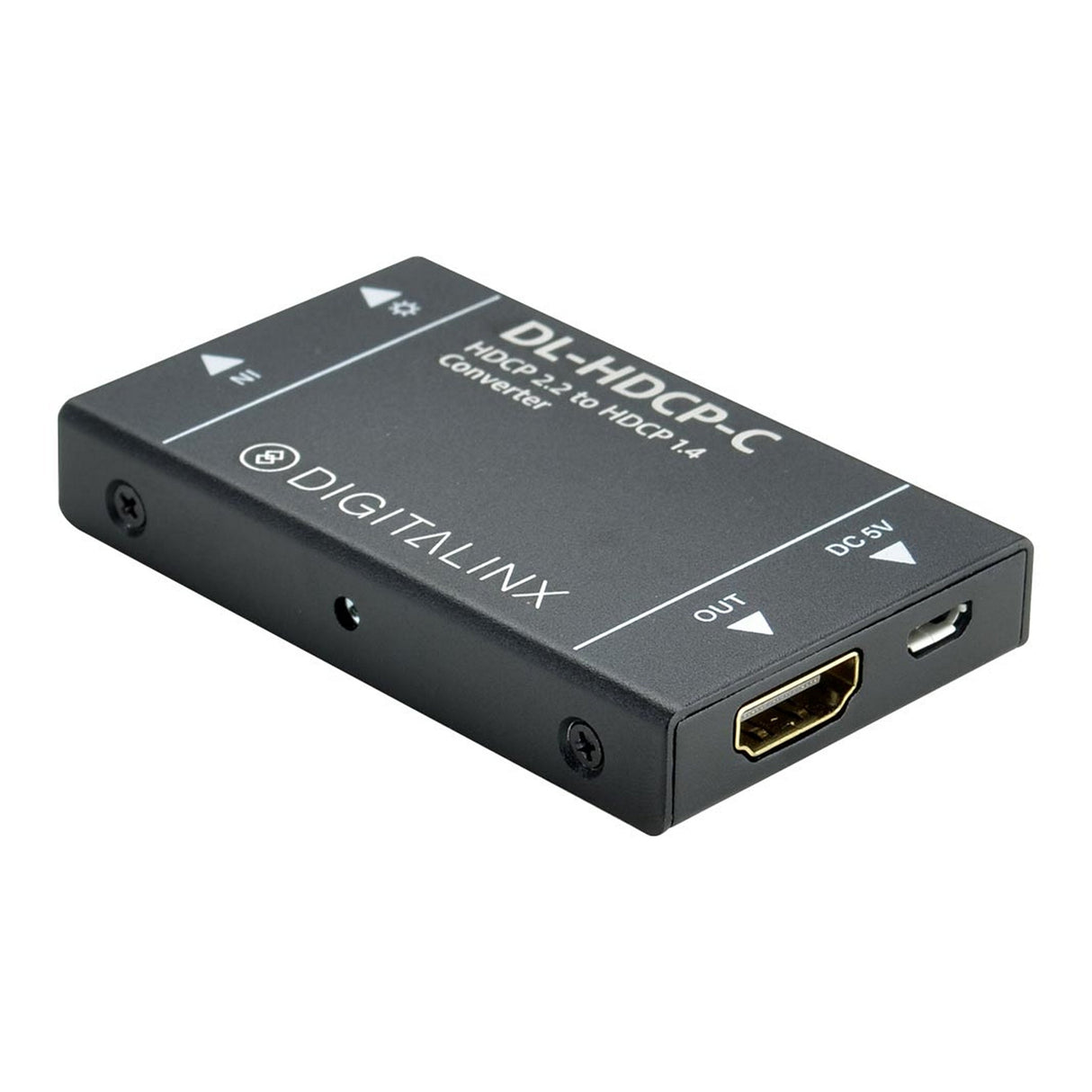

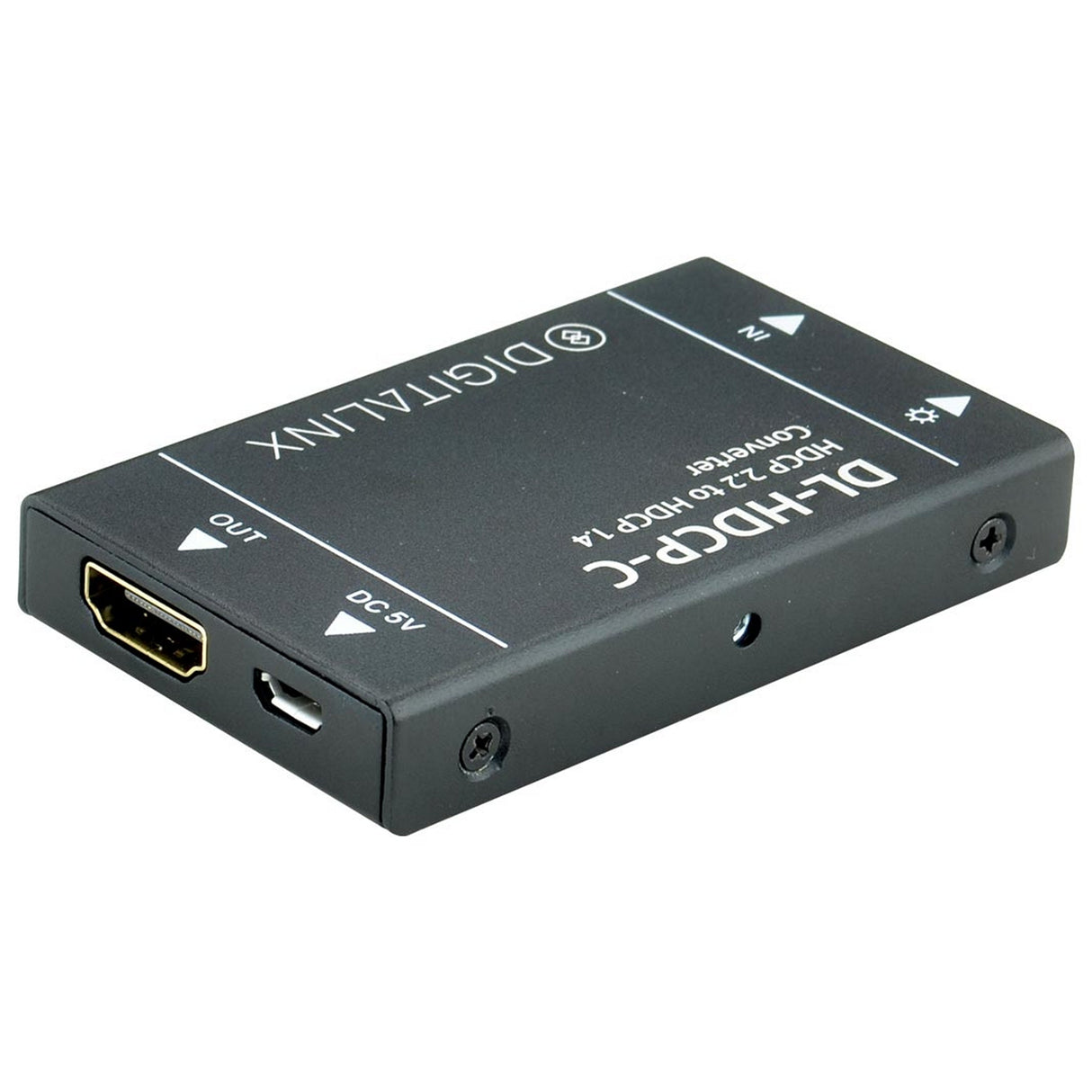

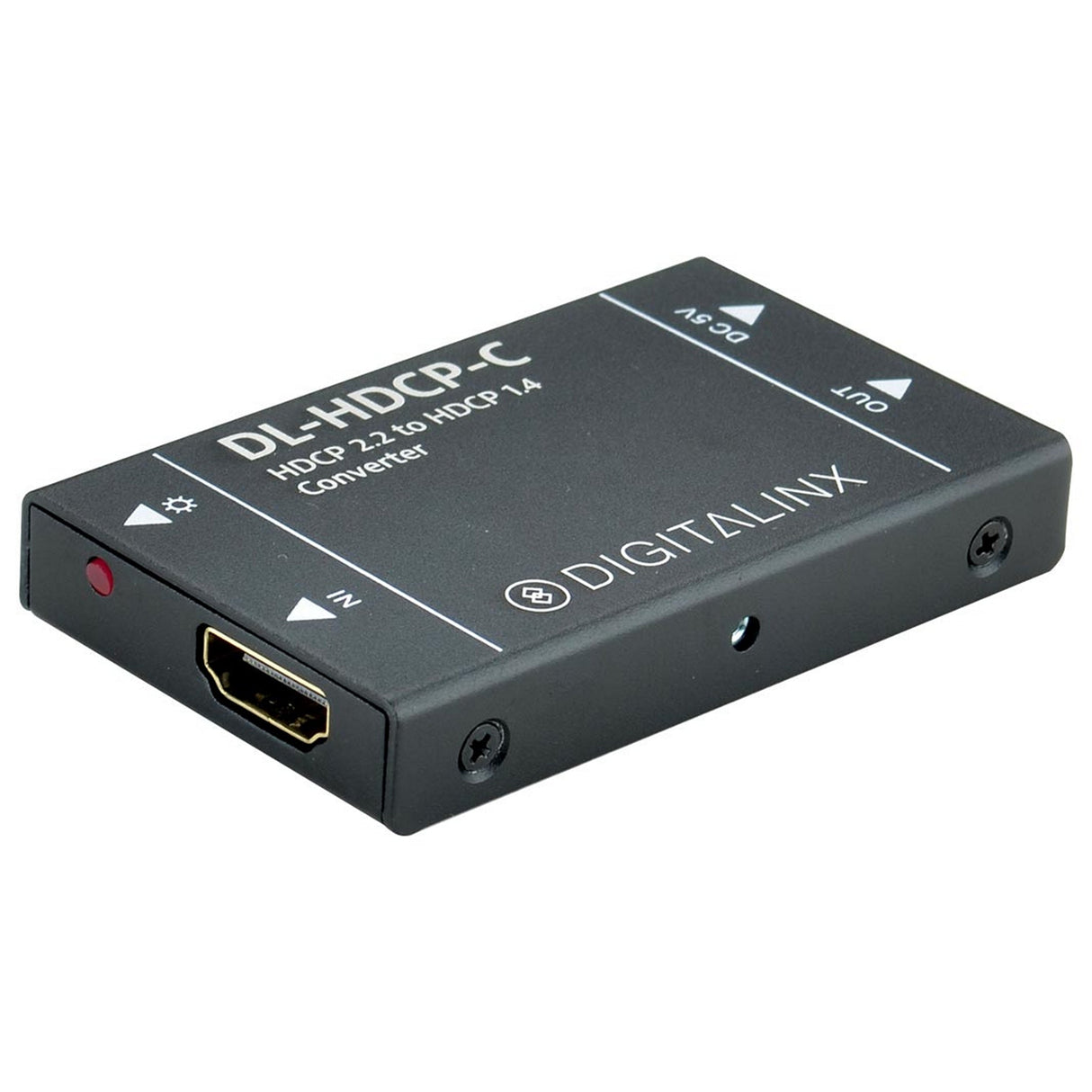

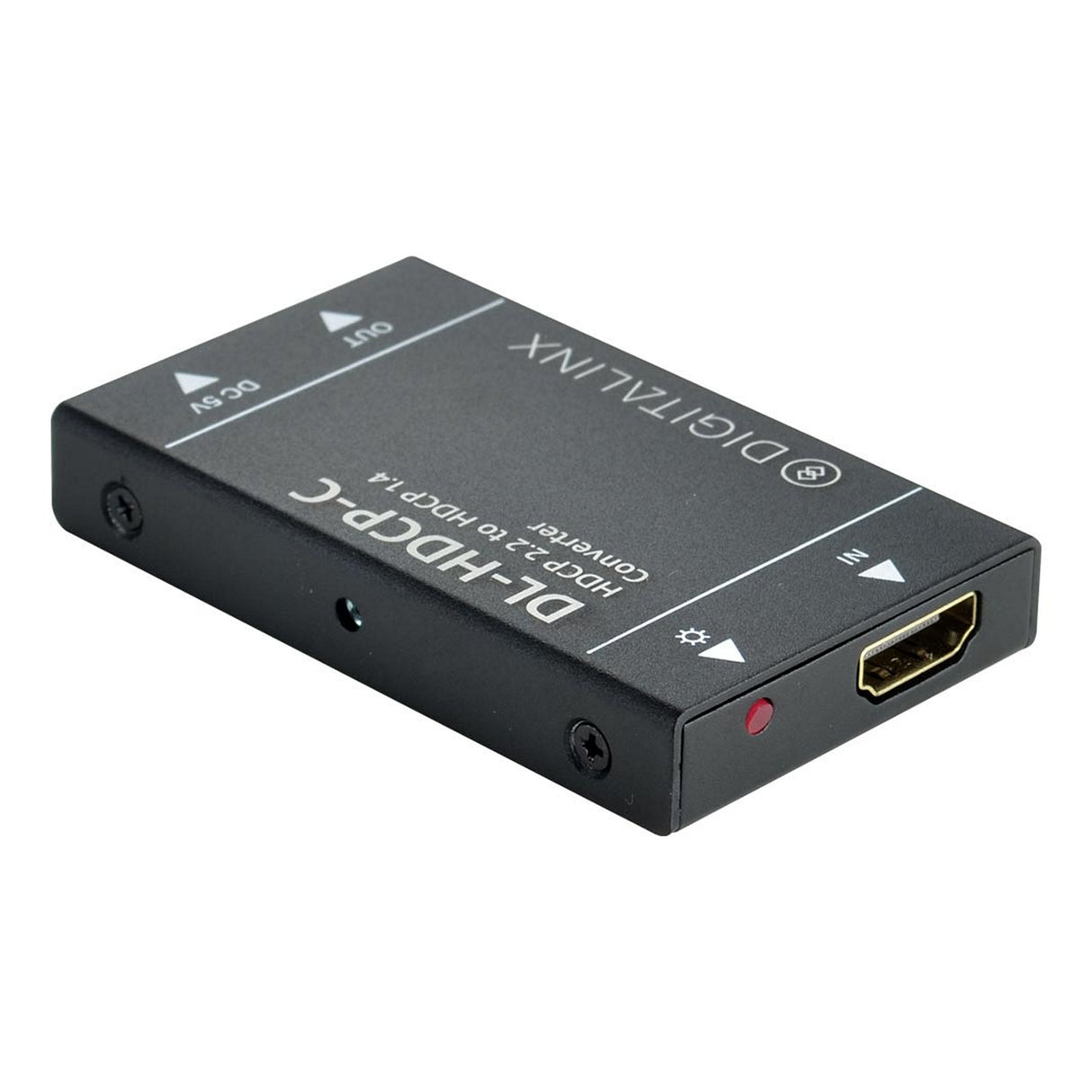

DigitaLinx DL-HDCP-C 1x1 HDCP 2.2 to 1.4 Converter

The DigitaLinx DL-HDCP-C is a 1x1 HDMI converter that features high-definition HDMI transmission and HDCP conversion. The DL-HDCP-C HDMI input supports HDMI 2.0 & HDCP 2.2 along with HDMI output support of HDMI 1.4 & HDCP 1.4. The DL-HDCP-C transmits signal up to 15m with a max resolution support of 4kx2k@60Hz. The EDID bypass feature ensures the best resolution for the application. The DL-HDCP-C is a Plug and Play device which allows for a hassle free install.

Key Features

• Converts HDCP 2.2 to HDCP 1.4 for integration into legacy systems
• HDMI input and HDMI output
• Compact design

Technical Specifications

Input Connections
Video Input
One (1) HDMI
Input Connector
19-pin Type A female HDMI
HDMI Standard
HDMI 1.4, HDMI 2.0 & HDCP 2.2
Output Connections
Outputs
One (1) HDMI
Output Connector
19-pin Type A female HDMI
HDMI Standard
HDMI 1.4 & HDCP 1.4
Video Performance
Video Resolution & Transmission Distance
Up to 1080p / 20m and 4Kx2K@60Hz / 15m
Bandwidth
18Gbps
Audio Format
PCM. Dolby Digital, DTS, DTS-HD, DTS-ES
Audio Sampling Rate
32k, 44.1k, 48k, 88.2k, 96k, 176.4k, 192k
EDID Management
Support pass-through EDID
Chassis and Environmental
Enclosure Dimensions (W x H x D)
45.5 mm x 12 mm x 75 mm (1.79 in x 0.47 in x 2.95 in)
Shipping Weight
(49g) 0.10lbs
Operating Temperature
0°C to + 50°C (+32° to + 122° F)
Storage Humidity
10% to 90%, Non-condensing
Power and Regulatory
Power Supply Input
100V-240VAC / 50-60 Hz
Power Supply Output
5VDC / 1 A
Power Consumption
0.5watts
Product Regulatory
FCC, CE
Other
Warranty
2 years
Diagnostic Indicator
Power
Included Accessories
(1) Power Supply, Installation Guide, (2) Mounting Ears, (2) Screws and (4) Plastic Cushions
