DigitaLinx DL-HDM-M-100M | 328 Ft Liberty 18G Active Optical HDMI

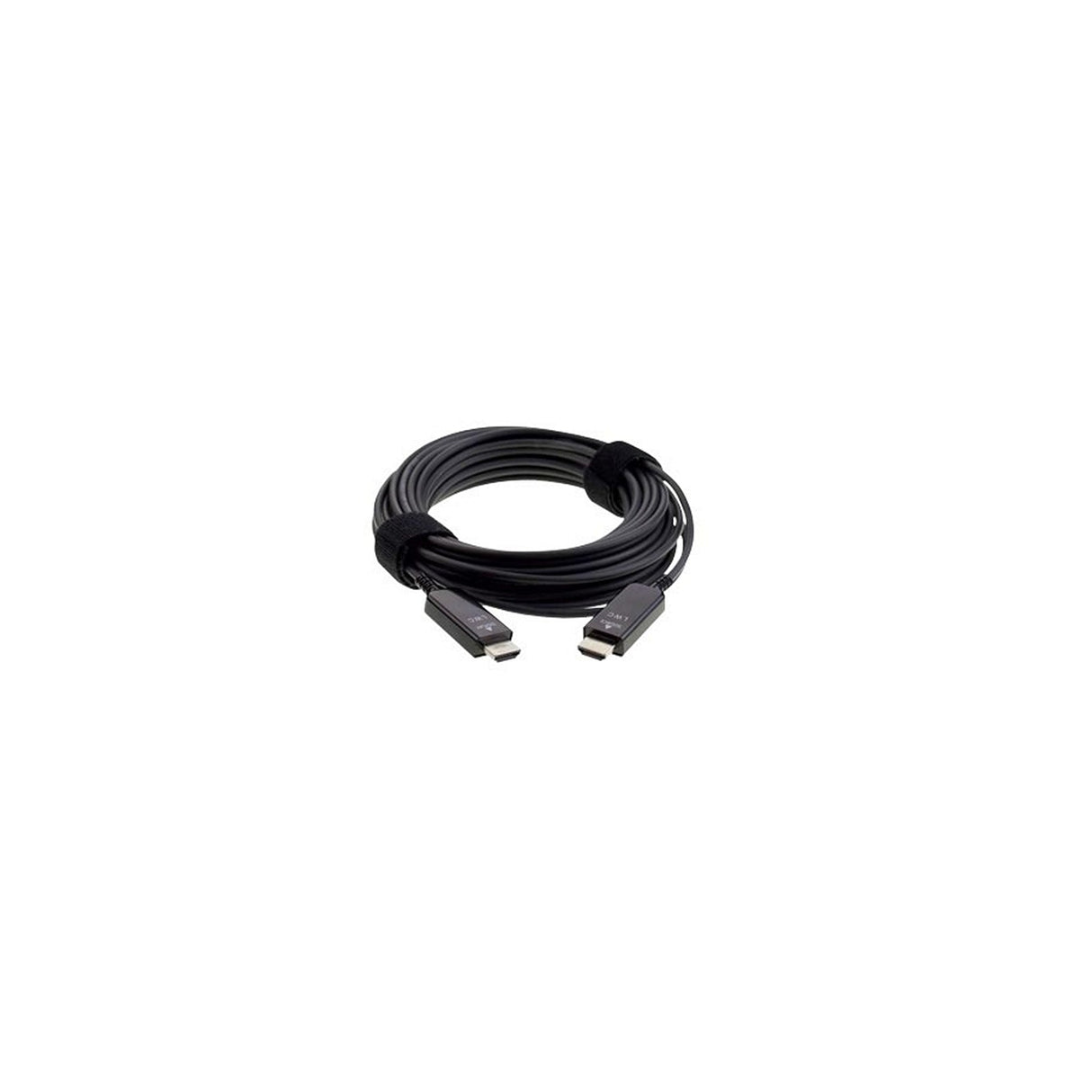

DigitaLinx DL-HDM-M-100M 328 Ft Liberty 18G Active Optical HDMI

Liberty’s DL?HDM?M Series are Active Optical Cables (AOC) featuring a unique hybrid construction and construction the industry has been waiting for. The cable strain relief is anchored into the connector housings to prevent inadvertent damage so common in other AOC cables. The DL?HDM?M series is the most efficient HDMI AOC design, featuring full 18G data rates, this cable will support 4K@60Hz 4:4:4 Chroma Sampling and High Dynamic Range applications.
The DL?HDM?M series is robustly constructed to wIt'stand installation and pulling strength. Featuring four fibers and seven copper wires in its unique hybrid construction and using standard fiber Kevlar® strength members, it is built to pull and keep on working. This cable supports all HDMI features except Ethernet. It'supports the Audio Return Channel (ARC).
This cable is available in lengths up to 100 meters, or 328 feet. The cable utilizes the power available on pin 18 of the HDMI receptacles from the attached source and sink devices. It is important to ensure adequate power is available. Use of passive patching solutions should be tested prior to pulling cables. These HDMI maximum cables feature UL ratings on the bulk cable for CMR?OF and Canadian CMG FT4, this is permissible for concealed installations per the requirements of the National Electric Code®. The product is Compliant to the requirements of the EU RoHS?2 2011/65/EU standard.

Key Features

• Unique patented Opto electronics delivers 18G without power
• HDMI "A" to HDMI "A" Male connectivity
• Small Flexible bulk cable
• Real Glass, no Plastic Optical Fiber
• Built to be installed, full strain relief for head pull
• Full HDMI 2.0b 18G, HDR, 4K60Hz 4:4:4, all Audio
• Does not support CEC, Audio Return or Ethernet
• CMR-OF rated for all non-plenum applications.
• Length: 328'

Technical Specifications

I/O Connections
HDMI: Male HDMI Type A connector
HDMI Supported Video, Audio and Ethernet
HDMI Maximum Video Compatibility: 4K@60Hz 4:4:4 up to 100m, HDR Support
Video Compliance: HDMI, HDCP, and CEC (Consumer Electronics Control)
Embedded Audio: Up to 32 Audio Channels and up to 1536 KHz Audio Sampling
Minimum Bandwidth: 18.0 Gbps
Ethernet: Not supported
Cable Construction
HDMI Connector Features: HDMI “A” Male
HDMI Hood Construction: Metal Shell for extreme durability and proper cable strain relief
HDMI Molded Hood Dimensions: 19.6x40x10.0mm with a 14mm strain relief
Jacket Material: Flexible Flame rated PVC with a black finish
Cable Construction: 4 Multimode OM2 equivalent fibers with 7 copper conductors
Overall Cable Size: 0.142” | 3.6mm
Minimum Bend Radius: 1.42” | 36mm
Maximum Tensile Load: 100Lbs | 45Kg
Environmental Requirements
Operating Temperature: 0° to +60° C (+32° to +140° F)
Operating Humidity: 20% to 85%, Non?condensing
Storage Temperature: 20° to +80° C (0° to +176° F
