DigitaLinx DL-HDV HDMI to VGA Converter
DigitaLinx DL-HDV HDMI to VGA Converter
DigitaLinx DL-HDV HDMI to VGA Converter

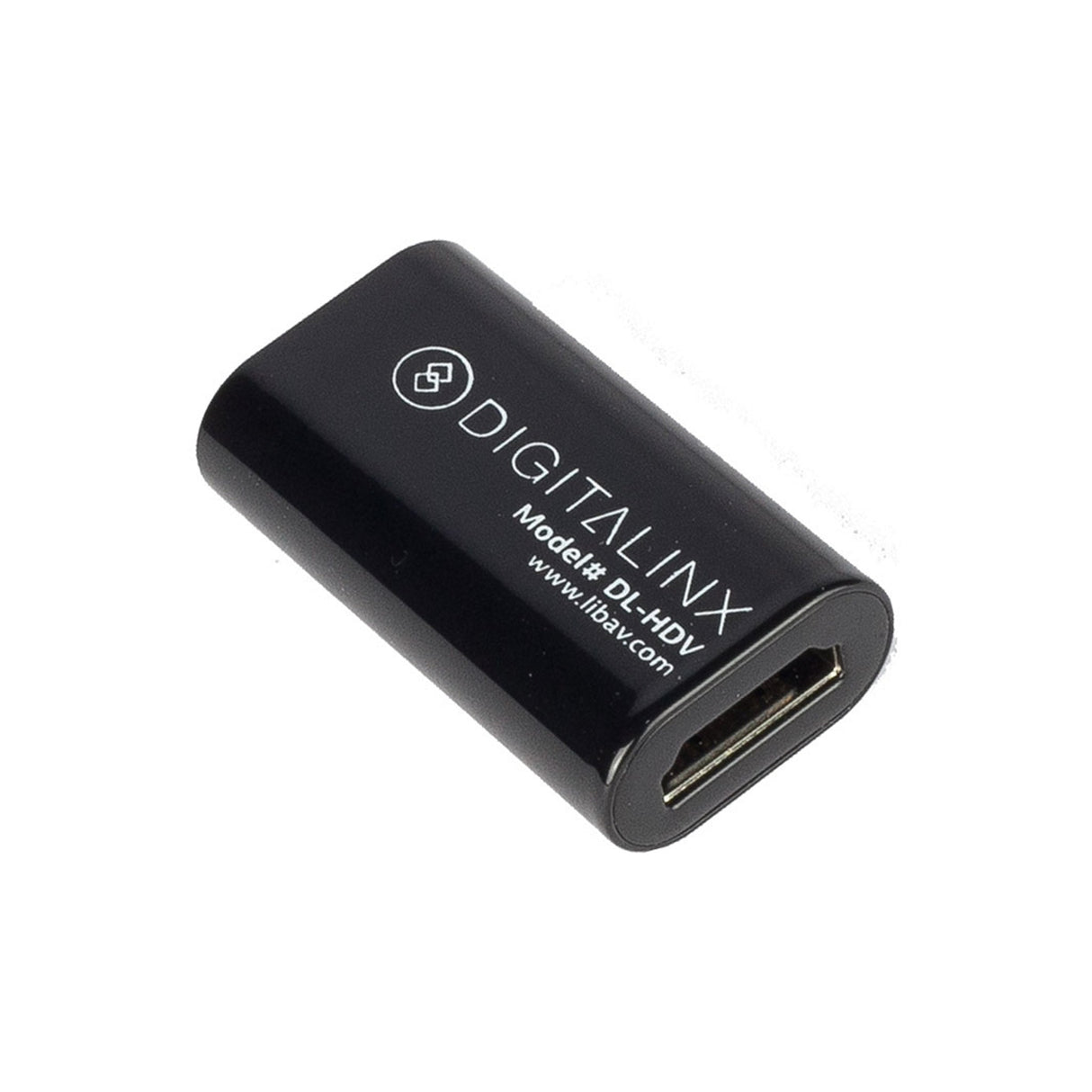

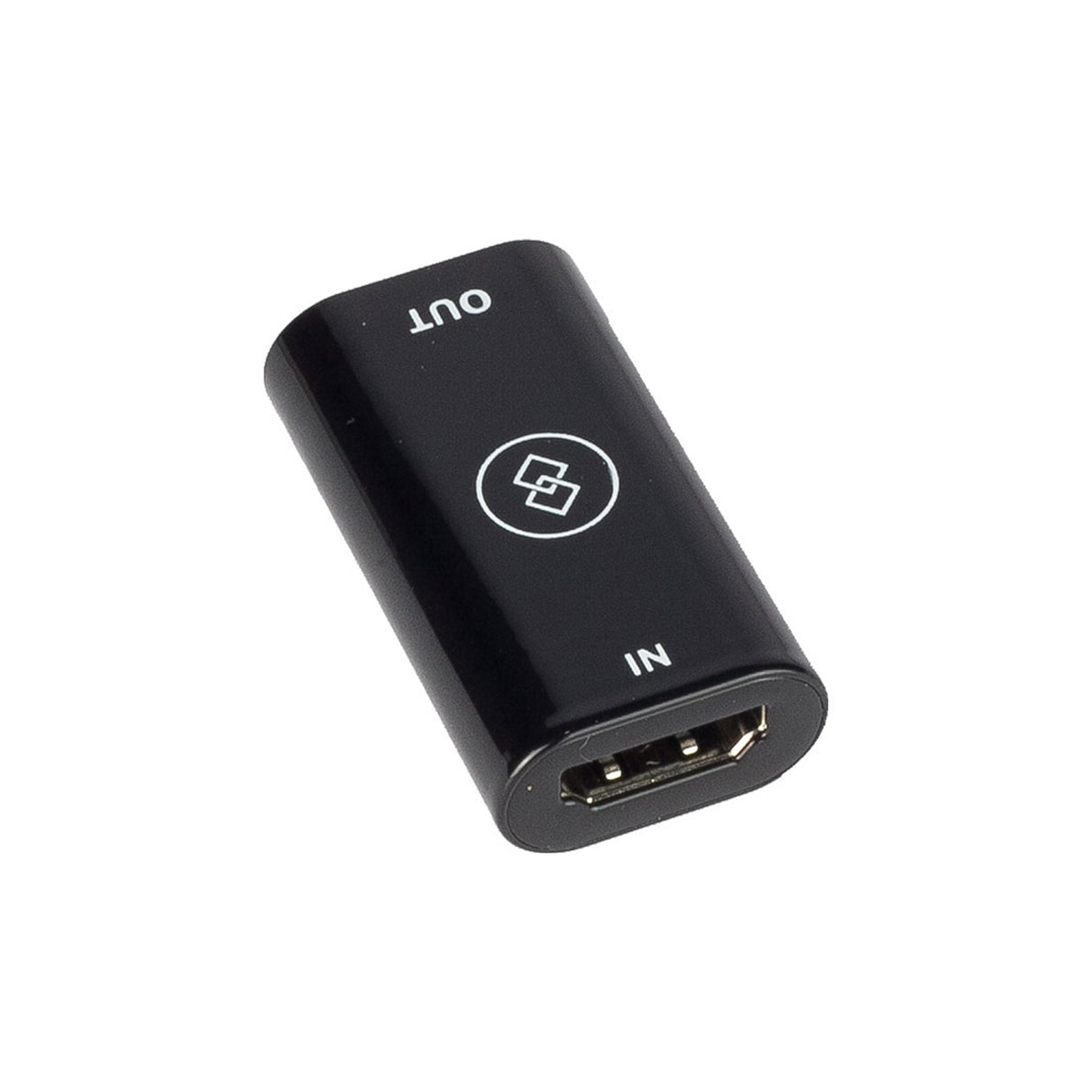

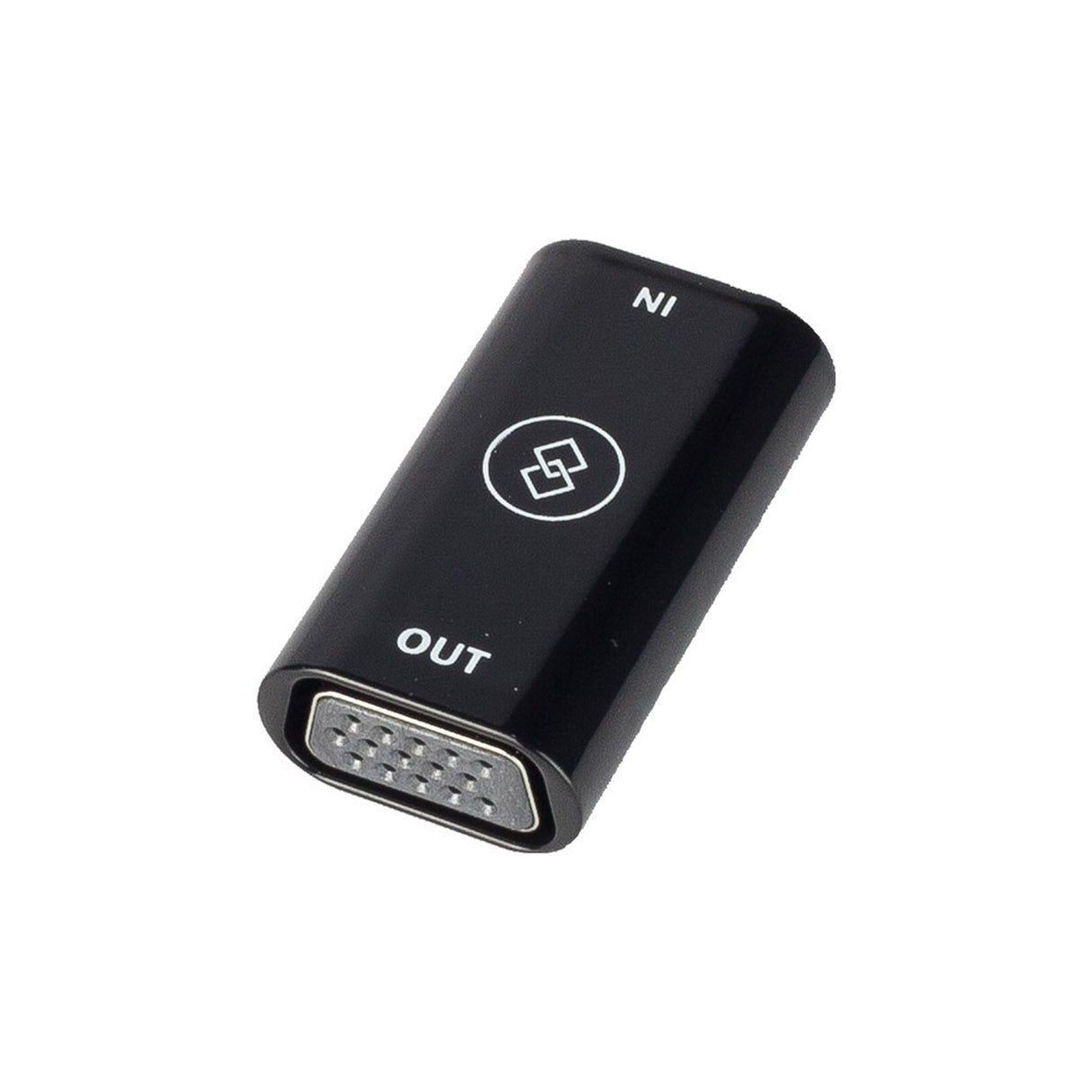

The DigitaLinx DL-HDV is an HDMI to VGA converter designed to connect digital video sources to an analog display or projector. The DL-HDV supports HDTV video resolutions up to 1080p and VESA video resolutions up to 1920x1200. Only non-encrypted signals will be converted and passed through the device to comply with HDCP specifications. Power for the converter is supplied by the VGA display; a secondary power supply is not required.
The small form factor and lack of external power sources make the DL-HDV an ideal accessory to carry with every mobile device with an HDMI output to prevent any issues connecting to legacy video systems.
Key Features
- Extremely small size; durable metal housing
- Maintains native resolution and aspect ratios
- Supports signals up to 1080p and 1920x1200
- No power required (powered from VGA 5v)
- No audio support
- Only non-encrypted signals will be converted
- Adapt older displays to new sources
- Handy for presenters to keep in laptop bag
Technical Specifications
I/O Connections
HDMI Input : One (1) HDMI Type A Receptacle Connector
VGA Output : One (1) Female HD15 Connector
Supported Video
HDTV Video Resolutions : 720p (1280x720), 1080p (1920x1080)
VESA Video Resolutions : 800x600, 1024x768, 1152x864, 1280x768, 1280x800, 1280x960, 1280x1024, 1360x768, 1366x768, 1400x1050, 1440x900, 1600x900, 1680x1050, 1920x1200
Maximum HDMI Distance : 3m (10 ft)
Maximum VGA Distance : 3m (10 ft)
Chassis and Environmental
Enclosure : Painted Zinc Alloy
Dimensions : 23 mm x 11.8 mm x 41.5 mm (0.90 in x 0.46 in x 1.63 in)
Shipping Weight : 57 g (0.126 lb)
Operating Temperature : 0Ā° to +40Ā° C (+32Ā° to +104Ā° F)
Operating Humidity : 20% to 90%, Non-condensing
Storage Temperature : -10Ā° to +60Ā° C (+14Ā° to +140Ā° F)
Storage Humidity : 20% to 90%, Non-condensing
Power, ESD, and Regulatory
Power Source : via 5V DC connection VGA device
Power Consumption : 5 watts (max)
ESD Protection : Ā±8kV (air-gap discharge), Ā±4KV (contact discharge)
Regulatory : FCC, CE, RoHS
Other
Warranty : 2 years
Included Accessories : None
