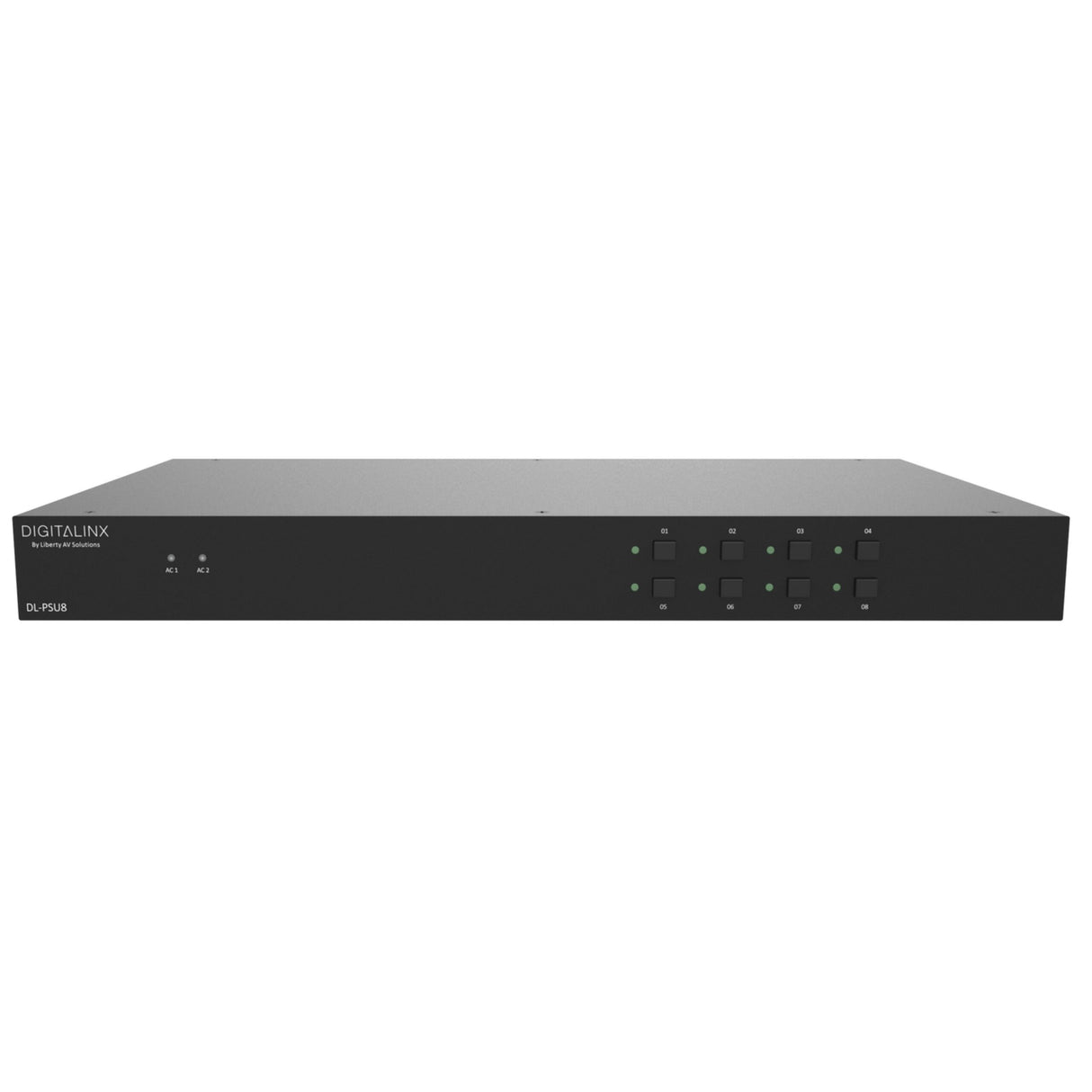

DigitaLinx DL-PSU8 Pro Series 8-Output Controllable/Selectable Voltage Rackmount Power Supply
The DL-PSU8 is an integrated switching power supply designed for converting AC into DC power. It provides 2 AC input channels and 8 DC output channels. Input voltage is 100~240VAC, output voltage is selectable per output channel; 5/12/18/24/48V DC. The max power consumption of a single DC channel is 12W when using the 5VDC setting and 15W when using the 12/18/24/48VDC settings. Voltage for each output channel can be adjusted and switched on/off via the front panel buttons, RS232 / IP commands or using the built in web GUI.
The DL-PSU8 can replace bulky power AC/DC power adapters and power strips with a universal power solution for DC powered AV, networking, security and IOT devices located in a rack system.
Key Features
- Selectable voltage per output
- TCP/IP & RS232 controllable
- Remote monitoring and control via IP
- Dual AC power inputs
- Max Output power per port 5V: 12W, 12/18/24/48V: 15W
- UL Listed
Technical Specifications
Inputs
Two (2) IEC 320 C13/C14 Male
Input Voltage
100~240VAC 50~60Hz
Outputs
Eight (8) 2-Pin terminal block
Output Voltage
5V, 12V, 18V, 24V or 48V; selectable.
Maximum output power consumption ofsignal channel
5V:12W
12/18/24/48V:15W
Control
Ethernet: 100BaseT
RS232: Baud Rate 9600bps
Enclosure
Painted Aluminum
Dimensions (H x W x D)
44mm x 435mm x 357mm / 1.7ā x 17.2ā x 14ā
Operating Temperature
0 to +50 C (+32 to +122 F)
Operating Humidity
10% to 90%, Non-condensing
Storage Temperature
-20 to +70 C ( -4 to +140 F)
Storage Humidity
10% to 90%, Non-condensing
Power Supply
100V-240VAC / 50-60 Hz
Power Consumption
178W (Max.)
Total DC Output Current
19.2A
Total DC Output Power
120W (Fully Loaded)
ESD Protection
8kV air, 4kV contact
Product Regulatory
FCC, CE, RoHS, UL
Standard Warranty
5 years
Included Accessories
(1) Quick Install Guide
(8) DC Power Cables (2-pin Terminal Block to DC)
(1) RS232 Cable (DB9 to 3-pin Terminal Block)
(2 each) US, UK, EU and AU Power Adapters
(2) Rack Mounting Brackets
(4) Plastic Cushions
